SAXSdb — 8jd1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Metabotropic glutamate receptor 2,Peptidyl-prolyl cis-trans isomerase FKBP1A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Metabotropic glutamate receptor 3,Serine/threonine-protein kinase mTOR × 1 （A0A8V8TRG9,Q14832） GLUTAMIC ACID × 2 CHOLESTEROL × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FKB1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 2； PDBConstruct 873–979； UniProt 2–108

Metabotropic glutamate receptor 2,Peptidyl-prolyl cis-trans isomerase FKBP1A

Homo sapiens

UniProt Q14416

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Metabotropic glutamate receptor 3,Serine/threonine-protein kinase mTOR × 1 （A0A8V8TRG9,Q14832） GLUTAMIC ACID × 2 CHOLESTEROL × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GRM2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 2； PDBConstruct 11–864； UniProt 19–872

Metabotropic glutamate receptor 3,Serine/threonine-protein kinase mTOR

Homo sapiens

UniProt A0A8V8TRG9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Metabotropic glutamate receptor 2,Peptidyl-prolyl cis-trans isomerase FKBP1A × 1 （P62942,Q14416） GLUTAMIC ACID × 2 CHOLESTEROL × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8V8TRG9_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain 3； PDBConstruct 897–991； UniProt 1949–2043

Metabotropic glutamate receptor 3,Serine/threonine-protein kinase mTOR

Homo sapiens

UniProt Q14832

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 2	Metabotropic glutamate receptor 2,Peptidyl-prolyl cis-trans isomerase FKBP1A × 1 （P62942,Q14416） GLUTAMIC ACID × 2 CHOLESTEROL × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GRM3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain 3； PDBConstruct 32–888； UniProt 23–879

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8jd1
Deposition date deposition_date	2023-05-12
Structure title title	Cryo-EM structure of mGlu2-mGlu3 heterodimer in Rco state
Keywords keywords	Complex structure, mGlu2-3 heterodimer, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8jd1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8jd1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

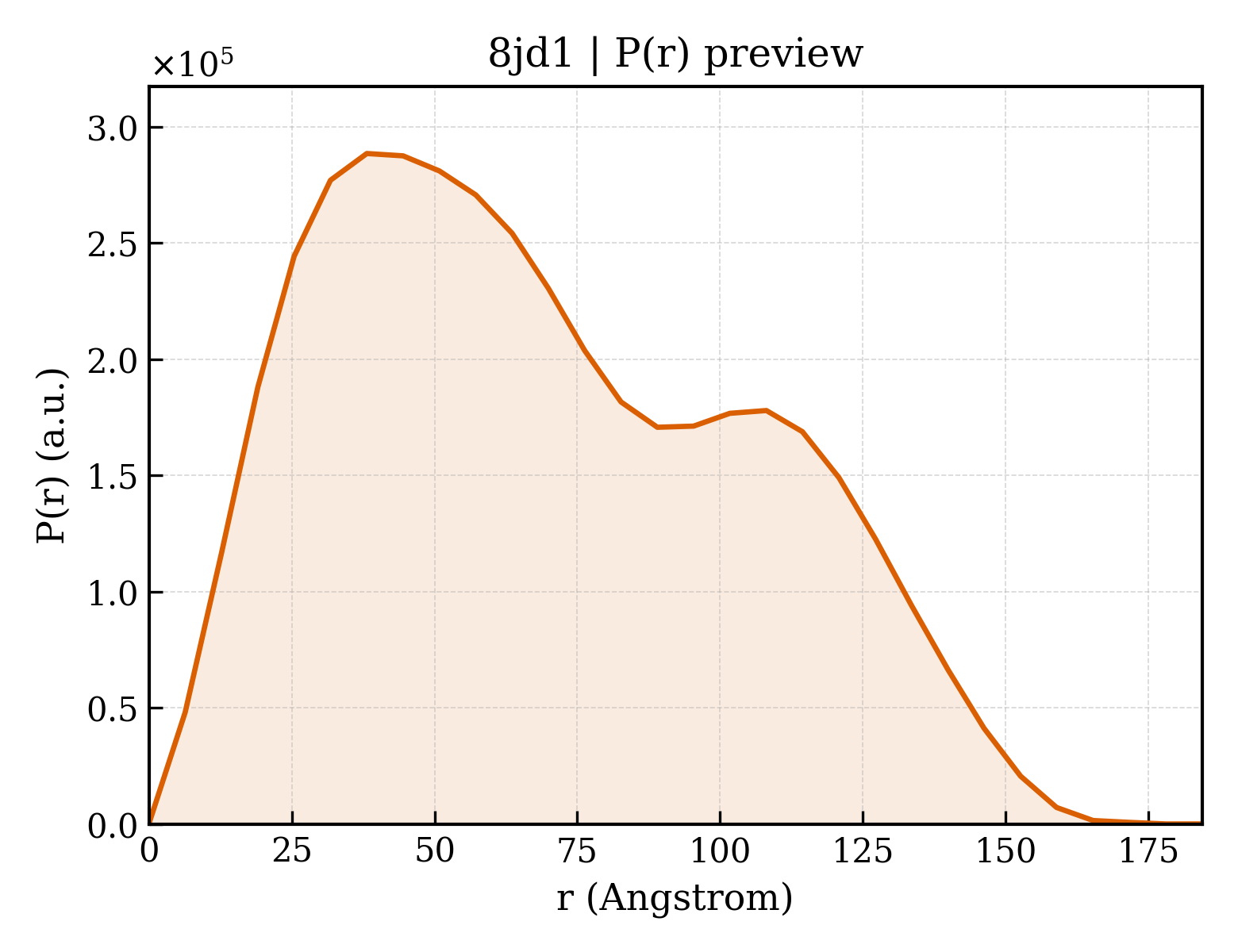

8jd1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	54.39 Å
Rg (electron density)	54.47 Å
Total Rg	54.34 Å
Atom count	10766
Residues	1506
Excluded volume	190370 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8jd1__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Metabotropic glutamate receptor 2,Peptidyl-prolyl cis-trans isomerase FKBP1A
Molecular weight formula_weight	109398.9 kDa
EC 编号 ec_number	5.2.1.8
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	2
Atom count atom_count	10766

DYKDDDDGAPEGPAKKVLTLEGDLVLGGLFPVHQKGGPAEDCGPVNEHRGIQRLEAMLFALDRINRDPHLLPGVRLGAHILDSCSKDTHALEQALDFVRASLSRGADGSRHICPDGSYATHGDAPTAITGVIGGSYSDVSIQVANLLRLFQIPQISYASTSAKLSDKSRYDYFARTVPPDFFQAKAMAEILRFFNWTYVSTVASEGDYGETGIEAFELEARARNICVATSEKVGRAMSRAAFEGVVRALLQKPSARVAVLFTRSEDARELLAASQRLNASFTWVASDGWGALESVVAGSEGAAEGAITIELASYPISDFASYFQSLDPWNNSRNPWFREFWEQRFRCSFRQRDCAAHSLRAVPFEQESKIMFVVNAVYAMAHALHNMHRALCPNTTRLCDAMRPVNGRRLYKDFVLNVKFDAPFRPADTHNEVRFDRFGDGIGRYNIFTYLRAGSGRYRYQKVGYWAEGLTLDTSLIPWASPSAGPLPASRCSEPCLQNEVKSVQPGEVCCWLCIPCQPYEYRLDEFTCADCGLGYWPNASLTGCFELPQEYIRWGDAWAVGPVTIACLGALATLFVLGVFVRHNATPVVKASGRELCYILLGGVFLCYCMTFIFIAKPSTAVCTLRRLGLGTAFSVCYSALLTKTNRIARIFGGAREGAQRPRFISPASQVAICLALISGQLLIVVAWLVVEAPGTGKETAPERREVVTLRCNHRDASMLGSLAYNVLLIALCTLYAFKTRKCPENFNEAKFIGFTMYTTCIIWLAFLPIFYVTSSDYRVQTTTMCVSVSLSGSVVLGCLFAPKLHIILFQPQKNVVSHRAPTSRFGSAAARASSSLGQGSGSQFVPTVCNGREVVDSTTSSLLEVLFQGPGVQVETISPGDGRTFPKRGQTCVVHYTGMLEDGKKFDSSRDRNKPFKFMLGKQEVIRGWEEGVAQMSVGQRAKLTISPDYAYGATGHPGIIPPHATLVFDVELLKLEFAAAHHHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	mammal environmental sample

Entity 2 Entity 2 polymer

Description description	Metabotropic glutamate receptor 3,Serine/threonine-protein kinase mTOR
Molecular weight formula_weight	112713.0 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	3

DYKDDDDKGAPWSHPQFEKGSGSWSHPQFEKLGDHNFLRREIKIEGDLVLGGLFPINEKGTGTEECGRINEDRGIQRLEAMLFAIDEINKDDYLLPGVKLGVHILDTCSRDTYALEQSLEFVRASLTKVDEAEYMCPDGSYAIQENIPLLIAGVIGGSYSSVSIQVANLLRLFQIPQISYASTSAKLSDKSRYDYFARTVPPDFYQAKAMAEILRFFNWTYVSTVASEGDYGETGIEAFEQEARLRNICIATAEKVGRSNIRKSYDSVIRELLQKPNARVVVLFMRSDDSRELIAAASRANASFTWVASDGWGAQESIIKGSEHVAYGAITLELASQPVRQFDRYFQSLNPYNNHRNPWFRDFWEQKFQCSLQNKRNHRRVCDKHLAIDSSNYEQESKIMFVVNAVYAMAHALHKMQRTLCPNTTKLCDAMKILDGKKLYKDYLLKINFTAPFNPNKDADSIVKFDTFGDGMGRYNVFNFQNVGGKYSYLKVGHWAETLSLDVNSIHWSRNSVPTSQCSDPCAPNEMKNMQPGDVCCWICIPCEPYEYLADEFTCMDCGSGQWPTADLTGCYDLPEDYIRWEDAWAIGPVTIACLGFMCTCMVVTVFIKHNNTPLVKASGRELCYILLFGVGLSYCMTFFFIAKPSPVICALRRLGLGSSFAICYSALLTKTNCIARIFDGVKNGAQRPKFISPSSQVFICLGLILVQIVMVSVWLILEAPGTRRYTLAEKRETVILKCNVKDSSMLISLTYDVILVILCTVYAFKTRKCPENFNEAKFIGFTMYTTCIIWLAFLPIFYVTSSDYRVQTTTMCISVSLSGFVVLGCLFAPKVHIILFQPQKNVVTHRLHLNRFSVSGTGTTYSQSSASTYVPTVCNGREVLDSTTSSLLEVLFQGPAILWHEMWHEGLEEASRLYFGERNVKGMFEVLEPLHAMMERGPQTLKETSFNQAYGRDLMEAQEWCRKYMKSGNVKDLTQAWDLYYHVFRRISKQEF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	mammal environmental sample

Entity 3 Entity 3 non-polymer

Description description	GLUTAMIC ACID
Molecular weight formula_weight	147.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	7

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.70 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	252188

Cryo-EM structure of mGlu2-mGlu3 heterodimer in Rco state
