SAXSdb — 7nms

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Internalin B

Listeria monocytogenes serovar 1/2a (strain ATCC BAA-679 / EGD-e)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 36–392	Mutation：T332E	SO4 SULFATE ION × 3 GOL GLYCEROL × 2 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；Reservoir solution: 0.1 M succinate, pH 7.0, 0.2 M Li2SO4, 22.5 % PEG mixture consisting of equal amounts of eight low molecular weight PEGs (PEG 300, PEG 400, PEG 500MME, PEG 550MME, PEG 600, PEG 750MME, PEG 1,000, PEG 1,000MME); Protein solution: 10 mg/ml in 10 mM Tris, pH 8.0, 20 mM NaCl; Drop size: 100 nl + 100 nl (protein + reservoir)	Resolution 1.80 Å R-free 0.217

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7NMS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7PV8 InlB392_T332E: T332E variant of Listeria monocytogenes InlB (internalin B) residues 36-392 Deposited 2021-10-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–392（357 aa）	Mutation：T332E	EDO 1,2-ETHANEDIOL × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；Reservoir solution (Morpheus screen (Molecular Dimensions) condition G2): 0.1 M (imidazole / MES), pH 6.5; 20 % v/v ethylene glycol; 10 % w/v PEG 8,000; 0.02 M sodium formate; 0.02 M ammonium acetate; 0.02 M sodium citrate tribasic dehydrate; 0.02 M sodium potassium tartrate tetrahydrate; 0.02 M sodium oxamate; Protein solution: 10 mg/ml in 10 mM Tris, pH 8.0, 20 mM NaCl; Drop size: 100 nl + 100 nl (protein + reservoir)	Resolution 2.05 Å R-free 0.229
7PV9 Listeria monocytogene InlB (internalin B) residues 36-392 (internalin domain and B-repeat) Deposited 2021-10-01	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–392（357 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；Reservoir solution (Morpheus screen (Molecular Dimensions) condition E6): 0.1 M (HEPES sodium salt / MOPS acid), pH 7.5, 20 % v/v ethylene glycol, 10 % w/v PEG 8,000, 0.03 M diethylene glycol, 0.03 M triethylene-glycol, 0.03 M tetraethylene glycol, 0.03 M pentaethylene glycol; Protein solution: 10 mg/ml in 10 mM Tris, pH 8.0, 20 mM NaCl; Drop size: 100 nl + 100 nl (protein + reservoir)	Resolution 3.30 Å R-free 0.272
7PV9 Listeria monocytogene InlB (internalin B) residues 36-392 (internalin domain and B-repeat) Deposited 2021-10-01	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 36–392（357 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；Reservoir solution (Morpheus screen (Molecular Dimensions) condition E6): 0.1 M (HEPES sodium salt / MOPS acid), pH 7.5, 20 % v/v ethylene glycol, 10 % w/v PEG 8,000, 0.03 M diethylene glycol, 0.03 M triethylene-glycol, 0.03 M tetraethylene glycol, 0.03 M pentaethylene glycol; Protein solution: 10 mg/ml in 10 mM Tris, pH 8.0, 20 mM NaCl; Drop size: 100 nl + 100 nl (protein + reservoir)	Resolution 3.30 Å R-free 0.272
7PV9 Listeria monocytogene InlB (internalin B) residues 36-392 (internalin domain and B-repeat) Deposited 2021-10-01	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 36–392（357 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；Reservoir solution (Morpheus screen (Molecular Dimensions) condition E6): 0.1 M (HEPES sodium salt / MOPS acid), pH 7.5, 20 % v/v ethylene glycol, 10 % w/v PEG 8,000, 0.03 M diethylene glycol, 0.03 M triethylene-glycol, 0.03 M tetraethylene glycol, 0.03 M pentaethylene glycol; Protein solution: 10 mg/ml in 10 mM Tris, pH 8.0, 20 mM NaCl; Drop size: 100 nl + 100 nl (protein + reservoir)	Resolution 3.30 Å R-free 0.272
8QP7 Crystal structure of Hepatitis C Virus E2 glycoprotein epitopeI 411-424 scaffold design 4CIL_04 Deposited 2023-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 84–321（238 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；293 K；25% (w/v) PEG 1500, 100 mM MMT buffer pH 9.0	Resolution 2.05 Å R-free 0.262
9QR4 InlB392_T336Y: T336Y variant of Listeria monocytogenes InlB (internalin B) residues 36-392 Deposited 2025-04-03	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–392（357 aa）	Mutation：T336Y	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；Reservoir solution: MORPHEUS Screen, Condition F3: 0.1 M mixture of imidazole and MES (acid) pH 6.5, 10% PEG4000, 20% glycerol, 0.02 M of each monosaccaharide: D-glucose, D-mannose, D-galactose, L-fucose, D-xylose, N-acetyl-D-glucosamine. Protein buffer: 10 mM Tris pH 8.0, 20 mM NaCl. Protein concentration: 10 mg/ml. Drop size: 1 ul protein + 1 ul reservoir.	Resolution 1.60 Å R-free 0.196
9QR4 InlB392_T336Y: T336Y variant of Listeria monocytogenes InlB (internalin B) residues 36-392 Deposited 2025-04-03	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 36–392（357 aa）	Mutation：T336Y	GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；Reservoir solution: MORPHEUS Screen, Condition F3: 0.1 M mixture of imidazole and MES (acid) pH 6.5, 10% PEG4000, 20% glycerol, 0.02 M of each monosaccaharide: D-glucose, D-mannose, D-galactose, L-fucose, D-xylose, N-acetyl-D-glucosamine. Protein buffer: 10 mM Tris pH 8.0, 20 mM NaCl. Protein concentration: 10 mg/ml. Drop size: 1 ul protein + 1 ul reservoir.	Resolution 1.60 Å R-free 0.196
9QR4 InlB392_T336Y: T336Y variant of Listeria monocytogenes InlB (internalin B) residues 36-392 Deposited 2025-04-03	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 36–392（357 aa）	Mutation：T336Y	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；Reservoir solution: MORPHEUS Screen, Condition F3: 0.1 M mixture of imidazole and MES (acid) pH 6.5, 10% PEG4000, 20% glycerol, 0.02 M of each monosaccaharide: D-glucose, D-mannose, D-galactose, L-fucose, D-xylose, N-acetyl-D-glucosamine. Protein buffer: 10 mM Tris pH 8.0, 20 mM NaCl. Protein concentration: 10 mg/ml. Drop size: 1 ul protein + 1 ul reservoir.	Resolution 1.60 Å R-free 0.196
9QR5 InlB392_V333E: V333E variant of Listeria monocytogenes InlB (internalin B) residues 36-392 Deposited 2025-04-03	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–392（357 aa）	Mutation：V333E	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；Reservoir solution: PEG Smear Screen Medium Molecular Weight, Condition E1: 0.1 M HEPES pH 7.5, 22.5% PEG medium molecular weight (MMW) mixture consisting of PEG1500, PEG2000, PEG2000MME, PEG3000, PEG3350, PEG4000, PEG5000MME. Protein Buffer: 10 mM Tris pH 8.0, 20 mM NaCl. Drop size: 200 nl protein + 100 nl reservoir.	Resolution 1.45 Å R-free 0.179

5 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INLB_LISMO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–362； UniProt 36–392

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7nms
Deposition date deposition_date	2021-02-23
Structure title title	InlB392_T332E: T332E variant of Listeria monocytogenes InlB (internalin B) residues 36-392
Keywords keywords	LEUCINE RICH REPEAT, PROTEIN BINDING, PATHOGENICITY, VIRULENCE FACTOR, CELL INVASION; CELL INVASION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.83 Å
Radius of gyration Rg (electron density) rg_electron	30.86 Å
Forward intensity I(0) i0	25800000.00
Molecular weight molecular_weight	40566.0 kDa
Excluded volume excluded_volume	51218 Å³
Envelope volume envelope_volume	68364 Å³
Hydration-shell volume shell_volume	20471 Å³
Envelope diameter envelope_diameter	107.7 Å
Shell Rg shell_rg	33.97 Å
Envelope Rg envelope_rg	31.01 Å
Shape Rg shape_rg	30.90 Å
Total Rg total_rg	31.06 Å
Total atoms total_atoms	5743
Residues n_residues	357
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	99.9 Å
Rg (real space) rg_real	31.19 Å
Rg uncertainty (real space) rg_real_error	0.98 Å
I(0) (real space) i0_real	2.5800e+07
I(0) uncertainty (real space) i0_real_error	3.9980e+05
Rg (reciprocal space) rg_reciprocal	31.04 Å
I(0) (reciprocal space) i0_reciprocal	25800000.0000
Solution quality estimate total_estimate	0.5439
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.6 Å
Skewness Skewness skewness	0.447
Kurtosis Kurtosis kurtosis	-0.615
Angular range angular_range	— – 0.2550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3579000.0000
Real-space data points n_real_points	52
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.738; Stabil: 0.997; Sysdev: 0.040; Positv: 1.000; Valcen: 0.428; Smooth: 0.314

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Internalin B
Molecular weight formula_weight	40449.8 kDa
Mutation mutation	T332E
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6134

GPLGSETITVPTPIKQIFSDDAFAETIKDNLKKKSVTDAVTQNELNSIDQIIANNSDIKSVQGIQYLPNVTKLFLNGNKLTDIKPLANLKNLGWLFLDENKVKDLSSLKDLKKLKSLSLEHNGISDINGLVHLPQLESLYLGNNKITDITVLSRLTKLDTLSLEDNQISDIVPLAGLTKLQNLYLSKNHISDLRALAGLKNLDVLELFSQECLNKPINHQSNLVVPNTVKNTDGSLVTPEIISDDGDYEKPNVKWHLPEFTNEVSFIFYQPVTIGKAKARFHGRVTQPLKEVYTVSYDVDGEVIKTKVEAGTRITAPKPPTKQGYVFKGWYTEKNGGHEWNFNTDYMSGNDFTLYAVFKAET

来源 Source

来源生物 organism	Listeria monocytogenes serovar 1/2a (strain ATCC BAA-679 / EGD-e)
NCBI Class编号 ncbi_taxonomy_id	169963
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	329

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	7nmsA01
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

Domain ID domain_id	7nmsA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1220 —

Domain ID domain_id	7nmsA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	4270 — Listeria-Bacteroides repeat domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	43.410 Å
Unit-cell length b length_b	88.730 Å
Unit-cell length c length_c	102.020 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	26.770 Å
R factor r_factor	0.1736
R_work r_work	0.1713
R_free r_free	0.2175

fit	/app/data/saxs_computation/nm/7nms/7nms.fit
pddf	/app/data/pr_computation/nm/7nms/7nms.pr.out
profile	/app/data/saxs_computation/nm/7nms/7nms.dat

InlB392_T332E: T332E variant of Listeria monocytogenes InlB (internalin B) residues 36-392

1. Protein Identity and Related Structures Protein Identity & Related Structures

Internalin B

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

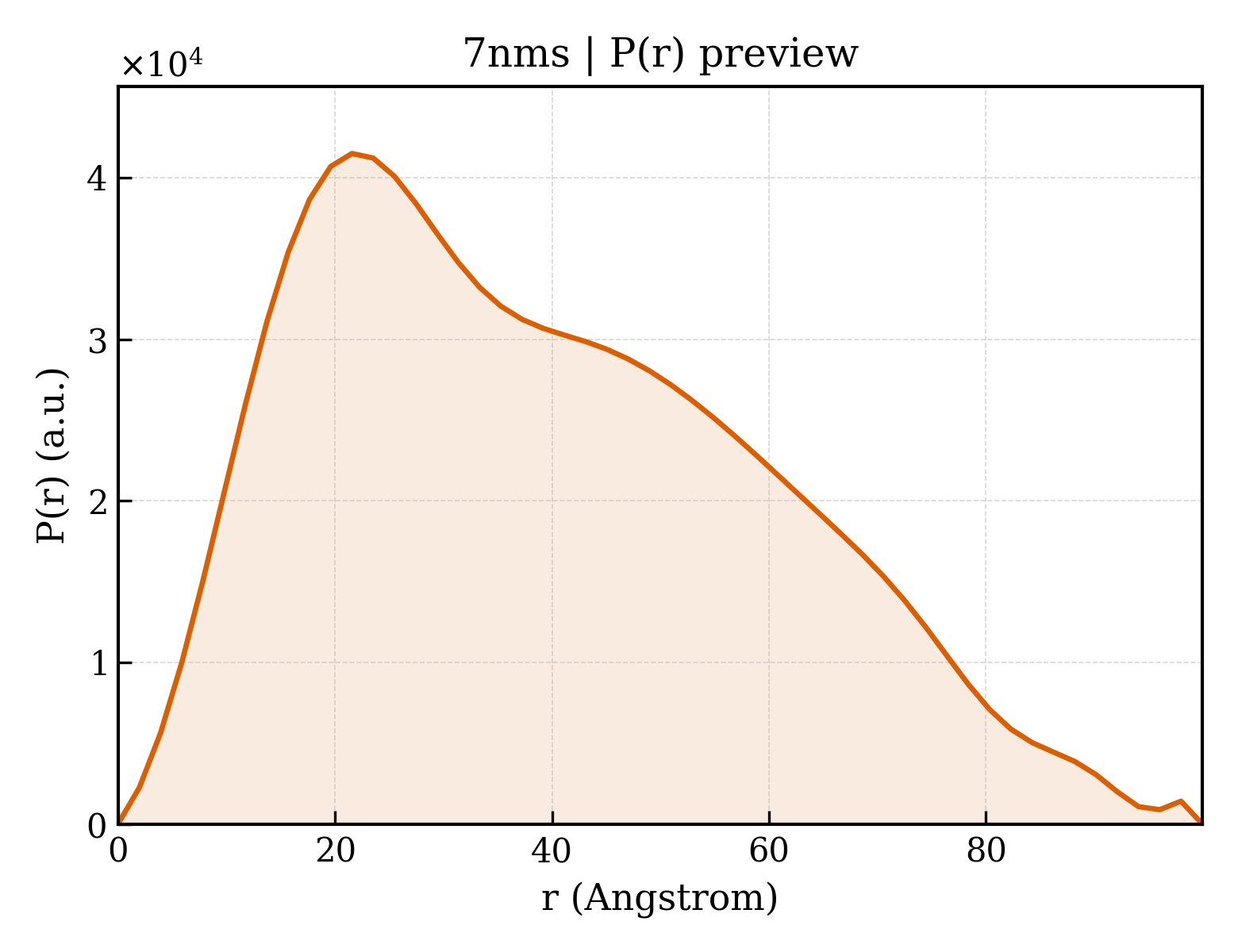

P(r) Distance Distribution P(r) Distribution
