SAXSdb — 7nzc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase SH3RF1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain AAA； UniProt 135–194	Not recorded	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 8；293 K；0.2 M NaF, 22% PEG 3350	Resolution 1.11 Å R-free 0.177

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7NZC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7NZD Fourth SH3 domain of POSH (Plenty of SH3 Domains protein) Deposited 2021-03-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain AAA 829–888（60 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；293 K；0.1M MES pH 6.5, 23% PEG 4000	Resolution 1.45 Å R-free 0.228
9RFB Crystal Structure of Human Rac1 in Complex with the Scaffold Protein POSH (residues 321-348) Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 321–348（28 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.05 M phosphate, 20% (w/v) PEG 8000. RAC1 6 mg/mL , GMPPNP 1mM, POSH 3 mM	Resolution 1.85 Å R-free 0.226
9RFB Crystal Structure of Human Rac1 in Complex with the Scaffold Protein POSH (residues 321-348) Deposited 2025-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 321–348（28 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 PO4 PHOSPHATE ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；0.05 M phosphate, 20% (w/v) PEG 8000. RAC1 6 mg/mL , GMPPNP 1mM, POSH 3 mM	Resolution 1.85 Å R-free 0.226
9RFF Crystal Structure of Human Rac1 Fused with the Scaffold Protein POSH (residues 319-371) Deposited 2025-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 319–371（53 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；0.12 M ethylene glycol, 0.1 M imidazole-MES pH 6.5, 37% (v/v) 2-methyl-2,4-pentanediol (MPD)-PEG 1000-PEG 3500 2 mg/mL Rac1-POSH	Resolution 1.25 Å R-free 0.164

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SH3R1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain AAA； PDBConstruct 4–63； UniProt 135–194

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7nzc
Deposition date deposition_date	2021-03-23
Structure title title	First SH3 domain of POSH (Plenty of SH3 Domains protein)
Keywords keywords	MAP-kinase scaffold activity ubiquitin protein ligase activity, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.55 Å
Radius of gyration Rg (electron density) rg_electron	11.11 Å
Forward intensity I(0) i0	1161550.00
Molecular weight molecular_weight	7314.0 kDa
Excluded volume excluded_volume	9252 Å³
Envelope volume envelope_volume	10176 Å³
Hydration-shell volume shell_volume	8093 Å³
Envelope diameter envelope_diameter	42.9 Å
Shell Rg shell_rg	16.41 Å
Envelope Rg envelope_rg	11.66 Å
Shape Rg shape_rg	11.02 Å
Total Rg total_rg	12.80 Å
Total atoms total_atoms	517
Residues n_residues	61
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	44.7 Å
Rg (real space) rg_real	12.50 Å
Rg uncertainty (real space) rg_real_error	0.26 Å
I(0) (real space) i0_real	1.1620e+06
I(0) uncertainty (real space) i0_real_error	1.1710e+04
Rg (reciprocal space) rg_reciprocal	12.50 Å
I(0) (reciprocal space) i0_reciprocal	1162000.0000
Solution quality estimate total_estimate	0.8374
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	16.4 Å
Skewness Skewness skewness	0.220
Kurtosis Kurtosis kurtosis	-0.096
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	224900.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.635; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.988

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	E3 ubiquitin-protein ligase SH3RF1
Molecular weight formula_weight	7299.4 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	AAA
Atom count atom_count	684

GRRQLPCAKALYNYEGKEPGDLKFSKGDIIILRRQVDENWYHGEVNGIHGFFPTNFVQIIKPL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	138

▶

8. Citations (1)

▶

Unit-cell length a length_a	35.962 Å
Unit-cell length b length_b	35.962 Å
Unit-cell length c length_c	181.333 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	1.111 Å
Low-resolution limit resolution_low	30.694 Å
R factor r_factor	—
R_work r_work	0.1468
R_free r_free	0.1775

fit	/app/data/saxs_computation/nz/7nzc/7nzc.fit
pddf	/app/data/pr_computation/nz/7nzc/7nzc.pr.out
profile	/app/data/saxs_computation/nz/7nzc/7nzc.dat

First SH3 domain of POSH (Plenty of SH3 Domains protein)

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase SH3RF1

State in the Current Structure

Other States of the Same Protein in the Database

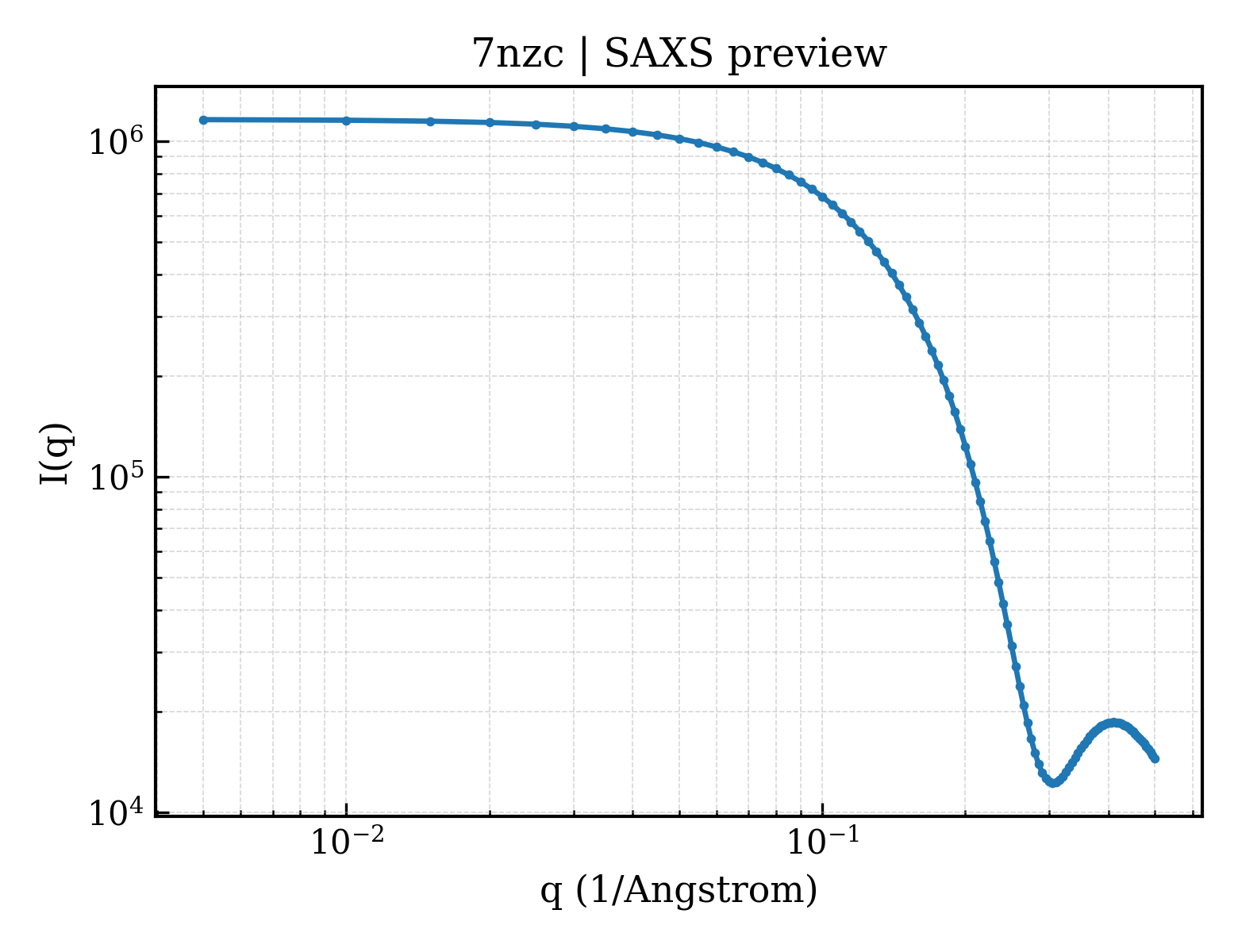

SAXS scattering curve SAXS Profile
