1. Protein Identity and Related Structures Protein Identity & Related Structures

Carboxysome assembly protein CcmM

Synechococcus elongatus (strain PCC 7942 / FACHB-805)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Carbonic anhydrase × 3 （P27134） NICKEL (II) ION × 3 CHLORIDE ION × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCMM_SYNE7
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–181； UniProt 1–181

Carbonic anhydrase

Synechococcus elongatus (strain PCC 7942 / FACHB-805)

UniProt P27134

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Carboxysome assembly protein CcmM × 3 （Q03513） NICKEL (II) ION × 3 CHLORIDE ION × 3 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYNT_SYNE7
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–17； UniProt 256–272

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7o54
Deposition date deposition_date	2021-04-07
Structure title title	Crystal structure of the carbonic anhydrase-like domain of CcmM in complex with the C-terminal 17 residues of CcaA from Synechococcus elongatus (strain PCC 7942)
Keywords keywords	protein binding carboxysome, PHOTOSYNTHESIS; PHOTOSYNTHESIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7o54__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

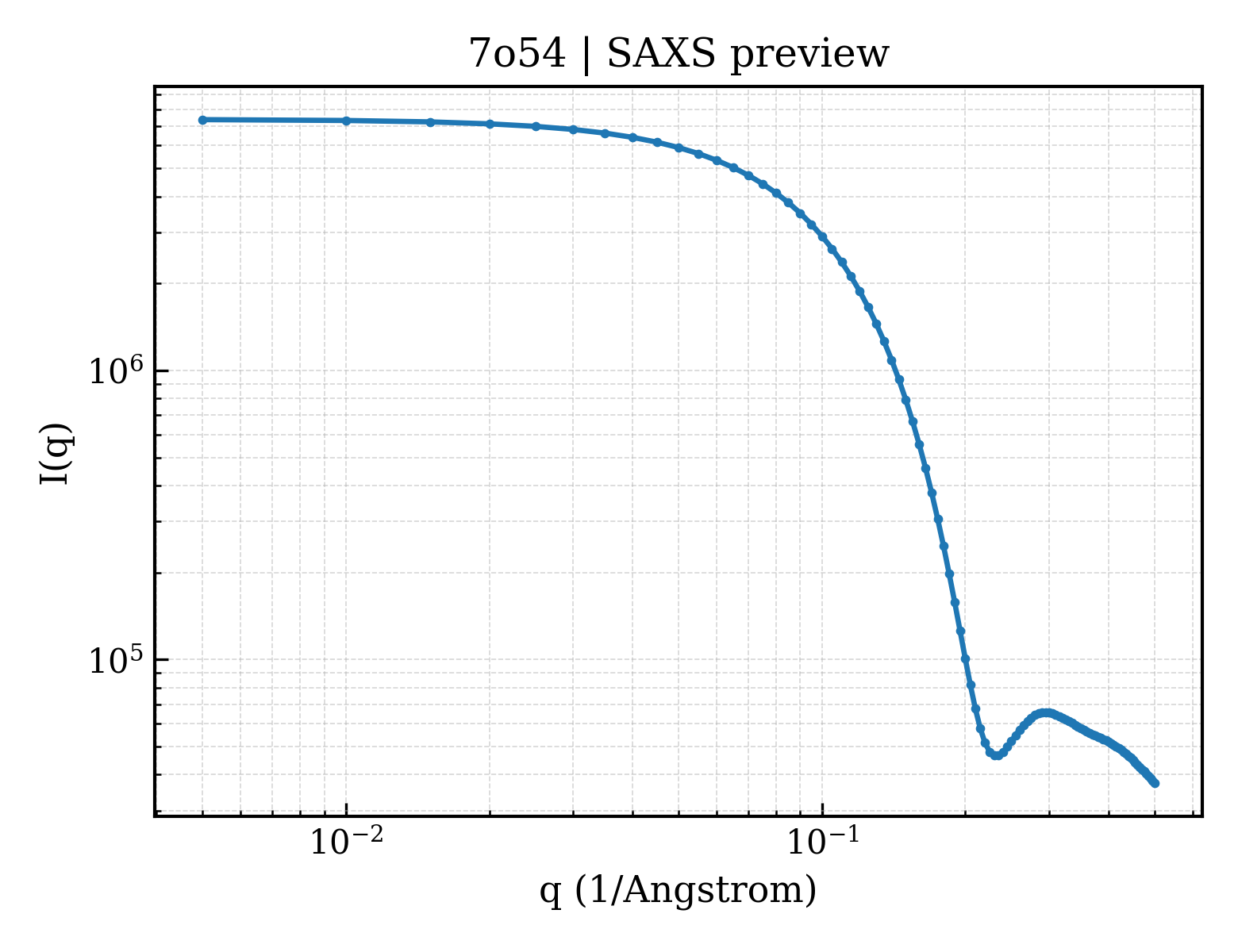

7o54__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

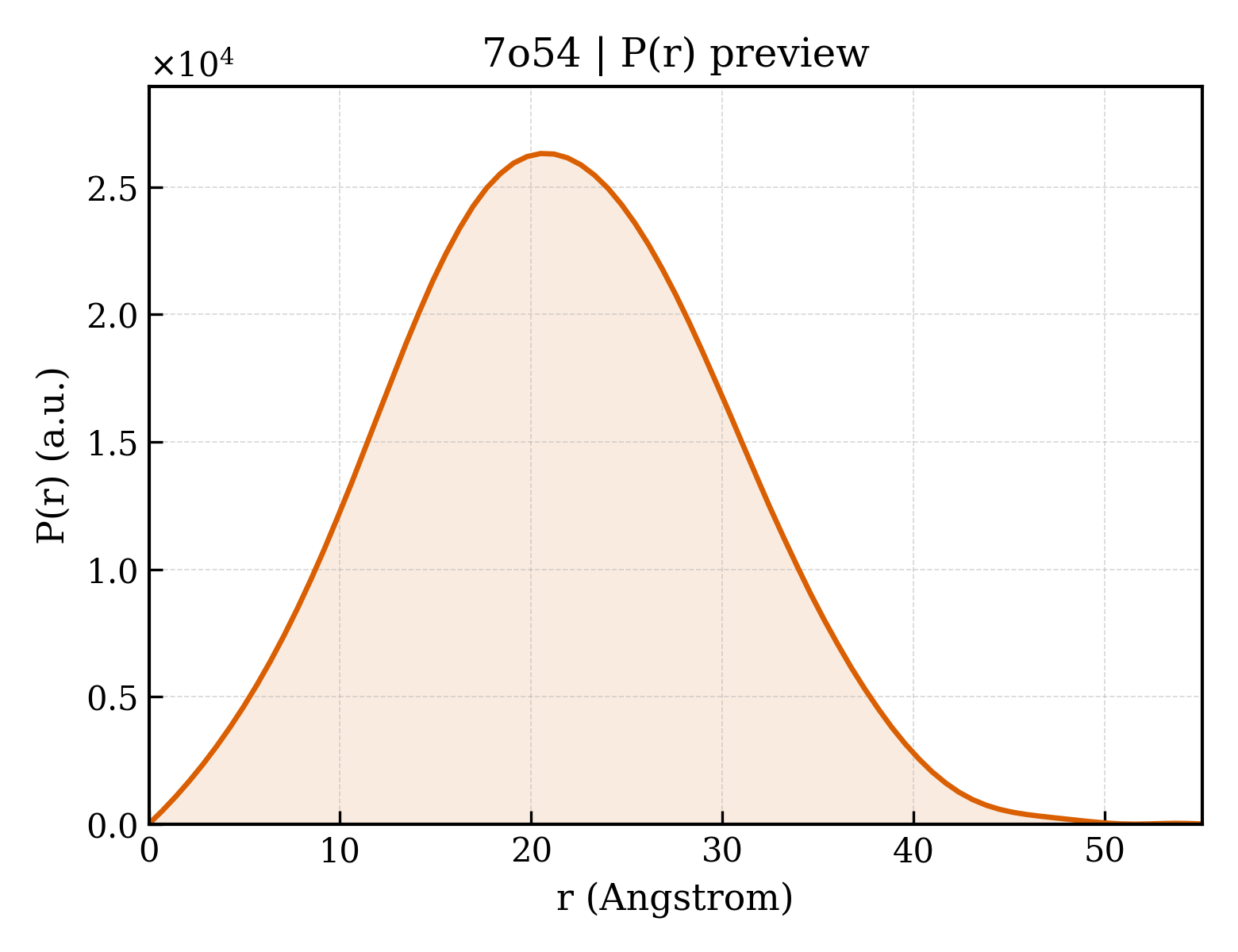

7o54__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.74 Å
Rg (electron density)	22.39 Å
Total Rg	23.14 Å
Atom count	4132
Residues	540
Excluded volume	72990 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7o54__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Carboxysome assembly protein CcmM
Molecular weight formula_weight	19249.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1481

MPSPTTVPVATAGRLAEPYIDPAAQVHAIASIIGDVRIAAGVRVAAGVSIRADEGAPFQVGKESILQEGAVIHGLEYGRVLGDDQADYSVWIGQRVAITHKALIHGPAYLGDDCFVGFRSTVFNARVGAGSVIMMHALVQDVEIPPGRYVPSGAIITTQQQADRLPEVRPEDREFARHIIG

Source Source

Source organism organism	Synechococcus elongatus (strain PCC 7942 / FACHB-805)
Common name common_name	Anacystis nidulans R2
NCBI taxonomy ID ncbi_taxonomy_id	1140
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Carbonic anhydrase
Molecular weight formula_weight	1976.2 kDa
EC 编号 ec_number	4.2.1.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GWLAPEQQQRIYRGNAS

Source Source

Source organism organism	Synechococcus elongatus (strain PCC 7942 / FACHB-805)
Common name common_name	Anacystis nidulans R2
NCBI taxonomy ID ncbi_taxonomy_id	1140
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	103

▶

Unit-cell length a length_a	89.365 Å
Unit-cell length b length_b	89.365 Å
Unit-cell length c length_c	129.835 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	1.630 Å
Low-resolution limit resolution_low	37.080 Å
R factor r_factor	0.1785
R_work r_work	0.1773
R_free r_free	0.1997

Crystal structure of the carbonic anhydrase-like domain of CcmM in complex with the C-terminal 17 residues of CcaA from Synechococcus elongatus (strain PCC 7942)
