1. Protein Identity and Related Structures Protein Identity & Related Structures

Sorting nexin-9

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–64	Not recorded	EEEV nsP3 peptide × 1	SOLUTION NMR NMR measurement conditions：pH 6.5；298 K；Ionic strength (raw mmCIF value) 0.15；Pressure ambient NMR sample composition：1 mM [U-13C; U-15N] SNX9 SH3, 1 mM EEEV nsP3 peptide, 20 mM sodium phosphate, 50 mM sodium chloride, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7OJ9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2RAI The PX-BAR membrane remodeling unit of Sorting Nexin 9 Deposited 2007-09-16	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 204–595（392 aa） Fragment：C-terminal fragment, residues 214-594 Chain B 204–595（392 aa） Fragment：C-terminal fragment, residues 214-594	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；1.3M Ammonium tartrate dibasic, 0.1M BIS-TRIS propane, pH 7.0 , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.20 Å R-free 0.301
2RAJ SO4 bound PX-BAR membrane remodeling unit of Sorting Nexin 9 Deposited 2007-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 204–595（392 aa） Fragment：C-terminal fragment, residues 214-594	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；1.3M Ammonium tartrate dibasic, 0.1M BIS-TRIS propane, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.45 Å R-free 0.276
2RAK PI(3)P bound PX-BAR membrane remodeling unit of Sorting Nexin 9 Deposited 2007-09-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 204–595（392 aa） Fragment：C-terminal fragment, residues 214-594	Not recorded	PIB 2-(BUTANOYLOXY)-1-{[(HYDROXY{[2,3,4,6-TETRAHYDROXY-5-(PHOSPHONOOXY)CYCLOHEXYL]OXY}PHOSPHORYL)OXY]METHYL}ETHYL BUTANOATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；1.3M Ammonium tartrate dibasic, 0.1M BIS-TRIS propane, pH 7.0 , VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.293
3DYT Crystal structure of Snx9PX-BAR (230-595), C2221 Deposited 2008-07-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 230–595（366 aa） Fragment：UNP residues 230-595	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293.15 K；1.8M Ammonium sulfate, 0.1M Tris-HCl pH 8.5, 5% PEG 400, 0.05M MgSO4, 15% Xylitol, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 2.08 Å R-free 0.245
3DYU Crystal structure of Snx9PX-BAR (230-595), H32 Deposited 2008-07-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 230–595（366 aa） Fragment：UNP residues 230-595 Chain B 230–595（366 aa） Fragment：UNP residues 230-595	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293.15 K；1.8M Ammonium sulfate, 0.1M Tris-HCl pH 8.5, 5% PEG 400, 0.05M MgSO4, 15% Xylitol, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 4.10 Å R-free 0.403
3DYU Crystal structure of Snx9PX-BAR (230-595), H32 Deposited 2008-07-28	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 230–595（366 aa） Fragment：UNP residues 230-595	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293.15 K；1.8M Ammonium sulfate, 0.1M Tris-HCl pH 8.5, 5% PEG 400, 0.05M MgSO4, 15% Xylitol, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 4.10 Å R-free 0.403
3LGE Crystal structure of rabbit muscle aldolase-SNX9 LC4 complex Deposited 2010-01-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 152–182（31 aa） Fragment：UNP residues 152-182 Chain F 152–182（31 aa） Fragment：UNP residues 152-182 Chain G 152–182（31 aa） Fragment：UNP residues 152-182 Chain H 152–182（31 aa） Fragment：UNP residues 152-182	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；PEG-MME 550, MgCl2, pH 7, Vapor Diffusion, Hanging drop, temperature 277K	Resolution 2.20 Å R-free 0.189
9R4W Solution NMR structure of SNX9 SH3 in complex with EspF Deposited 2025-05-08	Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–64（64 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Ionic strength (raw mmCIF value) 150；Pressure ambient NMR sample composition 1.3 mM [U-13C; U-15N] SNX9 SH3, 1.5 mM EspF, 20 mM sodium phosphate, 50 mM sodium chloride, 93% H2O/7% D2O \| 93% H2O/7% D2O NMR sample composition 1.9 mM SNX9 SH3, 1.5 mM [U-13C; U-15N] EspF, 20 mM sodium phosphate, 50 mM sodium chloride, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided

7 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SNX9_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 4–67； UniProt 1–64

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7oj9
Deposition date deposition_date	2021-05-14
Structure title title	NMR solution structure of SNX9 SH3 - EEEV nsP3 peptide complex
Keywords keywords	complex, ENDOCYTOSIS; ENDOCYTOSIS
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.47 Å
Radius of gyration Rg (electron density) rg_electron	14.01 Å
Forward intensity I(0) i0	552218000.00
Molecular weight molecular_weight	194300.0 kDa
Excluded volume excluded_volume	241840 Å³
Envelope volume envelope_volume	32131 Å³
Hydration-shell volume shell_volume	15226 Å³
Envelope diameter envelope_diameter	61.9 Å
Shell Rg shell_rg	24.29 Å
Envelope Rg envelope_rg	19.70 Å
Shape Rg shape_rg	13.97 Å
Total Rg total_rg	14.42 Å
Total atoms total_atoms	27360
Residues n_residues	1800
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	38.0 Å
Rg (real space) rg_real	13.62 Å
Rg uncertainty (real space) rg_real_error	0.05 Å
I(0) (real space) i0_real	5.2630e+08
I(0) uncertainty (real space) i0_real_error	4.2520e+06
Rg (reciprocal space) rg_reciprocal	14.56 Å
I(0) (reciprocal space) i0_reciprocal	552200000.0000
Solution quality estimate total_estimate	0.6836
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	15.9 Å
Skewness Skewness skewness	0.279
Kurtosis Kurtosis kurtosis	-0.337
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	3.4360
Highest regularization parameter α highest_alpha	210100.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.002; Oscil: 0.979; Stabil: 0.985; Sysdev: 0.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Description description	EEEV nsP3 peptide
Molecular weight formula_weight	2548.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	27360

Description description	Sorting nexin-9
Molecular weight formula_weight	7179.9 kDa
Source method src_method	man
Copy count entity_count	1

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/oj/7oj9/7oj9.fit
pddf	/app/data/pr_computation/oj/7oj9/7oj9.pr.out
profile	/app/data/saxs_computation/oj/7oj9/7oj9.dat

NMR solution structure of SNX9 SH3 - EEEV nsP3 peptide complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sorting nexin-9

State in the Current Structure

Other States of the Same Protein in the Database

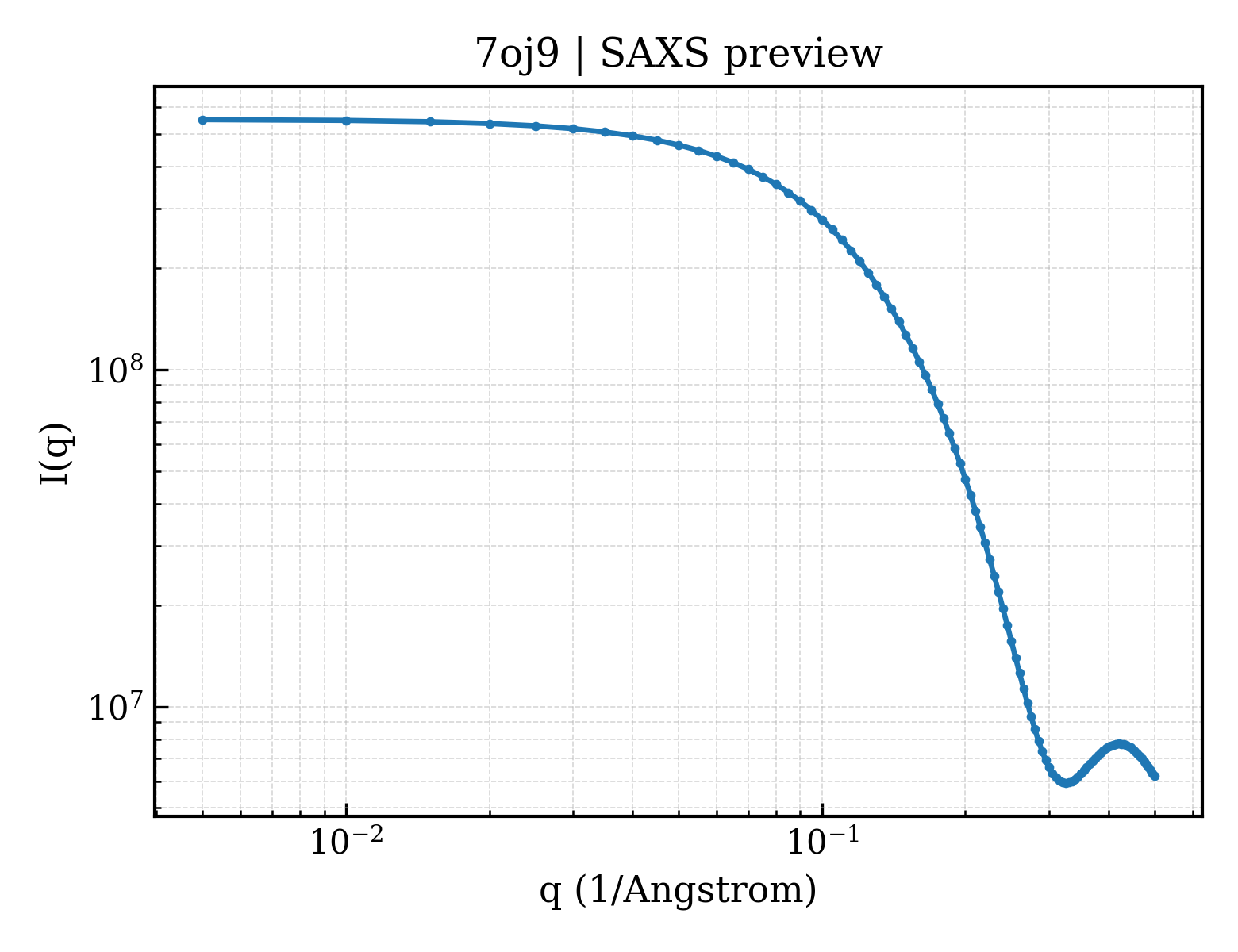

SAXS scattering curve SAXS Profile

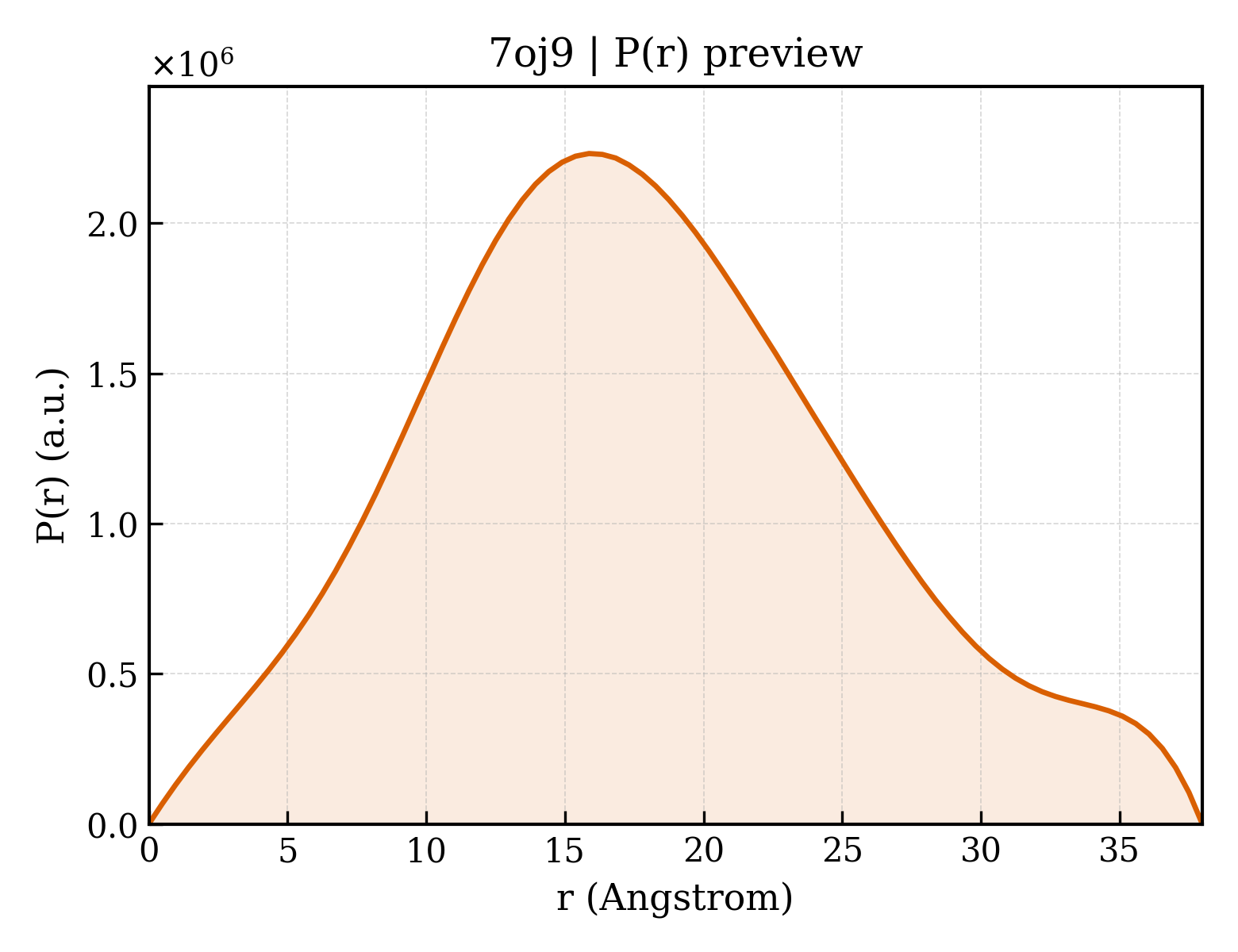

P(r) Distance Distribution P(r) Distribution
