7q42

Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of chromatin reader BAZ2B

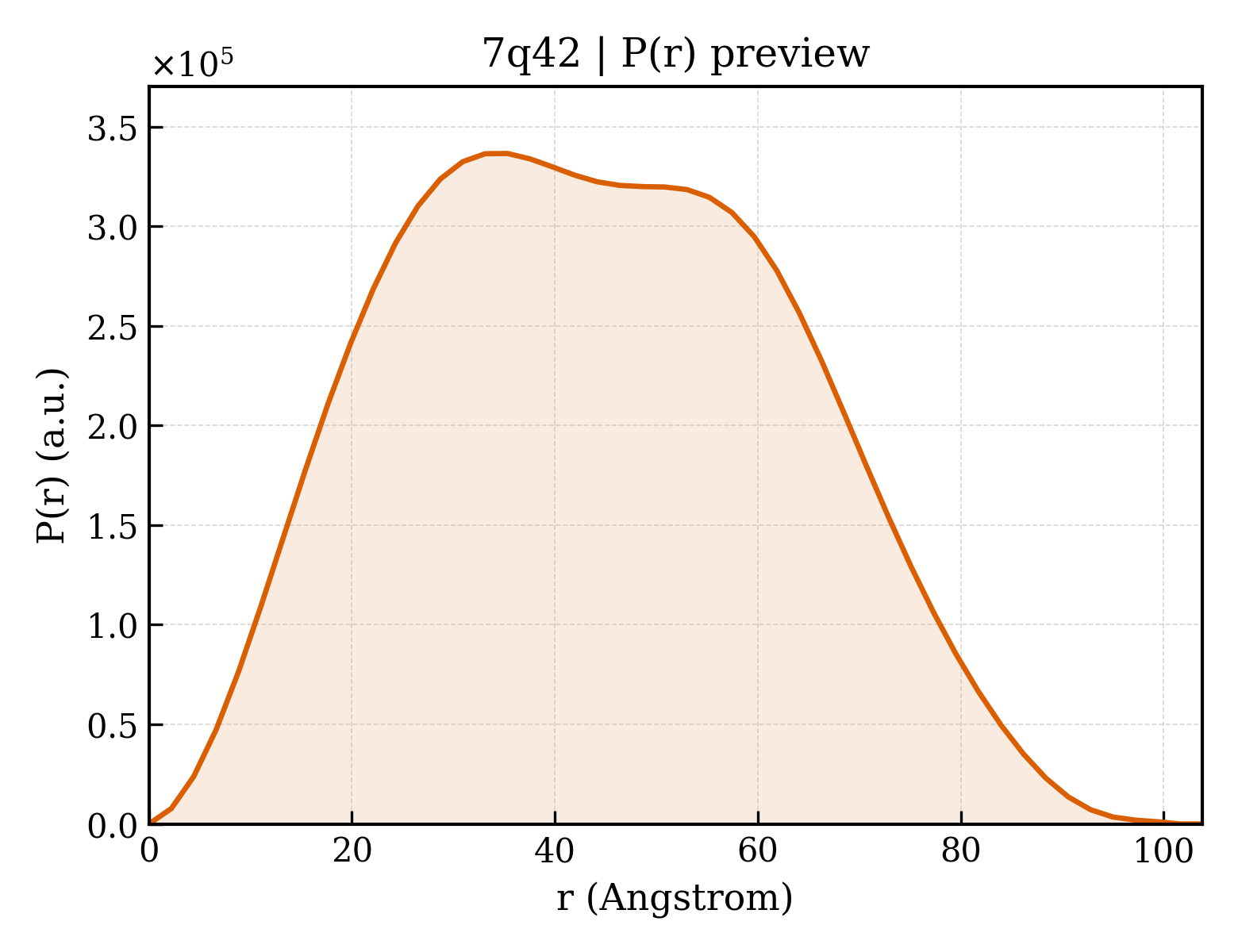

Method: X-RAY DIFFRACTION Dmax: 103.8 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

E3 ubiquitin-protein ligase HERC2

Homo sapiens

UniProt O95714

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 2938–3342 Not recorded Bromodomain adjacent to zinc finger domain protein 2B × 1 （Q9UIF8） X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate Resolution 1.95 Å R-free 0.206
2 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain C； UniProt 2938–3342 Not recorded Bromodomain adjacent to zinc finger domain protein 2B × 1 （Q9UIF8） CIT CITRIC ACID × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate Resolution 1.95 Å R-free 0.206
3 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain E； UniProt 2938–3342 Not recorded Bromodomain adjacent to zinc finger domain protein 2B × 1 （Q9UIF8） CIT CITRIC ACID × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate Resolution 1.95 Å R-free 0.206

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7Q42 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2KEO Solution NMR structure of human protein HS00059, cytochrome-b5-like domain of the HERC2 E3 ligase. Northeast structural genomics consortium (NESG) target ht98a Deposited 2009-01-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1203–1296（94 aa）
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 300；Pressure ambient
NMR sample composition 0.5 mM [U-13C; U-15N] hs00059-1, 10 mM TRIS-2, 300 mM sodium chloride-3, 10 uM ZnSO4-4, 10 mM DTT-5, 0.01 % NaN3-6, 10 mM benzamidine-7, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
3KCI The third RLD domain of HERC2 Deposited 2009-10-21 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 3951–4321（371 aa） Fragment：UNP RESIDUES 3951-4321, RCC1-LIKE DOMAIN
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；290.9 K；20% PEG3350, 0.2mM MgCl2, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 290.9K
Resolution 1.80 Å R-free 0.195
4L1M Structure of the first RCC1-like domain of HERC2 Deposited 2013-06-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 417–790（374 aa）
Not recorded SO4 SULFATE ION × 4 UNX UNKNOWN LIGAND × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；291 K；1.5 M ammonium sulfate, 0.1 M Tris-hydrochloride, pH 8.5, vapor diffusion, temperature 291K
Resolution 2.60 Å R-free 0.238
4L1M Structure of the first RCC1-like domain of HERC2 Deposited 2013-06-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 417–790（374 aa）
Not recorded SO4 SULFATE ION × 4 UNX UNKNOWN LIGAND × 12 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；291 K；1.5 M ammonium sulfate, 0.1 M Tris-hydrochloride, pH 8.5, vapor diffusion, temperature 291K
Resolution 2.60 Å R-free 0.238
4L1M Structure of the first RCC1-like domain of HERC2 Deposited 2013-06-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 417–790（374 aa）
Not recorded SO4 SULFATE ION × 3 UNX UNKNOWN LIGAND × 13 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；291 K；1.5 M ammonium sulfate, 0.1 M Tris-hydrochloride, pH 8.5, vapor diffusion, temperature 291K
Resolution 2.60 Å R-free 0.238
6WW3 Crystal structure of HERC2 ZZ domain in complex with SUMO1 tail Deposited 2020-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2702–2755（54 aa） Fragment：fusion protein
Not recorded ZN ZINC ION × 2 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M ammonium chloride, 0.1 M Tris, pH 8.0 and 20% PEG 6000
Resolution 2.10 Å R-free 0.227
6WW3 Crystal structure of HERC2 ZZ domain in complex with SUMO1 tail Deposited 2020-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2702–2755（54 aa） Fragment：fusion protein
Not recorded ZN ZINC ION × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.2 M ammonium chloride, 0.1 M Tris, pH 8.0 and 20% PEG 6000
Resolution 2.10 Å R-free 0.227
6WW4 Crystal structure of HERC2 ZZ domain in complex with histone H3 tail Deposited 2020-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2702–2751（50 aa） Fragment：fusion protein
Not recorded ZN ZINC ION × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M ammonium acetate, 0.1 M Bis-Tris, pH 5.5, and 17% PEG 10000
Resolution 2.25 Å R-free 0.243
6WW4 Crystal structure of HERC2 ZZ domain in complex with histone H3 tail Deposited 2020-05-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2702–2751（50 aa） Fragment：fusion protein
Not recorded ZN ZINC ION × 2 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M ammonium acetate, 0.1 M Bis-Tris, pH 5.5, and 17% PEG 10000
Resolution 2.25 Å R-free 0.243
7Q40 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 Deposited 2021-10-29 Different oligomeric state Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2938–3342（405 aa）
Not recorded CIT CITRIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.35 Å R-free 0.230
7Q40 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 Deposited 2021-10-29 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain C 2938–3342（405 aa）
Not recorded CIT CITRIC ACID × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.35 Å R-free 0.230
7Q40 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 Deposited 2021-10-29 Different oligomeric state Different ligand/ion Different structure-quality metrics Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain E 2938–3342（405 aa）
Not recorded CIT CITRIC ACID × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.35 Å R-free 0.230
7Q41 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of ubiquitin-protein ligase E3A (E6AP) Deposited 2021-10-29 Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2938–3342（405 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；293.1500 hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 3.01 Å R-free 0.255
7Q41 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of ubiquitin-protein ligase E3A (E6AP) Deposited 2021-10-29 Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2938–3342（405 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；293.1500 hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 3.01 Å R-free 0.255
7Q41 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of ubiquitin-protein ligase E3A (E6AP) Deposited 2021-10-29 Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2938–3342（405 aa）
Not recorded CIT CITRIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；293.1500 hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 3.01 Å R-free 0.255
7Q43 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of dedicator of cytokinesis protein 10 Deposited 2021-10-29 Different construct Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2941–3342（402 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.40 Å R-free 0.265
7Q43 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of dedicator of cytokinesis protein 10 Deposited 2021-10-29 Different construct Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2941–3342（402 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.40 Å R-free 0.265
7Q43 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of dedicator of cytokinesis protein 10 Deposited 2021-10-29 Different construct Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2941–3342（402 aa）
Not recorded CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.40 Å R-free 0.265
7Q44 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of deubiquitinase USP35 Deposited 2021-10-29 Different construct Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2941–3342（402 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；20% PEG 3350 0.18M tris amonium citrate
Resolution 2.20 Å R-free 0.231
7Q44 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of deubiquitinase USP35 Deposited 2021-10-29 Different construct Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2941–3342（402 aa）
Not recorded CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；20% PEG 3350 0.18M tris amonium citrate
Resolution 2.20 Å R-free 0.231
7Q44 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of deubiquitinase USP35 Deposited 2021-10-29 Different construct Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2941–3342（402 aa）
Not recorded CIT CITRIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；20% PEG 3350 0.18M tris amonium citrate
Resolution 2.20 Å R-free 0.231
7Q45 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of Myelin transcription factor 1 Deposited 2021-10-29 Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2938–3342（405 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.10 Å R-free 0.224
7Q45 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of Myelin transcription factor 1 Deposited 2021-10-29 Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2938–3342（405 aa）
Not recorded CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.10 Å R-free 0.224
7Q45 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of Myelin transcription factor 1 Deposited 2021-10-29 Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2938–3342（405 aa）
Not recorded CIT CITRIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.10 Å R-free 0.224
7Q46 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of pericentriolar material 1 protein Deposited 2021-10-29 Different construct Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2941–3342（402 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.46 Å R-free 0.245
7Q46 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of pericentriolar material 1 protein Deposited 2021-10-29 Different construct Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 2941–3342（402 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.46 Å R-free 0.245
7Q46 Crystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of pericentriolar material 1 protein Deposited 2021-10-29 Different construct Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 2941–3342（402 aa）
Not recorded CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate
Resolution 2.46 Å R-free 0.245
7RGW Crystal structure of HERC2 DOC domain Deposited 2021-07-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2759–2914（156 aa） Fragment：DOC domain (UNP residues 2759-2914)
Not recorded PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277.15 K；0.1 M HEPES, pH 7.5, 25% PEG3350
Resolution 1.99 Å R-free 0.213
9L8Y Crystal structure of HERC2 Deposited 2024-12-28 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2539–2700（162 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.8；289 K；0.02 M Citric acid, 0.08 M BIS-TRIS propane (pH 8.8), 16% w/v Polyethylene glycol 3,350
Resolution 1.92 Å R-free 0.206
9L93 Crystal structure of NCOA4 in complex with HERC2 Deposited 2024-12-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2539–2700（162 aa）
Not recorded FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；18% v/v 2-Propanol, 0.1 M Sodium citrate tribasic dihydrate (pH 5.5), 20% w/v Polyethylene glycol 4000
Resolution 1.73 Å R-free 0.207
9L93 Crystal structure of NCOA4 in complex with HERC2 Deposited 2024-12-29 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2539–2700（162 aa）
Not recorded FES FE2/S2 (INORGANIC) CLUSTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；289 K；18% v/v 2-Propanol, 0.1 M Sodium citrate tribasic dihydrate (pH 5.5), 20% w/v Polyethylene glycol 4000
Resolution 1.73 Å R-free 0.207

14 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name HERC2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–405； UniProt 2938–3342 Author chain C； PDBConstruct 1–405； UniProt 2938–3342 Author chain E； PDBConstruct 1–405； UniProt 2938–3342

Bromodomain adjacent to zinc finger domain protein 2B

OrganismNot specified

UniProt Q9UIF8

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 649–663 Not recorded E3 ubiquitin-protein ligase HERC2 × 1 （O95714） X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate Resolution 1.95 Å R-free 0.206
2 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain D； UniProt 649–663 Not recorded E3 ubiquitin-protein ligase HERC2 × 1 （O95714） CIT CITRIC ACID × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate Resolution 1.95 Å R-free 0.206
3 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain F； UniProt 649–663 Not recorded E3 ubiquitin-protein ligase HERC2 × 1 （O95714） CIT CITRIC ACID × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；hanging drop 20% PEG 3350 0.18M tris amonium citrate Resolution 1.95 Å R-free 0.206

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7Q42 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2E7O Solution structure of the Bromodomain from human Bromodomain adjacent to zinc finger domain 2B Deposited 2007-01-11 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1866–1970（105 aa） Fragment：Bromodomain
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient
NMR sample composition 1.13mM 13C,15N-labeled protein; 20mM d-Tris-HCl(pH7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O; 10% D2O | 90% H2O/10% D2O
Resolution not provided
3G0L Crystal Structure of Human Bromodomain Adjacent to Zinc finger domain 2B (BAZ2B) Deposited 2009-01-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：UNP residues 1858-1972
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.1M MMT pH 6.0, 30% PEG 1000, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.03 Å R-free 0.211
3Q2F Crystal Structure of the bromodomain of human BAZ2B in complex with a triazolo ligand Deposited 2010-12-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：UNP residues 2054-2168
Not recorded OAM 4-{4-[3-(1H-imidazol-1-yl)propyl]-5-methyl-4H-1,2,4-triazol-3-yl}-1-methyl-1H-pyrazol-5-amine × 1 EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；24% PEG 1K 20% glycerol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 2.06 Å R-free 0.242
4CUP Crystal structure of human BAZ2B in complex with fragment-1 N09421 Deposited 2014-03-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1858–1972（115 aa） Fragment：BROMODOMAIN, RESIDUES 1858-1972
Not recorded ZYB 4-Fluorobenzamidoxime × 2 MOH METHANOL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；34% PEG SMEAR LOW, 0.1M MES PH 6.4
Resolution 1.88 Å R-free 0.208
4CUQ Crystal structure of human BAZ2B in complex with fragment-2 N09594 Deposited 2014-03-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1858–1972（115 aa） Fragment：BROMODOMAIN, RESIDUES 1858-1972
Not recorded 5K3 4-[(3S)-3-hydroxy-3-methoxypropyl]phenol × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；33% PEG SMEAR LOW, 0.1M MES PH 6.4
Resolution 2.11 Å R-free 0.226
4CUR Crystal structure of human BAZ2B in complex with fragment-3 N09555 Deposited 2014-03-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1858–1972（115 aa） Fragment：BROMODOMAIN, RESIDUES 1858-1972
Not recorded EDO 1,2-ETHANEDIOL × 2 LA7 2-(hydroxymethyl)-6-methylpyridin-3-ol × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；31% PEG SMEAR LOW, 0.1M MES PH 6.5
Resolution 1.84 Å R-free 0.202
4CUS Crystal structure of human BAZ2B in complex with fragment-4 N09496 Deposited 2014-03-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：BROMODOMAIN, RESIDUES 1858-1972
Not recorded EDO 1,2-ETHANEDIOL × 5 ES1 quinolin-4-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；30% PEG600, 0.1M MES PH 6.0
Resolution 1.78 Å R-free 0.203
4CUT Crystal structure of human BAZ2B in complex with fragment-5 N09428 Deposited 2014-03-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：BROMODOMAIN, RESIDUES 1858-1972
Not recorded TYL N-(4-HYDROXYPHENYL)ACETAMIDE (TYLENOL) × 1 EDO 1,2-ETHANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；30% PEG600, 0.1M MES PH 6.0
Resolution 1.83 Å R-free 0.197
4CUU Crystal structure of human BAZ2B in complex with fragment-6 N09645 Deposited 2014-03-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：BROMODOMAIN, RESIDUES 1858-1972
Not recorded Y6M (2R)-1,2,3,4-tetrahydroquinoline-2,7-diol × 1 EDO 1,2-ETHANEDIOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6；30% PEG600, 0.1M MES PH 6.0
Resolution 1.80 Å R-free 0.208
4IR3 Crystal Structure of the bromodomain of human BAZ2B in complex with 1-[7-amino-1-(pyrimidin-2-yl)indolizin-3-yl]ethanone (GSK2833282A) Deposited 2013-01-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded EDO 1,2-ETHANEDIOL × 3 GOL GLYCEROL × 2 1FK 1-[7-amino-1-(pyrimidin-2-yl)indolizin-3-yl]ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277.15 K；18% PEG 1000, 17% glycerol, 0.1M HEPES pH 7.0 (Ligand soaking performed in low-molecular-weight PEG smears stabilizing solution), VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 2.00 Å R-free 0.245
4IR4 Crystal Structure of the bromodomain of human BAZ2B in complex with 1-[7-(morpholin-4-yl)-1-(pyridin-2-yl)indolizin-3-yl]ethanone (GSK2834113A) Deposited 2013-01-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded IR4 1-[7-(morpholin-4-yl)-1-(pyridin-2-yl)indolizin-3-yl]ethanone × 1 EDO 1,2-ETHANEDIOL × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.25；277.15 K；32% Low Molecular-Weight PEG Smears, 0.1M MES pH 6.25 (Ligand soaking performed in low-molecular-weight PEG smears stabilizing solution), VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 2.05 Å R-free 0.228
4IR5 Crystal Structure of the bromodomain of human BAZ2B in complex with 1-{1-[2-(hydroxymethyl)phenyl]-7-phenoxyindolizin-3-yl}ethanone (GSK2847449A) Deposited 2013-01-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded EDO 1,2-ETHANEDIOL × 12 IR5 1-{1-[2-(hydroxymethyl)phenyl]-7-phenoxyindolizin-3-yl}ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277.15 K；28% Low Molecular-Weight PEG Smears, 0.1M MES pH 6.5 (Ligand soaking performed in low-molecular-weight PEG smears stabilizing solution), VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 1.70 Å R-free 0.214
4IR6 Crystal Structure of the bromodomain of human BAZ2B in complex with 1-{1-[2-(METHYLSULFONYL)PHENYL]-7-PHENOXYINDOLIZIN-3-YL}ETHANONE (GSK2838097A) Deposited 2013-01-14 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded EDO 1,2-ETHANEDIOL × 6 IR6 1-{1-[2-(methylsulfonyl)phenyl]-7-phenoxyindolizin-3-yl}ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.25；277.15 K；28% Low Molecular-Weight PEG Smears, 0.1M MES pH 6.25 (Ligand soaking performed in low-molecular-weight PEG smears stabilizing solution), VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 1.80 Å R-free 0.216
4NR9 Crystal Structure of the bromodomain of human BAZ2B in complex with acetylated lysine Deposited 2013-11-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromodomain (UNP residues 2054-2168)
Not recorded EDO 1,2-ETHANEDIOL × 4 ALY N(6)-ACETYLLYSINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；277.15 K；30% low MW PEG Smears, 0.1M MES pH 6.7, 15%(v/v) glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 1.98 Å R-free 0.233
4NRA Crystal Structure of the bromodomain of human BAZ2B in complex with compound-6 E11322 Deposited 2013-11-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromodomain (UNP residues 2054-2168)
Not recorded EDO 1,2-ETHANEDIOL × 5 2LW 1-(8-chloro-1,3,4,5-tetrahydro-2H-pyrido[4,3-b]indol-2-yl)ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277.15 K；28% low MW PEG Smears, 0.1M MES pH 6.5, 15%(v/v) glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 1.85 Å R-free 0.212
4NRB Crystal Structure of the bromodomain of human BAZ2B in complex with compound-1 N01197 Deposited 2013-11-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded 2LX N-methyl-2-(tetrahydro-2H-pyran-4-yloxy)benzamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277.15 K；19% PEG 1000, 15% glycerol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 2.08 Å R-free 0.223
4NRC Crystal Structure of the bromodomain of human BAZ2B in complex with compound-3 N01186 Deposited 2013-11-26 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromodomain (UNP residues 2054-2168)
Not recorded 2LY N-methyl-2,3-dihydrothieno[3,4-b][1,4]dioxine-5-carboxamide × 1 EDO 1,2-ETHANEDIOL × 2 15P POLYETHYLENE GLYCOL (N=34) × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277.15 K；19% PEG 1000, 12% glycerol, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 1.86 Å R-free 0.191
4QC1 Crystal structure of human BAZ2B bromodomain in complex with an acetylated histone 3 peptide (H3K14ac) Deposited 2014-05-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2062–2166（105 aa） Fragment：unp residues 2062-2166
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；277 K；0.1M MES, 0.01M zinc sulfatE, 25% PEG methyl ether 550, pH 5.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.99 Å R-free 0.256
4QC1 Crystal structure of human BAZ2B bromodomain in complex with an acetylated histone 3 peptide (H3K14ac) Deposited 2014-05-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 2062–2166（105 aa） Fragment：unp residues 2062-2166
Not recorded ZN ZINC ION × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；277 K；0.1M MES, 0.01M zinc sulfatE, 25% PEG methyl ether 550, pH 5.9, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.99 Å R-free 0.256
4QC3 Crystal structure of human BAZ2B bromodomain in complex with a diacetylated histone 4 peptide (H4K8acK12ac) Deposited 2014-05-09 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 2062–2166（105 aa） Fragment：unp residues 2062-2166
Not recorded EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；18% PEG 8000, 0.2M calcium acetate, 0.1 M cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.60 Å R-free 0.187
4QC3 Crystal structure of human BAZ2B bromodomain in complex with a diacetylated histone 4 peptide (H4K8acK12ac) Deposited 2014-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 2062–2166（105 aa） Fragment：unp residues 2062-2166
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；18% PEG 8000, 0.2M calcium acetate, 0.1 M cacodylate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K
Resolution 1.60 Å R-free 0.187
4QF3 Crystal structure of human BAZ2B PHD zinc finger in the free form Deposited 2014-05-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1928–1983（56 aa） Fragment：unp residues 1928-1983
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；293 K；2.2M Na/K phosphate, pH 7.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.60 Å R-free 0.221
4QF3 Crystal structure of human BAZ2B PHD zinc finger in the free form Deposited 2014-05-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1928–1983（56 aa） Fragment：unp residues 1928-1983
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；293 K；2.2M Na/K phosphate, pH 7.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.60 Å R-free 0.221
4QF3 Crystal structure of human BAZ2B PHD zinc finger in the free form Deposited 2014-05-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 1928–1983（56 aa） Fragment：unp residues 1928-1983
Chain B 1928–1983（56 aa） Fragment：unp residues 1928-1983
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；293 K；2.2M Na/K phosphate, pH 7.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 1.60 Å R-free 0.221
4RVR Crystal Structure of the bromodomain of human BAZ2B in complex WITH GSK2801 Deposited 2014-11-27 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromo domain residues 2054-2168
Not recorded 3WQ 1-{1-[2-(methylsulfonyl)phenyl]-7-propoxyindolizin-3-yl}ethanone × 1 EDO 1,2-ETHANEDIOL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277.15 K；28% Low Molecular-Weight PEG Smears, 0.1M MES pH 6.5 (Ligand soaking performed in low-molecular-weight PEG smears stabilizing solution) , VAPOR DIFFUSION, SITTING DROP, temperature 277.15K
Resolution 1.98 Å R-free 0.232
4XUA Crystal Structure of the bromodomain of human BAZ2B in complex with E11919 BAZ2-ICR analogue Deposited 2015-01-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：UNP residues 1858-1972
Not recorded EDO 1,2-ETHANEDIOL × 4 43C 4-{1-[2-(4-methyl-1H-1,2,3-triazol-1-yl)ethyl]-4-phenyl-1H-imidazol-5-yl}benzonitrile × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277.15 K；36% Low Molecular Weight PEG Smears (LMW PEG smears), 0.1M MES pH 6.5 (Ligand soaking performed in low-molecular-weight PEG smears stabilizing solution)
Resolution 1.75 Å R-free 0.219
4XUB Crystal Structure of the bromodomain of human BAZ2B in complex with BAZ2-ICR chemical probe Deposited 2015-01-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：UNP residues 1858-1972
Not recorded 43D 4-{4-(1-methyl-1H-pyrazol-4-yl)-1-[2-(4-methyl-1H-1,2,3-triazol-1-yl)ethyl]-1H-imidazol-5-yl}benzonitrile × 1 EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277.14 K；34% Low Molecular Weight PEG Smears (LMW PEG smears), 0.1M MES pH 6.0 (Ligand soaking performed in low-molecular-weight PEG smears stabilizing solution)
Resolution 1.98 Å R-free 0.215
5CQ3 Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with 6-Hydroxypicolinic acid (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa） Fragment：Bromodomain
Not recorded EDO 1,2-ETHANEDIOL × 2 53B 6-hydroxypyridine-2-carboxylic acid × 1 DMS DIMETHYL SULFOXIDE × 1 PO4 PHOSPHATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；30% PEG600 , 0.1M MES pH 6.0
Resolution 1.93 Å R-free 0.239
5CQ4 Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with 3'-Hydroxyacetophenone (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa） Fragment：Bromodomain
Not recorded EDO 1,2-ETHANEDIOL × 1 53C 1-(3-hydroxyphenyl)ethanone × 1 CL CHLORIDE ION × 1 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；30% PEG600 , 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.223
5CQ5 Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with 2,3-Ethylenedioxybenzoic Acid (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa） Fragment：Bromodomain
Not recorded EDO 1,2-ETHANEDIOL × 2 53E 2,3-dihydro-1,4-benzodioxine-5-carboxylic acid × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.3；277 K；25% PEG600 , 0.1M MES pH 6.3
Resolution 1.96 Å R-free 0.218
5CQ6 Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with 2,6-Pyridinedicarboxylic acid (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：Bromodomain, UNP residues 1858-1972
Not recorded EDO 1,2-ETHANEDIOL × 2 PDC PYRIDINE-2,6-DICARBOXYLIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；30% PEG600 , 0.1M MES pH 6.0
Resolution 1.97 Å R-free 0.222
5CQ7 Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with N,N-dimethylquinoxaline-6-carboxamide (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2066（113 aa） Fragment：Bromodomain
Not recorded 53G N,N-dimethylquinoxaline-6-carboxamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；20% PEG6000 , 10% ethylene glycol , 0.1M MES pH 6.0 , 0.1M calcium chloride
Resolution 1.86 Å R-free 0.230
5CQ8 Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with 4'-Hydroxyacetophenone (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：Bromodomain, UNP residues 1858-1972
Not recorded EDO 1,2-ETHANEDIOL × 2 AC6 P-HYDROXYACETOPHENONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；277 K；31.5% PEG600 , 0.1M MES pH 6.7
Resolution 1.65 Å R-free 0.222
5CQA Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with N-methyl-2,3-dihydrothieno[3,4-b][1,4]dioxine-5-carboxamide (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1970（113 aa） Fragment：Bromodomain, UNP residues 1858-1970
Not recorded 2LY N-methyl-2,3-dihydrothieno[3,4-b][1,4]dioxine-5-carboxamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；20% PEG6000 , 10% ethylene glycol , 0.1M MES pH 6.0 , 0.1M calcium chloride
Resolution 2.13 Å R-free 0.222
5CU8 Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with 2-Amino-6-chlorobenzothiazole (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1970（113 aa） Fragment：Bromodomain, UNP residues 1858-1970
Not recorded 54T 6-chloro-1,3-benzothiazol-2-amine × 2 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；20% PEG6000, 10% ethylene glycol, 0.1M MES pH 6.0, 0.1M calcium chloride
Resolution 2.05 Å R-free 0.230
5CUA Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with 1-Acetyl-4-(4-hydroxyphenyl)piperazine (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：Bromodomain, UNP residues 1858-1972
Not recorded EDO 1,2-ETHANEDIOL × 1 54U 1-[4-(4-hydroxyphenyl)piperazin-1-yl]ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；30% PEG600, 0.1M MES pH 6.0
Resolution 1.89 Å R-free 0.234
5CUB Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with 314268-40-1 (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1970（113 aa） Fragment：Bromodomain, UNP residues 1858-1970
Not recorded 54V methyl 4-[(4-methylpiperazin-1-yl)methyl]benzoate × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；20% PEG6000 , 10% ethylene glycol , 0.1M MES pH 6.0 , 0.1M calcium chloride
Resolution 2.10 Å R-free 0.215
5CUC Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with N-Acetyl-2-phenylethylamine (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1970（113 aa） Fragment：Bromodomain, UNP residues 1858-1970
Not recorded 54W N-(2-phenylethyl)acetamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；20% PEG6000, 10% ethylene glycol, 0.1M MES pH 6.0, 0.1M calcium chloride
Resolution 1.85 Å R-free 0.230
5CUD Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with 6-CHLOROPURINE (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：bromodomain, UNP residues 1858-1972
Not recorded EDO 1,2-ETHANEDIOL × 1 ES4 6-chloro-9H-purine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.7；277 K；31.5% PEG600, 0.1M MES pH 6.7
Resolution 1.75 Å R-free 0.226
5CUE Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with AGN-PC-04G0SS (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1970（113 aa） Fragment：bromodomain, UNP residues 1858-1970
Not recorded 54Y 5-chloro-N,1-dimethyl-1H-pyrazole-4-carboxamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；20% PEG6000, 10% ethylene glycol, 0.1M MES pH 6.0, 0.1M calcium chloride
Resolution 2.08 Å R-free 0.215
5CUG Crystal structure of the bromodomain of bromodomain adjacent to zinc finger domain protein 2B (BAZ2B) in complex with 4-Acetamidobenzoic acid (SGC - Diamond I04-1 fragment screening) Deposited 2015-07-24 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：bromodomain, UNP residues 1858-1972
Not recorded EDO 1,2-ETHANEDIOL × 1 TYZ PARA ACETAMIDO BENZOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；30% PEG600, 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.230
5DYU Crystal Structure of BAZ2B bromodomain in complex with fragment F39 Deposited 2015-09-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1971（114 aa） Fragment：bromodomain, UNP residues 1858-1971
Not recorded MZ0 1H-imidazol-5-ylmethanol × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.65 Å R-free 0.197
5DYX Crystal Structure of BAZ2B bromodomain in complex with fragment F59 Deposited 2015-09-25 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2067（114 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded ADE ADENINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.85 Å R-free 0.202
5E73 Crystal Structure of BAZ2B bromodomain in complex with acetylindole compound UZH47 Deposited 2015-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1971（114 aa） Fragment：Bromodomain, UNP residues 1858-1971
Mutation：First two residues SM derive from the expression tag UO1 N-(1-acetyl-1H-indol-3-yl)-N-(5-hydroxy-2-methylphenyl)acetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.71 Å R-free 0.211
5E74 Crystal Structure of BAZ2B bromodomain in complex with acetylindole compound UZH50 Deposited 2015-10-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1971（114 aa） Fragment：bromodomain, UNP residues 1858-1971
Mutation：First two residues SM derive from the expression tag 5KH N-(1-acetyl-1H-indol-3-yl)-N-(5-hydroxy-2-methylphenyl)-3-(trifluoromethyl)benzamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.78 Å R-free 0.211
5E9I Crystal Structure of BAZ2B bromodomain in complex with fragment F60 Deposited 2015-10-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2067（114 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded F60 1H-indol-6-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.96 Å R-free 0.217
5E9K Crystal Structure of BAZ2B bromodomain in complex with fragment F275 Deposited 2015-10-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2067（114 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded 5KX 2-chloro-1H-imidazole × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 2.07 Å R-free 0.219
5E9L Crystal Structure of BAZ2B bromodomain in complex with fragment F103 Deposited 2015-10-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2067（114 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded 6AI 1H-indazol-6-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.90 Å R-free 0.212
5E9M Crystal Structure of BAZ2B bromodomain in complex with N-methyltrimethylacetamide Deposited 2015-10-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2067（114 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded BAE N-methyltrimethylacetamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.78 Å R-free 0.198
5E9Y Crystal Structure of BAZ2B bromodomain in complex with MPD Deposited 2015-10-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1971（114 aa） Fragment：bromodomain, UNP residues 1858-1971
Not recorded MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.65 Å R-free 0.204
5L8T Crystal Structure of BAZ2B bromodomain in complex with 3-amino-2-methylpyridine derivative 2 Deposited 2016-06-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1971（114 aa） Fragment：Bromodomain (residues 1858-1971)
Not recorded 6RR ~{N}-[(3~{R})-1,1-bis(oxidanylidene)thian-3-yl]-2-methyl-pyridin-3-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.85 Å R-free 0.209
5L8U Crystal Structure of BAZ2B bromodomain in complex with 3-amino-2-methylpyridine derivative 5 Deposited 2016-06-08 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2067（114 aa） Fragment：Bromodomain (residues 1954-2067)
Not recorded 6RS ~{N}-[(1~{S})-1-(3,4-dihydro-2~{H}-1,5-benzodioxepin-7-yl)ethyl]-2-methyl-pyridin-3-amine × 1 PGE TRIETHYLENE GLYCOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.85 Å R-free 0.192
5L96 Crystal Structure of BAZ2B bromodomain in complex with 3-amino-2-methylpyridine derivative 1 Deposited 2016-06-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1971（114 aa） Fragment：Bromodomain (residues 2054-2168)
Mutation：First two residues SM derive from the expression tag 6RZ 2-methyl-~{N}-[(2~{R})-1-methylsulfonylpropan-2-yl]pyridin-3-amine × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 2.15 Å R-free 0.228
5L97 Crystal Structure of BAZ2B bromodomain in complex with 3-amino-2-methylpyridine derivative 3 Deposited 2016-06-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1971（114 aa） Fragment：Bromodomain (residues 2054-2168)
Mutation：First two residues SM derive from the expression tag 6RW 2-methyl-~{N}-[(2~{S})-2-methylsulfonylcyclopentyl]pyridin-3-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 2.05 Å R-free 0.211
5L98 Crystal Structure of BAZ2B bromodomain in complex with 3-amino-2-methylpyridine derivative 4 Deposited 2016-06-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1971（114 aa） Fragment：Bromodomain (residues 2054-2168)
Mutation：First two residues SM derive from the expression tag 6RY ~{N}-[(1~{S})-1-(2,3-dihydro-1,4-benzodioxin-6-yl)ethyl]-2-methyl-pyridin-3-amine × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 2.26 Å R-free 0.234
5L99 Crystal Structure of BAZ2B bromodomain in complex with 3-amino-2-methylpyridine derivative 6 Deposited 2016-06-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2067（114 aa） Fragment：Bromodomain (residues 2054-2168)
Mutation：First two residues SM derive from the expression tag 6S0 2-methyl-~{N}-[(1~{S})-1-thieno[3,2-b]pyridin-6-ylethyl]pyridin-3-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 2.00 Å R-free 0.204
5MGE Crystal structure of BAZ2B bromodomain in complex with 1-methylpyridine derivative 1 Deposited 2016-11-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2167（114 aa） Fragment：Bromodomain, UNP residues 2054-2167
Not recorded 7MX ethyl 4-chloranyl-1-methyl-6-oxidanylidene-pyridine-3-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.95 Å R-free 0.218
5MGF Crystal Structure of BAZ2B bromodomain in complex with 4-propionyl-pyrrole derivative 2 Deposited 2016-11-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2167（114 aa） Fragment：Bromodomain, UNP residues 2054-2167
Not recorded 7MW methyl 4-propanoyl-1~{H}-pyrrole-2-carboxylate × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 1.90 Å R-free 0.201
5MGG Crystal Structure of BAZ2B bromodomain in complex with 4-chloropyridine derivative 3 Deposited 2016-11-21 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2167（114 aa） Fragment：Bromodomain, UNP residues 2054-2167
Not recorded 7MU 4-chloranyl-~{N}-methyl-pyridine-2-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；PEG500MME (20%), PEG1000 (2%), PEG3350 (2%), PEG20000 (10%), MPD (2%)
Resolution 2.10 Å R-free 0.219
5OR9 Crystal Structure of BAZ2B bromodomain in complex with 1-methyl-cyclopentapyrazole compound 13 Deposited 2017-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa） Fragment：Bromodomain, UNP residues 1954-2068
Mutation：First two residues SM derive from the expression tag JR5 (2~{S})-1-(4-fluorophenyl)sulfonyl-~{N}-(2-methyl-5,6-dihydro-4~{H}-cyclopenta[c]pyrazol-3-yl)pyrrolidine-2-carboxamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG500MME, 2% PEG1000, 2% PEG3350, 10% PEG20000, 2% MPD
Resolution 2.00 Å R-free 0.208
5ORB Crystal Structure of BAZ2B bromodomain in complex with 1-methyl-cyclopentapyrazole compound 30 Deposited 2017-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1858–1972（115 aa） Fragment：Bromodomain, UNP residues 1858-1972
Mutation：First two residues SM derive from the expression tag JR6 2-(4-methoxyphenyl)sulfanyl-~{N}-(2-methyl-5,6-dihydro-4~{H}-cyclopenta[c]pyrazol-3-yl)ethanamide × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG500MME, 2% PEG1000, 2% PEG3350, 10% PEG20000, 2% MPD
Resolution 2.10 Å R-free 0.218
5PB7 PanDDA analysis group deposition -- Crystal Structure of BAZ2B in complex with N09440a Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 3 8H4 1~{H}-indazol-5-amine × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.66 Å R-free 0.203
5PB8 PanDDA analysis group deposition -- Crystal Structure of BAZ2B in complex with N09522a Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 4 AC6 P-HYDROXYACETOPHENONE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.65 Å R-free 0.207
5PB9 PanDDA analysis group deposition -- Crystal Structure of BAZ2B in complex with N09521a Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 3 53C 1-(3-hydroxyphenyl)ethanone × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.205
5PBA PanDDA analysis group deposition -- Crystal Structure of BAZ2B in complex with N09460a Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 53B 6-hydroxypyridine-2-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.93 Å R-free 0.224
5PBB PanDDA analysis group deposition -- Crystal Structure of BAZ2B in complex with N09496a Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 3 ES1 quinolin-4-ol × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.207
5PBC PanDDA analysis group deposition -- Crystal Structure of BAZ2B in complex with N09724a Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 ES3 4-bromo-1H-imidazole × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.77 Å R-free 0.215
5PBD PanDDA analysis group deposition -- Crystal Structure of BAZ2B in complex with N09682a Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 TYZ PARA ACETAMIDO BENZOIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.220
5PBE PanDDA analysis group deposition -- Crystal Structure of BAZ2B in complex with N09428a Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded TYL N-(4-HYDROXYPHENYL)ACETAMIDE (TYLENOL) × 1 EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.83 Å R-free 0.197
5PBF PanDDA analysis group deposition -- Crystal Structure of BAZ2B in complex with N09645a Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 8HJ 7-oxidanyl-3,4-dihydro-1~{H}-quinolin-2-one × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.80 Å R-free 0.213
5PBG PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 1) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.72 Å R-free 0.232
5PBH PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 2) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.69 Å R-free 0.215
5PBI PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 3) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.219
5PBJ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 4) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.210
5PBK PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 5) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.77 Å R-free 0.211
5PBL PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 6) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.84 Å R-free 0.219
5PBM PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 7) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.67 Å R-free 0.209
5PBN PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 8) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.86 Å R-free 0.205
5PBO PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 9) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.95 Å R-free 0.209
5PBP PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 10) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.88 Å R-free 0.211
5PBQ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 11) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.93 Å R-free 0.232
5PBR PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 12) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.81 Å R-free 0.202
5PBS PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 13) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.77 Å R-free 0.210
5PBT PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 14) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.206
5PBU PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 15) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.88 Å R-free 0.220
5PBV PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 16) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.74 Å R-free 0.227
5PBW PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 17) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.84 Å R-free 0.209
5PBX PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 18) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.65 Å R-free 0.216
5PBY PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 19) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.75 Å R-free 0.216
5PBZ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 20) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.70 Å R-free 0.222
5PC0 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 21) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.224
5PC1 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 22) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.72 Å R-free 0.212
5PC2 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 23) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.211
5PC3 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 24) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.80 Å R-free 0.219
5PC4 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 25) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.86 Å R-free 0.211
5PC5 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 26) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.85 Å R-free 0.226
5PC6 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 27) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.74 Å R-free 0.229
5PC7 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 28) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.72 Å R-free 0.219
5PC8 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 29) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.85 Å R-free 0.202
5PC9 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 30) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.76 Å R-free 0.214
5PCA PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 31) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.84 Å R-free 0.239
5PCB PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 32) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.80 Å R-free 0.211
5PCC PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 33) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.83 Å R-free 0.212
5PCD PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 34) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.76 Å R-free 0.261
5PCE PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 35) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.16 Å R-free 0.244
5PCF PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 36) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.02 Å R-free 0.260
5PCG PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 37) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.98 Å R-free 0.246
5PCH PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 38) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.75 Å R-free 0.229
5PCI PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 39) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.88 Å R-free 0.207
5PCJ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 40) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.97 Å R-free 0.219
5PCK PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 41) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.75 Å R-free 0.199
5PCL PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 42) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.19 Å R-free 0.268
5PCM PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 43) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.69 Å R-free 0.206
5PCN PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 44) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.84 Å R-free 0.212
5PCO PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 45) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.77 Å R-free 0.205
5PCP PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 46) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.69 Å R-free 0.205
5PCQ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 47) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.29 Å R-free 0.238
5PCR PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 48) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.90 Å R-free 0.213
5PCS PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 49) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.83 Å R-free 0.218
5PCT PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 50) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.217
5PCU PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 51) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.75 Å R-free 0.210
5PCV PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 52) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.65 Å R-free 0.209
5PCW PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 53) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.70 Å R-free 0.213
5PCX PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 54) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.217
5PCZ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 55) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.84 Å R-free 0.213
5PD0 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 56) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.84 Å R-free 0.233
5PD1 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 57) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.210
5PD2 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 58) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.213
5PD3 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 59) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.69 Å R-free 0.218
5PD4 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 60) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.80 Å R-free 0.204
5PD5 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 61) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.89 Å R-free 0.206
5PD6 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 62) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.01 Å R-free 0.234
5PD7 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 63) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.69 Å R-free 0.214
5PD8 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 64) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.71 Å R-free 0.213
5PD9 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 65) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.86 Å R-free 0.215
5PDA PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 66) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.77 Å R-free 0.209
5PDB PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 67) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.80 Å R-free 0.211
5PDC PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 68) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.74 Å R-free 0.212
5PDD PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 69) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.77 Å R-free 0.220
5PDE PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 70) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.88 Å R-free 0.217
5PDF PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 71) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.68 Å R-free 0.215
5PDG PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 72) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.63 Å R-free 0.213
5PDH PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 73) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.218
5PDI PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 74) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.70 Å R-free 0.216
5PDJ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 76) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.84 Å R-free 0.209
5PDK PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 77) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.74 Å R-free 0.210
5PDL PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 78) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.80 Å R-free 0.208
5PDM PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 79) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.71 Å R-free 0.225
5PDN PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 80) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.71 Å R-free 0.204
5PDO PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 81) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.213
5PDP PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 82) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.70 Å R-free 0.208
5PDQ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 83) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.26 Å R-free 0.220
5PDR PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 84) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.70 Å R-free 0.219
5PDS PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 85) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.212
5PDT PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 86) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.216
5PDU PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 87) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.70 Å R-free 0.210
5PDV PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 88) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.69 Å R-free 0.215
5PDW PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 89) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.88 Å R-free 0.216
5PDX PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 90) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.69 Å R-free 0.224
5PDY PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 91) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.93 Å R-free 0.226
5PDZ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 92) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.90 Å R-free 0.218
5PE0 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 93) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.76 Å R-free 0.218
5PE1 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 94) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.91 Å R-free 0.218
5PE2 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 95) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.71 Å R-free 0.221
5PE3 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 96) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.76 Å R-free 0.218
5PE4 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 97) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.74 Å R-free 0.218
5PE5 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 98) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.65 Å R-free 0.226
5PE6 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 99) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.67 Å R-free 0.216
5PE7 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 100) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.81 Å R-free 0.219
5PE8 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 101) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.65 Å R-free 0.223
5PE9 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 102) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.72 Å R-free 0.209
5PEA PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 103) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.65 Å R-free 0.221
5PEB PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 104) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.11 Å R-free 0.240
5PEC PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 105) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.85 Å R-free 0.229
5PED PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 106) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.80 Å R-free 0.213
5PEE PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 107) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.75 Å R-free 0.212
5PEF PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 108) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.73 Å R-free 0.216
5PEG PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 109) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.69 Å R-free 0.217
5PEH PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 110) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.71 Å R-free 0.225
5PEI PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 111) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.66 Å R-free 0.225
5PEJ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 112) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.71 Å R-free 0.219
5PEK PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 113) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.223
5PEL PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 114) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.70 Å R-free 0.222
5PEM PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 115) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.97 Å R-free 0.217
5PEN PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 116) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.72 Å R-free 0.217
5PEO PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 118) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.70 Å R-free 0.226
5PEQ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 119) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.75 Å R-free 0.215
5PER PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 120) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.00 Å R-free 0.219
5PES PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 121) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.80 Å R-free 0.217
5PET PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 122) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.72 Å R-free 0.220
5PEU PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 123) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.90 Å R-free 0.229
5PEV PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 124) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.81 Å R-free 0.219
5PEW PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 125) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.77 Å R-free 0.217
5PEX PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 126) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.220
5PEY PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 127) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.80 Å R-free 0.235
5PEZ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 128) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.70 Å R-free 0.221
5PF0 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 129) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.95 Å R-free 0.221
5PF1 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 130) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.229
5PF2 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 131) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.89 Å R-free 0.216
5PF3 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 132) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.83 Å R-free 0.212
5PF4 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 133) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.01 Å R-free 0.249
5PF5 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 134) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.71 Å R-free 0.219
5PF6 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 135) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.75 Å R-free 0.264
5PF7 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 136) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.220
5PF8 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 137) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.223
5PF9 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 138) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.91 Å R-free 0.220
5PFA PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 139) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.65 Å R-free 0.215
5PFB PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 140) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.80 Å R-free 0.228
5PFC PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 141) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.75 Å R-free 0.222
5PFD PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 142) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.88 Å R-free 0.224
5PFE PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 143) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.216
5PFF PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 144) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.96 Å R-free 0.224
5PFG PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 145) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.68 Å R-free 0.212
5PFH PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 146) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.66 Å R-free 0.206
5PFI PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 147) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.66 Å R-free 0.209
5PFJ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 148) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.07 Å R-free 0.208
5PFL PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 149) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.71 Å R-free 0.212
5PFM PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 150) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.54 Å R-free 0.213
5PFN PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 151) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.72 Å R-free 0.212
5PFO PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 152) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.82 Å R-free 0.211
5PFP PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 153) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.65 Å R-free 0.211
5PFQ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 154) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.78 Å R-free 0.214
5PFR PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 155) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.89 Å R-free 0.213
5PFS PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 156) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.00 Å R-free 0.266
5PFT PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 157) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.02 Å R-free 0.222
5PFU PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 158) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.75 Å R-free 0.215
5PFV PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 159) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.72 Å R-free 0.223
5PFW PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 160) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.64 Å R-free 0.222
5PFX PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 161) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.90 Å R-free 0.213
5PFY PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 162) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.65 Å R-free 0.224
5PFZ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 163) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.72 Å R-free 0.224
5PG0 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 164) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.71 Å R-free 0.227
5PG1 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 165) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.49 Å R-free 0.246
5PG2 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 166) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.68 Å R-free 0.222
5PG3 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 167) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.66 Å R-free 0.225
5PG4 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 168) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.49 Å R-free 0.254
5PG5 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 169) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.75 Å R-free 0.221
5PG6 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 170) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.65 Å R-free 0.220
5PG7 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 171) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.96 Å R-free 0.232
5PG8 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 172) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.69 Å R-free 0.218
5PG9 PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 173) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.62 Å R-free 0.213
5PGA PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 174) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.59 Å R-free 0.218
5PGB PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 175) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.57 Å R-free 0.216
5PGC PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 176) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.61 Å R-free 0.223
5PGD PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 177) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.215
5PGE PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 178) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.70 Å R-free 0.224
5PGF PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 179) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.82 Å R-free 0.227
5PGG PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 180) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.68 Å R-free 0.225
5PGH PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 181) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.93 Å R-free 0.219
5PGI PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 182) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.88 Å R-free 0.249
5PGJ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 183) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.58 Å R-free 0.218
5PGK PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 184) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.83 Å R-free 0.212
5PGL PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 185) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.23 Å R-free 0.265
5PGN PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 186) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.79 Å R-free 0.218
5PGO PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 187) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.88 Å R-free 0.217
5PGP PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 188) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.76 Å R-free 0.221
5PGQ PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 189) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.71 Å R-free 0.225
5PGR PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 190) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 2.00 Å R-free 0.219
5PGS PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 191) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.64 Å R-free 0.219
5PGT PanDDA analysis group deposition -- Crystal Structure of BAZ2B after initial refinement with no ligand modelled (structure 192) Deposited 2017-02-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1954–2068（115 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；30% PEG600 -- 0.1M MES pH 6.0
Resolution 1.72 Å R-free 0.220
6FGT Crystal Structure of BAZ2B bromodomain in complex with 1-methylpyridinone compound 3 Deposited 2018-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa）
Not recorded D9T ~{N}-[(1-azanylcyclohexyl)methyl]-1-methyl-6-oxidanylidene-pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20% PEG500MME, 2% PEG1000, 2% PEG3350, 10% PEG20000, 2% MPD
Resolution 2.00 Å R-free 0.239
6FGU Crystal Structure of BAZ2B bromodomain in complex with 1-methylpyridinone compound 4 Deposited 2018-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa）
Not recorded D9Q 1-methyl-6-oxidanylidene-~{N}-(2-pyrrolidin-1-ylethyl)pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20% PEG500MME, 2% PEG1000, 2% PEG3350, 10% PEG20000, 2% MPD
Resolution 2.05 Å R-free 0.248
6FH6 Crystal Structure of BAZ2B bromodomain in complex with 1-methylpyridinone compound 1 Deposited 2018-01-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded D8Q ~{N}-(2-azanylethyl)-1-methyl-6-oxidanylidene-pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG500MME, 2% PEG1000, 2% PEG3350, 10% PEG20000, 2% MPD
Resolution 2.08 Å R-free 0.246
6FH7 Crystal Structure of BAZ2B bromodomain in complex with 1-methylpyridinone compound 2 Deposited 2018-01-12 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 2054–2168（115 aa） Fragment：Bromodomain (residues 2054-2168)
Not recorded EN2 ~{N}-[3-[(4-fluorophenyl)carbonylamino]propyl]-1-methyl-6-oxidanylidene-pyridine-3-carboxamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG500MME, 2% PEG1000, 2% PEG3350, 10% PEG20000, 2% MPD
Resolution 2.10 Å R-free 0.233
6FHQ Crystal structure of human BAZ2B PHD zinc finger in complex with Fr 21 Deposited 2018-01-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1928–1983（56 aa）
Not recorded ZN ZINC ION × 2 DE5 2-azanyl-~{N}-(1,3-thiazol-2-yl)ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；2.2 - 2.4 M sodium/ potassium phosphate
Resolution 1.95 Å R-free 0.239
6FHQ Crystal structure of human BAZ2B PHD zinc finger in complex with Fr 21 Deposited 2018-01-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1928–1983（56 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；2.2 - 2.4 M sodium/ potassium phosphate
Resolution 1.95 Å R-free 0.239
6FI1 Crystal structure of human BAZ2B PHD zinc finger in complex with Fr23 Deposited 2018-01-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1928–1983（56 aa）
Not recorded ZN ZINC ION × 2 D3H ~{N}-(4-aminophenyl)-2-azanyl-ethanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；2.2-2.4 M sodium/potassium phopsphate
Resolution 2.70 Å R-free 0.300
6FI1 Crystal structure of human BAZ2B PHD zinc finger in complex with Fr23 Deposited 2018-01-16 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 1928–1983（56 aa）
Not recorded ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；2.2-2.4 M sodium/potassium phopsphate
Resolution 2.70 Å R-free 0.300
7WIN Crystal structure of BAZ2B TAM domain Deposited 2022-01-04 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 736–846（111 aa）
Chain B 736–846（111 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；30% w/v PEG 400, 0.2 M Sodium citrate tribasic dihydrate, and 0.1 M Tris pH 8.5
Resolution 1.95 Å R-free 0.246

263 other PDB entries and 269 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name BAZ2B_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–15； UniProt 649–663 Author chain D； PDBConstruct 1–15； UniProt 649–663 Author chain F； PDBConstruct 1–15； UniProt 649–663

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7q42

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7q42
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7q42
Deposition date deposition_date2021-10-29
Structure title titleCrystal structure of RCC1-Like domain 2 of ubiquitin ligase HERC2 in complex with DXDKDED motif of chromatin reader BAZ2B
Keywords keywords;7-bladed beta-propeller E3 ubiquitin-protein ligase HERC2 RCC1-like Domain2 RLD2 BAZ2B chromatin reader DXDKDED motif, PROTEIN BINDING ;; PROTEIN BINDING
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier34.01 Å
Radius of gyration Rg (electron density) rg_electron33.76 Å
Forward intensity I(0) i0238034000.00
Molecular weight molecular_weight120500.0 kDa
Excluded volume excluded_volume149400 ų
Envelope volume envelope_volume180470 ų
Hydration-shell volume shell_volume44082 ų
Envelope diameter envelope_diameter107.0 Å
Shell Rg shell_rg40.58 Å
Envelope Rg envelope_rg33.62 Å
Shape Rg shape_rg33.72 Å
Total Rg total_rg34.35 Å
Total atoms total_atoms8472
Residues n_residues1132
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax103.8 Å
Rg (real space) rg_real33.92 Å
Rg uncertainty (real space) rg_real_error0.80 Å
I(0) (real space) i0_real2.3800e+08
I(0) uncertainty (real space) i0_real_error4.1910e+06
Rg (reciprocal space) rg_reciprocal33.98 Å
I(0) (reciprocal space) i0_reciprocal238000000.0000
Solution quality estimate total_estimate0.8373
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary35.4 Å
Skewness Skewness skewness0.134
Kurtosis Kurtosis kurtosis-0.743
Angular range angular_range— – 0.2350 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha66490000.0000
Real-space data points n_real_points48
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.962; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▶

8. Citations (1)

▶

9. Files and Curves (10)
