SAXSdb — 7ram

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Envelope glycoprotein H

Human herpesvirus 5 strain AD169

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Envelope glycoprotein L × 1 （P16832） Envelope glycoprotein O × 1 （Q8AZ32） Platelet-derived growth factor receptor alpha × 1 （P16234）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GH_HCMVA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–678； UniProt 41–718

Envelope glycoprotein L

Human herpesvirus 5 strain AD169

UniProt P16832

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Envelope glycoprotein H × 1 （P12824） Envelope glycoprotein O × 1 （Q8AZ32） Platelet-derived growth factor receptor alpha × 1 （P16234）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GL_HCMVA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–242； UniProt 37–278

Envelope glycoprotein O

Human betaherpesvirus 5

UniProt Q8AZ32

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Envelope glycoprotein H × 1 （P12824） Envelope glycoprotein L × 1 （P16832） Platelet-derived growth factor receptor alpha × 1 （P16234）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8AZ32_HCMV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–463； UniProt 1–463

Platelet-derived growth factor receptor alpha

Homo sapiens

UniProt P16234

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Envelope glycoprotein H × 1 （P12824） Envelope glycoprotein L × 1 （P16832） Envelope glycoprotein O × 1 （Q8AZ32）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PGFRA_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–524； UniProt 1–524

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7ram
Deposition date deposition_date	2021-07-02
Structure title title	Cryo-EM Structure of the HCMV gHgLgO Trimer Derived from AD169 and TR strains in complex with PDGFRalpha
Keywords keywords	viral entry glycoprotein in complex with receptor, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7ram__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7ram__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

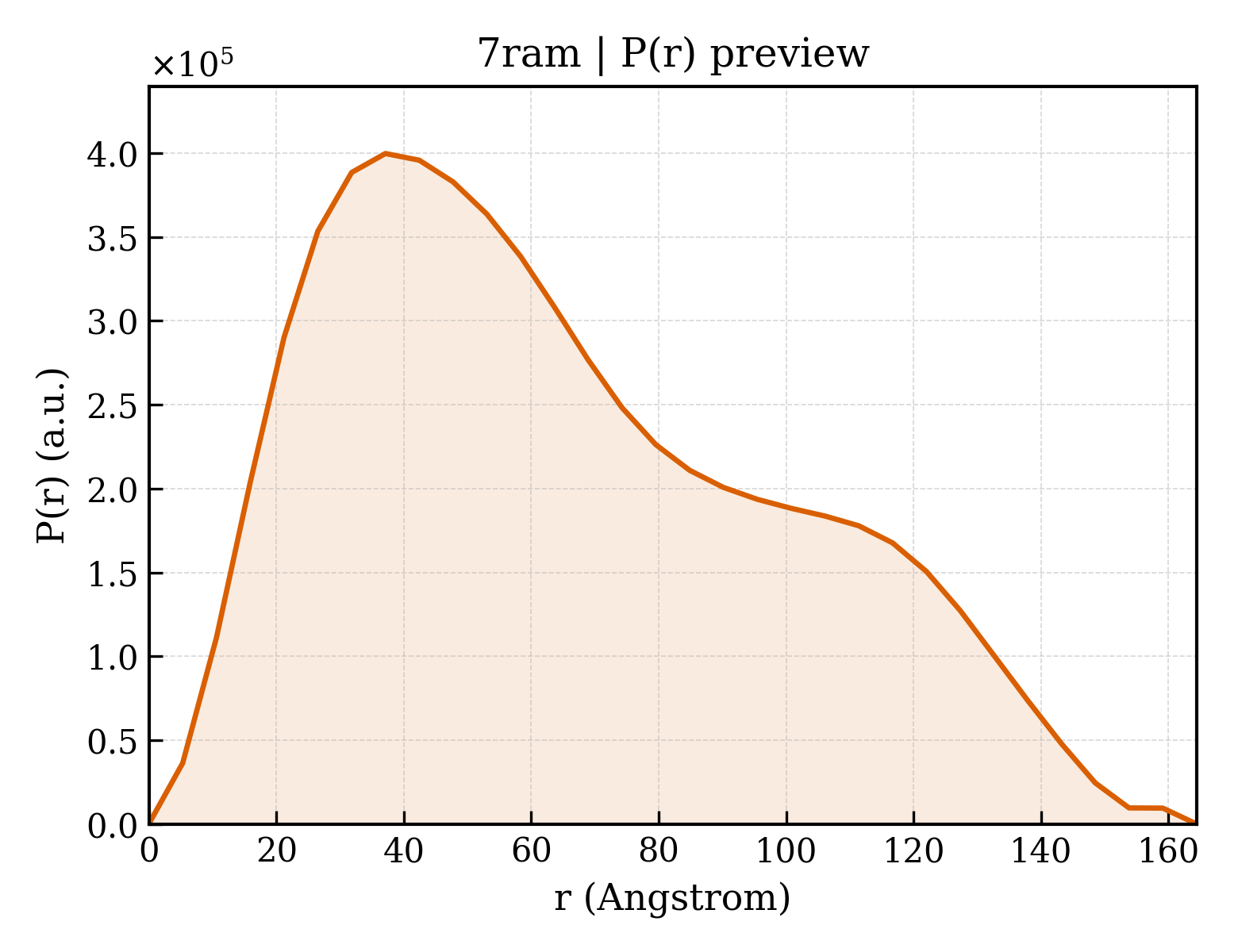

7ram__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.43 Å
Rg (electron density)	51.90 Å
Total Rg	51.87 Å
Atom count	12006
Residues	1497
Excluded volume	214190 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7ram__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Envelope glycoprotein H
Molecular weight formula_weight	80435.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	12006

LLLNTYGRPIRFLRENTTQCTYNSSLRNSTVVRENAISFNFFQSYNQYYVFHMPRCLFAGPLAEQFLNQVDLTETLERYQQRLNTYALVSKDLASYRSFSQQLKAQDSLGQQPTTVPPPIDLSIPHVWMPPQTTPHDWKGSHTTSGLHRPHFNQTCILFDGHDLLFSTVTPCLHQGFYLMDELRYVKITLTEDFFVVTVSIDDDTPMLLIFGHLPRVLFKAPYQRDNFILRQTEKHELLVLVKKAQLNRHSYLKDSDFLDAALDFNYLDLSALLRNSFHRYAVDVLKSGRCQMLDRRTVEMAFAYALALFAAARQEEAGTEISIPRALDRQAALLQIQEFMITCLSQTPPRTTLLLYPTAVDLAKRALWTPDQITDITSLVRLVYILSKQNQQHLIPQWALRQIADFALQLHKTHLASFLSAFARQELYLMGSLVHSMLVHTTERREIFIVETGLCSLAELSHFTQLLAHPHHEYLSDLYTPCSSSGRRDHSLERLTRLFPDATVPATVPAALSILSTMQPSTLETFPDLFCLPLGESFSALTVSEHVSYVVTNQYLIKGISYPVSTTVVGQSLIITQTDSQTKCELTRNMHTTHSITAALNISLENCAFCQSALLEYDDTQGVINIMYMHDSDDVLFALDPYNEVVVSSPRTHYLMLLKNGTVLEVTDVVVDATDSRGSLVPRGSSAWSHPQFEKAGHHHHHHHH

Source Source

Source organism organism	Human herpesvirus 5 strain AD169
NCBI taxonomy ID ncbi_taxonomy_id	10360
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Envelope glycoprotein L
Molecular weight formula_weight	27138.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

PTAAEKVPAECPELTRRCLLGEVFQGDKYESWLRPLVNVTRRDGPLSQLIRYRPVTPEAANSVLLDDAFLDTLALLYNNPDQLRALLTLLSSDTAPRWMTVMRGYSECGDGSPAVYTCVDDLCRGYDLTRLSYGRSIFTEHVLGFELVPPSLFNVVVAIRNEATRTNRAVRLPVSTAAAPEGITLFYGLYNAVKEFCLRHQLDPPLLRHLDKYYAGLPPELKQTRVNLPAHSRYGPQAVDAR

Source Source

Source organism organism	Human herpesvirus 5 strain AD169
NCBI taxonomy ID ncbi_taxonomy_id	10360
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Envelope glycoprotein O
Molecular weight formula_weight	53937.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGRKGEMRGVFNLFFLMSLTFLLFSFINCRAAVRLSVGRYWSGKVLSTIGKQRLDKFKLEILKQLEKDIYTKYFNMTRQHIKNLTMNMTEFPRYYILAGPIQNNSVTYLWFDFYSTQLRKPAKYVFSEYNHTAKTITFRPPSCGTVPSMTCLSEMLNVSKRNDTGEQGCGNFTTFNPMFFNVPRWNTKLYVGSKKVNVDSQTIYFLGLTALLLRYAQRNCTHSFYLVNAMSRNLFRVPKYINGTKLKNTMRKLKRKQAPVKEQSEKKSKKSQSTTTPYSPYTTSTALNVTTNATYSVTTTARRVSTSTIAYRPDSSFMKSIMTTQLRDLATWVYTTLRYRQNPFCESSRNRTAVSEFMKNTHVLIRNETPYTIYGTLDMSSLYYNETMFVENKTASETTPTSPSTGFQRTFIDPLWDYLDSLLFLDEIRNFSLQSPTYGNLTPPEHRRAVNLSTLNSLWWWLQ

Source Source

Source organism organism	Human betaherpesvirus 5
NCBI taxonomy ID ncbi_taxonomy_id	10359
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Platelet-derived growth factor receptor alpha
Molecular weight formula_weight	59370.0 kDa
EC 编号 ec_number	2.7.10.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MGTSHPAFLVLGCLLTGLSLILCQLSLPSILPNENEKVVQLNSSFSLRCFGESEVSWQYPMSEEESSDVEIRNEENNSGLFVTVLEVSSASAAHTGLYTCYYNHTQTEENELEGRHIYIYVPDPDVAFVPLGMTDYLVIVEDDDSAIIPCRTTDPETPVTLHNSEGVVPASYDSRQGFNGTFTVGPYICEATVKGKKFQTIPFNVYALKATSELDLEMEALKTVYKSGETIVVTCAVFNNEVVDLQWTYPGEVKGKGITMLEEIKVPSIKLVYTLTVPEATVKDSGDYECAARQATREVKEMKKVTISVHEKGFIEIKPTFSQLEAVNLHEVKHFVVEVRAYPPPRISWLKNNLTLIENLTEITTDVEKIQEIRYRSKLKLIRAKEEDSGHYTIVAQNEDAVKSYTFELLTQVPSSILDLVDDHHGSTGGQTVRCTAEGTPLPDIEWMICKDIKKCNNETSWTILANNVSNIITEIHPRDRSTVEGRVTFAKVEETIAVRCLAKNLLGAENRELKLVAPTLRSEENLYFQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.43 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	345997
