1. Protein Identity and Related Structures Protein Identity & Related Structures

Transforming growth factor beta-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 303–414 Chain B； UniProt 303–414	Fragment：mature domain (UNP residues 303-414)	4A11.V2 Fab Light Chain × 2 4A11.V2 Fab Heavy Chain × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；15% PEG4000, 0.1 M sodium cacodylate, pH 6.0	Resolution 2.90 Å R-free 0.286

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7RCO	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1TFG AN UNUSUAL FEATURE REVEALED BY THE CRYSTAL STRUCTURE AT 2.2 ANGSTROMS RESOLUTION OF HUMAN TRANSFORMING GROWTH FACTOR-BETA2 Deposited 1992-11-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 303–414（112 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.95 Å
2TGI CRYSTAL STRUCTURE OF TRANSFORMING GROWTH FACTOR-BETA2: AN UNUSUAL FOLD FOR THE SUPERFAMILY Deposited 1993-10-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 303–414（112 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
4KXZ crystal structure of tgfb2 in complex with GC2008. Deposited 2013-05-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 303–414（112 aa） Fragment：unp residues 303-414 Chain B 303–414（112 aa） Fragment：unp residues 303-414	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；296 K；35% PEG400, 100mM MES, VAPOR DIFFUSION, temperature 296K, pH 6.0	Resolution 2.83 Å R-free 0.222
4KXZ crystal structure of tgfb2 in complex with GC2008. Deposited 2013-05-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 303–414（112 aa） Fragment：unp residues 303-414 Chain E 303–414（112 aa） Fragment：unp residues 303-414	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3 PE5 3,6,9,12,15,18,21,24-OCTAOXAHEXACOSAN-1-OL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；296 K；35% PEG400, 100mM MES, VAPOR DIFFUSION, temperature 296K, pH 6.0	Resolution 2.83 Å R-free 0.222
5TX4 Derivative of mouse TGF-beta2, with a deletion of residues 52-71 and K25R, R26K, L51R, A74K, C77S, L89V, I92V, K94R T95K, I98V single amino acid substitutions, bound to human TGF-beta type II receptor ectodomain residues 15-130 Deposited 2016-11-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 303–414（112 aa） Fragment：UNP residues 303-414	Mutation：deletion of residues 52-71 and K25R, R26K, L51R, A74K, C77S, L89V, I92V, K94R T95K, I98V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M Hepes, pH 7.5, 60 % v/v (+/-)-2-Methyl-2,4-pentanediol	Resolution 1.88 Å R-free 0.222
6I9J Human transforming growth factor beta2 in a tetragonal crystal form Deposited 2018-11-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 331–442（112 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；20% isopropanol, 0.2M calcium chloride, 0.1M sodium acetate pH 4.6	Resolution 2.00 Å R-free 0.253
6XM2 The structure of the 4A11.v7 antibody in complex with human TGFb2 Deposited 2020-06-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain K 303–414（112 aa） Fragment：mature domain Chain L 303–414（112 aa） Fragment：mature domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；20% PEG 1000, 0.1 M Tris pH8.5	Resolution 1.91 Å R-free 0.244
6XM2 The structure of the 4A11.v7 antibody in complex with human TGFb2 Deposited 2020-06-29	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain I 303–414（112 aa） Fragment：mature domain Chain J 303–414（112 aa） Fragment：mature domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；20% PEG 1000, 0.1 M Tris pH8.5	Resolution 1.91 Å R-free 0.244
8DC0 Rat Betaglycan Zona Pellucida Domain (ZPC) in complex with mini monomer TGFb2 (mmTGF-b2-7M2R) Deposited 2022-06-15	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 303–414（112 aa） Fragment：mmTGF-b2-7m2r (UNP residues 303-414)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；13% PEG4000, 0.1 M trisodium citrate, 10% ethylene glycol	Resolution 1.93 Å R-free 0.257
8FXS Crystal structure of human pro-TGF-beta2 in complex with Nb9 Deposited 2023-01-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 21–414（394 aa） Chain B 21–414（394 aa）	Mutation：C24S, N140R, R298_R303delinsG Mutation：C24S, N140R, R298_R303delinsG	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Crystals of the Nb9/proTGF-beta2 complex (1 microliter) were formed in hanging drops with 1 microliter of 100 mM HEPES pH 7.6, 10% PEG 4000.	Resolution 3.15 Å R-free 0.301
8FXV Crystal structure of human proTGF-beta2 in complex with Nb18 Deposited 2023-01-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 21–414（394 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Crystals of the Nb18/proTGF-beta2 complex (1 microliter) were formed in hanging drops with 1 microliter of 100 mM HEPES pH 7.4, 26.7% Jeffamine ED2001.	Resolution 2.20 Å R-free 0.249

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TGFB2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–112； UniProt 303–414 Author chain B； PDBConstruct 1–112； UniProt 303–414

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7rco
Deposition date deposition_date	2021-07-07
Structure title title	Crystal structure of human TGF-beta-2 bound to 4A11.V2 Fab
Keywords keywords	TGF-beta-2, Conformational antibody, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.44 Å
Radius of gyration Rg (electron density) rg_electron	36.31 Å
Forward intensity I(0) i0	210037000.00
Molecular weight molecular_weight	115860.0 kDa
Excluded volume excluded_volume	144410 Å³
Envelope volume envelope_volume	192460 Å³
Hydration-shell volume shell_volume	44699 Å³
Envelope diameter envelope_diameter	126.6 Å
Shell Rg shell_rg	41.80 Å
Envelope Rg envelope_rg	36.13 Å
Shape Rg shape_rg	36.30 Å
Total Rg total_rg	36.73 Å
Total atoms total_atoms	8152
Residues n_residues	1076
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

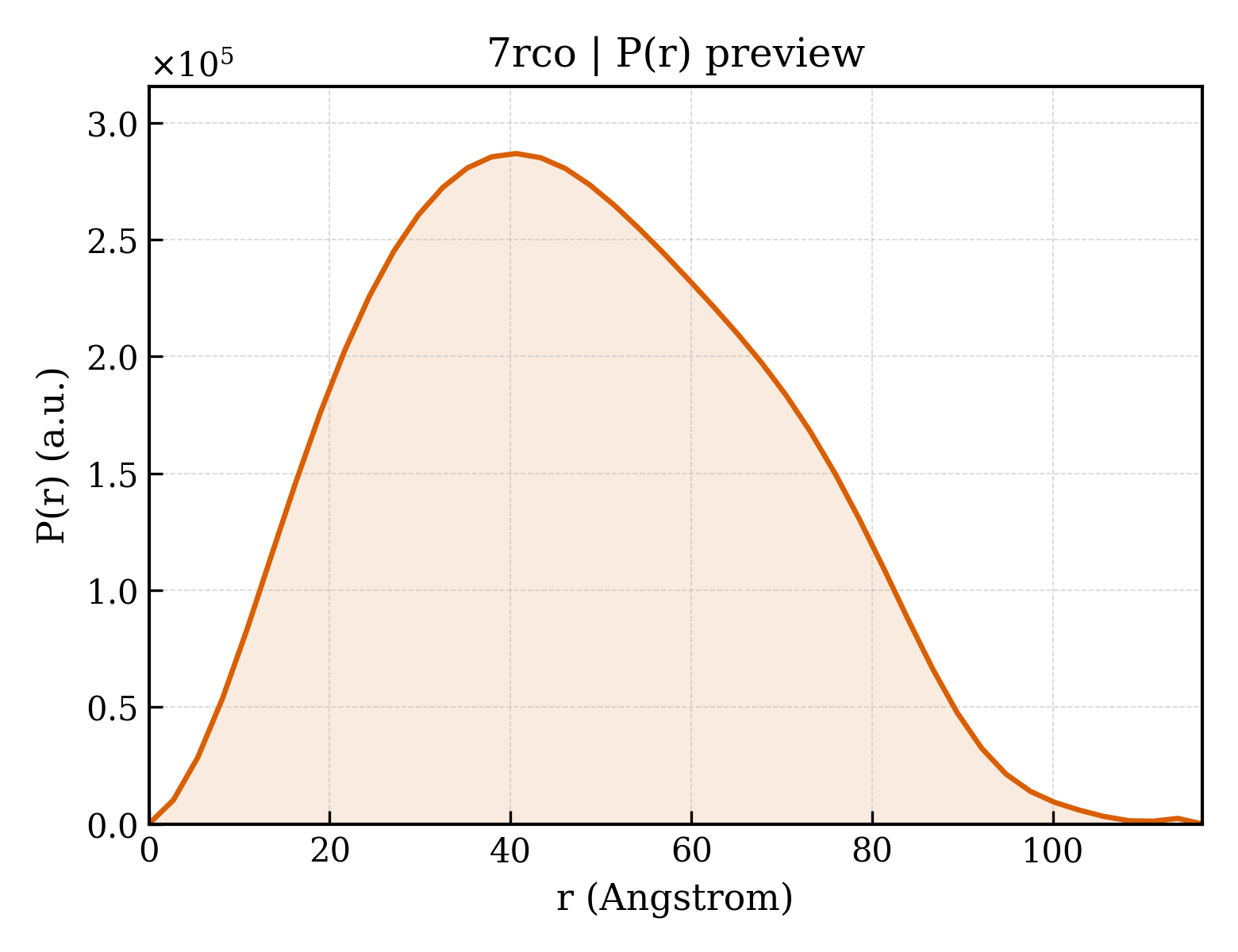

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	116.5 Å
Rg (real space) rg_real	36.40 Å
Rg uncertainty (real space) rg_real_error	0.93 Å
I(0) (real space) i0_real	2.1000e+08
I(0) uncertainty (real space) i0_real_error	3.4760e+06
Rg (reciprocal space) rg_reciprocal	36.43 Å
I(0) (reciprocal space) i0_reciprocal	210000000.0000
Solution quality estimate total_estimate	0.9034
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	40.6 Å
Skewness Skewness skewness	0.211
Kurtosis Kurtosis kurtosis	-0.642
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	20240000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.947; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.915

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Transforming growth factor beta-2
Molecular weight formula_weight	12732.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8200

ALDAAYCFRNVQDNCCLRPLYIDFKRDLGWKWIHEPKGYNANFCAGACPYLWSSDTQHSRVLSLYNTINPEASASPCCVSQDLEPLTILYYIGKTPKIEQLSNMIVKSCKCS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	4A11.V2 Fab Light Chain
Molecular weight formula_weight	23567.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,E

DAQLTQSPSSLSASVGDRVTITCQSSQSVYNNNYLSWFQQKPGKPPKLLIYGASTLTSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCAGGYSGSSDKYAFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	4A11.V2 Fab Heavy Chain
Molecular weight formula_weight	24389.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,F

EQQLVESGGGLVQPGGSLRLSCAVSGFSLSSYTVNWVRQAPGKGLEWIGYISYGGSAYYASWANGRFTISKDSAKNSVYLQMNSLRAEDTAVYFCARHMQVGGAPTGSMAAFDPWGPGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	48

▼

7. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	7rcoC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7rcoC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7rcoD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7rcoD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7rcoE01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7rcoE02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7rcoF01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7rcoF02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	60.154 Å
Unit-cell length b length_b	103.479 Å
Unit-cell length c length_c	196.253 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	45.951 Å
R factor r_factor	0.2119
R_work r_work	0.2082
R_free r_free	0.2860

fit	/app/data/saxs_computation/rc/7rco/7rco.fit
pddf	/app/data/pr_computation/rc/7rco/7rco.pr.out
profile	/app/data/saxs_computation/rc/7rco/7rco.dat
