SAXSdb — 8fxv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transforming growth factor beta-2 proprotein

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 21–414	Not recorded	Nanobody clone 18 × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293.15 K；Crystals of the Nb18/proTGF-beta2 complex (1 microliter) were formed in hanging drops with 1 microliter of 100 mM HEPES pH 7.4, 26.7% Jeffamine ED2001.	Resolution 2.20 Å R-free 0.249

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8FXV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1TFG AN UNUSUAL FEATURE REVEALED BY THE CRYSTAL STRUCTURE AT 2.2 ANGSTROMS RESOLUTION OF HUMAN TRANSFORMING GROWTH FACTOR-BETA2 Deposited 1992-11-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 303–414（112 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.95 Å
2TGI CRYSTAL STRUCTURE OF TRANSFORMING GROWTH FACTOR-BETA2: AN UNUSUAL FOLD FOR THE SUPERFAMILY Deposited 1993-10-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 303–414（112 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
4KXZ crystal structure of tgfb2 in complex with GC2008. Deposited 2013-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 303–414（112 aa） Fragment：unp residues 303-414 Chain B 303–414（112 aa） Fragment：unp residues 303-414	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；296 K；35% PEG400, 100mM MES, VAPOR DIFFUSION, temperature 296K, pH 6.0	Resolution 2.83 Å R-free 0.222
4KXZ crystal structure of tgfb2 in complex with GC2008. Deposited 2013-05-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 303–414（112 aa） Fragment：unp residues 303-414 Chain E 303–414（112 aa） Fragment：unp residues 303-414	Not recorded	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3 PE5 3,6,9,12,15,18,21,24-OCTAOXAHEXACOSAN-1-OL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；296 K；35% PEG400, 100mM MES, VAPOR DIFFUSION, temperature 296K, pH 6.0	Resolution 2.83 Å R-free 0.222
5TX4 Derivative of mouse TGF-beta2, with a deletion of residues 52-71 and K25R, R26K, L51R, A74K, C77S, L89V, I92V, K94R T95K, I98V single amino acid substitutions, bound to human TGF-beta type II receptor ectodomain residues 15-130 Deposited 2016-11-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 303–414（112 aa） Fragment：UNP residues 303-414	Mutation：deletion of residues 52-71 and K25R, R26K, L51R, A74K, C77S, L89V, I92V, K94R T95K, I98V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M Hepes, pH 7.5, 60 % v/v (+/-)-2-Methyl-2,4-pentanediol	Resolution 1.88 Å R-free 0.222
6I9J Human transforming growth factor beta2 in a tetragonal crystal form Deposited 2018-11-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 331–442（112 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；20% isopropanol, 0.2M calcium chloride, 0.1M sodium acetate pH 4.6	Resolution 2.00 Å R-free 0.253
6XM2 The structure of the 4A11.v7 antibody in complex with human TGFb2 Deposited 2020-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain K 303–414（112 aa） Fragment：mature domain Chain L 303–414（112 aa） Fragment：mature domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；20% PEG 1000, 0.1 M Tris pH8.5	Resolution 1.91 Å R-free 0.244
6XM2 The structure of the 4A11.v7 antibody in complex with human TGFb2 Deposited 2020-06-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain I 303–414（112 aa） Fragment：mature domain Chain J 303–414（112 aa） Fragment：mature domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；292 K；20% PEG 1000, 0.1 M Tris pH8.5	Resolution 1.91 Å R-free 0.244
7RCO Crystal structure of human TGF-beta-2 bound to 4A11.V2 Fab Deposited 2021-07-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 303–414（112 aa） Fragment：mature domain (UNP residues 303-414) Chain B 303–414（112 aa） Fragment：mature domain (UNP residues 303-414)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；15% PEG4000, 0.1 M sodium cacodylate, pH 6.0	Resolution 2.90 Å R-free 0.286
8DC0 Rat Betaglycan Zona Pellucida Domain (ZPC) in complex with mini monomer TGFb2 (mmTGF-b2-7M2R) Deposited 2022-06-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 303–414（112 aa） Fragment：mmTGF-b2-7m2r (UNP residues 303-414)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；13% PEG4000, 0.1 M trisodium citrate, 10% ethylene glycol	Resolution 1.93 Å R-free 0.257
8FXS Crystal structure of human pro-TGF-beta2 in complex with Nb9 Deposited 2023-01-25	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 21–414（394 aa） Chain B 21–414（394 aa）	Mutation：C24S, N140R, R298_R303delinsG Mutation：C24S, N140R, R298_R303delinsG	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Crystals of the Nb9/proTGF-beta2 complex (1 microliter) were formed in hanging drops with 1 microliter of 100 mM HEPES pH 7.6, 10% PEG 4000.	Resolution 3.15 Å R-free 0.301

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TGFB2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–393； UniProt 21–414

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8fxv
Deposition date deposition_date	2023-01-25
Structure title title	Crystal structure of human proTGF-beta2 in complex with Nb18
Keywords keywords	TGF-b TGF-beta nanobody latent procomplex prodomain, CYTOKINE; CYTOKINE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.57 Å
Radius of gyration Rg (electron density) rg_electron	30.45 Å
Forward intensity I(0) i0	40321000.00
Molecular weight molecular_weight	49472.0 kDa
Excluded volume excluded_volume	62019 Å³
Envelope volume envelope_volume	86573 Å³
Hydration-shell volume shell_volume	26463 Å³
Envelope diameter envelope_diameter	111.2 Å
Shell Rg shell_rg	33.94 Å
Envelope Rg envelope_rg	30.18 Å
Shape Rg shape_rg	30.42 Å
Total Rg total_rg	30.92 Å
Total atoms total_atoms	6895
Residues n_residues	434
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

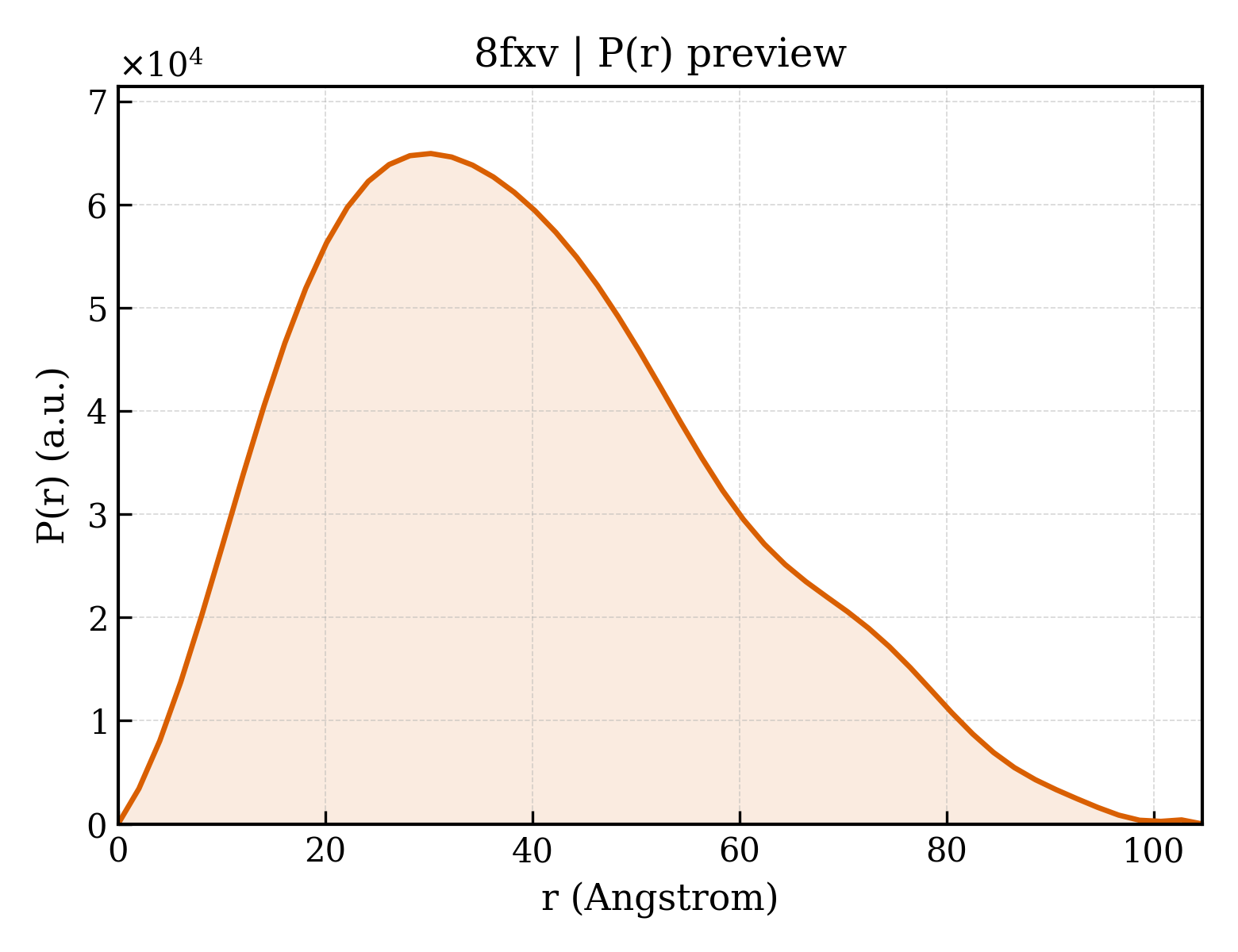

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	104.7 Å
Rg (real space) rg_real	30.82 Å
Rg uncertainty (real space) rg_real_error	0.98 Å
I(0) (real space) i0_real	4.0320e+07
I(0) uncertainty (real space) i0_real_error	6.1510e+05
Rg (reciprocal space) rg_reciprocal	30.72 Å
I(0) (reciprocal space) i0_reciprocal	40320000.0000
Solution quality estimate total_estimate	0.8576
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.2 Å
Skewness Skewness skewness	0.479
Kurtosis Kurtosis kurtosis	-0.351
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3275000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.847; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.754; Smooth: 0.850

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Transforming growth factor beta-2 proprotein
Molecular weight formula_weight	45195.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6958

GPSLSTSSTLDMDQFMRKRIEAIRGQILSKLKLTSPPEDYPEPEEVPPEVISIYNSTRDLLQEKASRRAAACERERSDEEYYAKEVYKIDMPPFFPSENAIPPTFYRPYFRIVRFDVSAMEKRASNLVKAEFRVFRLQNPKARVPEQRIELYQILKSKDLTSPTQRYIDSKVVKTRAEGEWLSFDVTDAVHEWLHHKDRNLGFKISLHCPCCTFVPSNNYIIPNKSEELEARFAGIDGTSTYTSGDQKTIKSTRKKNSGKTPHLLLMLLPSYRLESQQTNGALDAAYCFRNVQDNCCLRPLYIDFKRDLGWKWIHEPKGYNANFCAGACPYLWSSDTQHSRVLSLYNTINPEASASPCCVSQDLEPLTILYYIGKTPKIEQLSNMIVKSCKCS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Nanobody clone 18
Molecular weight formula_weight	13519.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QVQLQESGGGLVQAGGSLRLSCAASGYISNDDVMGWYRQAPGKEREFVAAISVGASTNYADSVKGRFTISRDNAKNTVYLQMNSLKPEDTAVYYCAAQSEGGYWFGYWGQGTQVTVSSHHHHHH

来源 Source

来源生物 organism	synthetic construct
NCBI Class编号 ncbi_taxonomy_id	32630
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	63

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	8fxvB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	70.750 Å
Unit-cell length b length_b	78.160 Å
Unit-cell length c length_c	88.890 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 2 21
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	45.170 Å
R factor r_factor	0.2279
R_work r_work	0.2268
R_free r_free	0.2491

fit	/app/data/saxs_computation/fx/8fxv/8fxv.fit
pddf	/app/data/pr_computation/fx/8fxv/8fxv.pr.out
profile	/app/data/saxs_computation/fx/8fxv/8fxv.dat
