SAXSdb — 7rsa

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBONUCLEASE A

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 27–150	Not recorded	TBU TERTIARY-BUTYL ALCOHOL × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 1.26 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7RSA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D5D The role of phenylalanine 8 in the stabilization of the s protein-s peptide interaction: packing and cavities Deposited 1999-10-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 50–150（101 aa） Fragment：RESIDUES 21-124	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.75；293 K；3M CSCL, 35% AMMONIUM SULFATE. 0.1 M SODIUM ACETATE, pH 5.75, VAPOR DIFFUSION, SITTING DROP, temperature 20K	Resolution 2.25 Å R-free 0.218
1D5E The role of phenylalanine 8 in the stabilization of the S protein-S peptide interaction: Packing and cavities Deposited 1999-10-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 50–150（101 aa） Fragment：RESIDUES 24-124	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.75；293 K；3M CsCl, 35% Ammonium Sulfate. 0.1 M Sodium Acetate, pH 5.75, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.25 Å R-free 0.231
1D5H Rnase s(f8a). mutant ribonucleasE S. Deposited 1999-10-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 50–150（101 aa） Fragment：RESIDUES 24-124	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.75；293 K；3M CsCl, 35% Ammonium Sulfate. 0.1 M Sodium Acetate, pH 5.75, VAPOR DIFFUSION, SITTING DROP, temperature 20K	Resolution 2.25 Å R-free 0.257
1GV7 ARH-I, an angiogenin/RNase A chimera Deposited 2002-02-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 85–97（13 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.8；289 K；VAPOUR DIFFUSION, 16 C 10 MG/ML PROTEIN, 15 % PEG 4000, 8 % TERT-BUTANOL, 0.3 M AMMONIUM ACETATE, 0.1 M SODIUM CITRATE BUFFER, PH 5.8	Resolution 2.10 Å R-free 0.274
1UN5 ARH-II, AN ANGIOGENIN/RNASE A CHIMERA Deposited 2003-09-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 64–68（5 aa）	Mutation：YES	CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.4；10% PEG 6000, PH 5.4 0.2M SODIUM POTASSIUM TARTRATE, 0.02M SODIUM CITRATE BUFFER	Resolution 2.60 Å R-free 0.237
2RLN THERMODYNAMIC AND STRUCTURAL CONSEQUENCES OF CHANGING A SULPHUR ATOM TO A METHYLENE GROUP IN THE M13NLE MUTATION IN RIBONUCLEASE S Deposited 1994-07-11	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 42–150（109 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.85 Å
6RSA NUCLEAR MAGNETIC RESONANCE AND NEUTRON DIFFRACTION STUDIES OF THE COMPLEX OF RIBONUCLEASE*A WITH URIDINE VANADATE, A TRANSITION-STATE ANALOGUE Deposited 1986-02-25	Different ligand/ion Different experimental method Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–150（124 aa）	Not recorded	UVC URIDINE-2',3'-VANADATE × 1	Experimental method not declared mmCIF provides none of the parsed conditions	Resolution 2.00 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RNP_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–124； UniProt 27–150

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7rsa
Deposition date deposition_date	1988-06-10
Structure title title	STRUCTURE OF PHOSPHATE-FREE RIBONUCLEASE A REFINED AT 1.26 ANGSTROMS
Keywords keywords	HYDROLASE (PHOSPHORIC DIESTER); HYDROLASE (PHOSPHORIC DIESTER)
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.34 Å
Radius of gyration Rg (electron density) rg_electron	14.38 Å
Forward intensity I(0) i0	4449080.00
Molecular weight molecular_weight	13768.0 kDa
Excluded volume excluded_volume	16714 Å³
Envelope volume envelope_volume	19390 Å³
Hydration-shell volume shell_volume	11691 Å³
Envelope diameter envelope_diameter	50.4 Å
Shell Rg shell_rg	19.71 Å
Envelope Rg envelope_rg	14.65 Å
Shape Rg shape_rg	14.38 Å
Total Rg total_rg	15.42 Å
Total atoms total_atoms	1875
Residues n_residues	124
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	51.4 Å
Rg (real space) rg_real	15.28 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	4.4490e+06
I(0) uncertainty (real space) i0_real_error	5.0050e+04
Rg (reciprocal space) rg_reciprocal	15.29 Å
I(0) (reciprocal space) i0_reciprocal	4449000.0000
Solution quality estimate total_estimate	0.8855
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.6 Å
Skewness Skewness skewness	0.231
Kurtosis Kurtosis kurtosis	-0.403
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	983800.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.845; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.989

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d7rsaa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.5 — RNase A-like
Superfamily Superfamily superfamily	d.5.1 — RNase A-like
Family Family family	d.5.1.1 — Ribonuclease A-like

CATH v4.4 (1 domains)

Domain ID domain_id	7rsaA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	130 — P-30 Protein
Homologous superfamily homologous superfamily	10 — Ribonuclease A-like domain

▶

8. Citations (4)

▶

Unit-cell length a length_a	30.180 Å
Unit-cell length b length_b	38.400 Å
Unit-cell length c length_c	53.320 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	105.85 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.260 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.1500
R_work r_work	—
R_free r_free	—

Description description	RIBONUCLEASE A
Molecular weight formula_weight	13708.3 kDa
EC 编号 ec_number	3.1.27.5
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2203

STRUCTURE OF PHOSPHATE-FREE RIBONUCLEASE A REFINED AT 1.26 ANGSTROMS

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBONUCLEASE A

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

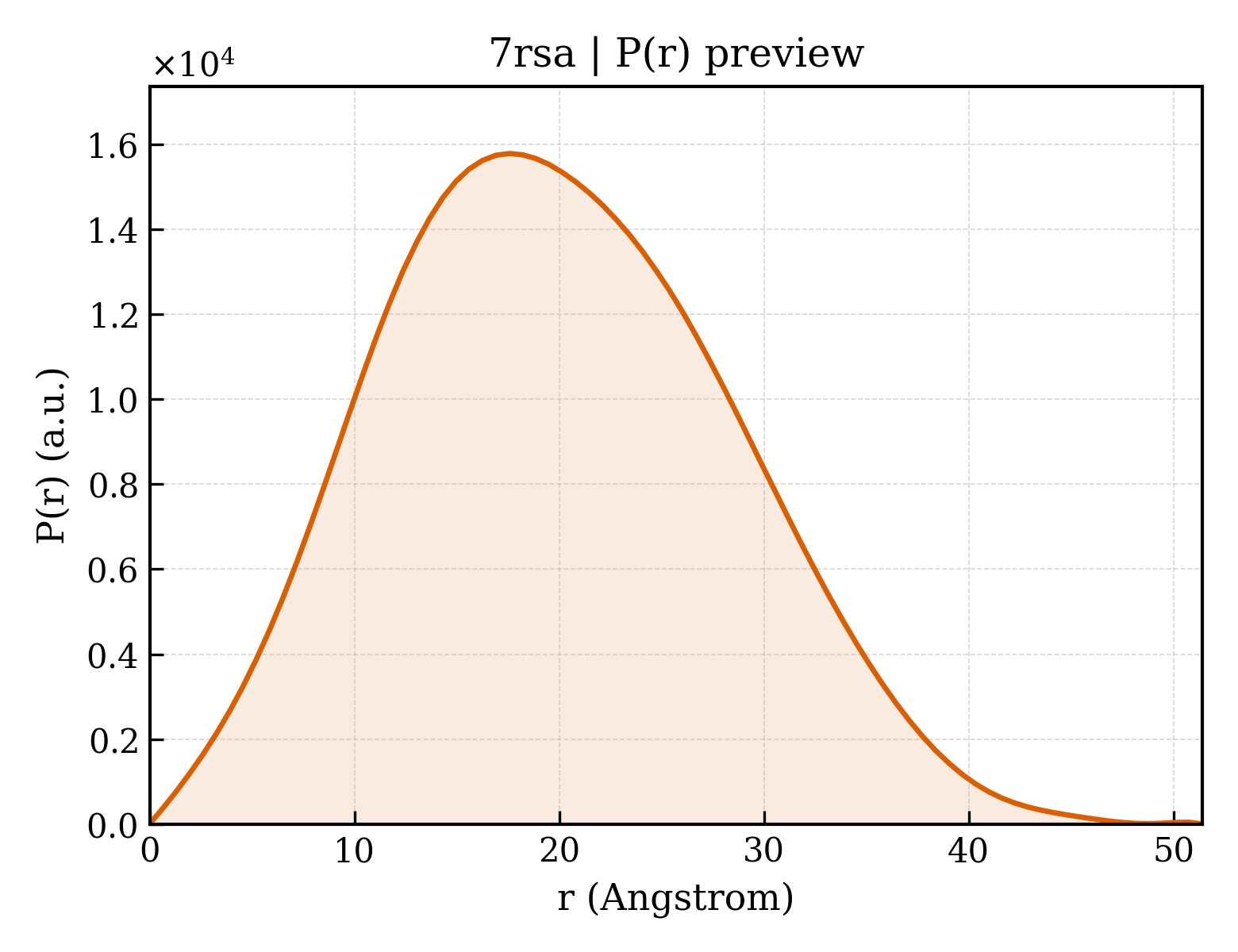

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 water

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

CATH v4.4 (1 domains)

8. Citations (4)

9. Files and Curves (10)

Files (7)

Curves (3)

Description description	TERTIARY-BUTYL ALCOHOL
Molecular weight formula_weight	74.1 kDa
Source method src_method	syn
Copy count entity_count	1

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	188

fit	/app/data/saxs_computation/rs/7rsa/7rsa.fit
pddf	/app/data/pr_computation/rs/7rsa/7rsa.pr.out
profile	/app/data/saxs_computation/rs/7rsa/7rsa.dat
