7uzj

Rat Kidney V1 complex with SidK and NCOA7B, State 1

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATPase H+-transporting V1 subunit A

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	V-type proton ATPase subunit B, brain isoform × 3 （P62815） V-type proton ATPase subunit C 1 × 1 （Q5FVI6） ATPase H+-transporting V1 subunit D × 1 （Q6P503） V-type proton ATPase subunit E 1 × 3 （Q6PCU2） V-type proton ATPase subunit F × 1 （P50408） V-type proton ATPase subunit G × 3 （B2GUV5） V-type proton ATPase subunit H × 1 （A0A0G2K9J2） Effector SidK × 3 （Q5ZWW6） Nuclear receptor coactivator 7B × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	D4A133_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–617； UniProt 1–617 Author chain B； PDBConstruct 1–617； UniProt 1–617 Author chain C； PDBConstruct 1–617； UniProt 1–617

V-type proton ATPase subunit B, brain isoform

OrganismNot specified

UniProt P62815

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	ATPase H+-transporting V1 subunit A × 3 （D4A133） V-type proton ATPase subunit C 1 × 1 （Q5FVI6） ATPase H+-transporting V1 subunit D × 1 （Q6P503） V-type proton ATPase subunit E 1 × 3 （Q6PCU2） V-type proton ATPase subunit F × 1 （P50408） V-type proton ATPase subunit G × 3 （B2GUV5） V-type proton ATPase subunit H × 1 （A0A0G2K9J2） Effector SidK × 3 （Q5ZWW6） Nuclear receptor coactivator 7B × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VATB2_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–511； UniProt 1–511 Author chain E； PDBConstruct 1–511； UniProt 1–511 Author chain F； PDBConstruct 1–511； UniProt 1–511

V-type proton ATPase subunit C 1

OrganismNot specified

UniProt Q5FVI6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	ATPase H+-transporting V1 subunit A × 3 （D4A133） V-type proton ATPase subunit B, brain isoform × 3 （P62815） ATPase H+-transporting V1 subunit D × 1 （Q6P503） V-type proton ATPase subunit E 1 × 3 （Q6PCU2） V-type proton ATPase subunit F × 1 （P50408） V-type proton ATPase subunit G × 3 （B2GUV5） V-type proton ATPase subunit H × 1 （A0A0G2K9J2） Effector SidK × 3 （Q5ZWW6） Nuclear receptor coactivator 7B × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VATC1_RAT
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–382； UniProt 1–382

ATPase H+-transporting V1 subunit D

OrganismNot specified

UniProt Q6P503

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	ATPase H+-transporting V1 subunit A × 3 （D4A133） V-type proton ATPase subunit B, brain isoform × 3 （P62815） V-type proton ATPase subunit C 1 × 1 （Q5FVI6） V-type proton ATPase subunit E 1 × 3 （Q6PCU2） V-type proton ATPase subunit F × 1 （P50408） V-type proton ATPase subunit G × 3 （B2GUV5） V-type proton ATPase subunit H × 1 （A0A0G2K9J2） Effector SidK × 3 （Q5ZWW6） Nuclear receptor coactivator 7B × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6P503_RAT
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–247； UniProt 1–247

V-type proton ATPase subunit E 1

OrganismNot specified

UniProt Q6PCU2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	ATPase H+-transporting V1 subunit A × 3 （D4A133） V-type proton ATPase subunit B, brain isoform × 3 （P62815） V-type proton ATPase subunit C 1 × 1 （Q5FVI6） ATPase H+-transporting V1 subunit D × 1 （Q6P503） V-type proton ATPase subunit F × 1 （P50408） V-type proton ATPase subunit G × 3 （B2GUV5） V-type proton ATPase subunit H × 1 （A0A0G2K9J2） Effector SidK × 3 （Q5ZWW6） Nuclear receptor coactivator 7B × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VATE1_RAT
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain I； PDBConstruct 1–226； UniProt 1–226 Author chain J； PDBConstruct 1–226； UniProt 1–226 Author chain K； PDBConstruct 1–226； UniProt 1–226

V-type proton ATPase subunit F

OrganismNot specified

UniProt P50408

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	ATPase H+-transporting V1 subunit A × 3 （D4A133） V-type proton ATPase subunit B, brain isoform × 3 （P62815） V-type proton ATPase subunit C 1 × 1 （Q5FVI6） ATPase H+-transporting V1 subunit D × 1 （Q6P503） V-type proton ATPase subunit E 1 × 3 （Q6PCU2） V-type proton ATPase subunit G × 3 （B2GUV5） V-type proton ATPase subunit H × 1 （A0A0G2K9J2） Effector SidK × 3 （Q5ZWW6） Nuclear receptor coactivator 7B × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VATF_RAT
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain L； PDBConstruct 1–119； UniProt 1–119

V-type proton ATPase subunit G

OrganismNot specified

UniProt B2GUV5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	ATPase H+-transporting V1 subunit A × 3 （D4A133） V-type proton ATPase subunit B, brain isoform × 3 （P62815） V-type proton ATPase subunit C 1 × 1 （Q5FVI6） ATPase H+-transporting V1 subunit D × 1 （Q6P503） V-type proton ATPase subunit E 1 × 3 （Q6PCU2） V-type proton ATPase subunit F × 1 （P50408） V-type proton ATPase subunit H × 1 （A0A0G2K9J2） Effector SidK × 3 （Q5ZWW6） Nuclear receptor coactivator 7B × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2GUV5_RAT
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain M； PDBConstruct 1–118； UniProt 1–118 Author chain N； PDBConstruct 1–118； UniProt 1–118 Author chain O； PDBConstruct 1–118； UniProt 1–118

V-type proton ATPase subunit H

OrganismNot specified

UniProt A0A0G2K9J2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	ATPase H+-transporting V1 subunit A × 3 （D4A133） V-type proton ATPase subunit B, brain isoform × 3 （P62815） V-type proton ATPase subunit C 1 × 1 （Q5FVI6） ATPase H+-transporting V1 subunit D × 1 （Q6P503） V-type proton ATPase subunit E 1 × 3 （Q6PCU2） V-type proton ATPase subunit F × 1 （P50408） V-type proton ATPase subunit G × 3 （B2GUV5） Effector SidK × 3 （Q5ZWW6） Nuclear receptor coactivator 7B × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0G2K9J2_RAT
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain P； PDBConstruct 1–483； UniProt 1–483

Effector SidK

Legionella pneumophila

UniProt Q5ZWW6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 20	ATPase H+-transporting V1 subunit A × 3 （D4A133） V-type proton ATPase subunit B, brain isoform × 3 （P62815） V-type proton ATPase subunit C 1 × 1 （Q5FVI6） ATPase H+-transporting V1 subunit D × 1 （Q6P503） V-type proton ATPase subunit E 1 × 3 （Q6PCU2） V-type proton ATPase subunit F × 1 （P50408） V-type proton ATPase subunit G × 3 （B2GUV5） V-type proton ATPase subunit H × 1 （A0A0G2K9J2） Nuclear receptor coactivator 7B × 1 ADENOSINE-5'-DIPHOSPHATE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5ZWW6_LEGPH
Isoform	—
PDB entities	9
Chains and sequence ranges	Author chain Q； PDBConstruct 1–280； UniProt 1–280 Author chain R； PDBConstruct 1–280； UniProt 1–280 Author chain S； PDBConstruct 1–280； UniProt 1–280

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7uzj
Deposition date deposition_date	2022-05-09
Last revision last_revision	2023-11-22
Structure title title	Rat Kidney V1 complex with SidK and NCOA7B, State 1
Keywords keywords	V-ATPase, Complex, Membrane protein, PROTON TRANSPORT; PROTON TRANSPORT
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7uzj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

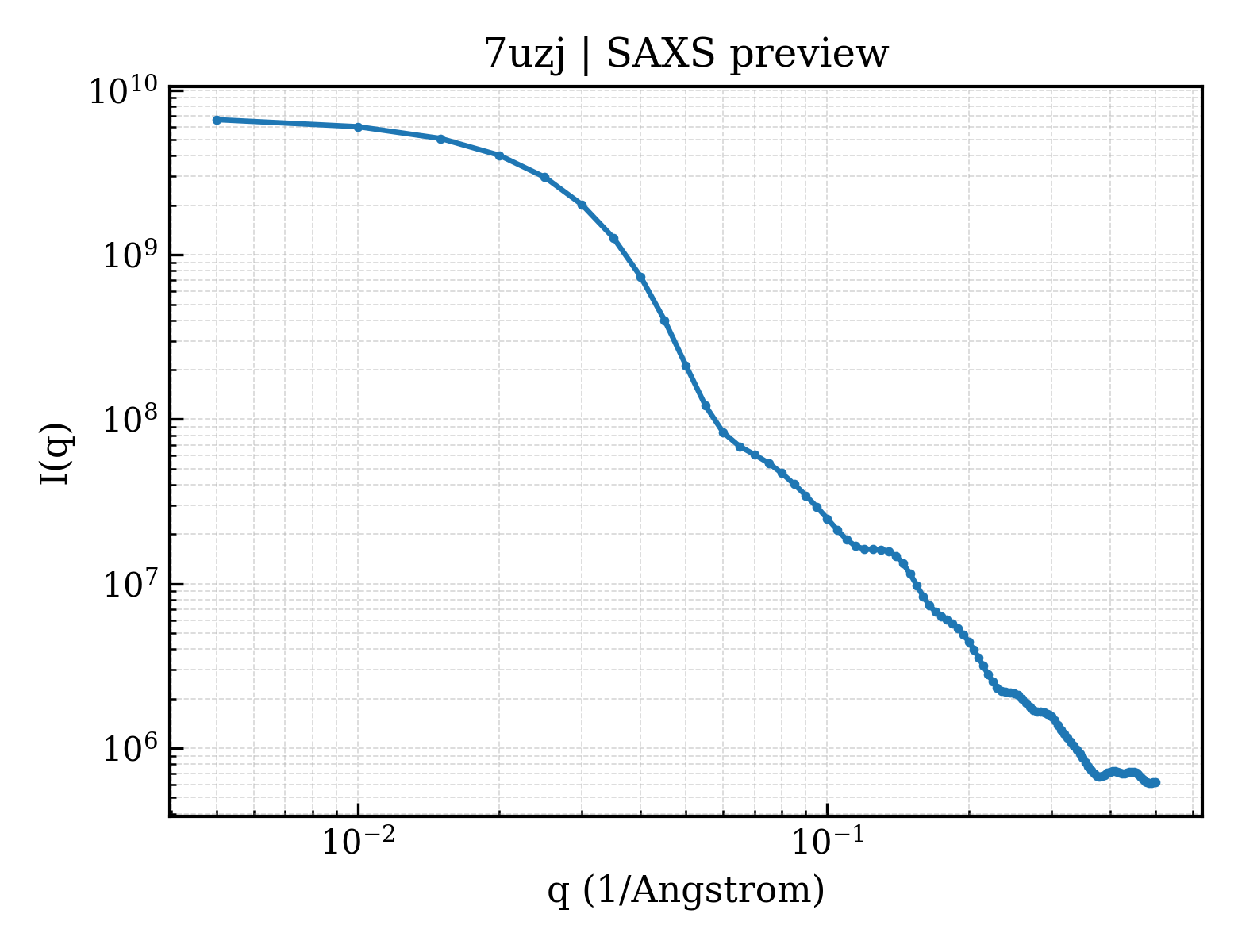

7uzj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

7uzj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	62.85 Å
Rg (electron density)	62.37 Å
Total Rg	62.56 Å
Atom count	49624
Residues	6232
Excluded volume	887230 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7uzj__assembly_1__model_1`	eicosameric （20）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Description description	ATPase H+-transporting V1 subunit A
Molecular weight formula_weight	68341.8 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	49624

MDFSKLPKIRDEDKESTFGYVHGVSGPVVTACDMAGAAMYELVRVGHSELVGEIIRLEGDMATIQVYEETSGVSVGDPVLRTGKPLSVELGPGIMGAIFDGIQRPLSDISSQTQSIYIPRGVNVSALSRDIKWEFIPSKNLRVGSHITGGDIYGIVNENSLIKHKIMLPPRSRGSVTYIAPPGNYDASDVVLELEFEGVKEKLSMVQVWPVRQVRPVTEKLPANHPLLTGQRVLDALFPCVQGGTTAIPGAFGCGKTVISQSLSKYSNSDVIIYVGCGERGNEMSEVLRDFPELTMEVDGKVESIMKRTALVANTSNMPVAAREASIYTGITLSEYFRDMGYHVSMMADSTSRWAEALREISGRLAEMPADSGYPAYLGARLASFYERAGRVKCLGNPEREGSVSIVGAVSPPGGDFSDPVTSATLGIVQVFWGLDKKLAQRKHFPSVNWLISYSKYMRALDEYYDKHFTEFVPLRTKAKEILQEEEDLAEIVQLVGKASLAETDKITLEVAKLIKDDFLQQNGYTPYDRFCPFYKTVGMLSNMISFYDMARRAVETTAQSDNKITWSIIREHMGEILYKLSSMKFKDPVKDGEAKIKADYAQLLEDMQNAFRSLED

Entity 2 Entity 2 polymer

Description description	V-type proton ATPase subunit B, brain isoform
Molecular weight formula_weight	56611.6 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

MALRAMRGIVNGAAPELPVPTGGPMAGAREQALAVSRNYLSQPRLTYKTVSGVNGPLVILDHVKFPRYAEIVHLTLPDGTKRSGQVLEVSGSKAVVQVFEGTSGIDAKKTSCEFTGDILRTPVSEDMLGRVFNGSGKPIDRGPVVLAEDFLDIMGQPINPQCRIYPEEMIQTGISAIDGMNSIARGQKIPIFSAAGLPHNEIAAQICRQAGLVKKSKDVVDYSEENFAIVFAAMGVNMETARFFKSDFEENGSMDNVCLFLNLANDPTIERIITPRLALTTAEFLAYQCEKHVLVILTDMSSYAEALREVSAAREEVPGRRGFPGYMYTDLATIYERAGRVEGRNGSITQIPILTMPNDDITHPIPDLTGYITEGQIYVDRQLHNRQIYPPINVLPSLSRLMKSAIGEGMTRKDHADVSNQLYACYAIGKDVQAMKAVVGEEALTSDDLLYLEFLQKFEKNFITQGPYENRTVYETLDIGWQLLRIFPKEMLKRIPQSTLSEFYPRDSAKH

Entity 3 Entity 3 polymer

Description description	V-type proton ATPase subunit C 1
Molecular weight formula_weight	43958.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MTEFWLISAPGEKTCQQTWEKLHAATTKNNNLAVSSKFNIPDLKVGTLDVLVGLSDELAKLDAFVEGVVKKVAQYMADVLEDSKDKVQENLLASGVDLVTYITRFQWDMAKYPIKQSLKNISEIIAKGVTQIDNDLKSRASAYNNLKGNLQNLERKNAGSLLTRSLAEIVKKDDFVLDSEYLVTLLVVVPKLNHNDWIKQYETLAEMVVPRSSNVLSEDQDSYLCNVTLFKKAVDDFRHKARENKFIVRDFQYNEEEMRADKEEMNRLSTDKKKQFGPLVRWLKVNFSEAFIAWIHIKALRVFVESVLRYGLPVNFQAMLLQPNKKSVKKLREVLHELYKHLDSSAAAIIDAPMDIPGLNLSQQEYYPYVYYKIDCNLLEFK

Entity 4 Entity 4 polymer

Description description	ATPase H+-transporting V1 subunit D
Molecular weight formula_weight	28359.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MSGKDRIEIFPSRMAQTIMKARLKGAQTGRNLLKKKSDALTLRFRQILKKIIETKMLMGEVMREAAFSLAEAKFTAGDFSTTVIQNVNKAQVKIRAKKDNVAGVTLPVFEHYHEGTDSYELTGLARGGEQLAKLKRNYAKAVELLVELASLQTSFVTLDEAIKITNRRVNAIEHVIIPRIERTLAYIITELDEREREEFYRLKKIQEKKKIIKEKSEKDLERRRAAGEVMEPANLLAEEKDEDLLFE

Entity 5 Entity 5 polymer

Description description	V-type proton ATPase subunit E 1
Molecular weight formula_weight	26167.5 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,J,K

MALSDADVQKQIKHMMAFIEQEANEKAEEIDAKAEEEFNIEKGRLVQTQRLKIMEYYEKKEKQIEQQKKIQMSNLMNQARLKVLRARDDLITDLLNEAKQRLSKVVKDTTRYQVLLDGLVLQGLYQLLEPRMIVRCRKQDFPLVKAAVQKAIPMYKIATKKDVDVQIDLEAYLPEDIAGGVEIYNGDRKIKVSNTLESRLDLIAQQMMPEVRGALFGANANRKFLD

Entity 6 Entity 6 polymer

Description description	V-type proton ATPase subunit F
Molecular weight formula_weight	13389.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MAGRGKLIAVIGDEDTVTGFLLGGIGELNKNRHPNFLVVEKDTTINEIEDTFRQFLNRDDIGIILINQYIAEMVRHALDAHQRSIPAVLEIPSKEHPYDAAKDSILRRAKGMFTAEDLR

Entity 7 Entity 7 polymer

Description description	V-type proton ATPase subunit G
Molecular weight formula_weight	13733.4 kDa
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N,O

MASQSQGIQQLLQAEKRAAEKVSEARKRKNRRLKQAKEEAQAEIEQYRLQREKEFKAKEAAALGSHGSCSSEVEKETQEKMTILQNYFEQNRDEVLDNLLAFVCDIRPEIHENYRING

Entity 8 Entity 8 polymer

Description description	V-type proton ATPase subunit H
Molecular weight formula_weight	55936.9 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

MTKMDIRGAVDAAVPTNIIAAKAAEVRANKVNWQSYLQGQMISAEDCEFIQRFEMKRCSEEKQEMLQTEGSQCAKTFINLMTHISKEQTVQYILTMVDDMLQENHQRVSIFFDYAKRSKSTAWPYFLPMLNRQDPFTVHMAARIIAKLAAWGKELMEGSDLNYYFNWIKTQLSSQKLRGSGVAVETGTISASDSSQYVQCVAGCLQLMLRVNEYRFAWVEADGVNCIMGVLSNKCGFQLQYQMIFSIWLLAFSPQMCEHLRRYNIIPVLSDILQESVKEKVTRIILAAFRNFLEKSTERETRQEYALAMIQCKVLKQLENLEQQKYDDEDISEDIKFLLEKLGESVQDLSSFDEYSSELKSGRLEWSPVHKSEKFWRENAVRLNEKNYELLKILTKLLEVSDDPQVLAVAAHDVGEYVRHYPRGKRVIEQLGGKQLVMNHMHHEDQQVRYNALLAVQKLMVHNWEYLGKQLQSEQPQTAAARS

Entity 9 Entity 9 polymer

Description description	Effector SidK
Molecular weight formula_weight	32146.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q,R,S

MSFIKVGIKMGGLTSEQYHSQVVGKIGYIARCMQTIDPENNLKKIREDYQDVLIWAEKNYRFEEILEASKSGKCPNDLDALSRRSLILQELLRLVSSISPFKMKLDLIESQYEKMKQHVNLWKSDYHVKLNQLNQLTDYLKNAAPTPKNNFLRAMTSVLQMQIAQYGITEDNEGINQLFKLGLHLLAMANEKIDEQYHLFKGYVKDQPEESPFEGILPAEDQKILVKTMIDYAMPKLSSKVLQDKLSALSSSDVLTKTLLDSIDRIVKENEKLNALSKVK

Source Source

Source organism organism	Legionella pneumophila
NCBI taxonomy ID ncbi_taxonomy_id	446
Host organism host_organism	Escherichia coli

Entity 10 Entity 10 polymer

Description description	Nuclear receptor coactivator 7B
Molecular weight formula_weight	25596.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T

MRGRRLPLDIQIFYCARPDQEPFVKIITVEEAKRRKSTCSYYEEEEEEEEGLPILQSHSALLENMHIEQLARRLPARVQGYPWRLAYSTLEHGTSLKTLYRKSASLDSPVLLVIKDMDNQIFGAYATHPFRFSDHYYGTGETFLYTFSPNFKVFKWSGENSYFINGDISSLELGGGGGRFGLWLDADLYHGRSNSCSTFNNDILSKKEDFIVQDLEVWTFE

Source Source

Source organism organism	Rattus norvegicus
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Entity 11 Entity 11 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 12 Entity 12 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	46258

Rat Kidney V1 complex with SidK and NCOA7B, State 1

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATPase H+-transporting V1 subunit A

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V-type proton ATPase subunit B, brain isoform

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V-type proton ATPase subunit C 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

ATPase H+-transporting V1 subunit D

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V-type proton ATPase subunit E 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V-type proton ATPase subunit F

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V-type proton ATPase subunit G

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

V-type proton ATPase subunit H

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Effector SidK

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

7uzj__assembly_1__model_1

7uzj__assembly_1__model_1 | I(q)

7uzj__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment
