SAXSdb — 8aht

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calmodulin

Plasmodium falciparum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	CALCIUM ION × 12 water × 3	Review required
2	Protein homooligomer	Homooligomer	Protein 4	CALCIUM ION × 16 water × 4	Review required
3	Protein homooligomer	Homooligomer	Protein 3	CALCIUM ION × 12 water × 3	Review required
4	Protein heterocomplex	Heteromer	Protein 6	Melittin × 4 （P01501） CALCIUM ION × 8 water × 5	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CALM_PLAF7
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–149； UniProt 1–149 Author chain B； PDBConstruct 1–149； UniProt 1–149 Author chain C； PDBConstruct 1–149； UniProt 1–149 Author chain D； PDBConstruct 1–149； UniProt 1–149

Melittin

OrganismNot specified

UniProt P01501

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
4	Protein heterocomplex	Heteromer	Protein 6	Calmodulin × 2 （P62203） CALCIUM ION × 8 water × 5	Review required

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MEL_APIME
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 1–26； UniProt 44–69 Author chain G； PDBConstruct 1–26； UniProt 44–69 Author chain H； PDBConstruct 1–26； UniProt 44–69 Author chain I； PDBConstruct 1–26； UniProt 44–69

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8aht
Deposition date deposition_date	2022-07-22
Structure title title	Crystal structure of Plasmodium falciparum Ca2+/Calmodulin in complex with melittin
Keywords keywords	hub protein, linear recognition motif, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8aht__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

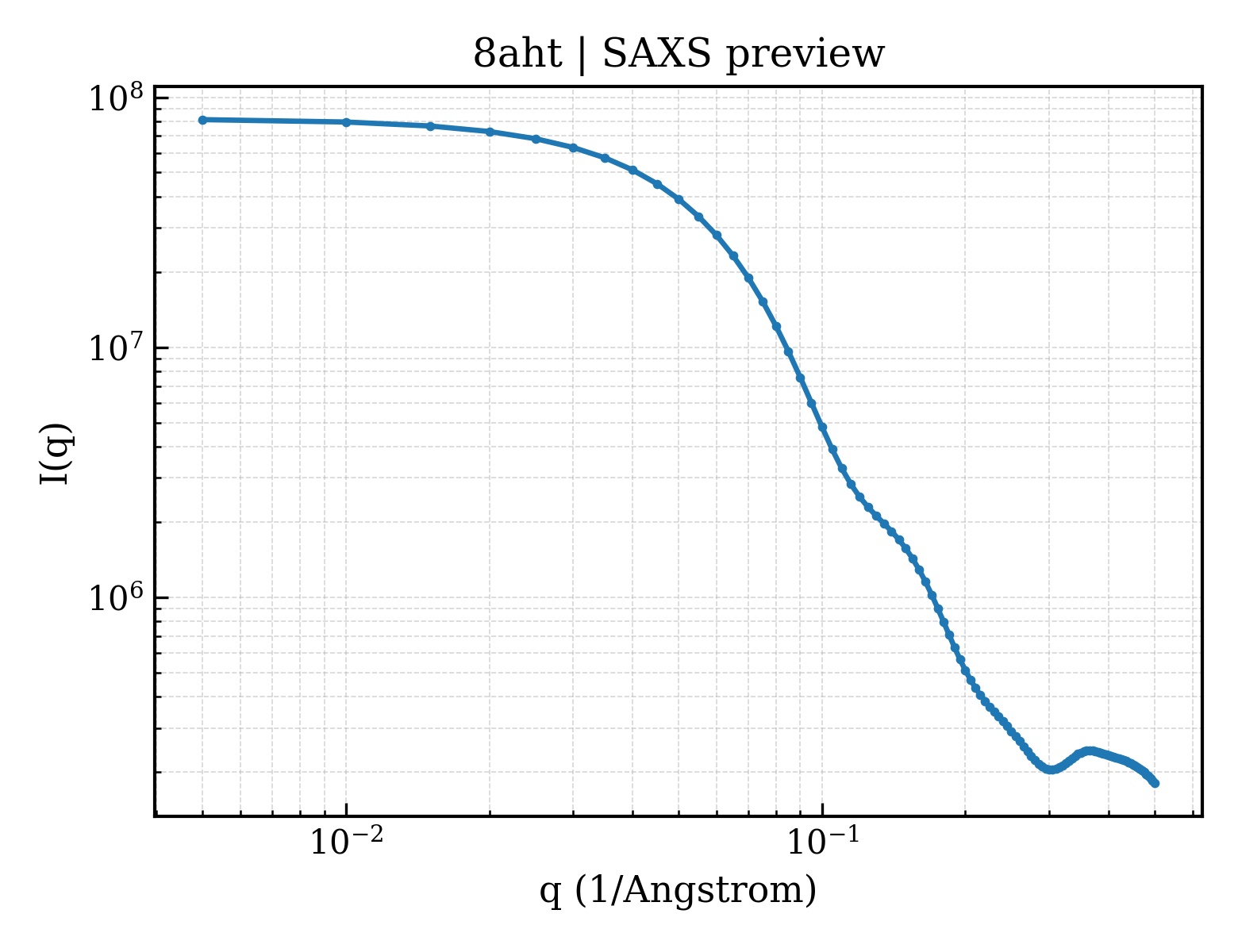

8aht__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8aht__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.82 Å
Rg (electron density)	27.17 Å
Total Rg	27.82 Å
Atom count	5966
Residues	416
Excluded volume	55466 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8aht__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8aht__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`8aht__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`8aht__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Calmodulin
Molecular weight formula_weight	16946.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	9492

MADKLTEEQISEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEIDTDGNGTIDFPEFLTLMARKLKDTDTEEELIEAFRVFDRDGDGYISADELRHVMTNLGEKLTNEEVDEMIREADIDGDGQINYEEFVKMMIAK

Source Source

Source organism organism	Plasmodium falciparum
Common name common_name	malaria parasite P. falciparum
NCBI taxonomy ID ncbi_taxonomy_id	5833
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Melittin
Molecular weight formula_weight	2852.5 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G,H,I

GIGAVLKVLTTGLPALISWIKRKRQQ

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	185

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	8ahtA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	8ahtB01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

Unit-cell length a length_a	37.900 Å
Unit-cell length b length_b	60.680 Å
Unit-cell length c length_c	68.450 Å
Unit-cell angle α angle_alpha	95.77 °
Unit-cell angle β angle_beta	89.99 °
Unit-cell angle γ angle_gamma	97.05 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	47.430 Å
R factor r_factor	0.2356
R_work r_work	0.2341
R_free r_free	0.2661
