8bka

Cryo-EM structure of mouse heavy-chain apoferritin at 2.7 A plunged 35ms after mixing with b-galactosidase

Method: ELECTRON MICROSCOPY
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ferritin heavy chain

Mus musculus

UniProt P09528

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 24 FE (III) ION × 6 water × 24 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
8j5a 8j5a

2 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers
22fx 22ix 23wj 3wnw 5oba 5obb 6s61 6sht 6v21 7a4m 7kod 8bk9

25 assemblies; showing the first 12

Heteromeric or nucleic-acid complex
7tb3 7tbh

2 assemblies

View Construct and Data Evidence
UniProt name FRIH_MOUSE
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–182； UniProt 1–182 Author chain B； PDBConstruct 1–182； UniProt 1–182 Author chain C； PDBConstruct 1–182； UniProt 1–182 Author chain D； PDBConstruct 1–182； UniProt 1–182 Author chain E； PDBConstruct 1–182； UniProt 1–182 Author chain F； PDBConstruct 1–182； UniProt 1–182 Author chain G； PDBConstruct 1–182； UniProt 1–182 Author chain H； PDBConstruct 1–182； UniProt 1–182 Author chain I； PDBConstruct 1–182； UniProt 1–182 Author chain J； PDBConstruct 1–182； UniProt 1–182 Author chain K； PDBConstruct 1–182； UniProt 1–182 Author chain L； PDBConstruct 1–182； UniProt 1–182 Author chain M； PDBConstruct 1–182； UniProt 1–182 Author chain N； PDBConstruct 1–182； UniProt 1–182 Author chain O； PDBConstruct 1–182； UniProt 1–182 Author chain P； PDBConstruct 1–182； UniProt 1–182 Author chain Q； PDBConstruct 1–182； UniProt 1–182 Author chain R； PDBConstruct 1–182； UniProt 1–182 Author chain S； PDBConstruct 1–182； UniProt 1–182 Author chain T； PDBConstruct 1–182； UniProt 1–182 Author chain V； PDBConstruct 1–182； UniProt 1–182 Author chain W； PDBConstruct 1–182； UniProt 1–182 Author chain X； PDBConstruct 1–182； UniProt 1–182 Author chain Y； PDBConstruct 1–182； UniProt 1–182

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8bka
Deposition date deposition_date2022-11-08
Structure title titleCryo-EM structure of mouse heavy-chain apoferritin at 2.7 A plunged 35ms after mixing with b-galactosidase
Keywords keywordsiron storage, ferritin, octahedral, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method methodELECTRON MICROSCOPY
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8bka__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

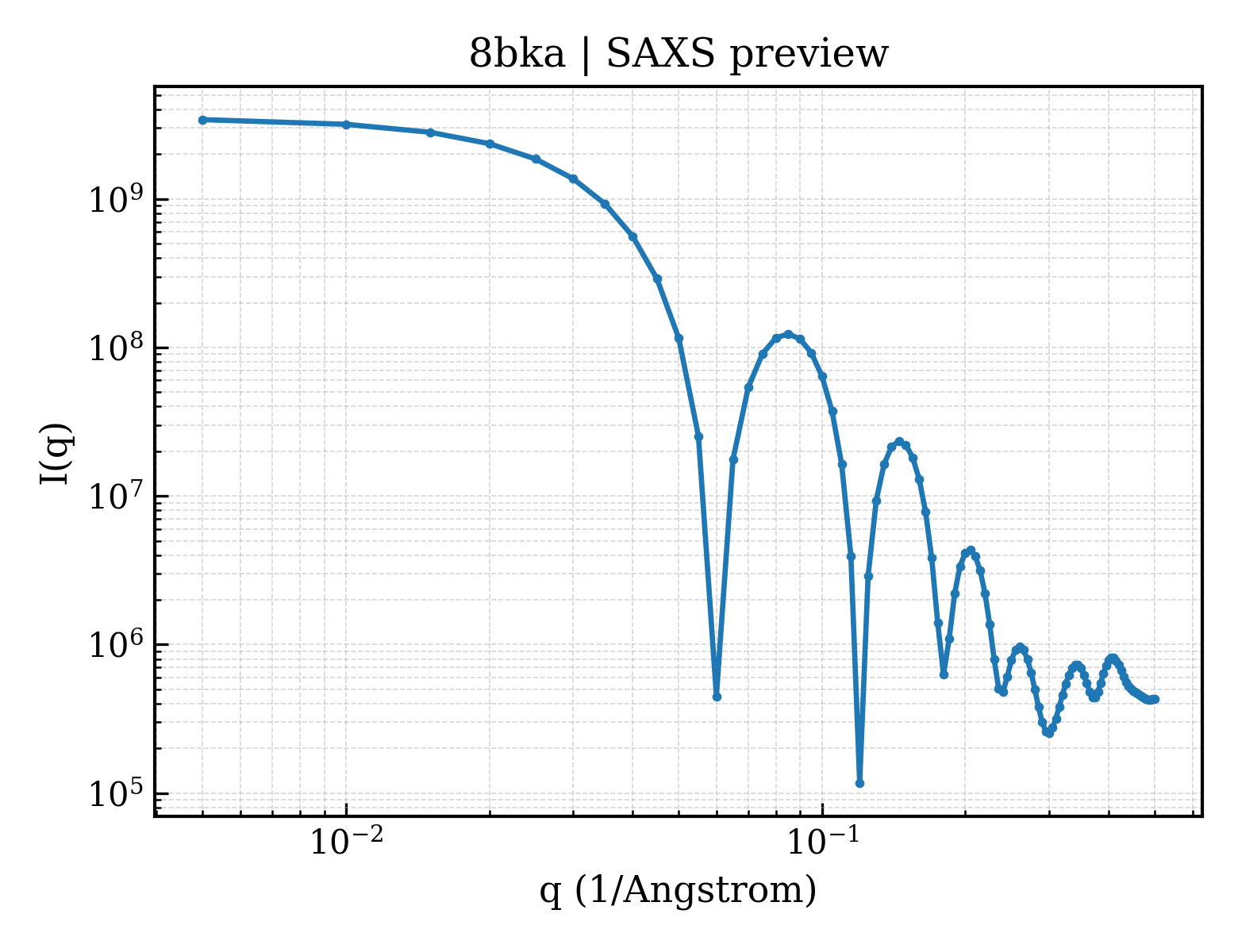

8bka__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 109 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

8bka__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）54.04 Å
Rg (electron density)53.05 Å
Total Rg53.39 Å
Atom count33822
Residues4128
Excluded volume595310 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8bka__assembly_1__model_1 24-meric （24） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 24 domains

CATH v4.4 (24 domains)

Domain ID domain_id8bkaA01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaB01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaC01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaD01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaE01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaF01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaG01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaH01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaI01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaJ01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaK01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaL01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaM01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaN01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaO01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaP01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaQ01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaR01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaS01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaT01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaV01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaW01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaX01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
Domain ID domain_id8bkaY01
Class class1 — Mainly Alpha
Architecture architecture20 — Up-down Bundle
Topology topology1260 — Ferritin
Homologous superfamily homologous superfamily10 — Ferritin, core subunit, four-helix bundle
▶

7. Citations (1)
