SAXSdb — 8ddu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transient receptor potential cation channel, subfamily M, member 3

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Unidentified segment at the N-terminus of TRPM3 × 4 1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE × 4 (3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en × 4 ;[(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate ; × 4 SODIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5F4S7_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1371； UniProt 1–1371 Author chain B； PDBConstruct 1–1371； UniProt 1–1371 Author chain C； PDBConstruct 1–1371； UniProt 1–1371 Author chain D； PDBConstruct 1–1371； UniProt 1–1371

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ddu
Deposition date deposition_date	2022-06-19
Structure title title	cryo-EM structure of TRPM3 ion channel in the presence of PIP2, state3
Keywords keywords	TRPM3, ion channel, PIP2, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ddu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

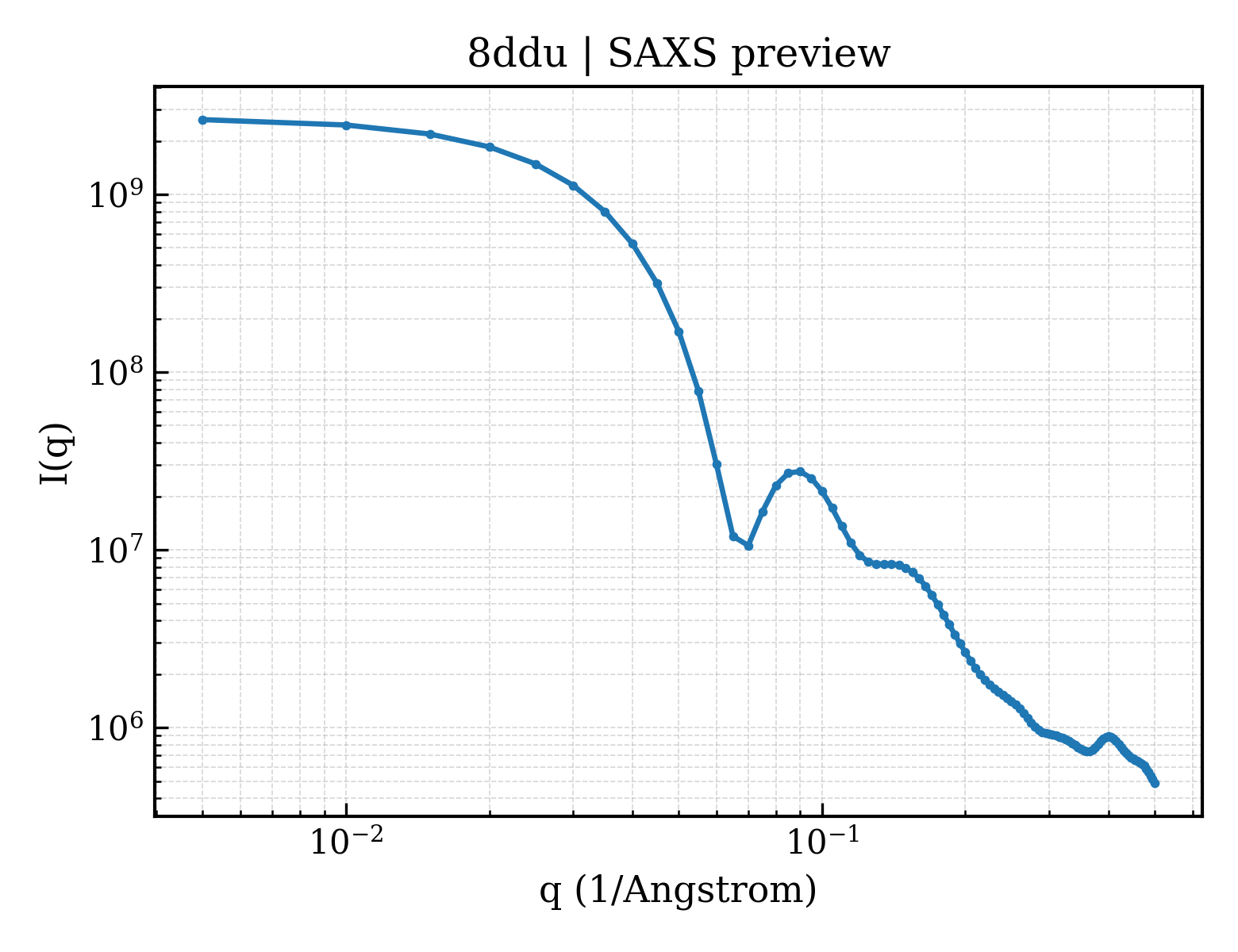

8ddu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

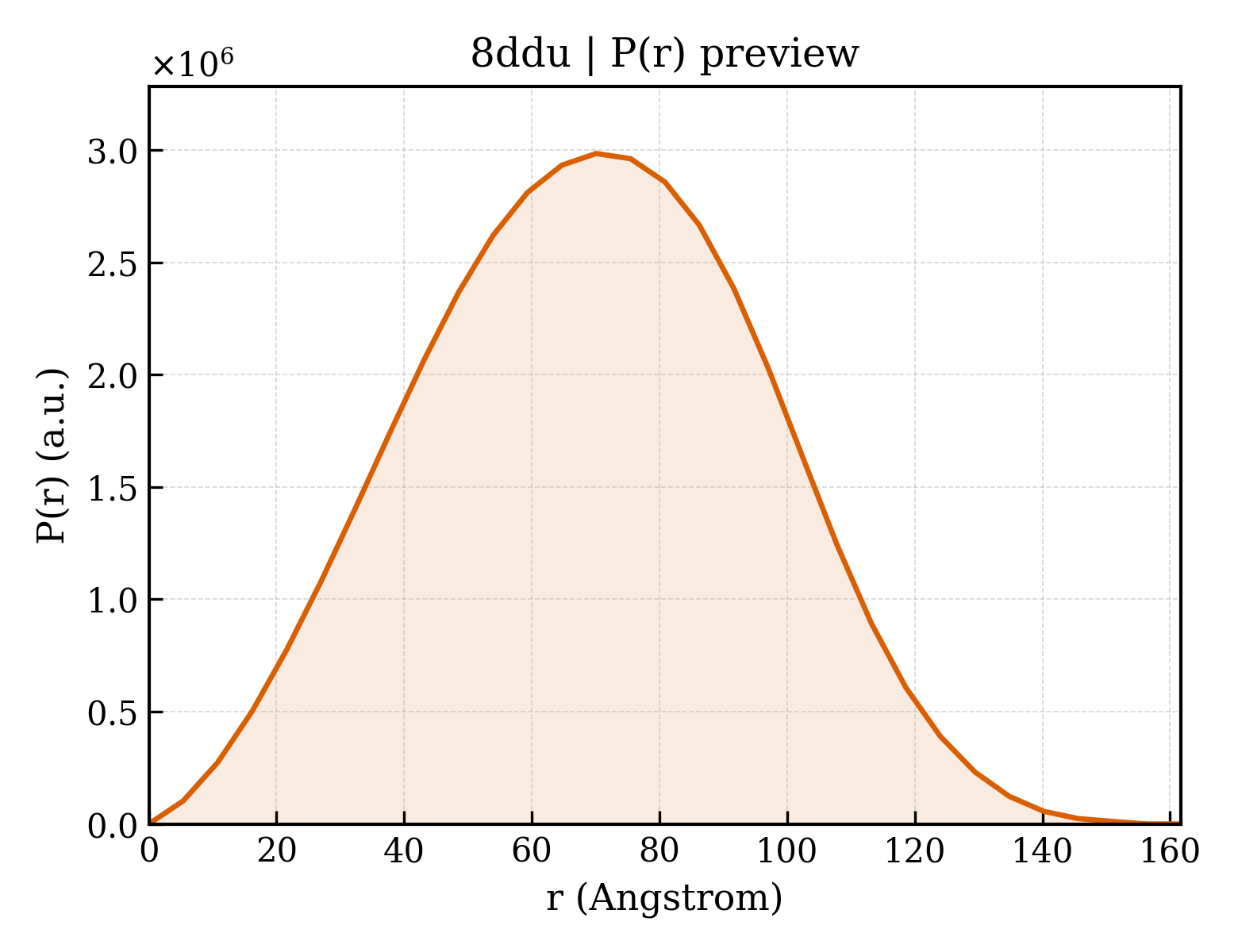

8ddu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	52.83 Å
Rg (electron density)	52.60 Å
Total Rg	52.79 Å
Atom count	32230
Residues	3940
Excluded volume	583510 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ddu__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Transient receptor potential cation channel, subfamily M, member 3
Molecular weight formula_weight	157812.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	32230

MGKKWRDAGELERGCSDREDSAESRRRSRSASRGRFAESWKRLSSKQGSTKRSGLPAQQTPAQKSWIERAFYKRECVHIIPSTKDPHRCCCGRLIGQHVGLTPSISVLQNEKNESRLSRNDIQSEKWSISKHTQLSPTDAFGTIEFQGGGHSNKAMYVRVSFDTKPDLLLHLMTKEWQLELPKLLISVHGGLQNFELQPKLKQVFGKGLIKAAMTTGAWIFTGGVNTGVIRHVGDALKDHASKSRGKICTIGIAPWGIVENQEDLIGRDVVRPYQTMSNPMSKLTVLNSMHSHFILADNGTTGKYGAEVKLRRQLEKHISLQKINTRIGQGVPVVALIVEGGPNVISIVLEYLRDTPPVPVVVCDGSGRASDILAFGHKYSEEGGLINESLRDQLLVTIQKTFTYTRTQAQHLFIILMECMKKKELITVFRMGSEGHQDIDLAILTALLKGANASAPDQLSLALAWNRVDIARSQIFIYGQQWPVGSLEQAMLDALVLDRVDFVKLLIENGVSMHRFLTISRLEELYNTRHGPSNTLYHLVRDVKKGNLPPDYRISLIDIGLVIEYLMGGAYRCNYTRKRFRTLYHNLFGPKRPKALKLLGMEDDIPLRRGRKTTKKREEEVDIDLDDPEINHFPFPFHELMVWAVLMKRQKMALFFWQHGEEAMAKALVACKLCKAMAHEASENDMVDDISQELNHNSRDFGQLAVELLDQSYKQDEQLAMKLLTYELKNWSNATCLQLAVAAKHRDFIAHTCSQMLLTDMWMGRLRMRKNSGLKVILGILLPPSILSLEFKNKDDMPYMTQAQEIHLQEKEPEEPEKPTKEKDEEDMELTAMLGRSNGESSRKKDEEEVQSRHRLIPVGRKIYEFYNAPIVKFWFYTLAYIGYLMLFNYIVLVKMERWPSTQEWIVISYIFTLGIEKMREILMSEPGKLLQKVKVWLQEYWNVTDLIAILLFSVGMILRLQDQPFRSDGRVIYCVNIIYWYIRLLDIFGVNKYLGPYVMMIGKMMIDMMYFVIIMLVVLMSFGVARQAILFPNEEPSWKLAKNIFYMPYWMIYGEVFADQIDPPCGQNETREDGKTIQLPPCKTGAWIVPAIMACYLLVANILLVNLLIAVFNNTFFEVKSISNQVWKFQRYQLIMTFHERPVLPPPLIIFSHMTMIFQHVCCRWRKHESDQDERDYGLKLFITDDELKKVHDFEEQCIEEYFREKDDRFNSSNDERIRVTSERVENMSMRLEEVNEREHSMKASLQTVDIRLAQLEDLIGRMATALERLTGLERAESNKIRSRTSSDCTDAAYIVRQSSFNSQEGNTFKLQESIDPAGEETISPTSPTLMPRMRSHSFYSVNVKDKGGIEKLESIFKERSLSLHRATS

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Unidentified segment at the N-terminus of TRPM3
Molecular weight formula_weight	1464.8 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,G,H

XXXXXXXXXXXXXXXXX

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE
Molecular weight formula_weight	705.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	(3beta,14beta,17beta,25R)-3-[4-methoxy-3-(methoxymethyl)butoxy]spirost-5-en
Molecular weight formula_weight	544.8 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	;[(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate ;
Molecular weight formula_weight	746.6 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	66253

cryo-EM structure of TRPM3 ion channel in the presence of PIP2, state3
