9b2a

;Cryo-EM structure of the mouse TRPM3 alpha 2 channel in complex with the neurosteroid pregnenolone sulfate and the synthetic agonist CIM 0216 ;

Method: ELECTRON MICROSCOPY D_max: 156.3 Å Quality: REASONABLE

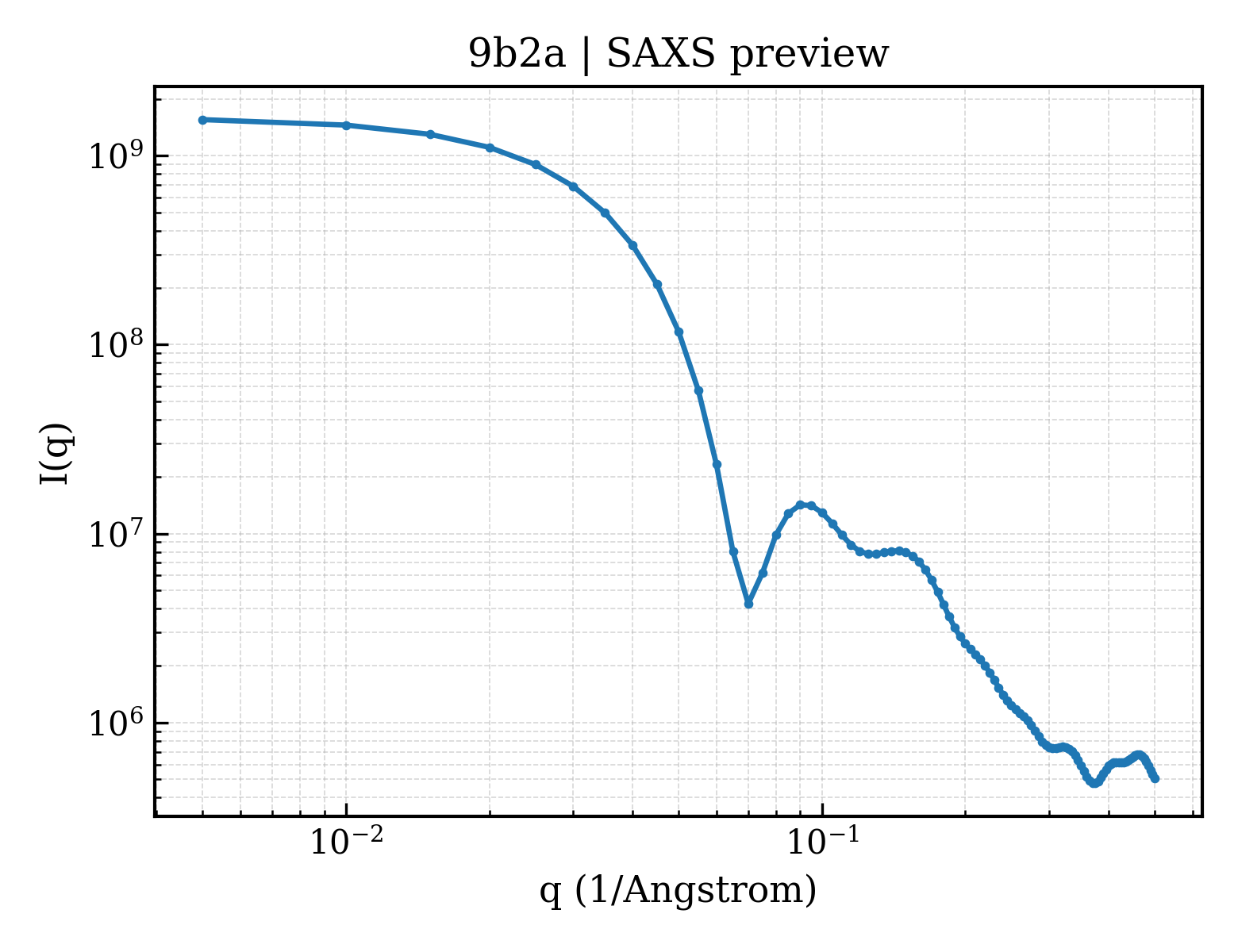

SAXS 散射曲线 SAXS Profile

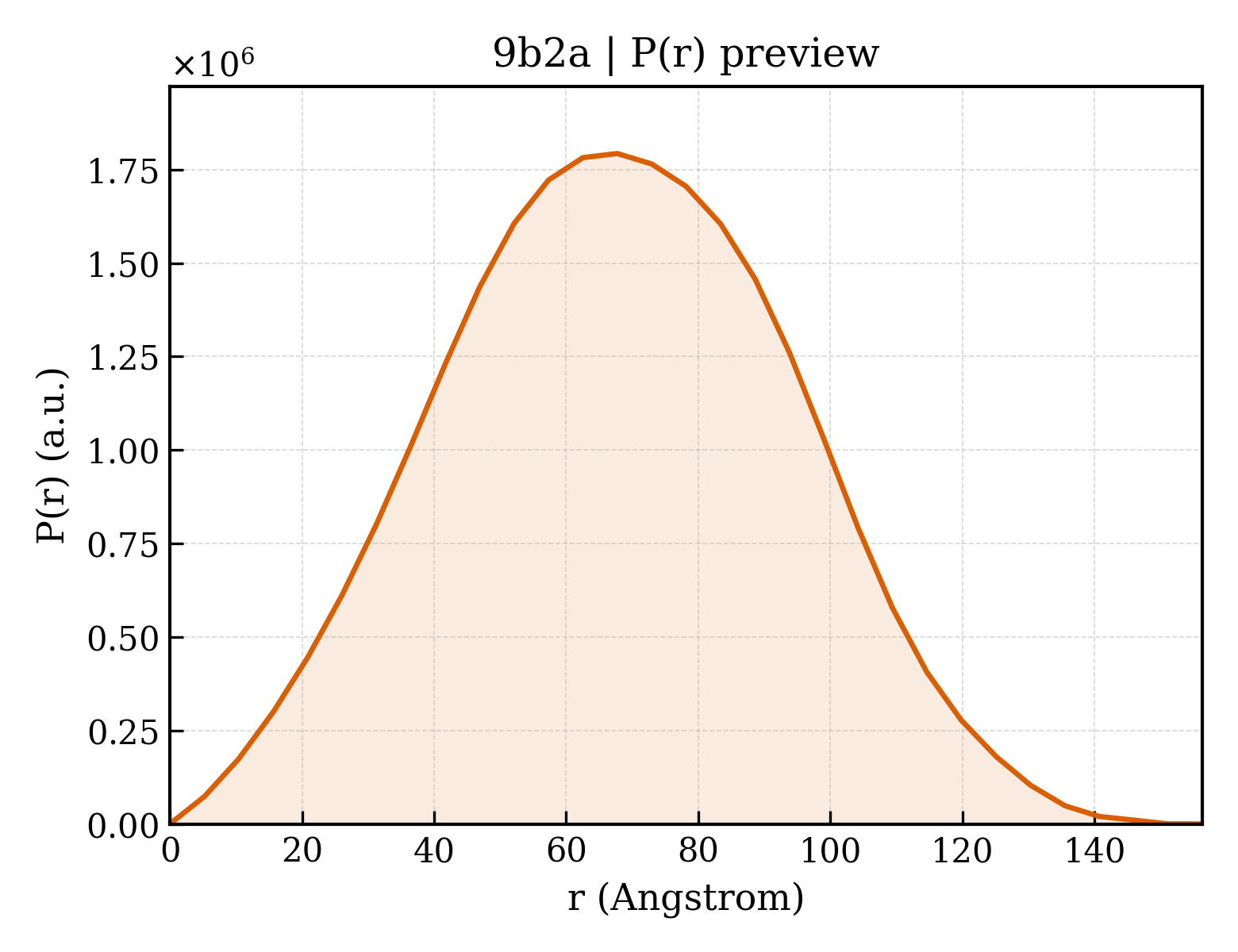

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9b2a
沉积日期 deposition_date	2024-03-14
结构标题 title	;Cryo-EM structure of the mouse TRPM3 alpha 2 channel in complex with the neurosteroid pregnenolone sulfate and the synthetic agonist CIM 0216 ;
关键词 keywords	;Transient receptor potential channel, TRPM3, neurosteroid, pregnenolone sulfate, neurodevelopmental disorders, anticonvulsant, primidone, neurological disorders, nociception, analgesic, TRANSPORT PROTEIN ;; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	51.68 Å
回转半径 Rg (电子) rg_electron	50.31 Å
零角强度 I(0) i0	1586170000.00
分子量 molecular_weight	316470.0 kDa
排除体积 excluded_volume	386120 Å³
包络体积 envelope_volume	718090 Å³
水化壳体积 shell_volume	114180 Å³
包络直径 envelope_diameter	159.0 Å
壳层 Rg shell_rg	58.23 Å
包络 Rg envelope_rg	48.96 Å
形状 Rg shape_rg	49.69 Å
总 Rg total_rg	52.54 Å
总原子数 total_atoms	41384
残基数 n_residues	3268
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	156.3 Å
Rg (实空间) rg_real	51.37 Å
Rg 误差 (实空间) rg_real_error	0.96 Å
I(0) (实空间) i0_real	1.5860e+09
I(0) 误差 (实空间) i0_real_error	3.0250e+07
Rg (倒空间) rg_reciprocal	51.92 Å
I(0) (倒空间) i0_reciprocal	1587000000.0000
解质量估计 total_estimate	0.6391
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	67.7 Å
偏度 Skewness skewness	0.045
峰度 Kurtosis kurtosis	-0.452
角度范围 angular_range	— – 0.1500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	322100000.0000
实空间数据点数 n_real_points	31
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.905; Stabil: 1.000; Sysdev: 0.007; Positv: 1.000; Valcen: 0.941; Smooth: 0.627

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Transient receptor potential cation channel, subfamily M, member 3
分子量 formula_weight	198674.3 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	41384

MGKKWRDAGELERGCSDREDSAESRRRSRSASRGRFAESWKRLSSKQGSTKRSGLPAQQTPAQKSWIERAFYKRECVHIIPSTKDPHRCCCGRLIGQHVGLTPSISVLQNEKNESRLSRNDIQSEKWSISKHTQLSPTDAFGTIEFQGGGHSNKAMYVRVSFDTKPDLLLHLMTKEWQLELPKLLISVHGGLQNFELQPKLKQVFGKGLIKAAMTTGAWIFTGGVNTGVIRHVGDALKDHASKSRGKICTIGIAPWGIVENQEDLIGRDVVRPYQTMSNPMSKLTVLNSMHSHFILADNGTTGKYGAEVKLRRQLEKHISLQKINTRIGQGVPVVALIVEGGPNVISIVLEYLRDTPPVPVVVCDGSGRASDILAFGHKYSEEGGLINESLRDQLLVTIQKTFTYTRTQAQHLFIILMECMKKKELITVFRMGSEGHQDIDLAILTALLKGANASAPDQLSLALAWNRVDIARSQIFIYGQQWPVGSLEQAMLDALVLDRVDFVKLLIENGVSMHRFLTISRLEELYNTRHGPSNTLYHLVRDVKKGNLPPDYRISLIDIGLVIEYLMGGAYRCNYTRKRFRTLYHNLFGPKRPKALKLLGMEDDIPLRRGRKTTKKREEEVDIDLDDPEINHFPFPFHELMVWAVLMKRQKMALFFWQHGEEAMAKALVACKLCKAMAHEASENDMVDDISQELNHNSRDFGQLAVELLDQSYKQDEQLAMKLLTYELKNWSNATCLQLAVAAKHRDFIAHTCSQMLLTDMWMGRLRMRKNSGLKVILGILLPPSILSLEFKNKDDMPYMTQAQEIHLQEKEPEEPEKPTKEKDEEDMELTAMLGRSNGESSRKKDEEEVQSRHRLIPVGRKIYEFYNAPIVKFWFYTLAYIGYLMLFNYIVLVKMERWPSTQEWIVISYIFTLGIEKMREILMSEPGKLLQKVKVWLQEYWNVTDLIAILLFSVGMILRLQDQPFRSDGRVIYCVNIIYWYIRLLDIFGVNKYLGPYVMMIGKMMIDMMYFVIIMLVVLMSFGVARQAILFPNEEPSWKLAKNIFYMPYWMIYGEVFADQIDPPCGQNETREDGKTIQLPPCKTGAWIVPAIMACYLLVANILLVNLLIAVFNNTFFEVKSISNQVWKFQRYQLIMTFHERPVLPPPLIIFSHMTMIFQHVCCRWRKHESDQDERDYGLKLFITDDELKKVHDFEEQCIEEYFREKDDRFNSSNDERIRVTSERVENMSMRLEEVNEREHSMKASLQTVDIRLAQLEDLIGRMATALERLTGLERAESNKIRSRTSSDCTDAAYIVRQSSFNSQEGNTFKLQESIDPAGEETISPTSPTLMPRMRSHSFYSVNVKDKGGIEKLESIFKERSLSLHRATSSHSVAKEPKAPAAPANTLAIVPDSRRPSSCIDIYVSAMDELHCDIEPLDNSMNILGLGEPSFSALAPSTTPSSSAYATLAPTDRPPSRSIDFEDLTSMDTRSFSSDYTHLPECQNPWDTDPPTYHTIERSKSSRYLATTPFLLEEAPIVKSHSFMFSPSRSYYANFGVPVKTAEYTSITDCIDTRCVNAPQAIADRATFPGGLGDKVEDLSCCHPEREAELSHPSSDSEENEARGQRAANPISSQEAENADRTLSNNITVPKIERANSYSAEEPNVPYAHTRKSFSISDKLDRQRNTASLRNPFQRSKSSKPEGRGDSLSMRRLSRTSAFHSFESKHNSNSLEVLFQGPDYKDDDDKAHHHHHHHHHH

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 2 non-polymer

描述 description	(2S)-2-(3,4-dihydroquinolin-1(2H)-yl)-N-(5-methyl-1,2-oxazol-3-yl)-2-phenylacetamide
分子量 formula_weight	347.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	[(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyloxy-propan-2-yl] (~{Z})-octadec-9-enoate
分子量 formula_weight	718.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	Pregnenolone sulfate
分子量 formula_weight	396.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.82 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	25649
