8dov
Crystal structure of the Shr Hemoglobin Interacting Domain 2 (HID2) in complex with Hemoglobin

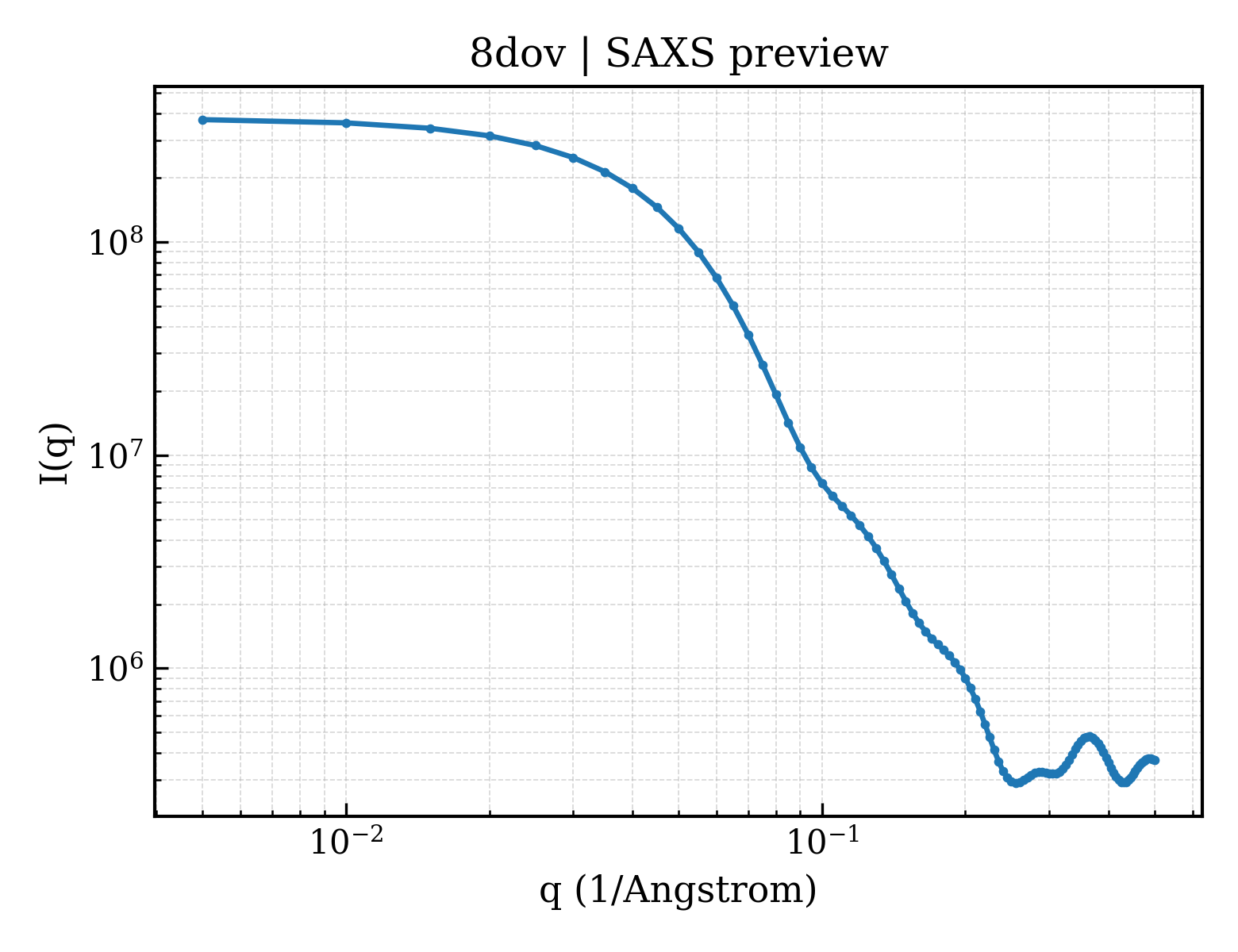

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 8dov |
| 沉积日期 deposition_date | 2022-07-14 |
| 结构标题 title | Crystal structure of the Shr Hemoglobin Interacting Domain 2 (HID2) in complex with Hemoglobin |
| 关键词 keywords | DUF1533, hemoglobin, heme, HID, complex, beta-sandwich, globin, Shr, TRANSPORT PROTEIN; TRANSPORT PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 37.39 Å |
| 回转半径 Rg (电子) rg_electron | 36.61 Å |
| 零角强度 I(0) i0 | 378379000.00 |
| 分子量 molecular_weight | 162350.0 kDa |
| 排除体积 excluded_volume | 204950 ų |
| 包络体积 envelope_volume | 266730 ų |
| 水化壳体积 shell_volume | 59563 ų |
| 包络直径 envelope_diameter | 131.5 Å |
| 壳层 Rg shell_rg | 43.81 Å |
| 包络 Rg envelope_rg | 36.03 Å |
| 形状 Rg shape_rg | 36.59 Å |
| 总 Rg total_rg | 37.17 Å |
| 总原子数 total_atoms | 11469 |
| 残基数 n_residues | 1466 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 122.4 Å |
| Rg (实空间) rg_real | 37.26 Å |
| Rg 误差 (实空间) rg_real_error | 0.96 Å |
| I(0) (实空间) i0_real | 3.7840e+08 |
| I(0) 误差 (实空间) i0_real_error | 6.3600e+06 |
| Rg (倒空间) rg_reciprocal | 37.34 Å |
| I(0) (倒空间) i0_reciprocal | 378400000.0000 |
| 解质量估计 total_estimate | 0.6796 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 46.6 Å |
| 偏度 Skewness skewness | 0.240 |
| 峰度 Kurtosis kurtosis | -0.385 |
| 角度范围 angular_range | — – 0.2100 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 73770000.0000 |
| 实空间数据点数 n_real_points | 43 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.881; Stabil: 1.000; Sysdev: 0.080; Positv: 1.000; Valcen: 0.992; Smooth: 0.955 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (6)
6. 折叠分类 (SCOP + CATH) 8 domains
CATH v4.4 (8 domains)
| 结构域编号 domain_id | 8dovA01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 8dovB01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 8dovC01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 8dovD01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 8dovE01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 8dovF01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 8dovG01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
| 结构域编号 domain_id | 8dovH01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 490 — Globin-like |
| 同源超家族 H-superfamily homologous superfamily | 10 — Globins |
