SAXSdb — 8etw

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8etw
沉积日期 deposition_date	2022-10-17
结构标题 title	Class3 of INO80-Hexasome complex
关键词 keywords	chromatin remodeler, hexasome, DNA BINDING PROTEIN; DNA BINDING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	52.50 Å
回转半径 Rg (电子) rg_electron	52.24 Å
零角强度 I(0) i0	2358400000.00
分子量 molecular_weight	407980.0 kDa
排除体积 excluded_volume	512450 Å³
包络体积 envelope_volume	727470 Å³
水化壳体积 shell_volume	114550 Å³
包络直径 envelope_diameter	187.3 Å
壳层 Rg shell_rg	56.88 Å
包络 Rg envelope_rg	52.16 Å
形状 Rg shape_rg	52.29 Å
总 Rg total_rg	52.21 Å
总原子数 total_atoms	28666
残基数 n_residues	3656
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	176.1 Å
Rg (实空间) rg_real	52.52 Å
Rg 误差 (实空间) rg_real_error	2.25 Å
I(0) (实空间) i0_real	2.3580e+09
I(0) 误差 (实空间) i0_real_error	4.9830e+07
Rg (倒空间) rg_reciprocal	52.48 Å
I(0) (倒空间) i0_reciprocal	2358000000.0000
解质量估计 total_estimate	0.8511
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	64.6 Å
偏度 Skewness skewness	0.439
峰度 Kurtosis kurtosis	-0.056
角度范围 angular_range	— – 0.1500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	353400000.0000
实空间数据点数 n_real_points	31
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.797; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.688

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Chromatin-remodeling ATPase INO80
分子量 formula_weight	54985.9 kDa
EC 编号 ec_number	3.6.4.-
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q
原子数 atom_count	28666

IEIDVLCDLTQRQAKLYQVLKSQISTNYDAIENAATNDSTSNSASNSGSDQNLINAVMQFRKVCNHPDLFERADVDSPFSFTTFGKTTSMLTASVANNNSSVISNSNMNLSSMSSNNISNGKFTDLIYSSRNPIKYSLPRLIYEDLILPNYNNDVDIANKLKNVKFNIFNPSTNYELCLFLSKLTGEPSLNEFFRVSTTPLLKRVIERTNGPKNTDSLSFKTITQELLEVTRNAPSEGVMASLLNVEKHAYEREYLNCIQRGYHPNVSAPPVTIEVLGSSHVTNSINNELFDPLISQALSDIPAITQYNMHVKKGIPVEDFPKTGLFPEPLNKNFSSNISMPSMDRFITESAKLRKLDELLVKLKSEGHRVLIYFQMTKMMDLMEEYLTYRQYNHIRLDGSSKLEDRRDLVHDWQTNPEIFVFLLSTRAGGLGINLTAADTVIFYDSDWNPTIDSQAMDRAHRLGQTRQVTVYRLLVRGTIEERM

Entity 2 polymer

描述 description	Actin-related protein 5
分子量 formula_weight	86522.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

KAVVIDDPPLRQTPEPFDEQSAYNPQSPIAIDFGSSKLRAGFVNHATPTHIFPNALTKFRDRKLNKNFTFVGNDTLLDQAVRSQSRSPFDGPFVTNWNLTEEILDYTFHHLGVVPDNGIPNPILLTERLATVQSQRTNWYQILFETYNVPGVTFGIDSLFSFYNYNPSGNKTGLVISCGHEDTNVIPVVDGAGILTDAKRINWGGHQAVDYLNDLMALKYPYFPTKMSYLQYETMYKDYCYVSRNYDEDIEKILTLENLDTNDVVVEAPFTEVLQPQKTEEELRIQAEKRKETGKRLQEQARLKRMEKLVQKQEEFEYFSKVRDQLIDEPKKKVLSVLQNAGFDDERDFKKYLHSLEQSLKKAQMVEAEDDSHLDEMNEDKTAQKFDLLDIADEDLNEDQIKEKRKQRFLKASQDARQKAKEEKERVAKEEEEKKLKEQQWRETDLNGWIKDKRLKLNKLIKRRKEKLKLRDEMKDRKSQVSQNRMKNLASLAEDNVKQGAKRNRHQATIDNDPNDTFGANDEDWLIYTDITQNPEAFEEALEYEYKDIVELERLLLEHDPNFTEEDTLEAQYDWRNSILHLFLRGPRPHDSENIHEQHQMHLNVERIRVPEVIFQPTMGGQDQAGICELSETILLKKFGSQPGKLSQTSIDMVNNVLITGGNAKVPGLKERIVKEFTGFLPTGTNITVNMSSDPSLDAWKGMAALARNEEQYRKTVISKKEYEEYGPEYIKEHKLGNTKYFED

Entity 3 polymer

描述 description	Chromatin-remodeling complex subunit IES6
分子量 formula_weight	15881.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

ERLLFLRSVGERNEIGFPSRFKSAHYKKPTRRHKSARQLISDENKRINALLTKANKAAESSTAARRLVPKATYFSVEAPPSIRPAKKYCDVTGLKGFYKSPTNNIRYHNAEIYQLIVKPMAPGVDQEYLKLRGANFVLK

Entity 4 polymer

描述 description	RuvB-like protein 1
分子量 formula_weight	48543.8 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T,V,X

VTRTAAHTHIKGLGLDESGVAKRVEGGFVGQIEAREACGVIVDLIKAKKMSGRAILLAGGPSTGKTALALAISQELGPKVPFCPLVGSELYSVEVKKTETLMENFRRAIGLRIKETKEVYEGEVTELTPEDAENPLGGYGKTISHVIVGLKSAKGTKTLRLDPTIYESIQREKVSIGDVIYIEANTGAVKRVGRSDAYATEFDLETEEYVPLPKGEVHKKKEIVQDVTLHDLDVANARPQGGQDVISMMGQLLKPKKTEITEKLRQEVNKVVAKYIDQGVAELIPGVLFIDEVNMLDIEIFTYLNKALESNIAPVVVLASNRGMTTVRGTEDVISPHGVPPDLIDRLLIVRTLPYDKDEIRTIIERRATVERLQVESSALDLLATMGTETSLRYALQLLAPCGILAQTSNRKEIVVNDVNEAKLLFLDAKRSTKILETSANYL

Entity 5 polymer

描述 description	RuvB-like protein 2
分子量 formula_weight	50153.9 kDa
EC 编号 ec_number	3.6.4.12
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U,W,Y

KSLSLIAAHSHITGLGLDENLQPRPTSEGMVGQLQARRAAGVILKMVQNGTIAGRAVLVAGPPSTGKTALAMGVSQSLGKDVPFTAIAGSEIFSLELSKTEALTQAFRKSIGIKIKEETELIEGEVVEIQIDRSITGGHKQGKLTIKTTDMETIYELGNKMIDGLTKEKVLAGDVISIDKASGKITKLGRSFARSRDYDAMGADTRFVQCPEGELQKRKTVVHTVSLHEIDVINSRTQGFLALFTGDTGEIRSEVRDQINTKVAEWKEEGKAEIVPGVLFIDEVHMLDIECFSFINRALEDEFAPIVMMATNRGVSKTRGTNYKSPHGLPLDLLDRSIIITTKSYNEQEIKTILSIRAQEEEVELSSDALDLLTKTGVETSLRYSSNLISVAQQIAMKRKNNTVEVEDVKRAYLLFLDSARSVKYVQENESQYIDDQGNVQISIAKSADPDAMDTTE

Entity 6 polymer

描述 description	Ino eighty subunit 2
分子量 formula_weight	3531.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

FVKPRRPYNSEGMTRILRRYEEDLFCTF

Entity 7 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.64 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	233675

fit	/app/data/saxs_computation/et/8etw/8etw.fit
pddf	/app/data/pr_computation/et/8etw/8etw.pr.out
profile	/app/data/saxs_computation/et/8etw/8etw.dat

Class3 of INO80-Hexasome complex

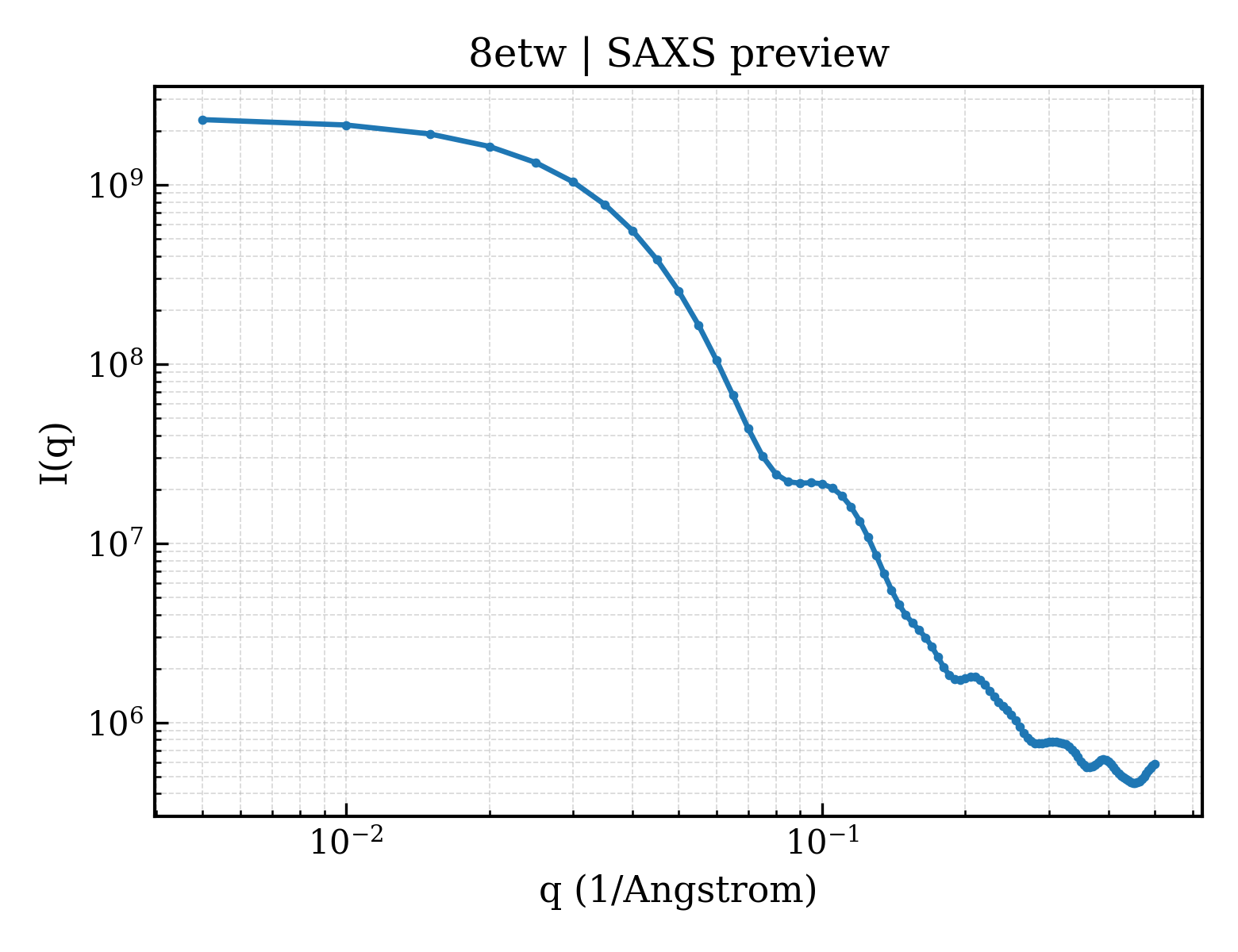

SAXS 散射曲线 SAXS Profile

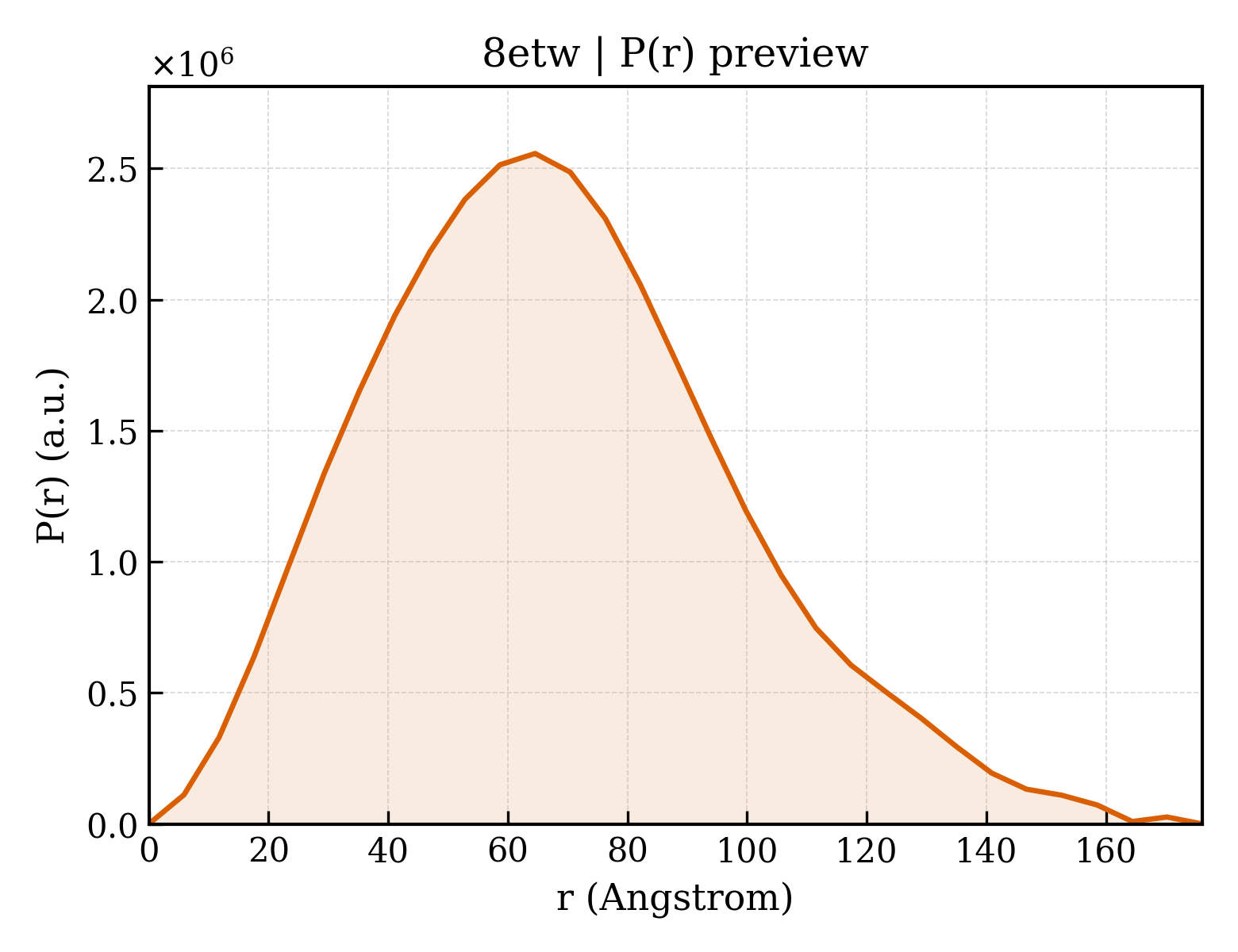

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (7)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 non-polymer

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
