SAXSdb — 8euf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chromatin-remodeling ATPase INO80

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain Q； UniProt 1–1489	Not recorded	Actin-related protein 5 × 1 （P53946） Chromatin-remodeling complex subunit IES6 × 1 （P32617） RuvB-like protein 1 × 3 （Q03940） RuvB-like protein 2 × 3 （Q12464） Ino eighty subunit 2 × 1 （P40154） ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen OTHER	Resolution 3.41 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8EUF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5NBN Crystal structure of the Arp4-N-actin-Arp8-Ino80HSA module of INO80 Deposited 2017-03-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 462–598（137 aa）	Not recorded	CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 LAR LATRUNCULIN A × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M sodium citrate tribasic dihydrate, 18% (w/v) polyethylene glycol 3,350, latrunculin A solved in DMSO molar ration 1:1.5 (protein : latrunculin A)	Resolution 4.00 Å R-free 0.242
5NBN Crystal structure of the Arp4-N-actin-Arp8-Ino80HSA module of INO80 Deposited 2017-03-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 462–598（137 aa）	Not recorded	CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 LAR LATRUNCULIN A × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M sodium citrate tribasic dihydrate, 18% (w/v) polyethylene glycol 3,350, latrunculin A solved in DMSO molar ration 1:1.5 (protein : latrunculin A)	Resolution 4.00 Å R-free 0.242
8A5A Structure of Arp4-Ies4-N-actin-Arp8-Ino80HSA subcomplex (A-module) of INO80 Deposited 2022-06-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 1–598（598 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 3 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8A5O Structure of Arp4-Ies4-N-actin-Arp8-Ino80HSA subcomplex (A-module) of S. cerevisiae INO80 Deposited 2022-06-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 1–598（598 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 3 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8ETS Class1 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Q 948–1432（485 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.04 Å
8ETU Class2 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Q 948–1432（485 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.80 Å
8ETW Class3 of INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Q 948–1432（485 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.64 Å
8EU9 Class1 of the INO80-Nucleosome complex Deposited 2022-10-18	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Q 948–1440（493 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.48 Å
9C9G S.c INO80 in complex with S.c 0/80 nucleosome Deposited 2024-06-13	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain Q 1–1489（1489 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.91 Å
9C9S S.c INO80 in complex with S.c 0/40 nucleosome, Class 1 Deposited 2024-06-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain Q 1–1489（1489 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.09 Å
9C9T S.c INO80 in complex with S.c 0/40 nucleosome, Class 2 Deposited 2024-06-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain Q 1–1489（1489 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.16 Å
9C9Z S.c INO80 in complex with Xenopus 0/80 nucleosome, INO80 Core Deposited 2024-06-16	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Q 1–1489（1489 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.55 Å
9CAN S.c INO80 in complex with Xenopus 0/40 nucleosome Deposited 2024-06-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain Q 1–1489（1489 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.30 Å
9CAT DeltaArp8 INO80 bound to S.c 0/40 nucleosome, INO80 Core Module Deposited 2024-06-17	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Q 1–1489（1489 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.90 Å
9CB7 DeltaNhp10 INO80 bound to S.c 0/40 nucleosome, Ino80-Nucleosome Deposited 2024-06-18	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain Q 1–1489（1489 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 4.04 Å
9CCD DeltaNhp10 INO80 bound to S.c 0/40 nucleosome, INO80 core module Deposited 2024-06-21	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Q 1–1489（1489 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.01 Å
9OB1 S.c INO80 in complex with Yeast 0/80 nucleosome, Apo State Deposited 2025-04-21	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain Q 1–1489（1489 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.20 Å

16 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	INO80_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain Q； PDBConstruct 1–1489； UniProt 1–1489

Actin-related protein 5

OrganismNot specified

UniProt P53946

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain R； UniProt 1–755	Not recorded	Chromatin-remodeling ATPase INO80 × 1 （P53115） Chromatin-remodeling complex subunit IES6 × 1 （P32617） RuvB-like protein 1 × 3 （Q03940） RuvB-like protein 2 × 3 （Q12464） Ino eighty subunit 2 × 1 （P40154） ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen OTHER	Resolution 3.41 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8EUF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8ETS Class1 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain R 12–755（744 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.04 Å
8ETU Class2 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain R 12–755（744 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.80 Å
8ETW Class3 of INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain R 12–755（744 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.64 Å
8EU9 Class1 of the INO80-Nucleosome complex Deposited 2022-10-18	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain R 1–755（755 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.48 Å
9C9G S.c INO80 in complex with S.c 0/80 nucleosome Deposited 2024-06-13	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain R 1–755（755 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.91 Å
9C9S S.c INO80 in complex with S.c 0/40 nucleosome, Class 1 Deposited 2024-06-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain R 1–755（755 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.09 Å
9C9T S.c INO80 in complex with S.c 0/40 nucleosome, Class 2 Deposited 2024-06-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain R 1–755（755 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.16 Å
9C9Z S.c INO80 in complex with Xenopus 0/80 nucleosome, INO80 Core Deposited 2024-06-16	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain R 1–755（755 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.55 Å
9CAN S.c INO80 in complex with Xenopus 0/40 nucleosome Deposited 2024-06-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain R 1–755（755 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.30 Å
9CAT DeltaArp8 INO80 bound to S.c 0/40 nucleosome, INO80 Core Module Deposited 2024-06-17	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain R 1–755（755 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.90 Å
9CCD DeltaNhp10 INO80 bound to S.c 0/40 nucleosome, INO80 core module Deposited 2024-06-21	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain R 1–755（755 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.01 Å
9OB1 S.c INO80 in complex with Yeast 0/80 nucleosome, Apo State Deposited 2025-04-21	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain R 1–755（755 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.20 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARP5_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain R； PDBConstruct 1–755； UniProt 1–755

Chromatin-remodeling complex subunit IES6

OrganismNot specified

UniProt P32617

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain S； UniProt 1–166	Not recorded	Chromatin-remodeling ATPase INO80 × 1 （P53115） Actin-related protein 5 × 1 （P53946） RuvB-like protein 1 × 3 （Q03940） RuvB-like protein 2 × 3 （Q12464） Ino eighty subunit 2 × 1 （P40154） ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen OTHER	Resolution 3.41 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8EUF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8ETS Class1 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain S 28–166（139 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.04 Å
8ETU Class2 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain S 28–166（139 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.80 Å
8ETW Class3 of INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain S 28–166（139 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.64 Å
8EU9 Class1 of the INO80-Nucleosome complex Deposited 2022-10-18	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain S 28–162（135 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.48 Å
9C9G S.c INO80 in complex with S.c 0/80 nucleosome Deposited 2024-06-13	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain S 1–166（166 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.91 Å
9C9S S.c INO80 in complex with S.c 0/40 nucleosome, Class 1 Deposited 2024-06-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain S 1–166（166 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.09 Å
9C9T S.c INO80 in complex with S.c 0/40 nucleosome, Class 2 Deposited 2024-06-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain S 1–166（166 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.16 Å
9C9Z S.c INO80 in complex with Xenopus 0/80 nucleosome, INO80 Core Deposited 2024-06-16	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain S 1–166（166 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.55 Å
9CAN S.c INO80 in complex with Xenopus 0/40 nucleosome Deposited 2024-06-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain S 1–166（166 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.30 Å
9CAT DeltaArp8 INO80 bound to S.c 0/40 nucleosome, INO80 Core Module Deposited 2024-06-17	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain S 1–166（166 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.90 Å
9CCD DeltaNhp10 INO80 bound to S.c 0/40 nucleosome, INO80 core module Deposited 2024-06-21	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain S 1–166（166 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.01 Å
9OB1 S.c INO80 in complex with Yeast 0/80 nucleosome, Apo State Deposited 2025-04-21	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain S 1–166（166 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.20 Å

12 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IES6_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain S； PDBConstruct 1–166； UniProt 1–166

RuvB-like protein 1

OrganismNot specified

UniProt Q03940

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain T； UniProt 1–463 Chain V； UniProt 1–463 Chain X； UniProt 1–463	Not recorded	Chromatin-remodeling ATPase INO80 × 1 （P53115） Actin-related protein 5 × 1 （P53946） Chromatin-remodeling complex subunit IES6 × 1 （P32617） RuvB-like protein 2 × 3 （Q12464） Ino eighty subunit 2 × 1 （P40154） ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen OTHER	Resolution 3.41 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8EUF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6GEJ Chromatin remodeller-nucleosome complex at 3.6 A resolution. Deposited 2018-04-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6GEN Chromatin remodeller-nucleosome complex at 4.5 A resolution. Deposited 2018-04-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8ETS Class1 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain T 21–463（443 aa） Chain V 21–463（443 aa） Chain X 21–463（443 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.04 Å
8ETU Class2 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain T 21–463（443 aa） Chain V 21–463（443 aa） Chain X 21–463（443 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.80 Å
8ETW Class3 of INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain T 21–463（443 aa） Chain V 21–463（443 aa） Chain X 21–463（443 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.64 Å
8EU9 Class1 of the INO80-Nucleosome complex Deposited 2022-10-18	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain T 21–463（443 aa） Chain V 21–463（443 aa） Chain X 21–463（443 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.48 Å
8QKU SWR1-nucleosome complex in configuration 1 Deposited 2023-09-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8QKV SWR1-nucleosome complex in configuration 2 Deposited 2023-09-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.70 Å
8QYV SWR1-hexasome complex Deposited 2023-10-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: 19-meric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8QZ0 SWR1-hexasome-dimer complex Deposited 2023-10-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9C9G S.c INO80 in complex with S.c 0/80 nucleosome Deposited 2024-06-13	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.91 Å
9C9S S.c INO80 in complex with S.c 0/40 nucleosome, Class 1 Deposited 2024-06-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.09 Å
9C9T S.c INO80 in complex with S.c 0/40 nucleosome, Class 2 Deposited 2024-06-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.16 Å
9C9Z S.c INO80 in complex with Xenopus 0/80 nucleosome, INO80 Core Deposited 2024-06-16	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.55 Å
9CAN S.c INO80 in complex with Xenopus 0/40 nucleosome Deposited 2024-06-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.30 Å
9CAT DeltaArp8 INO80 bound to S.c 0/40 nucleosome, INO80 Core Module Deposited 2024-06-17	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.90 Å
9CCD DeltaNhp10 INO80 bound to S.c 0/40 nucleosome, INO80 core module Deposited 2024-06-21	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.01 Å
9FBW SWR1 lacking Swc5 subunit in complex with hexasome Deposited 2024-05-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
9OB1 S.c INO80 in complex with Yeast 0/80 nucleosome, Apo State Deposited 2025-04-21	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain T 1–463（463 aa） Chain V 1–463（463 aa） Chain X 1–463（463 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.20 Å

19 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RUVB1_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain T； PDBConstruct 1–463； UniProt 1–463 Author chain V； PDBConstruct 1–463； UniProt 1–463 Author chain X； PDBConstruct 1–463； UniProt 1–463

RuvB-like protein 2

OrganismNot specified

UniProt Q12464

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain U； UniProt 1–460 Chain W； UniProt 1–460 Chain Y； UniProt 1–460	Not recorded	Chromatin-remodeling ATPase INO80 × 1 （P53115） Actin-related protein 5 × 1 （P53946） Chromatin-remodeling complex subunit IES6 × 1 （P32617） RuvB-like protein 1 × 3 （Q03940） Ino eighty subunit 2 × 1 （P40154） ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen OTHER	Resolution 3.41 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8EUF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5OUN NMR solution structure of the external DII domain of Rvb2 from Saccharomyces cerevisiae Deposited 2017-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 132–234（103 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.4；298 K；Ionic strength (raw mmCIF value) 150；Pressure 1 NMR sample composition 1 mM [U-13C; U-15N] Rvb2DII, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
6GEJ Chromatin remodeller-nucleosome complex at 3.6 A resolution. Deposited 2018-04-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain U 1–471（471 aa） Chain W 1–471（471 aa） Chain Y 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
6GEN Chromatin remodeller-nucleosome complex at 4.5 A resolution. Deposited 2018-04-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain U 1–471（471 aa） Chain W 1–471（471 aa） Chain Y 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8ETS Class1 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain U 15–471（457 aa） Chain W 15–471（457 aa） Chain Y 15–471（457 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.04 Å
8ETU Class2 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain U 15–471（457 aa） Chain W 15–471（457 aa） Chain Y 15–471（457 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.80 Å
8ETW Class3 of INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain U 15–471（457 aa） Chain W 15–471（457 aa） Chain Y 15–471（457 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.64 Å
8EU9 Class1 of the INO80-Nucleosome complex Deposited 2022-10-18	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain U 15–460（446 aa） Chain W 15–460（446 aa） Chain Y 15–460（446 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.48 Å
8QKU SWR1-nucleosome complex in configuration 1 Deposited 2023-09-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain U 1–471（471 aa） Chain W 1–471（471 aa） Chain Y 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8QKV SWR1-nucleosome complex in configuration 2 Deposited 2023-09-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain U 1–471（471 aa） Chain W 1–471（471 aa） Chain Y 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.70 Å
8QYV SWR1-hexasome complex Deposited 2023-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: 19-meric	Chain U 1–471（471 aa） Chain W 1–471（471 aa） Chain Y 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8QZ0 SWR1-hexasome-dimer complex Deposited 2023-10-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 20 PDB declaration: 22-meric	Chain U 1–471（471 aa） Chain W 1–471（471 aa） Chain Y 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
9B1D Cryo-EM structure of native SWR1 bound to DNA (composite structure) Deposited 2024-03-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain F 1–471（471 aa） Chain H 1–471（471 aa） Chain J 1–471（471 aa）	Not recorded	AGS PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MG MAGNESIUM ION × 8 ZN ZINC ION × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；20 mM HEPES pH 7.6, 0.2 mM EDTA, 2 mM MgCl2, 100 mM NaCl, 0.01% IGEPAL CA-630, 3.5% glycerol, and 0.25 mM TCEP, 1 mM ATP-gamma-s, 0.05% glutaraldehyde. cryo-EM vitrification conditions Cryogen ETHANE；6 second blot time and blot force of 12.	Resolution 3.30 Å
9B1E Cryo-EM structure of native SWR1 bound to nucleosome (composite structure) Deposited 2024-03-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 19 PDB declaration: 21-meric	Chain F 1–471（471 aa） Chain H 1–471（471 aa） Chain J 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6；80 nM SWR1, 160 nM nucleosomes, 1 mM ADP, 10 mM NaF, 8 mM BeCl2, 0.05% glutaraldehyde, 20 mM HEPES-KOH pH 7.6, 1.5 mM MgCl2, 0.25 mM TCEP, 0.01% IGEPAL CA-630, 1% glycerol cryo-EM vitrification conditions Cryogen ETHANE；3 second blot time and blot force of 10.	Resolution 4.40 Å
9C9G S.c INO80 in complex with S.c 0/80 nucleosome Deposited 2024-06-13	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain U 1–471（471 aa） Chain W 1–471（471 aa） Chain Y 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.91 Å
9C9S S.c INO80 in complex with S.c 0/40 nucleosome, Class 1 Deposited 2024-06-15	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain U 1–471（471 aa） Chain W 1–471（471 aa） Chain Y 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.09 Å
9C9T S.c INO80 in complex with S.c 0/40 nucleosome, Class 2 Deposited 2024-06-15	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain U 1–460（460 aa） Fragment：residues 1-460 Chain W 1–460（460 aa） Fragment：residues 1-460 Chain Y 1–460（460 aa） Fragment：residues 1-460	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.16 Å
9C9Z S.c INO80 in complex with Xenopus 0/80 nucleosome, INO80 Core Deposited 2024-06-16	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain U 1–460（460 aa） Fragment：residues 1-460 Chain W 1–460（460 aa） Fragment：residues 1-460 Chain Y 1–460（460 aa） Fragment：residues 1-460	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.55 Å
9CAN S.c INO80 in complex with Xenopus 0/40 nucleosome Deposited 2024-06-17	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain U 1–460（460 aa） Fragment：residues 1-460 Chain W 1–460（460 aa） Fragment：residues 1-460 Chain Y 1–460（460 aa） Fragment：residues 1-460	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.30 Å
9CAT DeltaArp8 INO80 bound to S.c 0/40 nucleosome, INO80 Core Module Deposited 2024-06-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain U 1–460（460 aa） Fragment：residues 1-460 Chain W 1–460（460 aa） Fragment：residues 1-460 Chain Y 1–460（460 aa） Fragment：residues 1-460	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.90 Å
9CCD DeltaNhp10 INO80 bound to S.c 0/40 nucleosome, INO80 core module Deposited 2024-06-21	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain U 1–460（460 aa） Fragment：residues 1-460 Chain W 1–460（460 aa） Fragment：residues 1-460 Chain Y 1–460（460 aa） Fragment：residues 1-460	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.01 Å
9FBW SWR1 lacking Swc5 subunit in complex with hexasome Deposited 2024-05-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 16 PDB declaration: 18-meric	Chain U 1–471（471 aa） Chain W 1–471（471 aa） Chain Y 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 2 MG MAGNESIUM ION × 8 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
9OB1 S.c INO80 in complex with Yeast 0/80 nucleosome, Apo State Deposited 2025-04-21	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain U 1–471（471 aa） Chain W 1–471（471 aa） Chain Y 1–471（471 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.20 Å

22 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RUVB2_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain U； PDBConstruct 1–460； UniProt 1–460 Author chain W； PDBConstruct 1–460； UniProt 1–460 Author chain Y； PDBConstruct 1–460； UniProt 1–460

Ino eighty subunit 2

OrganismNot specified

UniProt P40154

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain Z； UniProt 1–320	Not recorded	Chromatin-remodeling ATPase INO80 × 1 （P53115） Actin-related protein 5 × 1 （P53946） Chromatin-remodeling complex subunit IES6 × 1 （P32617） RuvB-like protein 1 × 3 （Q03940） RuvB-like protein 2 × 3 （Q12464） ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen OTHER	Resolution 3.41 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8EUF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8ETS Class1 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Z 293–320（28 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.04 Å
8ETU Class2 of the INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Z 293–320（28 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.80 Å
8ETW Class3 of INO80-Hexasome complex Deposited 2022-10-17	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Z 293–320（28 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.64 Å
8EU9 Class1 of the INO80-Nucleosome complex Deposited 2022-10-18	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Z 293–320（28 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.48 Å
9C9G S.c INO80 in complex with S.c 0/80 nucleosome Deposited 2024-06-13	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain Z 1–320（320 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.91 Å
9C9S S.c INO80 in complex with S.c 0/40 nucleosome, Class 1 Deposited 2024-06-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain Z 1–320（320 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.09 Å
9C9T S.c INO80 in complex with S.c 0/40 nucleosome, Class 2 Deposited 2024-06-15	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain Z 1–320（320 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.16 Å
9C9Z S.c INO80 in complex with Xenopus 0/80 nucleosome, INO80 Core Deposited 2024-06-16	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Z 1–320（320 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.55 Å
9CAN S.c INO80 in complex with Xenopus 0/40 nucleosome Deposited 2024-06-17	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: 20-meric	Chain Z 1–320（320 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.30 Å
9CAT DeltaArp8 INO80 bound to S.c 0/40 nucleosome, INO80 Core Module Deposited 2024-06-17	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Z 1–320（320 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 2.90 Å
9CB7 DeltaNhp10 INO80 bound to S.c 0/40 nucleosome, Ino80-Nucleosome Deposited 2024-06-18	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain Z 1–320（320 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 4.04 Å
9CCD DeltaNhp10 INO80 bound to S.c 0/40 nucleosome, INO80 core module Deposited 2024-06-21	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain Z 1–320（320 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.01 Å
9OB1 S.c INO80 in complex with Yeast 0/80 nucleosome, Apo State Deposited 2025-04-21	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 18 PDB declaration: eicosameric	Chain Z 1–320（320 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.20 Å

13 other PDB entries and 13 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IES2_YEAST
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain Z； PDBConstruct 1–320； UniProt 1–320

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8euf
Deposition date deposition_date	2022-10-18
Structure title title	Class2 of the INO80-Nucleosome complex
Keywords keywords	Chromatin Remodeler, hexasome, DNA BINDING PROTEIN, DNA BINDING PROTEIN-Hydrolase complex; DNA BINDING PROTEIN/Hydrolase
Experimental Method method	ELECTRON MICROSCOPY

▼

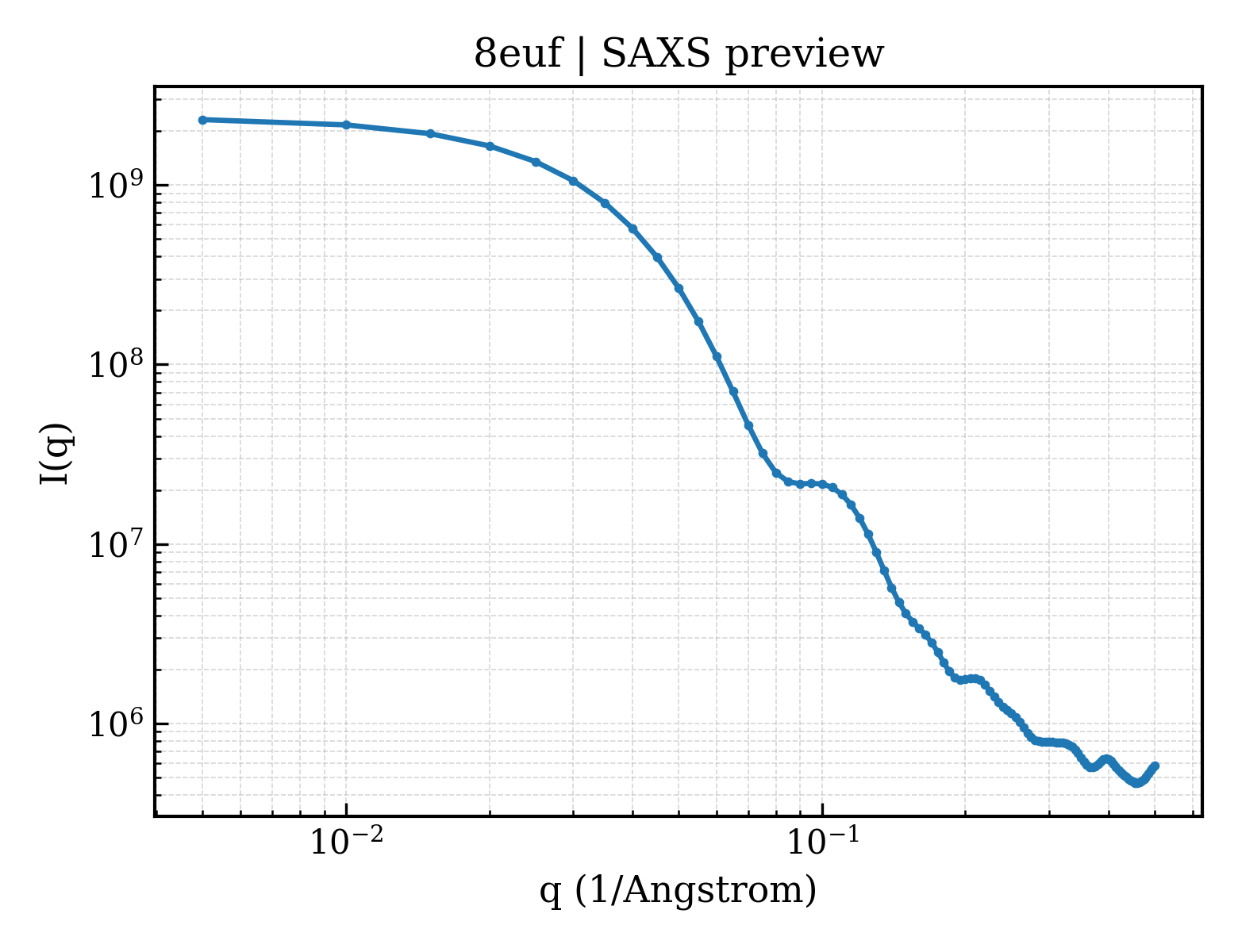

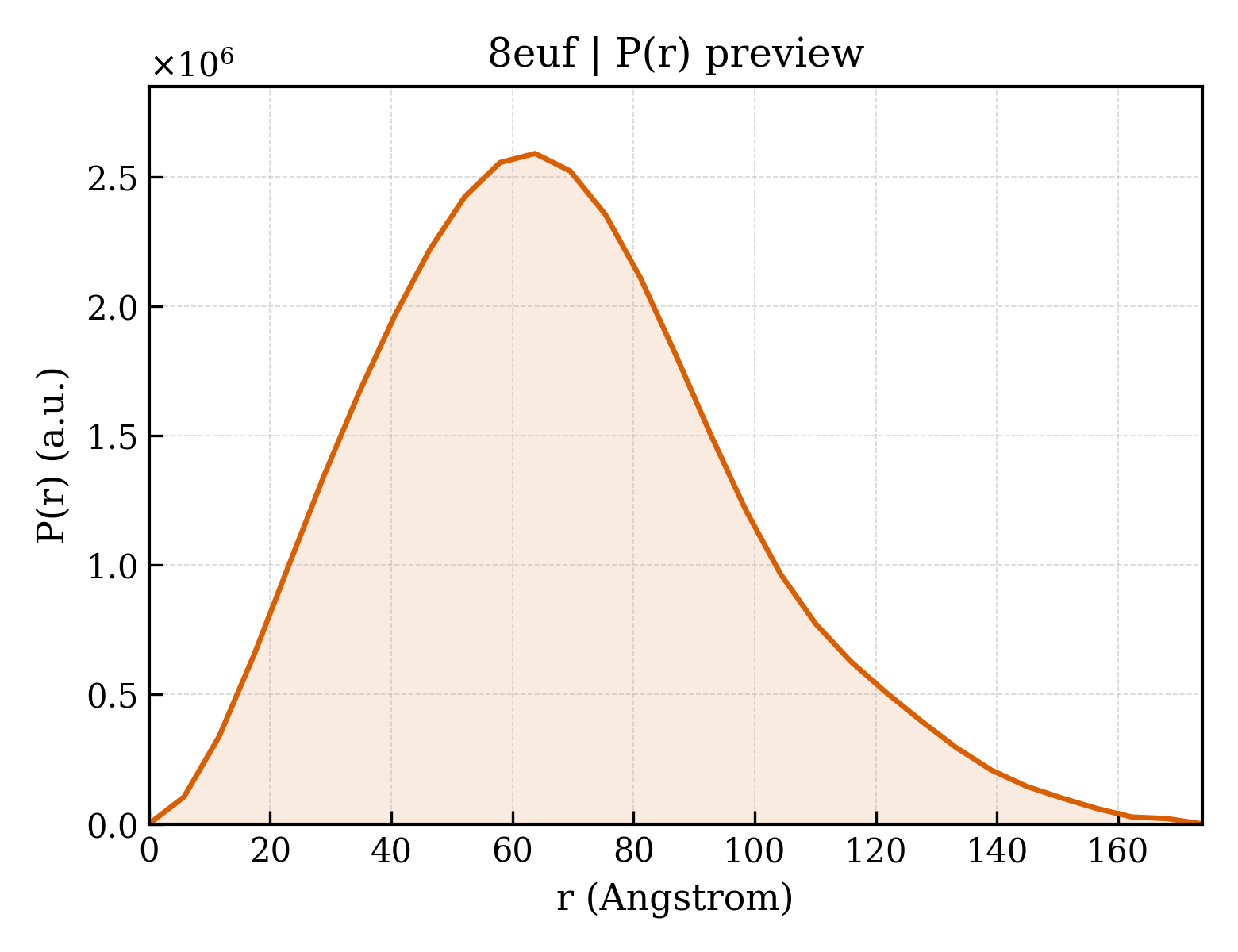

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	51.89 Å
Radius of gyration Rg (electron density) rg_electron	51.66 Å
Forward intensity I(0) i0	2367590000.00
Molecular weight molecular_weight	408550.0 kDa
Excluded volume excluded_volume	513040 Å³
Envelope volume envelope_volume	703020 Å³
Hydration-shell volume shell_volume	112350 Å³
Envelope diameter envelope_diameter	189.4 Å
Shell Rg shell_rg	56.37 Å
Envelope Rg envelope_rg	51.23 Å
Shape Rg shape_rg	51.71 Å
Total Rg total_rg	51.63 Å
Total atoms total_atoms	28707
Residues n_residues	3664
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	173.9 Å
Rg (real space) rg_real	51.90 Å
Rg uncertainty (real space) rg_real_error	1.52 Å
I(0) (real space) i0_real	2.3680e+09
I(0) uncertainty (real space) i0_real_error	4.4450e+07
Rg (reciprocal space) rg_reciprocal	51.87 Å
I(0) (reciprocal space) i0_reciprocal	2367000000.0000
Solution quality estimate total_estimate	0.8515
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	63.8 Å
Skewness Skewness skewness	0.435
Kurtosis Kurtosis kurtosis	-0.061
Angular range angular_range	— – 0.1500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	326400000.0000
Real-space data points n_real_points	31
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.802; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.679

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Chromatin-remodeling ATPase INO80
Molecular weight formula_weight	171693.8 kDa
EC 编号 ec_number	3.6.4.-
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Q
Atom count atom_count	28707

MSLAVLLNKEDKDISDFSKTTAGKSAKKNSRERVADVAPTRVLDKKQAYLSQLNSEFNRIKRRDSIEQLYQDWKFINLQEFELISEWNQQSKDWQFDNTNDSQDLHFKKLYRDMSMINKEWAEYQSFKNANLSDIINEKDADEDEEDDEDELEDGEEDMEEDEASTGRHTNGKSMRGNGIQKSRKKDAAAAAAIGKAIKDDQTHADTVVTVNGDENEDGNNGEDEDNDNDNENNNDNDNDNENENDNDSDNDDEEENGEEDEEEEEIEDLDEEDFAAFEEQDDNDDEDFNPDVEKRRKRSSSSSSSTKLSMNSLSLITSKKINKNITINSDRPKIVRELIKMCNKNKHQKIKKRRFTNCIVTDYNPIDSKLNIKITLKQYHVKRLKKLINDAKREREREEALKNNVGLDGNDLDNDEDGSESHKRRKLNNNTANGADDANKRKFNTRHGLPTYGMKMNAKEARAIQRHYDNTYTTIWKDMARKDSTKMSRLVQQIQSIRSTNFRKTSSLCAREAKKWQSKNFKQIKDFQTRARRGIREMSNFWKKNEREERDLKKKIEKEAMEQAKKEEEEKESKRQAKKLNFLLTQTELYSHFIGRKIKTNELEGNNVSSNDSESQKNIDISALAPNKNDFHAIDFDNENDEQLRLRAAENASNALAETRAKAKQFDDHANAHEEEEEEDELNFQNPTSLGEITIEQPKILACTLKEYQLKGLNWLANLYDQGINGILADEMGLGKTVQSISVLAHLAENHNIWGPFLVVTPASTLHNWVNEISKFLPQFKILPYWGNANDRKVLRKFWDRKNLRYNKNAPFHVMVTSYQMVVTDANYLQKMKWQYMILDEAQAIKSSQSSRWKNLLSFHCRNRLLLTGTPIQNSMQELWALLHFIMPSLFDSHDEFNEWFSKDIESHAEANTKLNQQQLRRLHMILKPFMLRRVKKNVQSELGDKIEIDVLCDLTQRQAKLYQVLKSQISTNYDAIENAATNDSTSNSASNSGSDQNLINAVMQFRKVCNHPDLFERADVDSPFSFTTFGKTTSMLTASVANNNSSVISNSNMNLSSMSSNNISNGKFTDLIYSSRNPIKYSLPRLIYEDLILPNYNNDVDIANKLKNVKFNIFNPSTNYELCLFLSKLTGEPSLNEFFRVSTTPLLKRVIERTNGPKNTDSLSFKTITQELLEVTRNAPSEGVMASLLNVEKHAYEREYLNCIQRGYHPNVSAPPVTIEVLGSSHVTNSINNELFDPLISQALSDIPAITQYNMHVKKGIPVEDFPKTGLFPEPLNKNFSSNISMPSMDRFITESAKLRKLDELLVKLKSEGHRVLIYFQMTKMMDLMEEYLTYRQYNHIRLDGSSKLEDRRDLVHDWQTNPEIFVFLLSTRAGGLGINLTAADTVIFYDSDWNPTIDSQAMDRAHRLGQTRQVTVYRLLVRGTIEERMRDRAKQKEQVQQVVMEGKTQEKNIKTIEVGENDSEVTREGSKSISQDGIKEAASALA

Entity 2 Entity 2 polymer

Description description	Actin-related protein 5
Molecular weight formula_weight	87682.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MSSRDASLTPLKAVVIDDPPLRQTPEPFDEQSAYNPQSPIAIDFGSSKLRAGFVNHATPTHIFPNALTKFRDRKLNKNFTFVGNDTLLDQAVRSQSRSPFDGPFVTNWNLTEEILDYTFHHLGVVPDNGIPNPILLTERLATVQSQRTNWYQILFETYNVPGVTFGIDSLFSFYNYNPSGNKTGLVISCGHEDTNVIPVVDGAGILTDAKRINWGGHQAVDYLNDLMALKYPYFPTKMSYLQYETMYKDYCYVSRNYDEDIEKILTLENLDTNDVVVEAPFTEVLQPQKTEEELRIQAEKRKETGKRLQEQARLKRMEKLVQKQEEFEYFSKVRDQLIDEPKKKVLSVLQNAGFDDERDFKKYLHSLEQSLKKAQMVEAEDDSHLDEMNEDKTAQKFDLLDIADEDLNEDQIKEKRKQRFLKASQDARQKAKEEKERVAKEEEEKKLKEQQWRETDLNGWIKDKRLKLNKLIKRRKEKLKLRDEMKDRKSQVSQNRMKNLASLAEDNVKQGAKRNRHQATIDNDPNDTFGANDEDWLIYTDITQNPEAFEEALEYEYKDIVELERLLLEHDPNFTEEDTLEAQYDWRNSILHLFLRGPRPHDSENIHEQHQMHLNVERIRVPEVIFQPTMGGQDQAGICELSETILLKKFGSQPGKLSQTSIDMVNNVLITGGNAKVPGLKERIVKEFTGFLPTGTNITVNMSSDPSLDAWKGMAALARNEEQYRKTVISKKEYEEYGPEYIKEHKLGNTKYFED

Entity 3 Entity 3 polymer

Description description	Chromatin-remodeling complex subunit IES6
Molecular weight formula_weight	18565.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

MSGSRGNSSNSSVSNNSNNNNNNDGGDERLLFLRSVGERNEIGFPSRFKSAHYKKPTRRHKSARQLISDENKRINALLTKANKAAESSTAARRLVPKATYFSVEAPPSIRPAKKYCDVTGLKGFYKSPTNNIRYHNAEIYQLIVKPMAPGVDQEYLKLRGANFVLK

Entity 4 Entity 4 polymer

Description description	RuvB-like protein 1
Molecular weight formula_weight	50516.9 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	T,V,X

MVAISEVKENPGVNSSNSGAVTRTAAHTHIKGLGLDESGVAKRVEGGFVGQIEAREACGVIVDLIKAKKMSGRAILLAGGPSTGKTALALAISQELGPKVPFCPLVGSELYSVEVKKTETLMENFRRAIGLRIKETKEVYEGEVTELTPEDAENPLGGYGKTISHVIVGLKSAKGTKTLRLDPTIYESIQREKVSIGDVIYIEANTGAVKRVGRSDAYATEFDLETEEYVPLPKGEVHKKKEIVQDVTLHDLDVANARPQGGQDVISMMGQLLKPKKTEITEKLRQEVNKVVAKYIDQGVAELIPGVLFIDEVNMLDIEIFTYLNKALESNIAPVVVLASNRGMTTVRGTEDVISPHGVPPDLIDRLLIVRTLPYDKDEIRTIIERRATVERLQVESSALDLLATMGTETSLRYALQLLAPCGILAQTSNRKEIVVNDVNEAKLLFLDAKRSTKILETSANYL

Entity 5 Entity 5 polymer

Description description	RuvB-like protein 2
Molecular weight formula_weight	50539.4 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	nat
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U,W,Y

MSIQTSDPNETSDLKSLSLIAAHSHITGLGLDENLQPRPTSEGMVGQLQARRAAGVILKMVQNGTIAGRAVLVAGPPSTGKTALAMGVSQSLGKDVPFTAIAGSEIFSLELSKTEALTQAFRKSIGIKIKEETELIEGEVVEIQIDRSITGGHKQGKLTIKTTDMETIYELGNKMIDGLTKEKVLAGDVISIDKASGKITKLGRSFARSRDYDAMGADTRFVQCPEGELQKRKTVVHTVSLHEIDVINSRTQGFLALFTGDTGEIRSEVRDQINTKVAEWKEEGKAEIVPGVLFIDEVHMLDIECFSFINRALEDEFAPIVMMATNRGVSKTRGTNYKSPHGLPLDLLDRSIIITTKSYNEQEIKTILSIRAQEEEVELSSDALDLLTKTGVETSLRYSSNLISVAQQIAMKRKNNTVEVEDVKRAYLLFLDSARSVKYVQENESQYIDDQGNVQISIAK

Entity 6 Entity 6 polymer

Description description	Ino eighty subunit 2
Molecular weight formula_weight	36211.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Z

MDSEASDIEAELSDSVSAGGEEYIDDDDYTEDIDDQIVTAKSSRRTARRSVPKGVRTSKRIRDKELSVEVDEDYDEEEDVLSPSKKRHLHTRSMDKRQVAATASEKSDIGDSKGNDGEIEDGILEEEESLEKELNRGGGKEVEKSEESYYAQNDVGQKGEEEQDGESGGYEDNEPSISKESDELVSVVNGNGNEEDDEVEATKENTTDSTRSTTTRSKMLLDLLEDGGSKKKLTDEEIQLRRAENARKRKNLSEKRLEEEKQDTINKLLKKRAGKSRSHLPNDDEKNDGSSSFVKPRRPYNSEGMTRILRRYEEDLFCTF

Entity 7 Entity 7 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	6

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.41 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	44535

fit	/app/data/saxs_computation/eu/8euf/8euf.fit
pddf	/app/data/pr_computation/eu/8euf/8euf.pr.out
profile	/app/data/saxs_computation/eu/8euf/8euf.dat

Class2 of the INO80-Nucleosome complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chromatin-remodeling ATPase INO80

State in the Current Structure

Other States of the Same Protein in the Database

Actin-related protein 5

State in the Current Structure

Other States of the Same Protein in the Database

Chromatin-remodeling complex subunit IES6

State in the Current Structure

Other States of the Same Protein in the Database

RuvB-like protein 1

State in the Current Structure

Other States of the Same Protein in the Database

RuvB-like protein 2

State in the Current Structure

Other States of the Same Protein in the Database

Ino eighty subunit 2

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 polymer

Polymer Polymer

Entity 6 Entity 6 polymer

Polymer Polymer

Entity 7 Entity 7 non-polymer

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
