1. Protein Identity and Related Structures Protein Identity & Related Structures

Terminal nucleotidyltransferase 5A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Isoform 2 of BRCA2 and CDKN1A-interacting protein × 1 （Q9P287-2）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TET5A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–336； UniProt 64–394

Isoform 2 of BRCA2 and CDKN1A-interacting protein

Homo sapiens

UniProt Q9P287-2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Terminal nucleotidyltransferase 5A × 1 （Q96IP4）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BCCIP_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 6–278； UniProt 50–322

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8exe
Deposition date deposition_date	2022-10-25
Structure title title	Crystal structure of human FAM46A-BCCIPa complex at 3.5 angstrom resolution
Keywords keywords	Poly(A) polymerases, Inhibition, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8exe__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

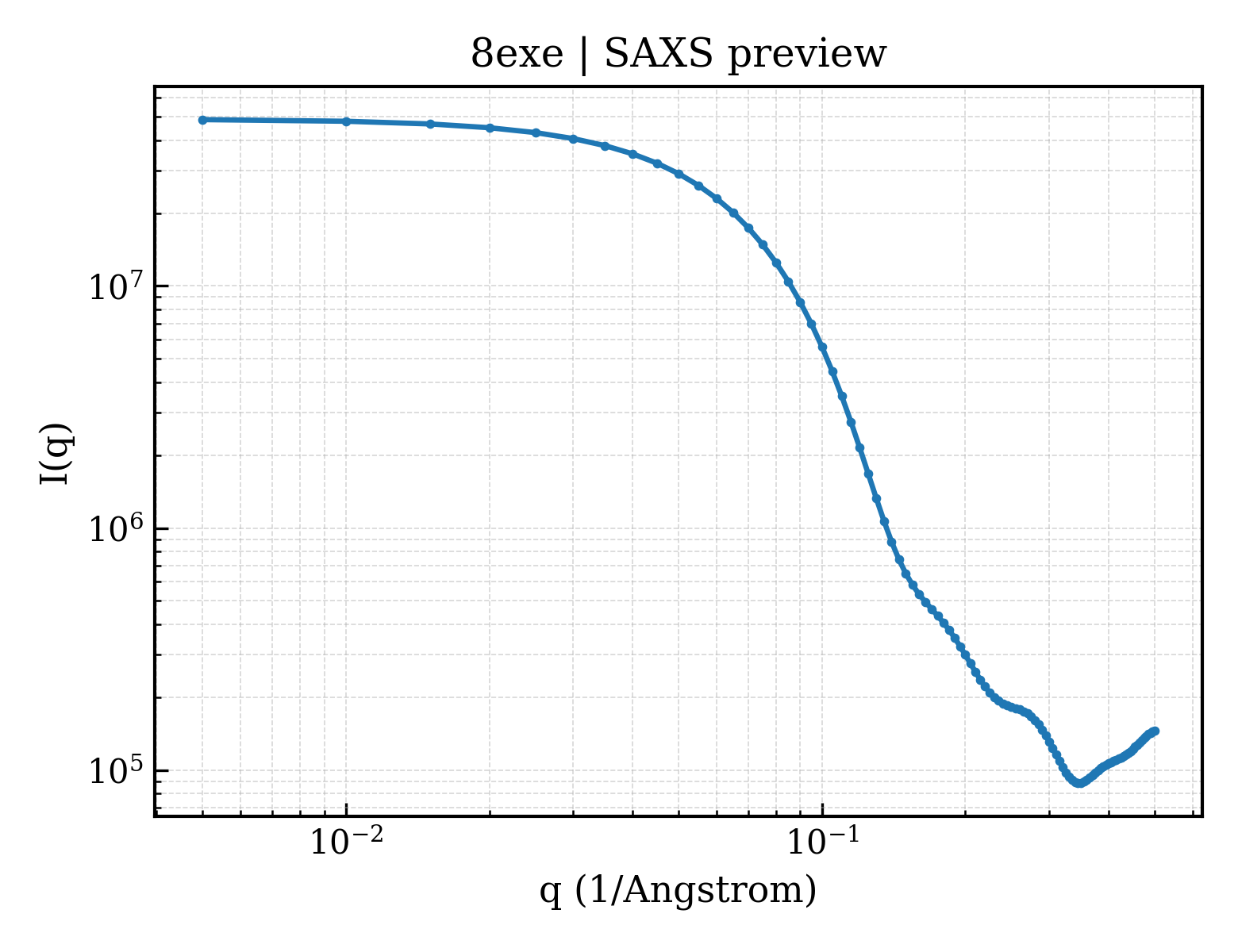

8exe__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8exe__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.89 Å
Rg (electron density)	23.85 Å
Total Rg	24.72 Å
Atom count	3877
Residues	484
Excluded volume	69548 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8exe__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Terminal nucleotidyltransferase 5A
Molecular weight formula_weight	38395.9 kDa
EC 编号 ec_number	2.7.7.19
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3877

GPGAPNVLNWEQVQRLDGILSETIPIHGRGNFPTLELQPSLIVKVVRRRLAEKRIGVRDVRLNGSAASHVLHQDSGLGYKDLDLIFCADLRGEGEFQTVKDVVLDCLLDFLPEGVNKEKITPLTLKEAYVQKMVKVCNDSDRWSLISLSNNSGKNVELKFVDSLRRQFEFSVDSFQIKLDSLLLFYECSENPMTETFHPTIIGESVYGDFQEAFDHLCNKIIATRNPEEIRGGGLLKYCNLLVRGFRPASDEIKTLQRYMCSRFFIDFSDIGEQQRKLESYLQNHFVGLEDRKYEYLMTLHGVVNESTVCLMGHERRQTLNLITMLAIRVLADQNV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Isoform 2 of BRCA2 and CDKN1A-interacting protein
Molecular weight formula_weight	30973.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GPGAPDEVIDEEVNIEFEAYSLSDNDYDGIKKLLQQLFLKAPVNTAELTDLLIQQNHIGSVIKQTDVSEDSNDDMDEDEVFGFISLLNLTERKGTQCVEQIQELVLRFCEKNCEKSMVEQLDKFLNDTTKPVGLLLSERFINVPPQIALPMYQQLQKELAGAHRTNKPCGKCYFYLLISKTFVEAGKNNSKKKPSNKKKAALMFANAEEEFFYEEQGKPEVLGGPDTRRGLEPVPIQHNGGSRGQVTALVSLKAGLIQSRSTLSDFQGTFMTVGIALS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

▶

Unit-cell length a length_a	87.800 Å
Unit-cell length b length_b	88.152 Å
Unit-cell length c length_c	102.981 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	44.460 Å
R factor r_factor	0.2624
R_work r_work	0.2604
R_free r_free	0.2974

Crystal structure of human FAM46A-BCCIPa complex at 3.5 angstrom resolution
