8f6a

Thermoplasma acidophilum 20S proteasome - wild type

Method: ELECTRON MICROSCOPY D_max: 172.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

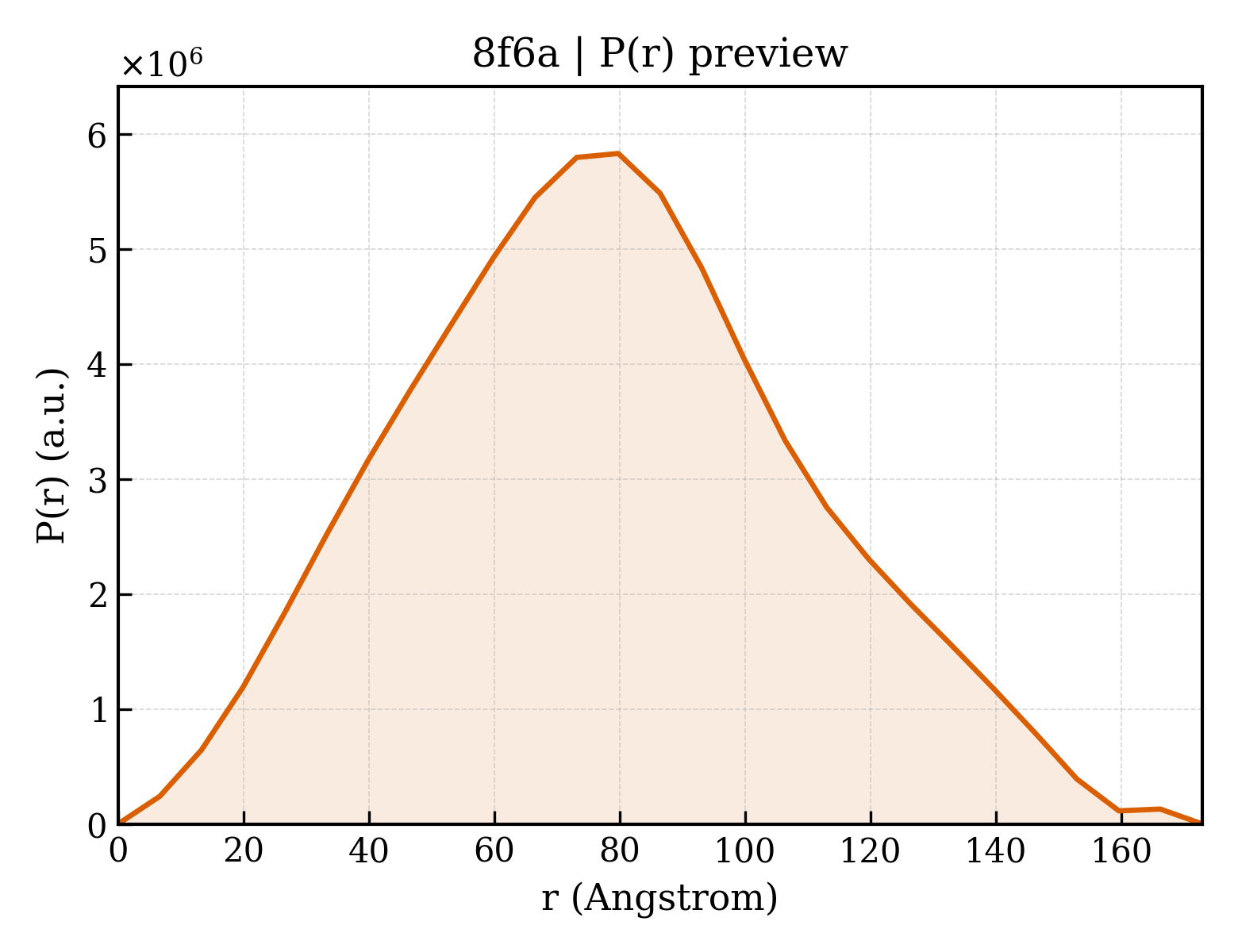

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8f6a
沉积日期 deposition_date	2022-11-16
最后修订 last_revision	2023-08-30
结构标题 title	Thermoplasma acidophilum 20S proteasome - wild type
关键词 keywords	Protease, threonine protease, endopeptidase activity, HYDROLASE; HYDROLASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	59.63 Å
回转半径 Rg (电子) rg_electron	59.31 Å
零角强度 I(0) i0	5726890000.00
分子量 molecular_weight	654200.0 kDa
排除体积 excluded_volume	826450 Å³
包络体积 envelope_volume	1211300 Å³
水化壳体积 shell_volume	164540 Å³
包络直径 envelope_diameter	189.1 Å
壳层 Rg shell_rg	67.15 Å
包络 Rg envelope_rg	56.89 Å
形状 Rg shape_rg	59.34 Å
总 Rg total_rg	59.37 Å
总原子数 total_atoms	93058
残基数 n_residues	5950
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	172.9 Å
Rg (实空间) rg_real	59.33 Å
Rg 误差 (实空间) rg_real_error	1.06 Å
I(0) (实空间) i0_real	5.7270e+09
I(0) 误差 (实空间) i0_real_error	1.0780e+08
Rg (倒空间) rg_reciprocal	59.87 Å
I(0) (倒空间) i0_reciprocal	5732000000.0000
解质量估计 total_estimate	0.8334
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	79.8 Å
偏度 Skewness skewness	0.186
峰度 Kurtosis kurtosis	-0.408
角度范围 angular_range	— – 0.1300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	774900000.0000
实空间数据点数 n_real_points	27
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.014

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Proteasome subunit beta
分子量 formula_weight	23169.8 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I,J,K,L,M,N,V,W,X,Y,Z,a,b
原子数 atom_count	93058

MNQTLETGTTTVGITLKDAVIMATERRVTMENFIMHKNGKKLFQIDTYTGMTIAGLVGDAQVLVRYMKAELELYRLQRRVNMPIEAVATLLSNMLNQVKYMPYMVQLLVGGIDTAPHVFSIDAAGGSVEDIYASTGSGSPFVYGVLESQYSEKMTVDEGVDLVIRAISAAKQRDSASGGMIDVAVITRKDGYVQLPTDQIESRIRKLGLIL

来源 Source

来源生物 organism	Thermoplasma acidophilum
NCBI 分类编号 ncbi_taxonomy_id	2303
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 polymer

描述 description	Proteasome subunit alpha
分子量 formula_weight	25829.4 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,P,B,C,D,E,F,G,O,Q,R,S,T,U

MQQGQMAYDRAITVFSPDGRLFQVEYAREAVKKGSTALGMKFANGVLLISDKKVRSRLIEQNSIEKIQLIDDYVAAVTSGLVADARVLVDFARISAQQEKVTYGSLVNIENLVKRVADQMQQYTQYGGVRPYGVSLIFAGIDQIGPRLFDCDPAGTINEYKATAIGSGKDAVVSFLEREYKENLPEKEAVTLGIKALKSSLEEGEELKAPEIASITVGNKYRIYDQEEVKKFL

来源 Source

来源生物 organism	Thermoplasma acidophilum
NCBI 分类编号 ncbi_taxonomy_id	2303
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

▼

6. 折叠分类 (SCOP + CATH) 28 domains

CATH v4.4 (28 domains)

结构域编号 domain_id	8f6aA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aI01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aK01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aM01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aN01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aO01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aP01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aQ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aR01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aS01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aT01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aU01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aV01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aW01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aX01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aY01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aZ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6aa01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	8f6ab01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.06 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	444678

fit	/app/data/saxs_computation/f6/8f6a/8f6a.fit
pddf	/app/data/pr_computation/f6/8f6a/8f6a.pr.out
profile	/app/data/saxs_computation/f6/8f6a/8f6a.dat
