8ffr

Revised structure of the rabies virus nucleoprotein-RNA complex

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoprotein

Rabies virus CVS-11

UniProt A8VR20

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein–RNA Homooligomer Protein 11 RNA 1 RNA (99-MER) × 1 PHOSPHATE ION × 1 Consistent with all polymers
2 Protein–RNA Homooligomer Protein 11 RNA 1 RNA (99-MER) × 1 PHOSPHATE ION × 1 Consistent with all polymers

Other States of the Same Protein in the Database

Monomer

None

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
2gtt 8ffr 8ffr

3 assemblies

View Construct and Data Evidence
UniProt name A8VR20_9RHAB
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–450； UniProt 1–450 Author chain B； PDBConstruct 1–450； UniProt 1–450 Author chain C； PDBConstruct 1–450； UniProt 1–450 Author chain D； PDBConstruct 1–450； UniProt 1–450 Author chain E； PDBConstruct 1–450； UniProt 1–450 Author chain F； PDBConstruct 1–450； UniProt 1–450 Author chain G； PDBConstruct 1–450； UniProt 1–450 Author chain H； PDBConstruct 1–450； UniProt 1–450 Author chain I； PDBConstruct 1–450； UniProt 1–450 Author chain J； PDBConstruct 1–450； UniProt 1–450 Author chain K； PDBConstruct 1–450； UniProt 1–450 Author chain L； PDBConstruct 1–450； UniProt 1–450 Author chain M； PDBConstruct 1–450； UniProt 1–450 Author chain N； PDBConstruct 1–450； UniProt 1–450 Author chain O； PDBConstruct 1–450； UniProt 1–450 Author chain P； PDBConstruct 1–450； UniProt 1–450 Author chain Q； PDBConstruct 1–450； UniProt 1–450 Author chain R； PDBConstruct 1–450； UniProt 1–450 Author chain S； PDBConstruct 1–450； UniProt 1–450 Author chain T； PDBConstruct 1–450； UniProt 1–450 Author chain U； PDBConstruct 1–450； UniProt 1–450 Author chain V； PDBConstruct 1–450； UniProt 1–450

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8ffr
Deposition date deposition_date2022-12-09
Structure title titleRevised structure of the rabies virus nucleoprotein-RNA complex
Keywords keywordsPROTEIN-RNA COMPLEX, RABIES VIRUS, NUCLEOPROTEIN, VIRAL PROTEIN, RNA BINDING PROTEIN; VIRAL PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ffr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

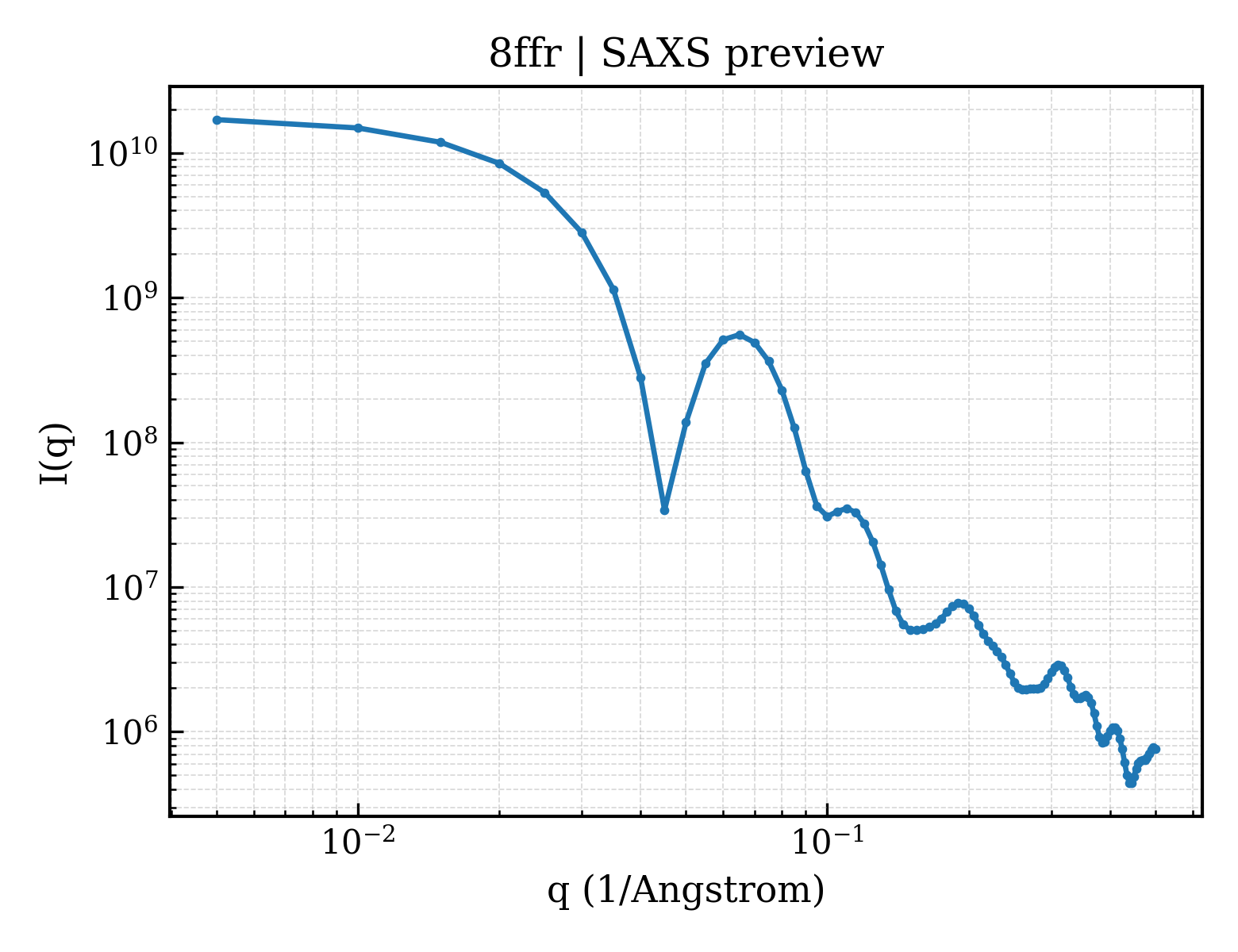

8ffr__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 109 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

8ffr__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）61.62 Å
Rg (electron density)61.77 Å
Total Rg61.99 Å
Atom count38632
Residues4700
Excluded volume681070 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8ffr__assembly_1__model_1 dodecameric （12） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 8ffr__assembly_2__model_1 dodecameric （12） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

▶

7. Citations (2)
