8fw5

Chimeric HsGATOR1-SpGtr-SpLam complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GATOR complex protein DEPDC5

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	GATOR complex protein NPRL2 × 1 （Q8WTW4） GATOR complex protein NPRL3 × 1 （Q12980） GTP-binding protein Gtr1 × 1 GTP-binding protein Gtr2 × 1 Schizosaccharomyces pombe LAM1, Human LAMTOR1 ortholog × 1 Schizosaccharomyces pombe LAM2, Human LAMTOR2 ortholog × 1 Schizosaccharomyces pombe LAM3, Human LAMTOR3 ortholog × 1 Schizosaccharomyces pombe LAM4, Human LAMTOR5 ortholog × 1 GUANOSINE-5'-DIPHOSPHATE × 2 ALUMINUM FLUORIDE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DEPD5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1603； UniProt 1–1603

GATOR complex protein NPRL2

Homo sapiens

UniProt Q8WTW4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	GATOR complex protein DEPDC5 × 1 （O75140） GATOR complex protein NPRL3 × 1 （Q12980） GTP-binding protein Gtr1 × 1 GTP-binding protein Gtr2 × 1 Schizosaccharomyces pombe LAM1, Human LAMTOR1 ortholog × 1 Schizosaccharomyces pombe LAM2, Human LAMTOR2 ortholog × 1 Schizosaccharomyces pombe LAM3, Human LAMTOR3 ortholog × 1 Schizosaccharomyces pombe LAM4, Human LAMTOR5 ortholog × 1 GUANOSINE-5'-DIPHOSPHATE × 2 ALUMINUM FLUORIDE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NPRL2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 22–401； UniProt 1–380

GATOR complex protein NPRL3

Homo sapiens

UniProt Q12980

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	GATOR complex protein DEPDC5 × 1 （O75140） GATOR complex protein NPRL2 × 1 （Q8WTW4） GTP-binding protein Gtr1 × 1 GTP-binding protein Gtr2 × 1 Schizosaccharomyces pombe LAM1, Human LAMTOR1 ortholog × 1 Schizosaccharomyces pombe LAM2, Human LAMTOR2 ortholog × 1 Schizosaccharomyces pombe LAM3, Human LAMTOR3 ortholog × 1 Schizosaccharomyces pombe LAM4, Human LAMTOR5 ortholog × 1 GUANOSINE-5'-DIPHOSPHATE × 2 ALUMINUM FLUORIDE × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NPRL3_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 22–590； UniProt 1–569

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8fw5
Deposition date deposition_date	2023-01-20
Structure title title	Chimeric HsGATOR1-SpGtr-SpLam complex
Keywords keywords	mTOR complex 1 (mTORC1), Rag GTPase, Gtr GTPase, LAMTOR, GATOR1, nutrient sensing, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8fw5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

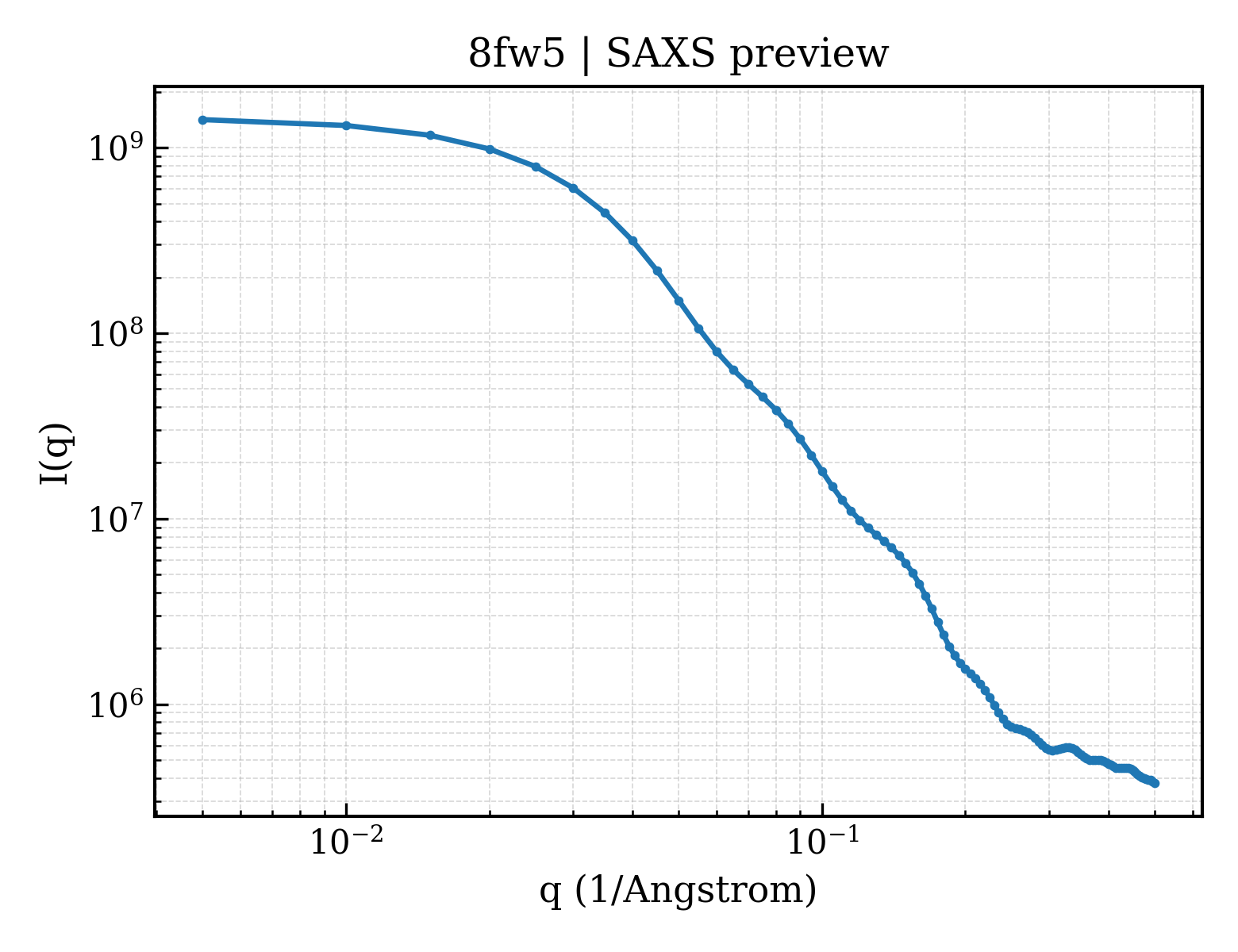

8fw5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8fw5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	53.89 Å
Rg (electron density)	53.47 Å
Total Rg	53.65 Å
Atom count	22853
Residues	2832
Excluded volume	408970 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8fw5__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Description description	GATOR complex protein DEPDC5
Molecular weight formula_weight	181325.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	22853

MRTTKVYKLVIHKKGFGGSDDELVVNPKVFPHIKLGDIVEIAHPNDEYSPLLLQVKSLKEDLQKETISVDQTVTQVFRLRPYQDVYVNVVDPKDVTLDLVELTFKDQYIGRGDMWRLKKSLVSTCAYITQKVEFAGIRAQAGELWVKNEKVMCGYISEDTRVVFRSTSAMVYIFIQMSCEMWDFDIYGDLYFEKAVNGFLADLFTKWKEKNCSHEVTVVLFSRTFYDAKSVDEFPEINRASIRQDHKGRFYEDFYKVVVQNERREEWTSLLVTIKKLFIQYPVLVRLEQAEGFPQGDNSTSAQGNYLEAINLSFNVFDKHYINRNFDRTGQMSVVITPGVGVFEVDRLLMILTKQRMIDNGIGVDLVCMGEQPLHAVPLFKLHNRSAPRDSRLGDDYNIPHWINHSFYTSKSQLFCNSFTPRIKLAGKKPASEKAKNGRDTSLGSPKESENALPIQVDYDAYDAQVFRLPGPSRAQCLTTCRSVRERESHSRKSASSCDVSSSPSLPSRTLPTEEVRSQASDDSSLGKSANILMIPHPHLHQYEVSSSLGYTSTRDVLENMMEPPQRDSSAPGRFHVGSAESMLHVRPGGYTPQRALINPFAPSRMPMKLTSNRRRWMHTFPVGPSGEAIQIHHQTRQNMAELQGSGQRDPTHSSAELLELAYHEAAGRHSNSPQPGDGMSFLNFSGTEELSVGLLSNSGAGMNPRTQNKDSLEDSVSTSPDPILTLSAPPVVPGFCCTVGVDWKSLTTPACLPLTTDYFPDRQGLQNDYTEGCADLLPEADIDRRDEDGVQMTAQQVFEEFICQRLMQGYQIIVQPKTQKPNPAVPPPLSSSPLYSRGLVSRNRPEEEDQYWLSMGRTFHKVTLKDKMITVTRYLPKYPYESAQIHYTYSLCPSHSDSEFVSCWVEFSHERLEEYKWNYLDQYICSAGSEDFSLIESLKFWRTRFLLLPACVTATKRITEGEAHCDIYGDRPRADEDEWQLLDGFVRFVEGLNRIRRRHRSDRMMRKGTAMKGLQMTGPISTHSLESTAPPVGKKGTSALSALLEMEASQKCLGEQQAAVHGGKSSAQSAESSSVAMTPTYMDSPRKDGAFFMEFVRSPRTASSAFYPQVSVDQTATPMLDGTSLGICTGQSMDRGNSQTFGNSQNIGEQGYSSTNSSDSSSQQLVASSLTSSSTLTEILEAMKHPSTGVQLLSEQKGLSPYCFISAEVVHWLVNHVEGIQTQAMAIDIMQKMLEEQLITHASGEAWRTFIYGFYFYKIVTDKEPDRVAMQQPATTWHTAGVDDFASFQRKWFEVAFVAEELVHSEIPAFLLPWLPSRPASYASRHSSFSRSFGGRSQAAALLAATVPEQRTVTLDVDVNNRTDRLEWCSCYYHGNFSLNAAFEIKLHWMAVTAAVLFEMVQGWHRKATSCGFLLVPVLEGPFALPSYLYGDPLRAQLFIPLNISCLLKEGSEHLFDSFEPETYWDRMHLFQEAIAHRFGFVQDKYSASAFNFPAENKPQYIHVTGTVFLQLPYSKRKFSGQQRRRRNSTSSTNQNMFCEERVGYNWAYNTMLTKTWRSSATGDEKFADRLLKDFTDFCINRDNRLVTFWTSCLEKMHASAP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	GATOR complex protein NPRL2
Molecular weight formula_weight	45799.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGYPYDVPDYADLNGGGGGSTMGSGCRIECIFFSEFHPTLGPKITYQVPEDFISRELFDTVQVYIITKPELQNKLITVTAMEKKLIGCPVCIEHKKYSRNALLFNLGFVCDAQAKTCALEPIVKKLAGYLTTLELESSFVSMEESKQKLVPIMTILLEELNASGRCTLPIDESNTIHLKVIEQRPDPPVAQEYDVPVFTKDKEDFFNSQWDLTTQQILPYIDGFRHIQKISAEADVELNLVRIAIQNLLYYGVVTLVSILQYSNVYCPTPKVQDLVDDKSLQEACLSYVTKQGHKRASLRDVFQLYCSLSPGTTVRDLIGRHPQQLQHVDERKLIQFGLMKNLIRRLQKYPVRVTREEQSHPARLYTGCHSYDEICCKTGMSYHELDERLENDPNIIICWK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	GATOR complex protein NPRL3
Molecular weight formula_weight	65769.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGYPYDVPDYADLNGGGGGSTMRDNTSPISVILVSSGSRGNKLLFRYPFQRSQEHPASQTSKPRSRYAASNTGDHADEQDGDSRFSDVILATILATKSEMCGQKFELKIDNVRFVGHPTLLQHALGQISKTDPSPKREAPTMILFNVVFALRANADPSVINCLHNLSRRIATVLQHEERRCQYLTREAKLILALQDEVSAMADGNEGPQSPFHHILPKCKLARDLKEAYDSLCTSGVVRLHINSWLEVSFCLPHKIHYAASSLIPPEAIERSLKAIRPYHALLLLSDEKSLLGELPIDCSPALVRVIKTTSAVKNLQQLAQDADLALLQVFQLAAHLVYWGKAIIIYPLCENNVYMLSPNASVCLYSPLAEQFSHQFPSHDLPSVLAKFSLPVSLSEFRNPLAPAVQETQLIQMVVWMLQRRLLIQLHTYVCLMASPSEEEPRPREDDVPFTARVGGRSLSTPNALSFGSPTSSDDMTLTSPSMDNSSAELLPSGDSPLNQRMTENLLASLSEHERAAILSVPAAQNPEDLRMFARLLHYFRGRHHLEEIMYNENTRRSQLLMLFDKFRSVLVVTTHEDPVIAVFQALLP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	GTP-binding protein Gtr1
Molecular weight formula_weight	36500.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MRKKVLLMGRSGSGKSSMRSIVFSNYVAKDTRRLGATIDIEHSHVRFLGNLVLNLWDCGGQEAFMENYLSAQRDHIFRNVQVLIYVFDVESREFERDLVTFRNCLEATVANSPQARVFCLIHKMDLVQEDLRDLVFEERKAILLETSKDLETTCLATSIWDETLFKAWSAIVYTLIPNTPTLESHLREFAKAAEAAEVILFERTTFLVISSYSSESNPATDAHRFEKISNIVKQFKLSCSKMQAQFTTFELRGGNFSAFIVPYTEDTYILVVIADPEIESAVTLMNIQSARRFIEASKSASDGIQLQPGSGGSHHHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	GTP-binding protein Gtr2
Molecular weight formula_weight	35547.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MKPRKIILMGLRRSGKSSIQKVVFYKMPPNETLALESTSKLTQDHISSFIDFSVWDFPGQVDVFDAAFDFESIFTQVGALIFVIDAQDDYLDALARLHVTVARVVTINPNICIEVFIHKVDGLSDEFKIDTQRDIQQRTQDELADIGLENVPISFHLTSIFDHSIFEAFSRVIQKLIPQLPTLENLLNIFCSNSLVEKAYLFDVLSKIYVATDSSPVDVQSYEICSDFIDVILDIGSIYGRSSQLKPGHSPEILDETSSVIRLSNDLVLFLREMNQYLALICIVRADNFEKSGLIEYNVQCLQTAIQSIFSPRT

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	Schizosaccharomyces pombe LAM1, Human LAMTOR1 ortholog
Molecular weight formula_weight	43686.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MSPILGYWKIKGLVQPTRLLLEYLEEKYEEHLYERDEGDKWRNKKFELGLEFPNLPYYIDGDVKLTQSMAIIRYIADKHNMLGGCPKERAEISMLEGAVLDIRYGVSRIAYSKDFETLKVDFLSKLPEMLKMFEDRLCHKTYLNGDHVTHPDFMLYDALDVVLYMDPMCLDAFPKLVCFKKRIEAIPQIDKYLKSSKYIAWPLQGWQATFGGGDHPPKSDLVPRGSPNSSFLFNNSDDIDEQTPLLNNDGIQRTPPSAEADMSLRKREEEEEWESKVYDVAKNKFIDVFSLRLRTEAPQRDPRDNIYEEVLDQIDSLNLDPKYDVAKPTEQETEFIIRKLGVLIDDINNIKLSDKEIKGKMVINLSKVQPNITGSPS

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 7 Entity 7 polymer

Description description	Schizosaccharomyces pombe LAM2, Human LAMTOR2 ortholog
Molecular weight formula_weight	19830.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MGSSHHHHHHSLEVLFQGPGSMIKPKKLSSLMKQAVEETVPSIMVFTTTGSLLAYVSFEDPKDGLKRLDLAKRVRSIAALAGNMYSLYTATNPSPLVAESTDDVIAHQRDVLFETIIEFERGKLLIAAISIDGAEDKLYSKDPLLLGIVGTENAKEGMMQIKSELLKECITNELSTLGKPV

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	Schizosaccharomyces pombe LAM3, Human LAMTOR3 ortholog
Molecular weight formula_weight	12707.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MSVSQQLSELASKEKTVLYVADQNLEEVLCFPESTDRTTLVQLTDACLHANELAKHLEFGKPLSITNQYSRGSCVLQIAKEKKDGSGMVVSTTIAAHNALRGALKCSNALDQVISQL

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 9 Entity 9 polymer

Description description	Schizosaccharomyces pombe LAM4, Human LAMTOR5 ortholog
Molecular weight formula_weight	8984.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MDSQLSENLLKCVNETYRGAMLVRNGLPIATAGDVNAEEQRVICEWNSNAVSEVLHLHDSNTKILIATKESCVLGLIYRNT

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 10 Entity 10 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 non-polymer

Description description	ALUMINUM FLUORIDE
Molecular weight formula_weight	84.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 12 Entity 12 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	8fw5D01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	8fw5D02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	190 —

Domain ID domain_id	8fw5E01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	8fw5E02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	190 —

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.08 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	659887
