SAXSdb — 9v0j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GATOR1 complex protein NPRL2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–380	Not recorded	GATOR1 complex protein NPRL3 × 1 （Q12980） GATOR1 complex protein DEPDC5 × 1 （O75140） KICSTOR complex protein SZT2 × 1 （Q5T011）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.97 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9V0J	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6CES Cryo-EM structure of GATOR1-RAG Deposited 2018-02-12	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain N 1–380（380 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
6CET Cryo-EM structure of GATOR1 Deposited 2018-02-12	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain N 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7T3A GATOR1-RAG-RAGULATOR - Inhibitory Complex Deposited 2021-12-07	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain B 1–380（380 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7T3B GATOR1-RAG-RAGULATOR - GAP Complex Deposited 2021-12-07	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain B 1–380（380 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 2 AF3 ALUMINUM FLUORIDE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7T3C GATOR1-RAG-RAGULATOR - Dual Complex Deposited 2021-12-07	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain B 1–380（380 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 3 AF3 ALUMINUM FLUORIDE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8FW5 Chimeric HsGATOR1-SpGtr-SpLam complex Deposited 2023-01-20	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain B 1–380（380 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 2 AF3 ALUMINUM FLUORIDE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
9O5A The KICSTOR-GATOR1 complex Deposited 2025-04-09	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain H 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9O5D The KICSTOR-GATOR1-SAMTOR complex Deposited 2025-04-10	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å
9O5E The dimeric KICSTOR-GATOR1 supercomplex Deposited 2025-04-10	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain D 1–380（380 aa） Chain G 1–380（380 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NPRL2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–380； UniProt 1–380

GATOR1 complex protein NPRL3

Homo sapiens

UniProt Q12980

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 1–569	Not recorded	GATOR1 complex protein NPRL2 × 1 （Q8WTW4） GATOR1 complex protein DEPDC5 × 1 （O75140） KICSTOR complex protein SZT2 × 1 （Q5T011）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.97 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9V0J	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6CES Cryo-EM structure of GATOR1-RAG Deposited 2018-02-12	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain M 1–569（569 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
6CET Cryo-EM structure of GATOR1 Deposited 2018-02-12	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 1–569（569 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7T3A GATOR1-RAG-RAGULATOR - Inhibitory Complex Deposited 2021-12-07	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain C 1–569（569 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7T3B GATOR1-RAG-RAGULATOR - GAP Complex Deposited 2021-12-07	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain C 1–569（569 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 2 AF3 ALUMINUM FLUORIDE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7T3C GATOR1-RAG-RAGULATOR - Dual Complex Deposited 2021-12-07	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain C 1–569（569 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 3 AF3 ALUMINUM FLUORIDE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8FW5 Chimeric HsGATOR1-SpGtr-SpLam complex Deposited 2023-01-20	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain C 1–569（569 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 2 AF3 ALUMINUM FLUORIDE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
9O5A The KICSTOR-GATOR1 complex Deposited 2025-04-09	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain C 1–569（569 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9O5D The KICSTOR-GATOR1-SAMTOR complex Deposited 2025-04-10	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–569（569 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å
9O5E The dimeric KICSTOR-GATOR1 supercomplex Deposited 2025-04-10	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–569（569 aa） Chain F 1–569（569 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NPRL3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–569； UniProt 1–569

GATOR1 complex protein DEPDC5

Homo sapiens

UniProt O75140

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 1–1603	Not recorded	GATOR1 complex protein NPRL2 × 1 （Q8WTW4） GATOR1 complex protein NPRL3 × 1 （Q12980） KICSTOR complex protein SZT2 × 1 （Q5T011）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.97 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9V0J	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6CES Cryo-EM structure of GATOR1-RAG Deposited 2018-02-12	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–1603（1603 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
6CET Cryo-EM structure of GATOR1 Deposited 2018-02-12	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–1603（1603 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7T3A GATOR1-RAG-RAGULATOR - Inhibitory Complex Deposited 2021-12-07	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–1603（1603 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7T3B GATOR1-RAG-RAGULATOR - GAP Complex Deposited 2021-12-07	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–1603（1603 aa）	Mutation：Y775A	GDP GUANOSINE-5'-DIPHOSPHATE × 2 AF3 ALUMINUM FLUORIDE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7T3C GATOR1-RAG-RAGULATOR - Dual Complex Deposited 2021-12-07	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: heptadecameric	Chain A 1–1603（1603 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 3 AF3 ALUMINUM FLUORIDE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8FW5 Chimeric HsGATOR1-SpGtr-SpLam complex Deposited 2023-01-20	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–1603（1603 aa）	Not recorded	GDP GUANOSINE-5'-DIPHOSPHATE × 2 AF3 ALUMINUM FLUORIDE × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
9O5A The KICSTOR-GATOR1 complex Deposited 2025-04-09	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain B 1–1603（1603 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9O5D The KICSTOR-GATOR1-SAMTOR complex Deposited 2025-04-10	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–1603（1603 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å
9O5E The dimeric KICSTOR-GATOR1 supercomplex Deposited 2025-04-10	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain H 1–1603（1603 aa） Chain J 1–1603（1603 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å
9XZY DEPDC5 dimer (tandem DEPDC5) focused map Deposited 2025-08-28	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain H 1–1603（1603 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å

10 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DEPD5_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–1603； UniProt 1–1603

KICSTOR complex protein SZT2

Homo sapiens

UniProt Q5T011

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 1–3432	Not recorded	GATOR1 complex protein NPRL2 × 1 （Q8WTW4） GATOR1 complex protein NPRL3 × 1 （Q12980） GATOR1 complex protein DEPDC5 × 1 （O75140）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.97 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9V0J	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9O5A The KICSTOR-GATOR1 complex Deposited 2025-04-09	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 1–3432（3432 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9O5D The KICSTOR-GATOR1-SAMTOR complex Deposited 2025-04-10	Different construct Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–1330（1330 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å
9O5E The dimeric KICSTOR-GATOR1 supercomplex Deposited 2025-04-10	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 1–3432（3432 aa） Chain I 1–3432（3432 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.00 Å
9V6E Cryo-EM structure of human full length KICSTOR complex (state 1) Deposited 2025-05-27	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–3432（3432 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å
9V80 Cryo-EM structure of KICSTOR CCC complex (state 4) Deposited 2025-05-28	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–3432（3432 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.95 Å
9V86 Cryo-EM structure of KICSTOR CCC complex (state 3) Deposited 2025-05-29	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–3432（3432 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
9V9N Cryo-EM structure of KICSTOR CCC complex (state 5) Deposited 2025-06-01	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–3432（3432 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
9VAN Cryo-EM structure of human full length KICSTOR complex (state 2) Deposited 2025-06-03	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–3432（3432 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

8 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SZT2_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–3432； UniProt 1–3432

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9v0j
Deposition date deposition_date	2025-05-18
Structure title title	Cryo-EM structure of GATOR1-KICSTOR complex
Keywords keywords	GAP, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

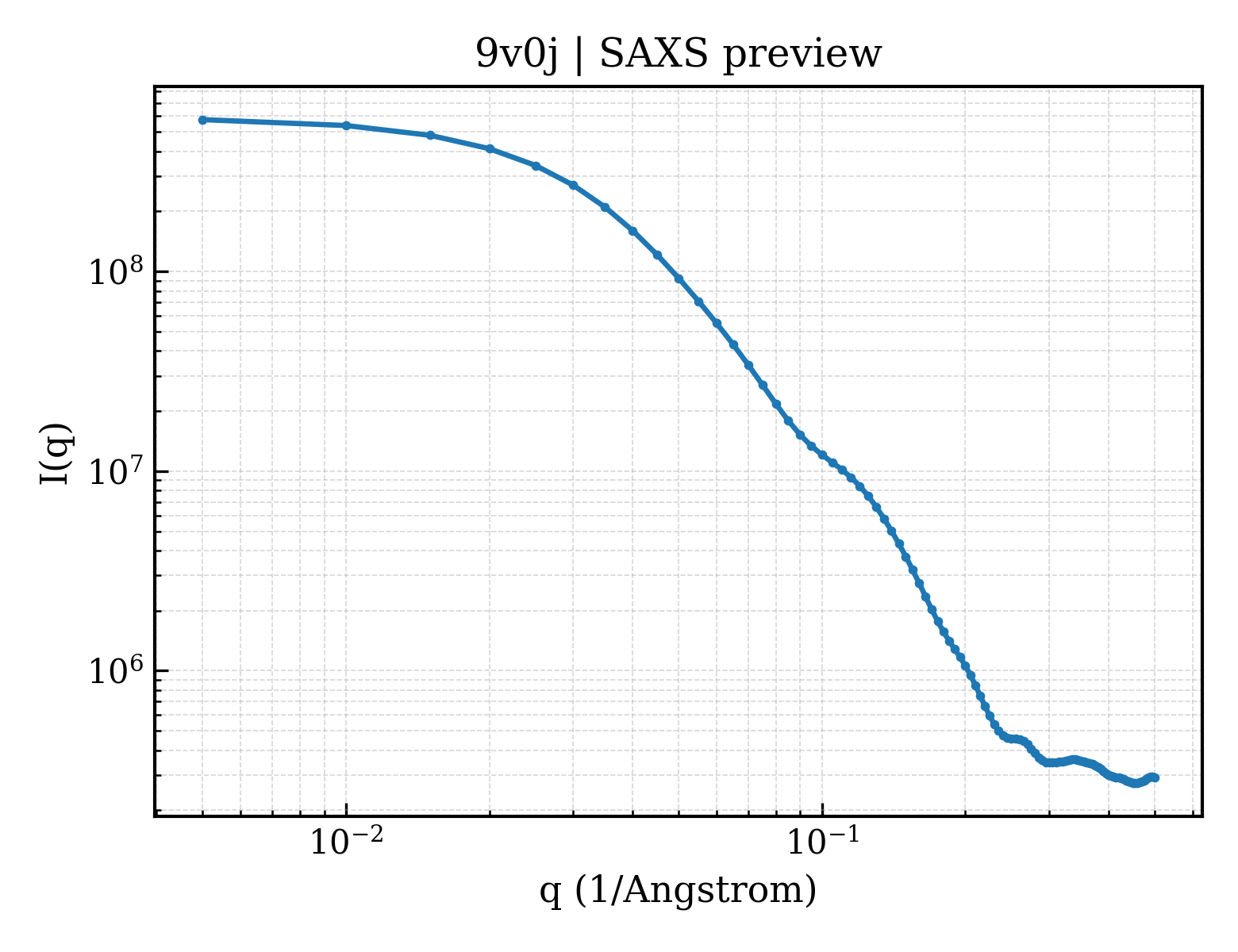

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	52.02 Å
Radius of gyration Rg (electron density) rg_electron	51.93 Å
Forward intensity I(0) i0	589299000.00
Molecular weight molecular_weight	208250.0 kDa
Excluded volume excluded_volume	263010 Å³
Envelope volume envelope_volume	414020 Å³
Hydration-shell volume shell_volume	68923 Å³
Envelope diameter envelope_diameter	191.4 Å
Shell Rg shell_rg	52.16 Å
Envelope Rg envelope_rg	51.57 Å
Shape Rg shape_rg	52.00 Å
Total Rg total_rg	51.65 Å
Total atoms total_atoms	14747
Residues n_residues	2023
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	183.5 Å
Rg (real space) rg_real	52.31 Å
Rg uncertainty (real space) rg_real_error	2.32 Å
I(0) (real space) i0_real	5.8930e+08
I(0) uncertainty (real space) i0_real_error	1.2890e+07
Rg (reciprocal space) rg_reciprocal	51.78 Å
I(0) (reciprocal space) i0_reciprocal	588900000.0000
Solution quality estimate total_estimate	0.8536
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	55.1 Å
Skewness Skewness skewness	0.501
Kurtosis Kurtosis kurtosis	-0.234
Angular range angular_range	— – 0.1500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	34910000.0000
Real-space data points n_real_points	31
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.789; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.753

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	GATOR1 complex protein NPRL2
Molecular weight formula_weight	43711.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14747

MGSGCRIECIFFSEFHPTLGPKITYQVPEDFISRELFDTVQVYIITKPELQNKLITVTAMEKKLIGCPVCIEHKKYSRNALLFNLGFVCDAQAKTCALEPIVKKLAGYLTTLELESSFVSMEESKQKLVPIMTILLEELNASGRCTLPIDESNTIHLKVIEQRPDPPVAQEYDVPVFTKDKEDFFNSQWDLTTQQILPYIDGFRHIQKISAEADVELNLVRIAIQNLLYYGVVTLVSILQYSNVYCPTPKVQDLVDDKSLQEACLSYVTKQGHKRASLRDVFQLYCSLSPGTTVRDLIGRHPQQLQHVDERKLIQFGLMKNLIRRLQKYPVRVTREEQSHPARLYTGCHSYDEICCKTGMSYHELDERLENDPNIIICWK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	GATOR1 complex protein NPRL3
Molecular weight formula_weight	63680.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MRDNTSPISVILVSSGSRGNKLLFRYPFQRSQEHPASQTSKPRSRYAASNTGDHADEQDGDSRFSDVILATILATKSEMCGQKFELKIDNVRFVGHPTLLQHALGQISKTDPSPKREAPTMILFNVVFALRANADPSVINCLHNLSRRIATVLQHEERRCQYLTREAKLILALQDEVSAMADGNEGPQSPFHHILPKCKLARDLKEAYDSLCTSGVVRLHINSWLEVSFCLPHKIHYAASSLIPPEAIERSLKAIRPYHALLLLSDEKSLLGELPIDCSPALVRVIKTTSAVKNLQQLAQDADLALLQVFQLAAHLVYWGKAIIIYPLCENNVYMLSPNASVCLYSPLAEQFSHQFPSHDLPSVLAKFSLPVSLSEFRNPLAPAVQETQLIQMVVWMLQRRLLIQLHTYVCLMASPSEEEPRPREDDVPFTARVGGRSLSTPNALSFGSPTSSDDMTLTSPSMDNSSAELLPSGDSPLNQRMTENLLASLSEHERAAILSVPAAQNPEDLRMFARLLHYFRGRHHLEEIMYNENTRRSQLLMLFDKFRSVLVVTTHEDPVIAVFQALLP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	GATOR1 complex protein DEPDC5
Molecular weight formula_weight	181478.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MRTTKVYKLVIHKKGFGGSDDELVVNPKVFPHIKLGDIVEIAHPNDEYSPLLLQVKSLKEDLQKETISVDQTVTQVFRLRPYQDVYVNVVDPKDVTLDLVELTFKDQYIGRGDMWRLKKSLVSTCAYITQKVEFAGIRAQAGELWVKNEKVMCGYISEDTRVVFRSTSAMVYIFIQMSCEMWDFDIYGDLYFEKAVNGFLADLFTKWKEKNCSHEVTVVLFSRTFYDAKSVDEFPEINRASIRQDHKGRFYEDFYKVVVQNERREEWTSLLVTIKKLFIQYPVLVRLEQAEGFPQGDNSTSAQGNYLEAINLSFNVFDKHYINRNFDRTGQMSVVITPGVGVFEVDRLLMILTKQRMIDNGIGVDLVCMGEQPLHAVPLFKLHNRSAPRDSRLGDDYNIPHWINHSFYTSKSQLFCNSFTPRIKLAGKKPASEKAKNGRDTSLGSPKESENALPIQVDYDAYDAQVFRLPGPSRAQCLTTCRSVRERESHSRKSASSCDVSSSPSLPSRTLPTEEVRSQASDDSSLGKSANILMIPHPHLHQYEVSSSLGYTSTRDVLENMMEPPQRDSSAPGRFHVGSAESMLHVRPGGYTPQRALINPFAPSRMPMKLTSNRRRWMHTFPVGPSGEAIQIHHQTRQNMAELQGSGQRDPTHSSAELLELAYHEAAGRHSNSRQPGDGMSFLNFSGTEELSVGLLSNSGAGMNPRTQNKDSLEDSVSTSPDPILTLSAPPVVPGFCCTVGVDWKSLTTPACLPLTTDYFPDRQGLQNDYTEGCYDLLPEADIDRRDEDGVQMTAQQVFEEFICQRLMQGYQIIVQPKTQKPNPAVPPPLSSSPLYSRGLVSRNRPEEEDQYWLSMGRTFHKVTLKDKMITVTRYLPKYPYESAQIHYTYSLCPSHSDSEFVSCWVEFSHERLEEYKWNYLDQYICSAGSEDFSLIESLKFWRTRFLLLPACVTATKRITEGEAHCDIYGDRPRADEDEWQLLDGFVRFVEGLNRIRRRHRSDRMMRKGTAMKGLQMTGPISTHSLESTAPPVGKKGTSALSALLEMEASQKCLGEQQAAVHGGKSSAQSAESSSVAMTPTYMDSPRKDGAFFMEFVRSPRTASSAFYPQVSVDQTATPMLDGTSLGICTGQSMDRGNSQTFGNSQNIGEQGYSSTNSSDSSSQQLVASSLTSSSTLTEILEAMKHPSTGVQLLSEQKGLSPYCFISAEVVHWLVNHVEGIQTQAMAIDIMQKMLEEQLITHASGEAWRTFIYGFYFYKIVTDKEPDRVAMQQPATTWHTAGVDDFASFQRKWFEVAFVAEELVHSEIPAFLLPWLPSRPASYASRHSSFSRSFGGRSQAAALLAATVPEQRTVTLDVDVNNRTDRLEWCSCYYHGNFSLNAAFEIKLHWMAVTAAVLFEMVQGWHRKATSCGFLLVPVLEGPFALPSYLYGDPLRAQLFIPLNISCLLKEGSEHLFDSFEPETYWDRMHLFQEAIAHRFGFVQDKYSASAFNFPAENKPQYIHVTGTVFLQLPYSKRKFSGQQRRRRNSTSSTNQNMFCEERVGYNWAYNTMLTKTWRSSATGDEKFADRLLKDFTDFCINRDNRLVTFWTSCLEKMHASAP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	KICSTOR complex protein SZT2
Molecular weight formula_weight	378453.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MASERPEPEVEEAGQVFLLMKKDYRISRNVRLAWFLSHLHQTVQATPQEMLLQSEQELEVLSVLPPGWQPDEPVVPRPFLLVPSTRVTFLAWQYRFVIELDLSPSTGIVDDSTGEILFDEVFHALSRCLGGLLRPFRVPGSCIDFQPEIYVTIQAYSSIIGLQSHQVLVQGCLLDPSQREVFLQQIYEQLCLFEDKVATMLQQQYDPQSQAEDQSPDSGDLLGRKVGVSMVTADLGLVSMIRQGILALQLLPSNSSAGIIVITDGVTSVPDVAVCETLLNQLRSGTVACSFVQVGGVYSYDCSFGHVPNVELMKFIAMATFGSYLSTCPEPEPGNLGLTVYHRAFLLYSFLRSGEALNPEYYCGSQHRLFNEHLVSASSNPALALRRKKHTEKEVPADLVSTVSVRLREGYSVREVTLAKGGSQLEVKLVLLWKHNMRIEYVAMAPWPLEPEGPRVTRVEVTMEGGYDILHDVSCALRQPIRSLYRTHVIRRFWNTLQSINQTDQMLAHLQSFSSVPEHFTLPDSTKSGVPLFYIPPGSTTPVLSLQPSGSDSSHAQFAAYWKPVLSMDANSWQRWLHMHRLVLILEHDTPIPKHLHTPGSNGRYSTIQCRISHSSLTSLLRDWSSFVLVEGYSYVKLLSSAPDQPPNSFYMVRIISKAPCMVLRLGFPIGTPAPARHKIVSGLREEILRLRFPHRVQSKEPTPKVKRKGLGGAGGGSSPSKSPPVLGPQQALSDRPCLVVLHKPLDKLLIRYEKLPLDYRAPFLLTLEPPGPLPLVSGRSASSSLASLSRYLYHQRWLWSVPSGLAPALPLSAIAQLLSILTEVRLSEGFHFACSGEGIINMVLELPIQNEPPGQAAAEEKHTCVVQYILFPPHSTSTKDSFSTDDDNDVEVEALEGDSELNLVTEVWVEPQYGRVGPGPGIWKHLQDLTYSEIPQALHPRDAACIGSMLSFEYLIQLCQSKEWGPLPPEPRVSDGLDQGGDTCVHEIPFHFDLMGLLPQCQQLQMFFLLLAREPEGVPFAEGSCPANDMVLCLLHSCLGQELSDREIPLTPVDQAAFLSEVLRRTCHVPGAEGPLLGVHGIPKEQAVGSTQATGDSAFTSLSVGLPETLKPLISAQPPQWRCYARLVNPQHVFLTFLPATFSDVQRLAACGLEGPPQEETKPKFGDWSGAPSLKDLGGTGIKATKSHVPVLSVTLASDNAQNQGELSPPFRRDLQAYAGRQASQTESADGPRTRCPVYIYSCSLEALREQMVGMQPPQAPRDLIFRTQFLDHPSPSSAWMEPRYKEAANHCALLQEHAQRCYVRGLFRSLQQAQSVTSQDLLTAVDACEELLQEIDITPFLLALCGHTWGLPHAPPSPGPLSPGPFSSSMEEGAEPRERAILASESSIETEDLSEPEFQSTRVPGIPDPGPEISLTDVCQLRGEAHGALHSVIQEKFLEISRLHFRTVPSNPHYFFYCPPSSRREDEGPRDTVDRKISDLEFSEAELMGEEGDTSACCVVTESDPELEVEYRESRESDLGPAGLDSASLSDVDTVNPDEDSFSILGGDSPTGPESFLHDLPPLFLHLTCSVRLRGQHSSVPVCSLPTCLGQVLSSLEGPPVGGRVPLRDLSVTLDVFMLTLPLEVELPTASDPQHHRSTSESSASFPRSPGQPSSLRSDDGLGPPLPPPEEERHPGLSNLATPHRLAIETTMNEIRWLLEDEMVGALRRGGIPQSPALHRAAAHIHSSPGRSTCLRQTLPLSFVFGPERSLTQFKEEFRRLHLPGHVLLEDPDSGFFFVAAGQQPGGSHGEPSSAAWAWHSHEDRAEGIEGETLTASPQAPGSPEDSEGVPLISLPRVPQGGSQPGPSRGLSLMSSQGSVDSDHLGYDGGSSGSDSEGPNDTLGEKAPFTLRTPPGPAPPQPSLSGLPGPCLPDFWLIVRVLQDRVEVYAHARSLIREDGGPGTECRHLQQLLVRRVGEICREVNQRLLLQDLHDSHVCNSLLVAESEEDLWRSETPFHSRQRAPLPSDDYAADESCAPRGYLAATMQFVPGHFSCDVVWGTVIRVHSRLKMGPSMGVSRAIQALRSVLNAFSVVNRKNMFVYQERATKAVYYLRLLETSCSDRPWKGDALPPSLALSRSQEPIYSEEASGPRSPLDMVSSRSSDAARPVGQVDRHIQLLVHGVGQAGPEITDELVRVLCRRLDEATLDVITVMLVRNCKLTPADVEFIQPPGSLPSEVLHLALPTSCRPWLPALAWYLRQNLLIFLHSPKYTDSNSRNHFQHPLPPQGGLPDLDIYLYNKPGGQGTGGKGVACITLAFVDEGGAPLSLALWPPSSPGPPDPLREEEFEQLTQVIRCPVVVDSSSAQNGAPRLRLDVWEKGNISIVQLEEKLRGAARQALADAIIELQLLPASLCTEDTPTGSLRNGSLETKSSAGRASTFPPAPVPGEPVTPPSKAGRRSFWDMLSKTECGDLGSPKTTDDIVLDRPEDTRGRRRHKTESVRTPGGAERAPGSDSGAQRQKRRTTQLEEGEVGTLHPVFARVAQRWMEFMVQIGCASVSRSSAHMVSRFLLPSILSEFTALVTSMAGDTSVRIFEQHLGSEPEIFGPCSPGQLGPSPRPAAERHLLLLGRNFLQWRRPTQQAAKAMQRFEPGGDGSSGRNAPRQRLLLLEVVDKKLQLLTYNWAPDLGAALGRALVRLVQWQNARAHLIFCLLSQKLGLFHHYGQLDFPVRDEKEPNPFLLPTMEVETLIRSASPPLSREQGRLSGSSRGGGPLPLDTFPFDEALRDITAARPSSVLGPVPRPPDPVTYHGQQFLEIKMAERRELERQMKMENLFVTWQQRSTPATMPISAGELETLKQSSRLVHYCATAMLFDPAAWLHGPPETSGPPDGQRRHRPESGSGSREAPTSCESLDVSPPGAREEPWLKELSLAFLQQYVQYLQSIGFVLVPLRPPSPARSTSRPRAMAILGTEGRGSFSCPKTKTDGSPKSTSSPVTTYHLQRALPGGIILMELAFQGCYFCVKQFALECSRIPMGQAVNSQLSMLFTEECDKVRDLMHVHSFSYDFHLRLVHQHVLGAHLVLRHGYHLTTFLRHFLAHHPDGPHFGRNHIYQGTLELPTPLIAAHQLYNYVADHASSYHMKPLRMARPGGPEHNEYALVSAWHSSGSYLDSEGLRHQDDFDVSLLVCHCAAPFEEQGEAERHVLRLQFFVVLTSQRELFPRLTADMRRFRKPPRLPPEPEAPGSSAGSPGEASGLILAPGPAPLFPPLAAEVGMARARLAQLVRLAGGHCRRDTLWKRLFLLEPPGPDRLRLGGRLALAELEELLEAVHAKSIGDIDPQLDCFLSMTVSWYQSLIKVLLSRFPQSCRHFQSPDLGTQYLVVLNQKFTDCFVLVFLDSHLGKTSLTVVFREPFPVQPQDSESPPAQLVSTYHHLESVINTACFTLWTRLL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.97 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	491656

fit	/app/data/saxs_computation/v0/9v0j/9v0j.fit
pddf	/app/data/pr_computation/v0/9v0j/9v0j.pr.out
profile	/app/data/saxs_computation/v0/9v0j/9v0j.dat

Cryo-EM structure of GATOR1-KICSTOR complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

GATOR1 complex protein NPRL2

State in the Current Structure

Other States of the Same Protein in the Database

GATOR1 complex protein NPRL3

State in the Current Structure

Other States of the Same Protein in the Database

GATOR1 complex protein DEPDC5

State in the Current Structure

Other States of the Same Protein in the Database

KICSTOR complex protein SZT2

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
