9o5a

The KICSTOR-GATOR1 complex

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GATOR complex protein NPRL2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	GATOR1 complex protein DEPDC5 × 1 （O75140） KICSTOR complex protein SZT2 × 1 （Q5T011） KICSTOR complex protein kaptin × 1 （Q9Y664） KICSTOR subunit 2 × 1 （Q96MD2） KICSTOR complex protein ITFG2 × 1 （Q969R8） GATOR complex protein NPRL3 × 1 （Q12980）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NPRL2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain H； PDBConstruct 22–401； UniProt 1–380

GATOR1 complex protein DEPDC5

Homo sapiens

UniProt O75140

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	GATOR complex protein NPRL2 × 1 （Q8WTW4） KICSTOR complex protein SZT2 × 1 （Q5T011） KICSTOR complex protein kaptin × 1 （Q9Y664） KICSTOR subunit 2 × 1 （Q96MD2） KICSTOR complex protein ITFG2 × 1 （Q969R8） GATOR complex protein NPRL3 × 1 （Q12980）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DEPD5_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 19–1621； UniProt 1–1603

KICSTOR complex protein SZT2

Homo sapiens

UniProt Q5T011

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	GATOR complex protein NPRL2 × 1 （Q8WTW4） GATOR1 complex protein DEPDC5 × 1 （O75140） KICSTOR complex protein kaptin × 1 （Q9Y664） KICSTOR subunit 2 × 1 （Q96MD2） KICSTOR complex protein ITFG2 × 1 （Q969R8） GATOR complex protein NPRL3 × 1 （Q12980）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SZT2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 20–3451； UniProt 1–3432

KICSTOR complex protein kaptin

Homo sapiens

UniProt Q9Y664

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	GATOR complex protein NPRL2 × 1 （Q8WTW4） GATOR1 complex protein DEPDC5 × 1 （O75140） KICSTOR complex protein SZT2 × 1 （Q5T011） KICSTOR subunit 2 × 1 （Q96MD2） KICSTOR complex protein ITFG2 × 1 （Q969R8） GATOR complex protein NPRL3 × 1 （Q12980）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KPTN_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain E； PDBConstruct 22–457； UniProt 1–436

KICSTOR subunit 2

Homo sapiens

UniProt Q96MD2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	GATOR complex protein NPRL2 × 1 （Q8WTW4） GATOR1 complex protein DEPDC5 × 1 （O75140） KICSTOR complex protein SZT2 × 1 （Q5T011） KICSTOR complex protein kaptin × 1 （Q9Y664） KICSTOR complex protein ITFG2 × 1 （Q969R8） GATOR complex protein NPRL3 × 1 （Q12980）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KICS2_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain F； PDBConstruct 22–466； UniProt 1–445

KICSTOR complex protein ITFG2

Homo sapiens

UniProt Q969R8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	GATOR complex protein NPRL2 × 1 （Q8WTW4） GATOR1 complex protein DEPDC5 × 1 （O75140） KICSTOR complex protein SZT2 × 1 （Q5T011） KICSTOR complex protein kaptin × 1 （Q9Y664） KICSTOR subunit 2 × 1 （Q96MD2） GATOR complex protein NPRL3 × 1 （Q12980）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ITFG2_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain G； PDBConstruct 20–466； UniProt 1–447

GATOR complex protein NPRL3

Homo sapiens

UniProt Q12980

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 7	GATOR complex protein NPRL2 × 1 （Q8WTW4） GATOR1 complex protein DEPDC5 × 1 （O75140） KICSTOR complex protein SZT2 × 1 （Q5T011） KICSTOR complex protein kaptin × 1 （Q9Y664） KICSTOR subunit 2 × 1 （Q96MD2） KICSTOR complex protein ITFG2 × 1 （Q969R8）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NPRL3_HUMAN
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain C； PDBConstruct 22–590； UniProt 1–569

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9o5a
Deposition date deposition_date	2025-04-09
Structure title title	The KICSTOR-GATOR1 complex
Keywords keywords	Lysosome, GATOR1, KICSTOR, cell growth, amino acid sensing, mTOR, KPTN, ITFG2, C12orf66, SZT2, NPRL2, NPRL3, DEPDC5, CELL CYCLE; CELL CYCLE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9o5a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

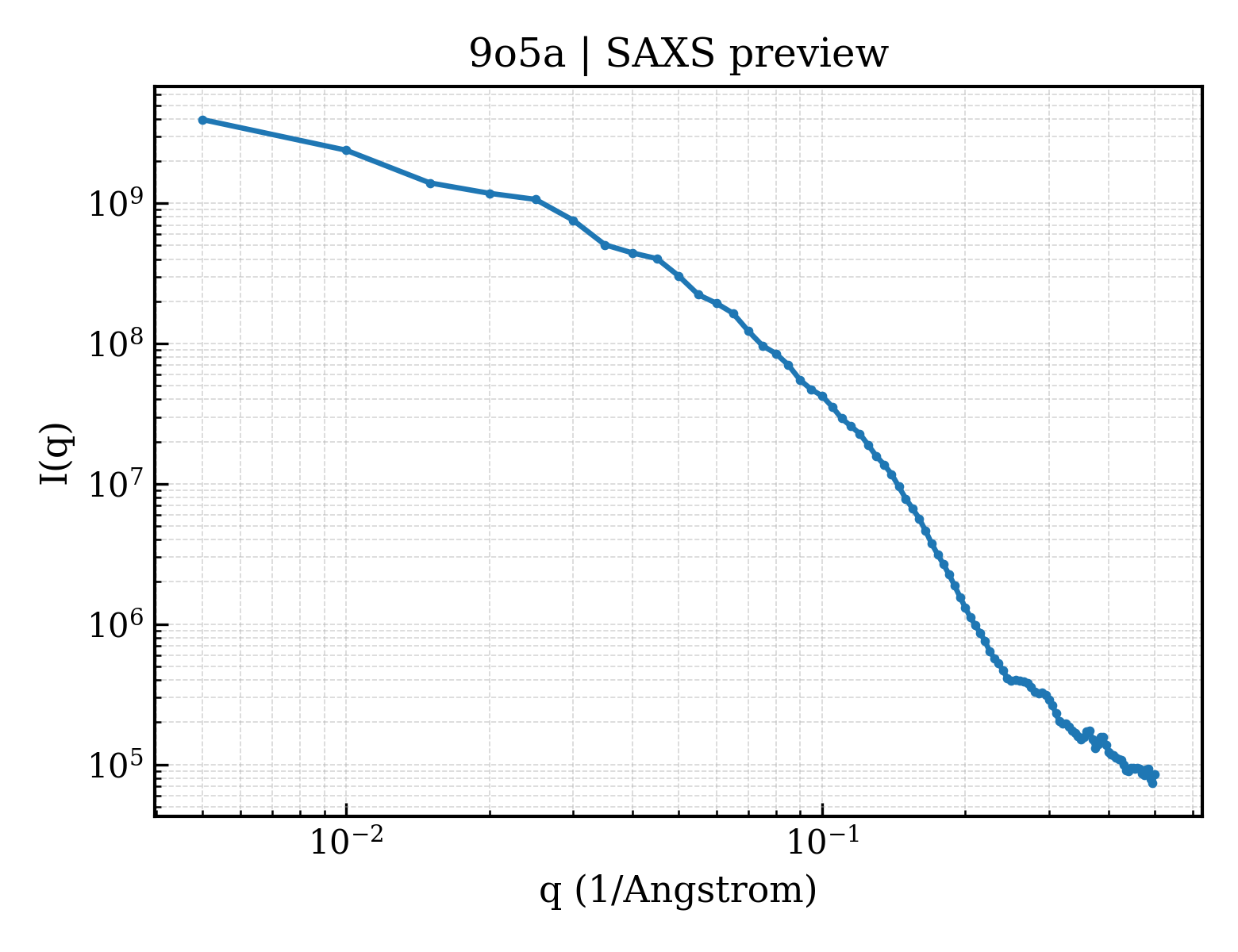

9o5a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

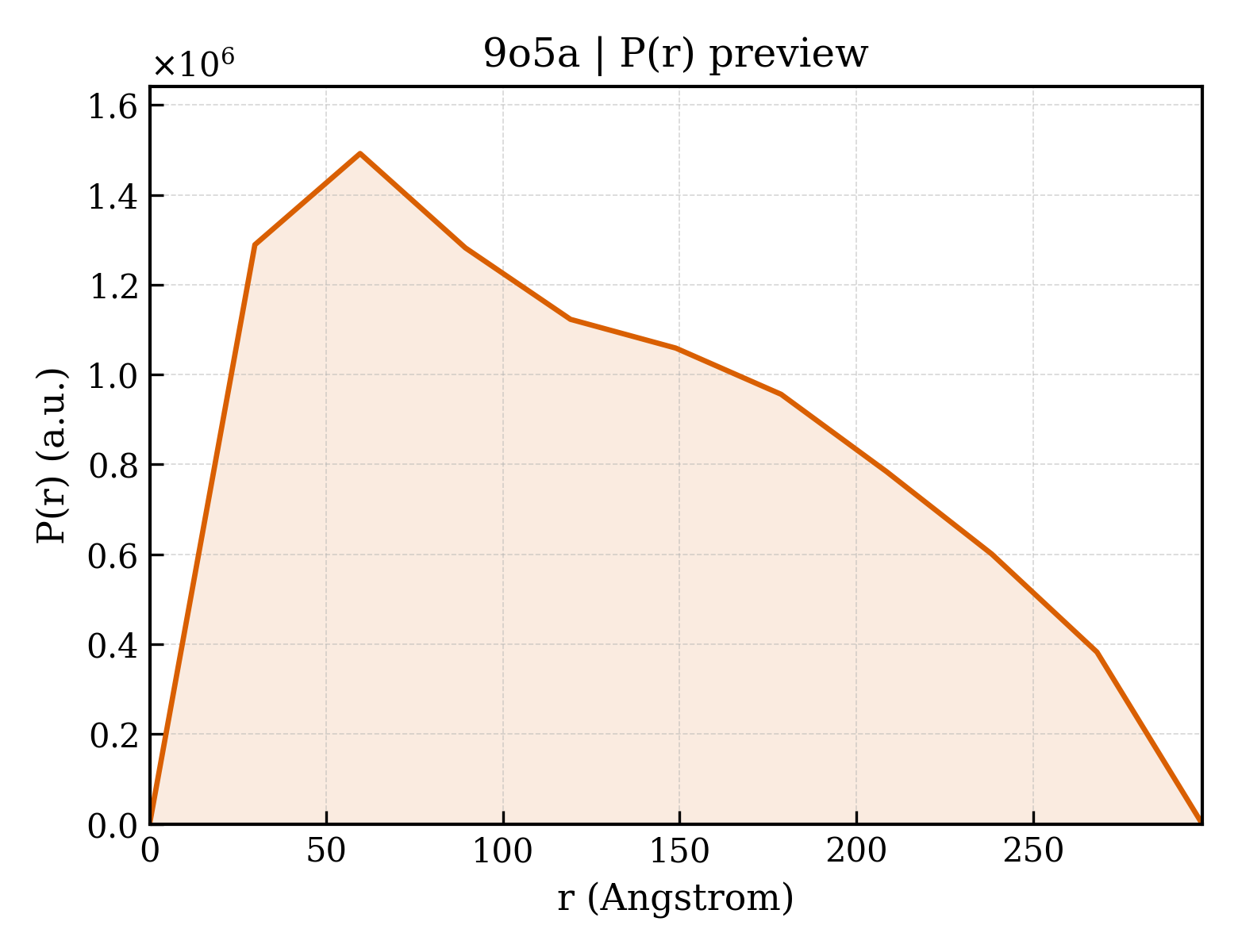

9o5a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	149.30 Å
Total Rg	149.00 Å
Atom count	42618
Residues	5321
Excluded volume	762710 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9o5a__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	GATOR complex protein NPRL2
Molecular weight formula_weight	45799.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	42618

MGYPYDVPDYADLNGGGGGSTMGSGCRIECIFFSEFHPTLGPKITYQVPEDFISRELFDTVQVYIITKPELQNKLITVTAMEKKLIGCPVCIEHKKYSRNALLFNLGFVCDAQAKTCALEPIVKKLAGYLTTLELESSFVSMEESKQKLVPIMTILLEELNASGRCTLPIDESNTIHLKVIEQRPDPPVAQEYDVPVFTKDKEDFFNSQWDLTTQQILPYIDGFRHIQKISAEADVELNLVRIAIQNLLYYGVVTLVSILQYSNVYCPTPKVQDLVDDKSLQEACLSYVTKQGHKRASLRDVFQLYCSLSPGTTVRDLIGRHPQQLQHVDERKLIQFGLMKNLIRRLQKYPVRVTREEQSHPARLYTGCHSYDEICCKTGMSYHELDERLENDPNIIICWK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	GATOR1 complex protein DEPDC5
Molecular weight formula_weight	183207.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGDYKDDDDKGGGGGASTMRTTKVYKLVIHKKGFGGSDDELVVNPKVFPHIKLGDIVEIAHPNDEYSPLLLQVKSLKEDLQKETISVDQTVTQVFRLRPYQDVYVNVVDPKDVTLDLVELTFKDQYIGRGDMWRLKKSLVSTCAYITQKVEFAGIRAQAGELWVKNEKVMCGYISEDTRVVFRSTSAMVYIFIQMSCEMWDFDIYGDLYFEKAVNGFLADLFTKWKEKNCSHEVTVVLFSRTFYDAKSVDEFPEINRASIRQDHKGRFYEDFYKVVVQNERREEWTSLLVTIKKLFIQYPVLVRLEQAEGFPQGDNSTSAQGNYLEAINLSFNVFDKHYINRNFDRTGQMSVVITPGVGVFEVDRLLMILTKQRMIDNGIGVDLVCMGEQPLHAVPLFKLHNRSAPRDSRLGDDYNIPHWINHSFYTSKSQLFCNSFTPRIKLAGKKPASEKAKNGRDTSLGSPKESENALPIQVDYDAYDAQVFRLPGPSRAQCLTTCRSVRERESHSRKSASSCDVSSSPSLPSRTLPTEEVRSQASDDSSLGKSANILMIPHPHLHQYEVSSSLGYTSTRDVLENMMEPPQRDSSAPGRFHVGSAESMLHVRPGGYTPQRALINPFAPSRMPMKLTSNRRRWMHTFPVGPSGEAIQIHHQTRQNMAELQGSGQRDPTHSSAELLELAYHEAAGRHSNSRQPGDGMSFLNFSGTEELSVGLLSNSGAGMNPRTQNKDSLEDSVSTSPDPILTLSAPPVVPGFCCTVGVDWKSLTTPACLPLTTDYFPDRQGLQNDYTEGCYDLLPEADIDRRDEDGVQMTAQQVFEEFICQRLMQGYQIIVQPKTQKPNPAVPPPLSSSPLYSRGLVSRNRPEEEDQYWLSMGRTFHKVTLKDKMITVTRYLPKYPYESAQIHYTYSLCPSHSDSEFVSCWVEFSHERLEEYKWNYLDQYICSAGSEDFSLIESLKFWRTRFLLLPACVTATKRITEGEAHCDIYGDRPRADEDEWQLLDGFVRFVEGLNRIRRRHRSDRMMRKGTAMKGLQMTGPISTHSLESTAPPVGKKGTSALSALLEMEASQKCLGEQQAAVHGGKSSAQSAESSSVAMTPTYMDSPRKDGAFFMEFVRSPRTASSAFYPQVSVDQTATPMLDGTSLGICTGQSMDRGNSQTFGNSQNIGEQGYSSTNSSDSSSQQLVASSLTSSSTLTEILEAMKHPSTGVQLLSEQKGLSPYCFISAEVVHWLVNHVEGIQTQAMAIDIMQKMLEEQLITHASGEAWRTFIYGFYFYKIVTDKEPDRVAMQQPATTWHTAGVDDFASFQRKWFEVAFVAEELVHSEIPAFLLPWLPSRPASYASRHSSFSRSFGGRSQAAALLAATVPEQRTVTLDVDVNNRTDRLEWCSCYYHGNFSLNAAFEIKLHWMAVTAAVLFEMVQGWHRKATSCGFLLVPVLEGPFALPSYLYGDPLRAQLFIPLNISCLLKEGSEHLFDSFEPETYWDRMHLFQEAIAHRFGFVQDKYSASAFNFPAENKPQYIHVTGTVFLQLPYSKRKFSGQQRRRRNSTSSTNQNMFCEERVGYNWAYNTMLTKTWRSSATGDEKFADRLLKDFTDFCINRDNRLVTFWTSCLEKMHASAP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	KICSTOR complex protein SZT2
Molecular weight formula_weight	380386.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MEMDYKDDDDKGGGGGASTMASERPEPEVEEAGQVFLLMKKDYRISRNVRLAWFLSHLHQTVQATPQEMLLQSEQELEVLSVLPPGWQPDEPVVPRPFLLVPSTRVTFLAWQYRFVIELDLSPSTGIVDDSTGEILFDEVFHALSRCLGGLLRPFRVPGSCIDFQPEIYVTIQAYSSIIGLQSHQVLVQGCLLDPSQREVFLQQIYEQLCLFEDKVATMLQQQYDPQSQAEDQSPDSGDLLGRKVGVSMVTADLGLVSMIRQGILALQLLPSNSSAGIIVITDGVTSVPDVAVCETLLNQLRSGTVACSFVQVGGVYSYDCSFGHVPNVELMKFIAMATFGSYLSTCPEPEPGNLGLTVYHRAFLLYSFLRSGEALNPEYYCGSQHRLFNEHLVSASSNPALALRRKKHTEKEVPADLVSTVSVRLREGYSVREVTLAKGGSQLEVKLVLLWKHNMRIEYVAMAPWPLEPEGPRVTRVEVTMEGGYDILHDVSCALRQPIRSLYRTHVIRRFWNTLQSINQTDQMLAHLQSFSSVPEHFTLPDSTKSGVPLFYIPPGSTTPVLSLQPSGSDSSHAQFAAYWKPVLSMDANSWQRWLHMHRLVLILEHDTPIPKHLHTPGSNGRYSTIQCRISHSSLTSLLRDWSSFVLVEGYSYVKLLSSAPDQPPNSFYMVRIISKAPCMVLRLGFPIGTPAPARHKIVSGLREEILRLRFPHRVQSKEPTPKVKRKGLGGAGGGSSPSKSPPVLGPQQALSDRPCLVVLHKPLDKLLIRYEKLPLDYRAPFLLTLEPPGPLPLVSGRSASSSLASLSRYLYHQRWLWSVPSGLAPALPLSAIAQLLSILTEVRLSEGFHFACSGEGIINMVLELPIQNEPPGQAAAEEKHTCVVQYILFPPHSTSTKDSFSTDDDNDVEVEALEGDSELNLVTEVWVEPQYGRVGPGPGIWKHLQDLTYSEIPQALHPRDAACIGSMLSFEYLIQLCQSKEWGPLPPEPRVSDGLDQGGDTCVHEIPFHFDLMGLLPQCQQLQMFFLLLAREPEGVPFAEGSCPANDMVLCLLHSCLGQELSDREIPLTPVDQAAFLSEVLRRTCHVPGAEGPLLGVHGIPKEQAVGSTQATGDSAFTSLSVGLPETLKPLISAQPPQWRCYARLVNPQHVFLTFLPATFSDVQRLAACGLEGPPQEETKPKFGDWSGAPSLKDLGGTGIKATKSHVPVLSVTLASDNAQNQGELSPPFRRDLQAYAGRQASQTESADGPRTRCPVYIYSCSLEALREQMVGMQPPQAPRDLIFRTQFLDHPSPSSAWMEPRYKEAANHCALLQEHAQRCYVRGLFRSLQQAQSVTSQDLLTAVDACEELLQEIDITPFLLALCGHTWGLPHAPPSPGPLSPGPFSSSMEEGAEPRERAILASESSIETEDLSEPEFQSTRVPGIPDPGPEISLTDVCQLRGEAHGALHSVIQEKFLEISRLHFRTVPSNPHYFFYCPPSSRREDEGPRDTVDRKISDLEFSEAELMGEEGDTSACCVVTESDPELEVEYRESRESDLGPAGLDSASLSDVDTVNPDEDSFSILGGDSPTGPESFLHDLPPLFLHLTCSVRLRGQHSSVPVCSLPTCLGQVLSSLEGPPVGGRVPLRDLSVTLDVFMLTLPLEVELPTASDPQHHRSTSESSASFPRSPGQPSSLRSDDGLGPPLPPPEEERHPGLSNLATPHRLAIETTMNEIRWLLEDEMVGALRRGGIPQSPALHRAAAHIHSSPGRSTCLRQTLPLSFVFGPERSLTQFKEEFRRLHLPGHVLLEDPDSGFFFVAAGQQPGGSHGEPSSAAWAWHSHEDRAEGIEGETLTASPQAPGSPEDSEGVPLISLPRVPQGGSQPGPSRGLSLMSSQGSVDSDHLGYDGGSSGSDSEGPNDTLGEKAPFTLRTPPGPAPPQPSLSGLPGPCLPDFWLIVRVLQDRVEVYAHARSLIREDGGPGTECRHLQQLLVRRVGEICREVNQRLLLQDLHDSHVCNSLLVAESEEDLWRSETPFHSRQRAPLPSDDYAADESCAPRGYLAATMQFVPGHFSCDVVWGTVIRVHSRLKMGPSMGVSRAIQALRSVLNAFSVVNRKNMFVYQERATKAVYYLRLLETSCSDRPWKGDALPPSLALSRSQEPIYSEEASGPRSPLDMVSSRSSDAARPVGQVDRHIQLLVHGVGQAGPEITDELVRVLCRRLDEATLDVITVMLVRNCKLTPADVEFIQPPGSLPSEVLHLALPTSCRPWLPALAWYLRQNLLIFLHSPKYTDSNSRNHFQHPLPPQGGLPDLDIYLYNKPGGQGTGGKGVACITLAFVDEGGAPLSLALWPPSSPGPPDPLREEEFEQLTQVIRCPVVVDSSSAQNGAPRLRLDVWEKGNISIVQLEEKLRGAARQALADAIIELQLLPASLCTEDTPTGSLRNGSLETKSSAGRASTFPPAPVPGEPVTPPSKAGRRSFWDMLSKTECGDLGSPKTTDDIVLDRPEDTRGRRRHKTESVRTPGGAERAPGSDSGAQRQKRRTTQLEEGEVGTLHPVFARVAQRWMEFMVQIGCASVSRSSAHMVSRFLLPSILSEFTALVTSMAGDTSVRIFEQHLGSEPEIFGPCSPGQLGPSPRPAAERHLLLLGRNFLQWRRPTQQAAKAMQRFEPGGDGSSGRNAPRQRLLLLEVVDKKLQLLTYNWAPDLGAALGRALVRLVQWQNARAHLIFCLLSQKLGLFHHYGQLDFPVRDEKEPNPFLLPTMEVETLIRSASPPLSREQGRLSGSSRGGGPLPLDTFPFDEALRDITAARPSSVLGPVPRPPDPVTYHGQQFLEIKMAERRELERQMKMENLFVTWQQRSTPATMPISAGELETLKQSSRLVHYCATAMLFDPAAWLHGPPETSGPPDGQRRHRPESGSGSREAPTSCESLDVSPPGAREEPWLKELSLAFLQQYVQYLQSIGFVLVPLRPPSPARSTSRPRAMAILGTEGRGSFSCPKTKTDGSPKSTSSPVTTYHLQRALPGGIILMELAFQGCYFCVKQFALECSRIPMGQAVNSQLSMLFTEECDKVRDLMHVHSFSYDFHLRLVHQHVLGAHLVLRHGYHLTTFLRHFLAHHPDGPHFGRNHIYQGTLELPTPLIAAHQLYNYVADHASSYHMKPLRMARPGGPEHNEYALVSAWHSSGSYLDSEGLRHQDDFDVSLLVCHCAAPFEEQGEAERHVLRLQFFVVLTSQRELFPRLTADMRRFRKPPRLPPEPEAPGSSAGSPGEASGLILAPGPAPLFPPLAAEVGMARARLAQLVRLAGGHCRRDTLWKRLFLLEPPGPDRLRLGGRLALAELEELLEAVHAKSIGDIDPQLDCFLSMTVSWYQSLIKVLLSRFPQSCRHFQSPDLGTQYLVVLNQKFTDCFVLVFLDSHLGKTSLTVVFREPFPVQPQDSESPPAQLVSTYHHLESVINTACFTLWTRLL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	KICSTOR complex protein kaptin
Molecular weight formula_weight	50216.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MGYPYDVPDYADLNGGGGGSTMMGEAAVAAGPCPLREDSFTRFSSQSNVYGLAGGAGGRGELLAATLKGKVLGFRYQDLRQKIRPVAKELQFNYIPVDAEIVSIDTFNKSPPKRGLVVGITFIKDSGDKGSPFLNIYCDYEPGSEYNLDSIAQSCLNLELQFTPFQLCHAEVQVGDQLETVFLLSGNDPAIHLYKENEGLHQFEEQPVENLFPELTNLTSSVLWLDVHNFPGTSRRLSALGCQSGYVRVAHVDQRSREVLQMWSVLQDGPISRVIVFSLSAAKETKDRPLQDEYSVLVASMLEPAVVYRDLLNRGLEDQLLLPGSDQFDSVLCSLVTDVDLDGRPEVLVATYGQELLCYKYRGPESGLPEAQHGFHLLWQRSFSSPLLAMAHVDLTGDGLQELAVVSLKGVHILQHSLIQASELVLTRLRHQVEQRRRRLQGLEDGAGAGPAENAAS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	KICSTOR subunit 2
Molecular weight formula_weight	52573.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MGYPYDVPDYADLNGGGGGSTMGESIPLAAPVPVEQAVLETFFSHLGIFSYDKAKDNVEKEREANKSAGGSWLSLLAALAHLAAAEKVYHSLTYLGQKLGGQSFFSRKDSIRTIYTSLHNELKKVVTGRGALGGTAPHVEELLSHLSEQLCFFVQARMEIADFYEKMYTLSTQKFINAEELVGLLDAIMKKYSSRFHHPILSPLESSFQLEVDVLCHLLKAQAQVSEWKFLPSLVNLHSAHTKLQTWGQIFEKQRETKKHLFGGQSQKAVQPPHLFLWLMKLKNMLLAKFSFYFHEALSRQTTASEMKTLTAKANPDFFGKISSFIRKYDAANVSLIFDNRGSESFQGHGYHHPHSYREAPKGVDQYPAVVSLPSDRPVMHWPNVIMIMTDRTSDLNSLEKVVHFYDDKVQSTYFLTRPEPHFTIVIIFESKKSERDSHFISFLNEVSLALKNPKVFASLKPGSKG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	KICSTOR complex protein ITFG2
Molecular weight formula_weight	51270.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MEQKLISEEDLNGGGGGSTMRSVSYVQRVALEFSGSLFPHAICLGDVDNDTLNELVVGDTSGKVSVYKNDDSRPWLTCSCQGMLTCVGVGDVCNKGKNLLVAVSAEGWFHLFDLTPAKVLDASGHHETLIGEEQRPVFKQHIPANTKVMLISDIDGDGCRELVVGYTDRVVRAFRWEELGEGPEHLTGQLVSLKKWMLEGQVDSLSVTLGPLGLPELMVSQPGCAYAILLCTWKKDTGSPPASEGPTDGSRETPAARDVVLHQTSGRIHNKNVSTHLIGNIKQGHGTESSGSGLFALCTLDGTLKLMEEMEEADKLLWSVQVDHQLFALEKLDVTGNGHEEVVACAWDGQTYIIDHNRTVVRFQVDENIRAFCAGLYACKEGRNSPCLVYVTFNQKIYVYWEVQLERMESTNLVKLLETKPEYHSLLQELGVDPDDLPVTRALLHQTLYHPDQPPQCAPSSLQDPT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 7 Entity 7 polymer

Description description	GATOR complex protein NPRL3
Molecular weight formula_weight	65769.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGYPYDVPDYADLNGGGGGSTMRDNTSPISVILVSSGSRGNKLLFRYPFQRSQEHPASQTSKPRSRYAASNTGDHADEQDGDSRFSDVILATILATKSEMCGQKFELKIDNVRFVGHPTLLQHALGQISKTDPSPKREAPTMILFNVVFALRANADPSVINCLHNLSRRIATVLQHEERRCQYLTREAKLILALQDEVSAMADGNEGPQSPFHHILPKCKLARDLKEAYDSLCTSGVVRLHINSWLEVSFCLPHKIHYAASSLIPPEAIERSLKAIRPYHALLLLSDEKSLLGELPIDCSPALVRVIKTTSAVKNLQQLAQDADLALLQVFQLAAHLVYWGKAIIIYPLCENNVYMLSPNASVCLYSPLAEQFSHQFPSHDLPSVLAKFSLPVSLSEFRNPLAPAVQETQLIQMVVWMLQRRLLIQLHTYVCLMASPSEEEPRPREDDVPFTARVGGRSLSTPNALSFGSPTSSDDMTLTSPSMDNSSAELLPSGDSPLNQRMTENLLASLSEHERAAILSVPAAQNPEDLRMFARLLHYFRGRHHLEEIMYNENTRRSQLLMLFDKFRSVLVVTTHEDPVIAVFQALLP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Resolution resolution	3.20 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	43700
