SAXSdb — 9v9n

▼

1. Structure Basics

entry_id	9v9n
deposition_date	2025-06-01
title	Cryo-EM structure of KICSTOR CCC complex (state 5)
keywords	lipid binding protein, SIGNALING PROTEIN; SIGNALING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	70.69 Å
rg_electron	71.56 Å
i0	515425000.00
molecular_weight	188990.0 kDa
excluded_volume	235930 Å³
envelope_volume	444020 Å³
shell_volume	59974 Å³
envelope_diameter	247.9 Å
shell_rg	52.94 Å
envelope_rg	72.04 Å
shape_rg	71.70 Å
total_rg	70.52 Å
total_atoms	13390
n_residues	1914
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	213.8 Å
rg_real	71.20 Å
rg_real_error	1.63 Å
i0_real	5.1450e+08
i0_real_error	1.0970e+07
rg_reciprocal	67.35 Å
i0_reciprocal	511300000.0000
total_estimate	0.6961
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	38.9 Å
skewness	0.520
kurtosis	-0.846
angular_range	— – 0.1100 Å⁻¹
current_alpha	0.0083
highest_alpha	15820000.0000
n_real_points	23
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.521; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.487; Smooth: 0.001

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	KICSTOR complex protein SZT2
formula_weight	378453.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	13390

MASERPEPEVEEAGQVFLLMKKDYRISRNVRLAWFLSHLHQTVQATPQEMLLQSEQELEVLSVLPPGWQPDEPVVPRPFLLVPSTRVTFLAWQYRFVIELDLSPSTGIVDDSTGEILFDEVFHALSRCLGGLLRPFRVPGSCIDFQPEIYVTIQAYSSIIGLQSHQVLVQGCLLDPSQREVFLQQIYEQLCLFEDKVATMLQQQYDPQSQAEDQSPDSGDLLGRKVGVSMVTADLGLVSMIRQGILALQLLPSNSSAGIIVITDGVTSVPDVAVCETLLNQLRSGTVACSFVQVGGVYSYDCSFGHVPNVELMKFIAMATFGSYLSTCPEPEPGNLGLTVYHRAFLLYSFLRSGEALNPEYYCGSQHRLFNEHLVSASSNPALALRRKKHTEKEVPADLVSTVSVRLREGYSVREVTLAKGGSQLEVKLVLLWKHNMRIEYVAMAPWPLEPEGPRVTRVEVTMEGGYDILHDVSCALRQPIRSLYRTHVIRRFWNTLQSINQTDQMLAHLQSFSSVPEHFTLPDSTKSGVPLFYIPPGSTTPVLSLQPSGSDSSHAQFAAYWKPVLSMDANSWQRWLHMHRLVLILEHDTPIPKHLHTPGSNGRYSTIQCRISHSSLTSLLRDWSSFVLVEGYSYVKLLSSAPDQPPNSFYMVRIISKAPCMVLRLGFPIGTPAPARHKIVSGLREEILRLRFPHRVQSKEPTPKVKRKGLGGAGGGSSPSKSPPVLGPQQALSDRPCLVVLHKPLDKLLIRYEKLPLDYRAPFLLTLEPPGPLPLVSGRSASSSLASLSRYLYHQRWLWSVPSGLAPALPLSAIAQLLSILTEVRLSEGFHFACSGEGIINMVLELPIQNEPPGQAAAEEKHTCVVQYILFPPHSTSTKDSFSTDDDNDVEVEALEGDSELNLVTEVWVEPQYGRVGPGPGIWKHLQDLTYSEIPQALHPRDAACIGSMLSFEYLIQLCQSKEWGPLPPEPRVSDGLDQGGDTCVHEIPFHFDLMGLLPQCQQLQMFFLLLAREPEGVPFAEGSCPANDMVLCLLHSCLGQELSDREIPLTPVDQAAFLSEVLRRTCHVPGAEGPLLGVHGIPKEQAVGSTQATGDSAFTSLSVGLPETLKPLISAQPPQWRCYARLVNPQHVFLTFLPATFSDVQRLAACGLEGPPQEETKPKFGDWSGAPSLKDLGGTGIKATKSHVPVLSVTLASDNAQNQGELSPPFRRDLQAYAGRQASQTESADGPRTRCPVYIYSCSLEALREQMVGMQPPQAPRDLIFRTQFLDHPSPSSAWMEPRYKEAANHCALLQEHAQRCYVRGLFRSLQQAQSVTSQDLLTAVDACEELLQEIDITPFLLALCGHTWGLPHAPPSPGPLSPGPFSSSMEEGAEPRERAILASESSIETEDLSEPEFQSTRVPGIPDPGPEISLTDVCQLRGEAHGALHSVIQEKFLEISRLHFRTVPSNPHYFFYCPPSSRREDEGPRDTVDRKISDLEFSEAELMGEEGDTSACCVVTESDPELEVEYRESRESDLGPAGLDSASLSDVDTVNPDEDSFSILGGDSPTGPESFLHDLPPLFLHLTCSVRLRGQHSSVPVCSLPTCLGQVLSSLEGPPVGGRVPLRDLSVTLDVFMLTLPLEVELPTASDPQHHRSTSESSASFPRSPGQPSSLRSDDGLGPPLPPPEEERHPGLSNLATPHRLAIETTMNEIRWLLEDEMVGALRRGGIPQSPALHRAAAHIHSSPGRSTCLRQTLPLSFVFGPERSLTQFKEEFRRLHLPGHVLLEDPDSGFFFVAAGQQPGGSHGEPSSAAWAWHSHEDRAEGIEGETLTASPQAPGSPEDSEGVPLISLPRVPQGGSQPGPSRGLSLMSSQGSVDSDHLGYDGGSSGSDSEGPNDTLGEKAPFTLRTPPGPAPPQPSLSGLPGPCLPDFWLIVRVLQDRVEVYAHARSLIREDGGPGTECRHLQQLLVRRVGEICREVNQRLLLQDLHDSHVCNSLLVAESEEDLWRSETPFHSRQRAPLPSDDYAADESCAPRGYLAATMQFVPGHFSCDVVWGTVIRVHSRLKMGPSMGVSRAIQALRSVLNAFSVVNRKNMFVYQERATKAVYYLRLLETSCSDRPWKGDALPPSLALSRSQEPIYSEEASGPRSPLDMVSSRSSDAARPVGQVDRHIQLLVHGVGQAGPEITDELVRVLCRRLDEATLDVITVMLVRNCKLTPADVEFIQPPGSLPSEVLHLALPTSCRPWLPALAWYLRQNLLIFLHSPKYTDSNSRNHFQHPLPPQGGLPDLDIYLYNKPGGQGTGGKGVACITLAFVDEGGAPLSLALWPPSSPGPPDPLREEEFEQLTQVIRCPVVVDSSSAQNGAPRLRLDVWEKGNISIVQLEEKLRGAARQALADAIIELQLLPASLCTEDTPTGSLRNGSLETKSSAGRASTFPPAPVPGEPVTPPSKAGRRSFWDMLSKTECGDLGSPKTTDDIVLDRPEDTRGRRRHKTESVRTPGGAERAPGSDSGAQRQKRRTTQLEEGEVGTLHPVFARVAQRWMEFMVQIGCASVSRSSAHMVSRFLLPSILSEFTALVTSMAGDTSVRIFEQHLGSEPEIFGPCSPGQLGPSPRPAAERHLLLLGRNFLQWRRPTQQAAKAMQRFEPGGDGSSGRNAPRQRLLLLEVVDKKLQLLTYNWAPDLGAALGRALVRLVQWQNARAHLIFCLLSQKLGLFHHYGQLDFPVRDEKEPNPFLLPTMEVETLIRSASPPLSREQGRLSGSSRGGGPLPLDTFPFDEALRDITAARPSSVLGPVPRPPDPVTYHGQQFLEIKMAERRELERQMKMENLFVTWQQRSTPATMPISAGELETLKQSSRLVHYCATAMLFDPAAWLHGPPETSGPPDGQRRHRPESGSGSREAPTSCESLDVSPPGAREEPWLKELSLAFLQQYVQYLQSIGFVLVPLRPPSPARSTSRPRAMAILGTEGRGSFSCPKTKTDGSPKSTSSPVTTYHLQRALPGGIILMELAFQGCYFCVKQFALECSRIPMGQAVNSQLSMLFTEECDKVRDLMHVHSFSYDFHLRLVHQHVLGAHLVLRHGYHLTTFLRHFLAHHPDGPHFGRNHIYQGTLELPTPLIAAHQLYNYVADHASSYHMKPLRMARPGGPEHNEYALVSAWHSSGSYLDSEGLRHQDDFDVSLLVCHCAAPFEEQGEAERHVLRLQFFVVLTSQRELFPRLTADMRRFRKPPRLPPEPEAPGSSAGSPGEASGLILAPGPAPLFPPLAAEVGMARARLAQLVRLAGGHCRRDTLWKRLFLLEPPGPDRLRLGGRLALAELEELLEAVHAKSIGDIDPQLDCFLSMTVSWYQSLIKVLLSRFPQSCRHFQSPDLGTQYLVVLNQKFTDCFVLVFLDSHLGKTSLTVVFREPFPVQPQDSESPPAQLVSTYHHLESVINTACFTLWTRLL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	KICSTOR complex protein ITFG2
formula_weight	49365.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MRSVSYVQRVALEFSGSLFPHAICLGDVDNDTLNELVVGDTSGKVSVYKNDDSRPWLTCSCQGMLTCVGVGDVCNKGKNLLVAVSAEGWFHLFDLTPAKVLDASGHHETLIGEEQRPVFKQHIPANTKVMLISDIDGDGCRELVVGYTDRVVRAFRWEELGEGPEHLTGQLVSLKKWMLEGQVDSLSVTLGPLGLPELMVSQPGCAYAILLCTWKKDTGSPPASEGPTDGSRETPAARDVVLHQTSGRIHNKNVSTHLIGNIKQGHGTESSGSGLFALCTLDGTLKLMEEMEEADKLLWSVQVDHQLFALEKLDVTGNGHEEVVACAWDGQTYIIDHNRTVVRFQVDENIRAFCAGLYACKEGRNSPCLVYVTFNQKIYVYWEVQLERMESTNLVKLLETKPEYHSLLQELGVDPDDLPVTRALLHQTLYHPDQPPQCAPSSLQDPT

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 polymer

description	KICSTOR complex protein kaptin
formula_weight	48128.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MMGEAAVAAGPCPLREDSFTRFSSQSNVYGLAGGAGGRGELLAATLKGKVLGFRYQDLRQKIRPVAKELQFNYIPVDAEIVSIDTFNKSPPKRGLVVGITFIKDSGDKGSPFLNIYCDYEPGSEYNLDSIAQSCLNLELQFTPFQLCHAEVQVGDQLETVFLLSGNDPAIHLYKENEGLHQFEEQPVENLFPELTNLTSSVLWLDVHNFPGTSRRLSALGCQSGYVRVAHVDQRSREVLQMWSVLQDGPISRVIVFSLSAAKETKDRPLQDEYSVLVASMLEPAVVYRDLLNRGLEDQLLLPGSDQFDSVLCSLVTDVDLDGRPEVLVATYGQELLCYKYRGPESGLPEAQHGFHLLWQRSFSSPLLAMAHVDLTGDGLQELAVVSLKGVHILQHSLIQASELVLTRLRHQVEQRRRRLQGLEDGAGAGPAENAAS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 4 polymer

description	KICSTOR subunit 2
formula_weight	50469.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MGESIPLAAPVPVEQAVLETFFSHLGIFSYDKAKDNVEKEREANKSAGGSWLSLLAALAHLAAAEKVYHSLTYLGQKLGGQSFFSRKDSIRTIYTSLHNELKKVVTGRGALGGTAPHVEELLSHLSEQLCFFVQARMEIADFYEKMYTLSTQKFINAEELVGLLDAIMKKYSSRFHHPILSPLESSFQLEVDVLCHLLKAQAQVSEWKFLPSLVNLHSAHTKLQTWGQIFEKQRETKKHLFGGQSQKAVQPPHLFLWLMKLKNMLLAKFSFYFHEALSRQTTASEMKTLTAKANPDFFGKISSFIRKYDAANVSLIFDNRGSESFQGHGYHHPHSYREAPKGVDQYPAVVSLPSDRPVMHWPNVIMIMTDRTSDLNSLEKVVHFYDDKVQSTYFLTRPEPHFTIVIIFESKKSERDSHFISFLNEVSLALKNPKVFASLKPGAKG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.08 Å
resolution_method	—
num_particles	228164

fit	/app/data/saxs_computation/v9/9v9n/9v9n.fit
pddf	/app/data/pr_computation/v9/9v9n/9v9n.pr.out
profile	/app/data/saxs_computation/v9/9v9n/9v9n.dat

Cryo-EM structure of KICSTOR CCC complex (state 5)

SAXS Profile

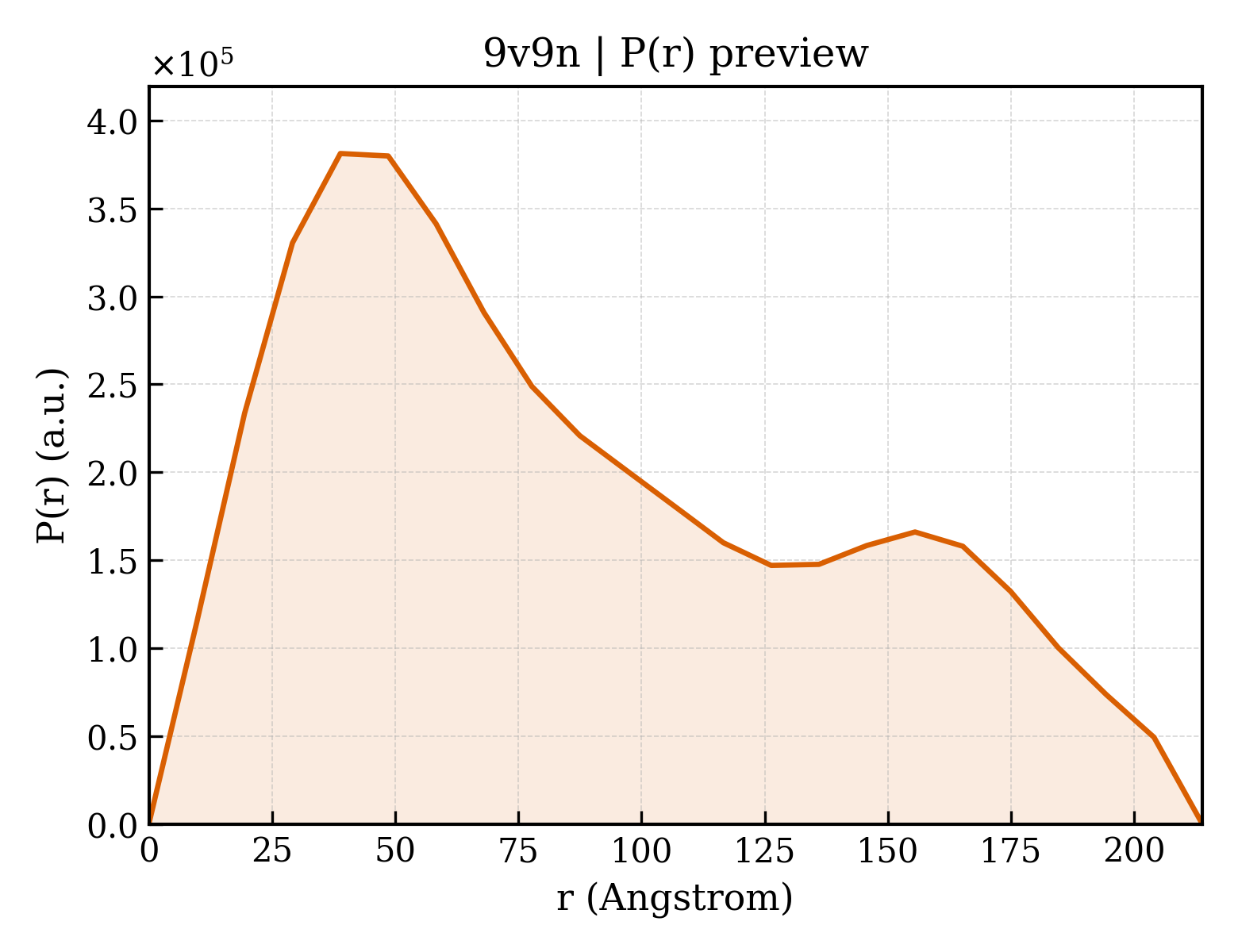

P(r) Distribution
