SAXSdb — 9van

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

KICSTOR complex protein SZT2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	KICSTOR complex protein ITFG2 × 1 （Q969R8） KICSTOR complex protein kaptin × 1 （Q9Y664） KICSTOR subunit 2 × 1 （Q96MD2）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SZT2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–3432； UniProt 1–3432

KICSTOR complex protein ITFG2

Homo sapiens

UniProt Q969R8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	KICSTOR complex protein SZT2 × 1 （Q5T011） KICSTOR complex protein kaptin × 1 （Q9Y664） KICSTOR subunit 2 × 1 （Q96MD2）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ITFG2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–447； UniProt 1–447

KICSTOR complex protein kaptin

Homo sapiens

UniProt Q9Y664

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	KICSTOR complex protein SZT2 × 1 （Q5T011） KICSTOR complex protein ITFG2 × 1 （Q969R8） KICSTOR subunit 2 × 1 （Q96MD2）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KPTN_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–436； UniProt 1–436

KICSTOR subunit 2

Homo sapiens

UniProt Q96MD2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	KICSTOR complex protein SZT2 × 1 （Q5T011） KICSTOR complex protein ITFG2 × 1 （Q969R8） KICSTOR complex protein kaptin × 1 （Q9Y664）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KICS2_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–445； UniProt 1–445

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9van
Deposition date deposition_date	2025-06-03
Structure title title	Cryo-EM structure of human full length KICSTOR complex (state 2)
Keywords keywords	Lipid binding protein, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9van__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

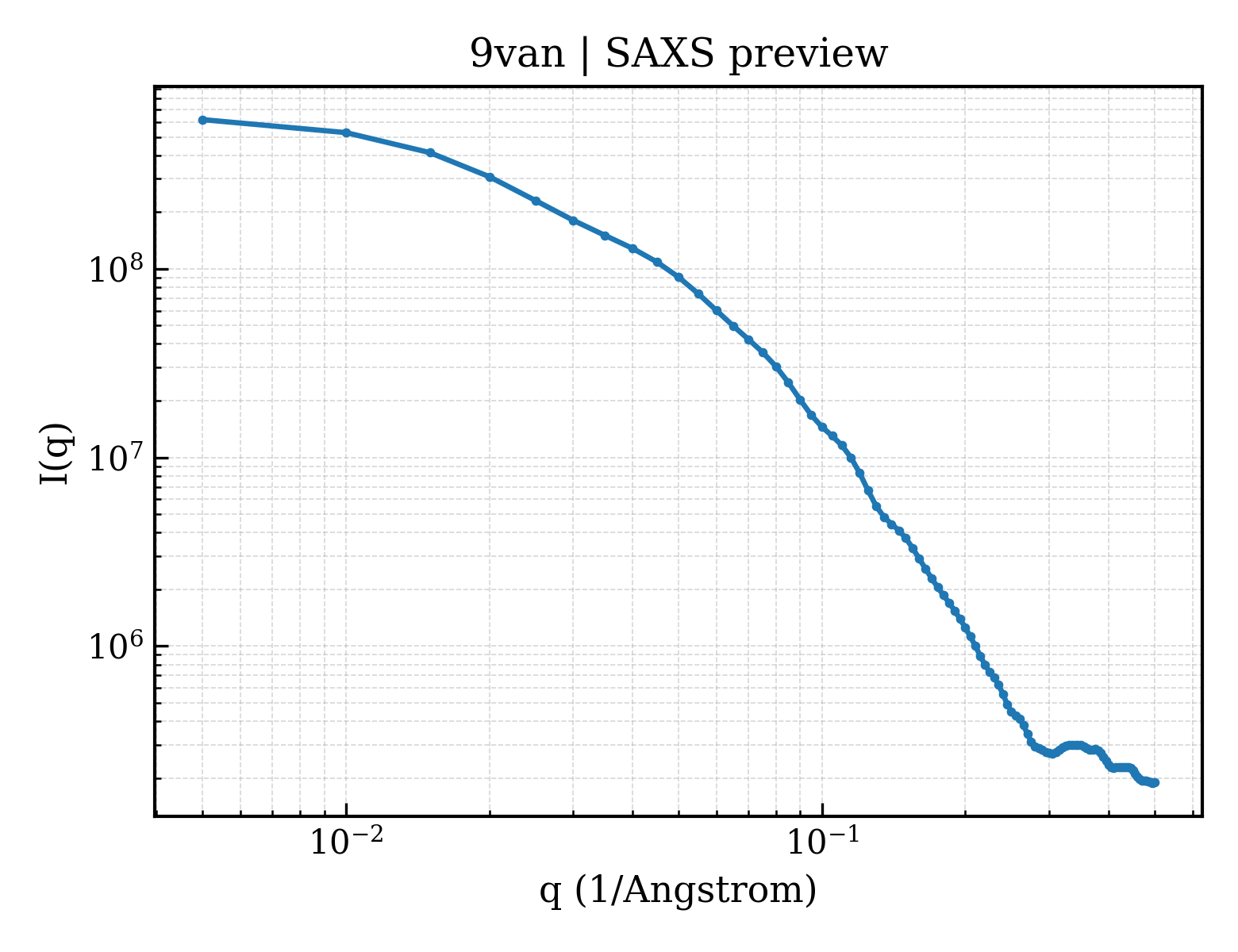

9van__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

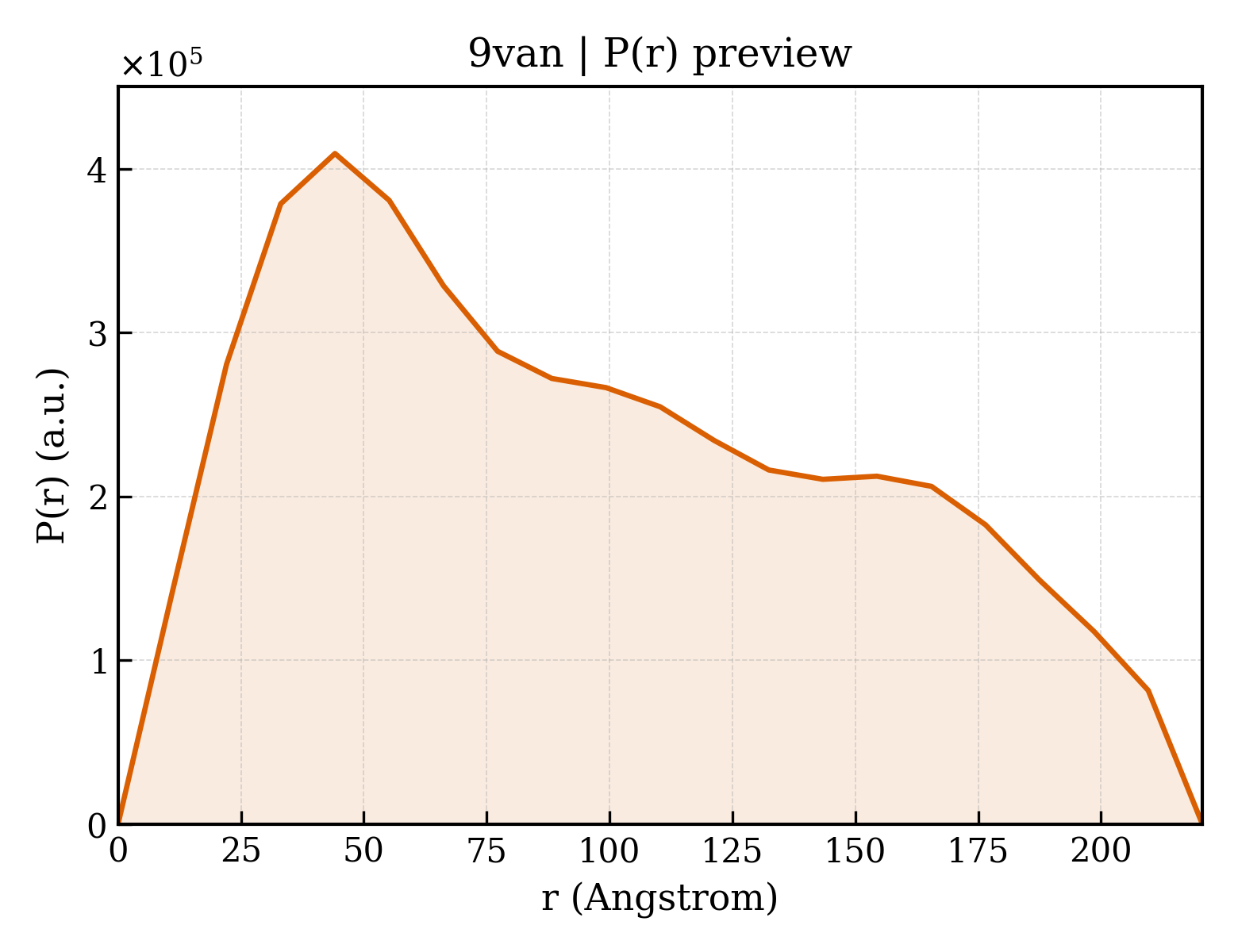

9van__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	79.90 Å
Rg (electron density)	78.27 Å
Total Rg	76.51 Å
Atom count	14526
Residues	2238
Excluded volume	251820 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9van__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	KICSTOR complex protein SZT2
Molecular weight formula_weight	378453.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14526

MASERPEPEVEEAGQVFLLMKKDYRISRNVRLAWFLSHLHQTVQATPQEMLLQSEQELEVLSVLPPGWQPDEPVVPRPFLLVPSTRVTFLAWQYRFVIELDLSPSTGIVDDSTGEILFDEVFHALSRCLGGLLRPFRVPGSCIDFQPEIYVTIQAYSSIIGLQSHQVLVQGCLLDPSQREVFLQQIYEQLCLFEDKVATMLQQQYDPQSQAEDQSPDSGDLLGRKVGVSMVTADLGLVSMIRQGILALQLLPSNSSAGIIVITDGVTSVPDVAVCETLLNQLRSGTVACSFVQVGGVYSYDCSFGHVPNVELMKFIAMATFGSYLSTCPEPEPGNLGLTVYHRAFLLYSFLRSGEALNPEYYCGSQHRLFNEHLVSASSNPALALRRKKHTEKEVPADLVSTVSVRLREGYSVREVTLAKGGSQLEVKLVLLWKHNMRIEYVAMAPWPLEPEGPRVTRVEVTMEGGYDILHDVSCALRQPIRSLYRTHVIRRFWNTLQSINQTDQMLAHLQSFSSVPEHFTLPDSTKSGVPLFYIPPGSTTPVLSLQPSGSDSSHAQFAAYWKPVLSMDANSWQRWLHMHRLVLILEHDTPIPKHLHTPGSNGRYSTIQCRISHSSLTSLLRDWSSFVLVEGYSYVKLLSSAPDQPPNSFYMVRIISKAPCMVLRLGFPIGTPAPARHKIVSGLREEILRLRFPHRVQSKEPTPKVKRKGLGGAGGGSSPSKSPPVLGPQQALSDRPCLVVLHKPLDKLLIRYEKLPLDYRAPFLLTLEPPGPLPLVSGRSASSSLASLSRYLYHQRWLWSVPSGLAPALPLSAIAQLLSILTEVRLSEGFHFACSGEGIINMVLELPIQNEPPGQAAAEEKHTCVVQYILFPPHSTSTKDSFSTDDDNDVEVEALEGDSELNLVTEVWVEPQYGRVGPGPGIWKHLQDLTYSEIPQALHPRDAACIGSMLSFEYLIQLCQSKEWGPLPPEPRVSDGLDQGGDTCVHEIPFHFDLMGLLPQCQQLQMFFLLLAREPEGVPFAEGSCPANDMVLCLLHSCLGQELSDREIPLTPVDQAAFLSEVLRRTCHVPGAEGPLLGVHGIPKEQAVGSTQATGDSAFTSLSVGLPETLKPLISAQPPQWRCYARLVNPQHVFLTFLPATFSDVQRLAACGLEGPPQEETKPKFGDWSGAPSLKDLGGTGIKATKSHVPVLSVTLASDNAQNQGELSPPFRRDLQAYAGRQASQTESADGPRTRCPVYIYSCSLEALREQMVGMQPPQAPRDLIFRTQFLDHPSPSSAWMEPRYKEAANHCALLQEHAQRCYVRGLFRSLQQAQSVTSQDLLTAVDACEELLQEIDITPFLLALCGHTWGLPHAPPSPGPLSPGPFSSSMEEGAEPRERAILASESSIETEDLSEPEFQSTRVPGIPDPGPEISLTDVCQLRGEAHGALHSVIQEKFLEISRLHFRTVPSNPHYFFYCPPSSRREDEGPRDTVDRKISDLEFSEAELMGEEGDTSACCVVTESDPELEVEYRESRESDLGPAGLDSASLSDVDTVNPDEDSFSILGGDSPTGPESFLHDLPPLFLHLTCSVRLRGQHSSVPVCSLPTCLGQVLSSLEGPPVGGRVPLRDLSVTLDVFMLTLPLEVELPTASDPQHHRSTSESSASFPRSPGQPSSLRSDDGLGPPLPPPEEERHPGLSNLATPHRLAIETTMNEIRWLLEDEMVGALRRGGIPQSPALHRAAAHIHSSPGRSTCLRQTLPLSFVFGPERSLTQFKEEFRRLHLPGHVLLEDPDSGFFFVAAGQQPGGSHGEPSSAAWAWHSHEDRAEGIEGETLTASPQAPGSPEDSEGVPLISLPRVPQGGSQPGPSRGLSLMSSQGSVDSDHLGYDGGSSGSDSEGPNDTLGEKAPFTLRTPPGPAPPQPSLSGLPGPCLPDFWLIVRVLQDRVEVYAHARSLIREDGGPGTECRHLQQLLVRRVGEICREVNQRLLLQDLHDSHVCNSLLVAESEEDLWRSETPFHSRQRAPLPSDDYAADESCAPRGYLAATMQFVPGHFSCDVVWGTVIRVHSRLKMGPSMGVSRAIQALRSVLNAFSVVNRKNMFVYQERATKAVYYLRLLETSCSDRPWKGDALPPSLALSRSQEPIYSEEASGPRSPLDMVSSRSSDAARPVGQVDRHIQLLVHGVGQAGPEITDELVRVLCRRLDEATLDVITVMLVRNCKLTPADVEFIQPPGSLPSEVLHLALPTSCRPWLPALAWYLRQNLLIFLHSPKYTDSNSRNHFQHPLPPQGGLPDLDIYLYNKPGGQGTGGKGVACITLAFVDEGGAPLSLALWPPSSPGPPDPLREEEFEQLTQVIRCPVVVDSSSAQNGAPRLRLDVWEKGNISIVQLEEKLRGAARQALADAIIELQLLPASLCTEDTPTGSLRNGSLETKSSAGRASTFPPAPVPGEPVTPPSKAGRRSFWDMLSKTECGDLGSPKTTDDIVLDRPEDTRGRRRHKTESVRTPGGAERAPGSDSGAQRQKRRTTQLEEGEVGTLHPVFARVAQRWMEFMVQIGCASVSRSSAHMVSRFLLPSILSEFTALVTSMAGDTSVRIFEQHLGSEPEIFGPCSPGQLGPSPRPAAERHLLLLGRNFLQWRRPTQQAAKAMQRFEPGGDGSSGRNAPRQRLLLLEVVDKKLQLLTYNWAPDLGAALGRALVRLVQWQNARAHLIFCLLSQKLGLFHHYGQLDFPVRDEKEPNPFLLPTMEVETLIRSASPPLSREQGRLSGSSRGGGPLPLDTFPFDEALRDITAARPSSVLGPVPRPPDPVTYHGQQFLEIKMAERRELERQMKMENLFVTWQQRSTPATMPISAGELETLKQSSRLVHYCATAMLFDPAAWLHGPPETSGPPDGQRRHRPESGSGSREAPTSCESLDVSPPGAREEPWLKELSLAFLQQYVQYLQSIGFVLVPLRPPSPARSTSRPRAMAILGTEGRGSFSCPKTKTDGSPKSTSSPVTTYHLQRALPGGIILMELAFQGCYFCVKQFALECSRIPMGQAVNSQLSMLFTEECDKVRDLMHVHSFSYDFHLRLVHQHVLGAHLVLRHGYHLTTFLRHFLAHHPDGPHFGRNHIYQGTLELPTPLIAAHQLYNYVADHASSYHMKPLRMARPGGPEHNEYALVSAWHSSGSYLDSEGLRHQDDFDVSLLVCHCAAPFEEQGEAERHVLRLQFFVVLTSQRELFPRLTADMRRFRKPPRLPPEPEAPGSSAGSPGEASGLILAPGPAPLFPPLAAEVGMARARLAQLVRLAGGHCRRDTLWKRLFLLEPPGPDRLRLGGRLALAELEELLEAVHAKSIGDIDPQLDCFLSMTVSWYQSLIKVLLSRFPQSCRHFQSPDLGTQYLVVLNQKFTDCFVLVFLDSHLGKTSLTVVFREPFPVQPQDSESPPAQLVSTYHHLESVINTACFTLWTRLL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	KICSTOR complex protein ITFG2
Molecular weight formula_weight	49365.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MRSVSYVQRVALEFSGSLFPHAICLGDVDNDTLNELVVGDTSGKVSVYKNDDSRPWLTCSCQGMLTCVGVGDVCNKGKNLLVAVSAEGWFHLFDLTPAKVLDASGHHETLIGEEQRPVFKQHIPANTKVMLISDIDGDGCRELVVGYTDRVVRAFRWEELGEGPEHLTGQLVSLKKWMLEGQVDSLSVTLGPLGLPELMVSQPGCAYAILLCTWKKDTGSPPASEGPTDGSRETPAARDVVLHQTSGRIHNKNVSTHLIGNIKQGHGTESSGSGLFALCTLDGTLKLMEEMEEADKLLWSVQVDHQLFALEKLDVTGNGHEEVVACAWDGQTYIIDHNRTVVRFQVDENIRAFCAGLYACKEGRNSPCLVYVTFNQKIYVYWEVQLERMESTNLVKLLETKPEYHSLLQELGVDPDDLPVTRALLHQTLYHPDQPPQCAPSSLQDPT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	KICSTOR complex protein kaptin
Molecular weight formula_weight	48128.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MMGEAAVAAGPCPLREDSFTRFSSQSNVYGLAGGAGGRGELLAATLKGKVLGFRYQDLRQKIRPVAKELQFNYIPVDAEIVSIDTFNKSPPKRGLVVGITFIKDSGDKGSPFLNIYCDYEPGSEYNLDSIAQSCLNLELQFTPFQLCHAEVQVGDQLETVFLLSGNDPAIHLYKENEGLHQFEEQPVENLFPELTNLTSSVLWLDVHNFPGTSRRLSALGCQSGYVRVAHVDQRSREVLQMWSVLQDGPISRVIVFSLSAAKETKDRPLQDEYSVLVASMLEPAVVYRDLLNRGLEDQLLLPGSDQFDSVLCSLVTDVDLDGRPEVLVATYGQELLCYKYRGPESGLPEAQHGFHLLWQRSFSSPLLAMAHVDLTGDGLQELAVVSLKGVHILQHSLIQASELVLTRLRHQVEQRRRRLQGLEDGAGAGPAENAAS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	KICSTOR subunit 2
Molecular weight formula_weight	50469.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MGESIPLAAPVPVEQAVLETFFSHLGIFSYDKAKDNVEKEREANKSAGGSWLSLLAALAHLAAAEKVYHSLTYLGQKLGGQSFFSRKDSIRTIYTSLHNELKKVVTGRGALGGTAPHVEELLSHLSEQLCFFVQARMEIADFYEKMYTLSTQKFINAEELVGLLDAIMKKYSSRFHHPILSPLESSFQLEVDVLCHLLKAQAQVSEWKFLPSLVNLHSAHTKLQTWGQIFEKQRETKKHLFGGQSQKAVQPPHLFLWLMKLKNMLLAKFSFYFHEALSRQTTASEMKTLTAKANPDFFGKISSFIRKYDAANVSLIFDNRGSESFQGHGYHHPHSYREAPKGVDQYPAVVSLPSDRPVMHWPNVIMIMTDRTSDLNSLEKVVHFYDDKVQSTYFLTRPEPHFTIVIIFESKKSERDSHFISFLNEVSLALKNPKVFASLKPGAKG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	280444
