8g26

Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 8.5

Method: X-RAY DIFFRACTION D_max: 101.3 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cathepsin-G

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 1 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 21–243	Fragment：C-terminal truncation (UNP residues 21-243)	Neutrophil elastase × 1 （P08246） MAP domain-containing protein × 1 （A0A0H3JUK5） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.1 M Tris, 0.2 M magnesium chloride, 25% PEG3350	Resolution 1.85 Å R-free 0.238

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8G26	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AU8 HUMAN CATHEPSIN G Deposited 1997-09-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–244（224 aa）	Not recorded	0H8 N-(3-carboxypropanoyl)-L-valyl-N-[(1R)-5-amino-1-phosphonopentyl]-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 1.90 Å R-free 0.251
1CGH Human cathepsin G Deposited 1996-06-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–244（224 aa）	Not recorded	1ZG N-(3-carboxypropanoyl)-L-valyl-N-{(1R)-1-[(S)-hydroxy(oxido)phosphanyl]-2-phenylethyl}-L-prolinamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；pH 7.0	Resolution 1.80 Å R-free 0.240
1KYN Cathepsin-G Deposited 2002-02-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–255（235 aa）	Not recorded	KTP (2-NAPHTHALEN-2-YL-1-NAPHTHALEN-1-YL-2-OXO-ETHYL)-PHOSPHONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；ammonium sulfate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.50 Å R-free 0.328
1KYN Cathepsin-G Deposited 2002-02-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 21–255（235 aa）	Not recorded	KTP (2-NAPHTHALEN-2-YL-1-NAPHTHALEN-1-YL-2-OXO-ETHYL)-PHOSPHONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；295 K；ammonium sulfate, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 3.50 Å R-free 0.328
1T32 A Dual Inhibitor of the Leukocyte Proteases Cathepsin G and Chymase with Therapeutic Efficacy in Animals Models of Inflammation Deposited 2004-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–244（224 aa）	Not recorded	SO4 SULFATE ION × 5 OHH 2-[3-({METHYL[1-(2-NAPHTHOYL)PIPERIDIN-4-YL]AMINO}CARBONYL)-2-NAPHTHYL]-1-(1-NAPHTHYL)-2-OXOETHYLPHOSPHONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；296 K；PEG 4000, Sodium Hepes, sodium acetate, ammonium sulfate, 2-propanol, pH 7.0, VAPOR DIFFUSION, temperature 296.0K	Resolution 1.85 Å R-free 0.213
6VTM Human Cathepsin-G Inhibited by S. aureus EapH1 Deposited 2020-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–244（224 aa）	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M lithium sulfate monohydrate, 0.1 M Tris, pH 8.5, 25% w/v PEG3350	Resolution 1.60 Å R-free 0.209
6VTM Human Cathepsin-G Inhibited by S. aureus EapH1 Deposited 2020-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 21–244（224 aa）	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M lithium sulfate monohydrate, 0.1 M Tris, pH 8.5, 25% w/v PEG3350	Resolution 1.60 Å R-free 0.209
6VTM Human Cathepsin-G Inhibited by S. aureus EapH1 Deposited 2020-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 21–244（224 aa）	Not recorded	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M lithium sulfate monohydrate, 0.1 M Tris, pH 8.5, 25% w/v PEG3350	Resolution 1.60 Å R-free 0.209
6VTM Human Cathepsin-G Inhibited by S. aureus EapH1 Deposited 2020-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 21–244（224 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M lithium sulfate monohydrate, 0.1 M Tris, pH 8.5, 25% w/v PEG3350	Resolution 1.60 Å R-free 0.209
7H6G THE 1.21 A CRYSTAL STRUCTURE OF HUMAN CATHEPSIN G IN COMPLEX WITH N-[2-[6-fluoro-2-[(4-hydroxy-5-methyl-2-oxo-5-phenylfuran-3-yl)-phenylmethyl]-1H-indol-3-yl]ethyl]acetamide Deposited 2024-04-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–255（235 aa）	Not recorded	ZN ZINC ION × 2 SO4 SULFATE ION × 3 A1AOS N-(2-{6-fluoro-2-[(R)-[(5R)-4-hydroxy-5-methyl-2-oxo-5-phenyl-2,5-dihydrofuran-3-yl](phenyl)methyl]-1H-indol-3-yl}ethyl)acetamide × 1 BTB 2-[BIS-(2-HYDROXY-ETHYL)-AMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 7.5；293 K；0.2 M LiSO4 (Salt), 25 %w/v PEG3350 (Precipitant), 0.1 M HEPES 7.5 pH (Buffer), Protein was at 17 mg/mL.	Resolution 1.21 Å R-free 0.181
7H6G THE 1.21 A CRYSTAL STRUCTURE OF HUMAN CATHEPSIN G IN COMPLEX WITH N-[2-[6-fluoro-2-[(4-hydroxy-5-methyl-2-oxo-5-phenylfuran-3-yl)-phenylmethyl]-1H-indol-3-yl]ethyl]acetamide Deposited 2024-04-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 21–255（235 aa）	Not recorded	ZN ZINC ION × 2 SO4 SULFATE ION × 1 A1AOS N-(2-{6-fluoro-2-[(R)-[(5R)-4-hydroxy-5-methyl-2-oxo-5-phenyl-2,5-dihydrofuran-3-yl](phenyl)methyl]-1H-indol-3-yl}ethyl)acetamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 7.5；293 K；0.2 M LiSO4 (Salt), 25 %w/v PEG3350 (Precipitant), 0.1 M HEPES 7.5 pH (Buffer), Protein was at 17 mg/mL.	Resolution 1.21 Å R-free 0.181
7H6H THE 1.94 A CRYSTAL STRUCTURE OF HUMAN CATHEPSIN G IN COMPLEX WITH 1-[(7-fluoronaphthalen-1-yl)methyl]-3-[[methoxycarbonyl(methyl)amino]methyl]indole-2-carboxylic acid Deposited 2024-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–255（235 aa）	Mutation：NO	ZN ZINC ION × 1 A1AO6 1-[(7-fluoronaphthalen-1-yl)methyl]-3-{[(methoxycarbonyl)(methyl)amino]methyl}-1H-indole-2-carboxylic acid × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 7.5；293 K；0.2 M LiSO4 (Salt), 25 %w/v PEG3350 (Precipitant), 0.1 M HEPES 7.5 pH (Buffer), Protein was at 17 mg/mL.	Resolution 1.94 Å R-free 0.232
8D4S Crystal Structure of Cathepsin G Inhibited by Eap1 from S. aureus Deposited 2022-06-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–243（223 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M BisTris (pH 5.5), 0.2M Magnesium Chloride, 25% (w/v) PEG-3350	Resolution 1.95 Å R-free 0.261
8D4S Crystal Structure of Cathepsin G Inhibited by Eap1 from S. aureus Deposited 2022-06-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 21–243（223 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M BisTris (pH 5.5), 0.2M Magnesium Chloride, 25% (w/v) PEG-3350	Resolution 1.95 Å R-free 0.261
8D4S Crystal Structure of Cathepsin G Inhibited by Eap1 from S. aureus Deposited 2022-06-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 21–243（223 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M BisTris (pH 5.5), 0.2M Magnesium Chloride, 25% (w/v) PEG-3350	Resolution 1.95 Å R-free 0.261
8D4S Crystal Structure of Cathepsin G Inhibited by Eap1 from S. aureus Deposited 2022-06-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 21–243（223 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M BisTris (pH 5.5), 0.2M Magnesium Chloride, 25% (w/v) PEG-3350	Resolution 1.95 Å R-free 0.261
8D4V Crystal Structure of Cathepsin G Inhibited by Eap2 from S. aureus Deposited 2022-06-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–243（223 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M BisTris (pH 6.5), 0.2M Ammonium Sulfate, 25%(w/v) PEG-3350	Resolution 1.85 Å R-free 0.251
8D4V Crystal Structure of Cathepsin G Inhibited by Eap2 from S. aureus Deposited 2022-06-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 21–243（223 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M BisTris (pH 6.5), 0.2M Ammonium Sulfate, 25%(w/v) PEG-3350	Resolution 1.85 Å R-free 0.251
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 21–243（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 21–243（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 21–243（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 21–243（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain O 21–243（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 21–243（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7K Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap2 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 21–243（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.6；293 K；0.1M Citric acid, 0.15M Lithium Sulfate, 12% PEG-6000	Resolution 3.10 Å R-free 0.258
8D7K Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap2 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 21–243（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.6；293 K；0.1M Citric acid, 0.15M Lithium Sulfate, 12% PEG-6000	Resolution 3.10 Å R-free 0.258
8D7K Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap2 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 21–243（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.6；293 K；0.1M Citric acid, 0.15M Lithium Sulfate, 12% PEG-6000	Resolution 3.10 Å R-free 0.258
8D7K Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap2 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 21–243（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.6；293 K；0.1M Citric acid, 0.15M Lithium Sulfate, 12% PEG-6000	Resolution 3.10 Å R-free 0.258
8G24 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 5.5 Deposited 2023-02-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 21–243（223 aa） Fragment：C-terminal truncation (UNP residues 21-243)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1 M Bis-Tris, 0.2 M sodium chloride, 26% w/v PDB3350	Resolution 1.82 Å R-free 0.249
8G25 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 7.5 Deposited 2023-02-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 21–243（223 aa） Fragment：C-terminal truncation (UNP residues 21-243)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M lithium sulfate, 26% w/v PEG3350	Resolution 1.80 Å R-free 0.283
8G25 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 7.5 Deposited 2023-02-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 21–243（223 aa） Fragment：C-terminal truncation (UNP residues 21-243)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M lithium sulfate, 26% w/v PEG3350	Resolution 1.80 Å R-free 0.283
8G25 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 7.5 Deposited 2023-02-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 21–243（223 aa） Fragment：C-terminal truncation (UNP residues 21-243)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M lithium sulfate, 26% w/v PEG3350	Resolution 1.80 Å R-free 0.283
9ASX BIFUNCTIONAL INHIBITION OF NEUTROPHIL ELASTASE AND CATHEPSIN G by Eap3 of S. aureus Deposited 2024-02-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 21–243（223 aa） Fragment：C-terminal truncation (UNP residues 21-243)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium citrate 0.1 M imidazole (pH 6.8) 22% (w/v) peg-2kMME	Resolution 1.96 Å R-free 0.228
9ATK BIFUNCTIONAL INHIBITION OF NEUTROPHIL ELASTASE AND CATHEPSIN G by Eap4 of S. aureus Deposited 2024-02-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 21–243（223 aa） Fragment：C-terminal truncation (UNP residues 21-243)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate (pH 5.5) 12% (w/v) PEG-6K	Resolution 2.11 Å R-free 0.233
9ATK BIFUNCTIONAL INHIBITION OF NEUTROPHIL ELASTASE AND CATHEPSIN G by Eap4 of S. aureus Deposited 2024-02-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 21–243（223 aa） Fragment：C-terminal truncation (UNP residues 21-243)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate (pH 5.5) 12% (w/v) PEG-6K	Resolution 2.11 Å R-free 0.233
9ATK BIFUNCTIONAL INHIBITION OF NEUTROPHIL ELASTASE AND CATHEPSIN G by Eap4 of S. aureus Deposited 2024-02-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 21–243（223 aa） Fragment：C-terminal truncation (UNP residues 21-243)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate (pH 5.5) 12% (w/v) PEG-6K	Resolution 2.11 Å R-free 0.233
9ATK BIFUNCTIONAL INHIBITION OF NEUTROPHIL ELASTASE AND CATHEPSIN G by Eap4 of S. aureus Deposited 2024-02-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 21–243（223 aa） Fragment：C-terminal truncation (UNP residues 21-243)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate (pH 5.5) 12% (w/v) PEG-6K	Resolution 2.11 Å R-free 0.233

15 other PDB entries and 37 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CATG_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–223； UniProt 21–243

Neutrophil elastase

OrganismNot specified

UniProt P08246

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 1 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 30–247	Not recorded	Cathepsin-G × 1 （P08311） MAP domain-containing protein × 1 （A0A0H3JUK5） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.1 M Tris, 0.2 M magnesium chloride, 25% PEG3350	Resolution 1.85 Å R-free 0.238

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8G26	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B0F CRYSTAL STRUCTURE OF HUMAN NEUTROPHIL ELASTASE WITH MDL 101, 146 Deposited 1998-11-09	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa）	Not recorded	SEI 1-{3-METHYL-2-[4-(MORPHOLINE-4-CARBONYL)-BENZOYLAMINO]-BUTYRYL}-PYRROLIDINE-2-CARBOXYLIC ACID (3,3,4,4,4-PENTAFLUORO-1-ISOPROPYL-2-OXO-BUTYL)-AMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；pH 5.00	Resolution 3.00 Å
1H1B Crystal structure of human neutrophil elastase complexed with an inhibitor (GW475151) Deposited 2002-07-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 30–50（21 aa） Chain A 51–108（58 aa） Chain A 109–110（2 aa） Chain A 111–160（50 aa） Chain A 161–174（14 aa） Chain A 175–183（9 aa） Chain A 184–200（17 aa） Chain A 201–202（2 aa） Chain A 203–247（45 aa） Chain B 30–50（21 aa） Chain B 51–108（58 aa） Chain B 109–110（2 aa） Chain B 111–160（50 aa） Chain B 161–174（14 aa） Chain B 175–183（9 aa） Chain B 184–200（17 aa） Chain B 201–202（2 aa） Chain B 203–247（45 aa）	Not recorded	151 (2S)-3-METHYL-2-((2R,3S)-3-[(METHYLSULFONYL)AMINO]-1-{[2-(PYRROLIDIN-1-YLMETHYL)-1,3-OXAZOL-4-YL]CARBONYL}PYRROLIDIN-2-YL)BUTANOIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；HNE/GW475151 COMPLEX 10MG/ML IN 10MM NA CITRATE PH 5.0. HANGING DROPS OF EQUAL VOLUMES OF PROTEIN AND PRECIPITANT. PRECIPITANT 1.1-1.2M AMMONIUM SULPHATE, 100MM CITRATE PH 3.8-4.0, ROOM TEMP.	Resolution 2.00 Å R-free 0.310
1HNE Structure of human neutrophil elastase in complex with a peptide chloromethyl ketone inhibitor at 1.84-angstroms resolution Deposited 1989-04-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.84 Å
1PPF X-RAY CRYSTAL STRUCTURE OF THE COMPLEX OF HUMAN LEUKOCYTE ELASTASE (PMN ELASTASE) AND THE THIRD DOMAIN OF THE TURKEY OVOMUCOID INHIBITOR Deposited 1991-10-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
1PPG The refined 2.3 angstroms crystal structure of human leukocyte elastase in a complex with a valine chloromethyl ketone inhibitor Deposited 1991-10-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å
1PPG The refined 2.3 angstroms crystal structure of human leukocyte elastase in a complex with a valine chloromethyl ketone inhibitor Deposited 1991-10-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å
2RG3 Covalent complex structure of elastase Deposited 2007-10-02	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；PEG, HEPES, pH 7.0, VAPOR DIFFUSION, temperature 293K	Resolution 1.80 Å
2Z7F Crystal structure of the complex of human neutrophil elastase with 1/2SLPI Deposited 2007-08-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 30–247（218 aa） Fragment：Peptidase S1 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1M Na-Acetate, 2.0M Na-Formate, pH 4.5, VAPOR DIFFUSION, SITTING DROP, temperature 293.0K	Resolution 1.70 Å R-free 0.231
3Q76 Structure of human neutrophil elastase (uncomplexed) Deposited 2011-01-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；1.9 M ammonium sulfate, 5% w/v PEG400, 0.1 M MES-NaOH, 20% v/v glycerol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.86 Å R-free 0.214
3Q76 Structure of human neutrophil elastase (uncomplexed) Deposited 2011-01-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；1.9 M ammonium sulfate, 5% w/v PEG400, 0.1 M MES-NaOH, 20% v/v glycerol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.86 Å R-free 0.214
3Q77 Structure of human neutrophil elastase in complex with a dihydropyrimidone inhibitor Deposited 2011-01-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2HY 2-hydroxyethyl (4R)-4-(4-cyanophenyl)-6-methyl-2-oxo-1-[3-(trifluoromethyl)phenyl]-1,2,3,4-tetrahydropyrimidine-5-carboxylate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；20% w/v PEG3350, 0.2 M ammonium citrate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.203
4NZL Extracellular proteins of Staphylococcus aureus inhibit the neutrophil serine proteases Deposited 2013-12-12	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 30–247（218 aa） Fragment：mature neutrophil elastase	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；298 K；1.0 M succinic acid, 0.1 M Na-HEPES, 1% (w/v) PEG 2000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.85 Å R-free 0.207
4WVP Crystal structure of an activity-based probe HNE complex Deposited 2014-11-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 30–247（218 aa）	Not recorded	SO4 SULFATE ION × 3 EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1M Tris pH8, 0.8M ammonium sulfate	Resolution 1.63 Å R-free 0.169
4WVP Crystal structure of an activity-based probe HNE complex Deposited 2014-11-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 30–247（218 aa）	Not recorded	SO4 SULFATE ION × 9 EDO 1,2-ETHANEDIOL × 18	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；0.1M Tris pH8, 0.8M ammonium sulfate	Resolution 1.63 Å R-free 0.169
5A09 Crystal Structure of human neutrophil elastase in complex with a dihydropyrimidone inhibitor Deposited 2015-04-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa） Fragment：RESIDUES 30-247	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 JJD 2-[(4R)-4-(4-cyanophenyl)-5-ethanoyl-6-methyl-2-oxidanylidene-1-[3-(trifluoromethyl)phenyl]-4H-pyrimidin-3-yl]ethanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions 28%PEG4000, 0.1MTRIS/HCL AT PH 8.2, 0.7MLICL	Resolution 1.81 Å R-free 0.239
5A0A Crystal Structure of human neutrophil elastase in complex with a dihydropyrimidone inhibitor Deposited 2015-04-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain E 30–247（218 aa）	Not recorded	JJS 5-[(6R)-5-ethanoyl-4-methyl-2-oxidanylidene-3-[3-(trifluoromethyl)phenyl]-1,6-dihydropyrimidin-6-yl]pyridine-2-carbonitrile × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions 28%PEG4000,0.1MTRIS/HCL AT PH 8.2,0.7MLICL	Resolution 1.78 Å R-free 0.204
5A0B Crystal Structure of human neutrophil elastase in complex with a dihydropyrimidone inhibitor Deposited 2015-04-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 JJX (4R)-4-(4-cyanophenyl)-6-methyl-2-oxidanylidene-3-[2-oxidanylidene-2-(4-propan-2-ylpiperazin-1-yl)ethyl]-1-[3-(trifluoromethyl)phenyl]-4H-pyrimidine-5-carbonitrile × 1 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions 15% PEG6000, 0.2M AMMONIUM CITRATE	Resolution 2.23 Å R-free 0.218
5A0C Crystal Structure of human neutrophil elastase in complex with a dihydropyrimidone inhibitor Deposited 2015-04-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa） Fragment：UNP RESIDUES 30-247	Not recorded	JJV (6S)-6-(4-cyano-2-methylsulfonyl-phenyl)-4-methyl-2-oxidanylidene-3-[3-(trifluoromethyl)phenyl]-1,6-dihydropyrimidine-5-carbonitrile × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 XPE 3,6,9,12,15,18,21,24,27-NONAOXANONACOSANE-1,29-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.1M MES AT PH6.5,1.2M SODIUMMALONATE	Resolution 2.10 Å R-free 0.213
5A0C Crystal Structure of human neutrophil elastase in complex with a dihydropyrimidone inhibitor Deposited 2015-04-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 30–247（218 aa） Fragment：UNP RESIDUES 30-247	Not recorded	JJV (6S)-6-(4-cyano-2-methylsulfonyl-phenyl)-4-methyl-2-oxidanylidene-3-[3-(trifluoromethyl)phenyl]-1,6-dihydropyrimidine-5-carbonitrile × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions 0.1M MES AT PH6.5,1.2M SODIUMMALONATE	Resolution 2.10 Å R-free 0.213
5A8X Crystal Structure of human neutrophil elastase in complex with a dihydropyrimidone inhibitor Deposited 2015-07-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 IUY ethyl (5R)-5-(4-cyanophenyl)-7-methyl-8-[3-(trifluoromethyl)phenyl]-1,5-dihydroimidazo[1,2-a]pyrimidin-4-ium-6-carboxylate × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.23 Å R-free 0.223
5A8Y Crystal Structure of human neutrophil elastase in complex with a dihydropyrimidone inhibitor Deposited 2015-07-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa）	Not recorded	VBM METHYL {(7R)-6-CYANO-7-(4-CYANOPHENYL)-5-METHYL-4-[3-(TRIFLUOROMETHYL)PHENYL]-4,7-DIHYDRO[1,2,4]TRIAZOLO[1,5-A]PYRIMIDIN-2-YL}CARBAMATE × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 MLI MALONATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.221
5A8Z Crystal Structure of human neutrophil elastase in complex with a dihydropyrimidone inhibitor Deposited 2015-07-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 IUL 4-[(4R)-7-methyl-2,5-bis(oxidanylidene)-1-[3-(trifluoromethyl)phenyl]-3,4,6,8-tetrahydropyrimido[4,5-d]pyridazin-4-yl]benzenecarbonitrile × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.236
5ABW Neutrophil elastase inhibitors for the treatment of (cardio)pulmonary diseases Deposited 2015-08-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa） Fragment：UNP RESIDUES 30-247	Not recorded	WQQ 1-(3-CHLOROPHENYL)-5-(3,5-DIMETHYLISOXAZOL-4-YL)-6-METHYL-N-[4-(METHYLSULFONYL)BENZYL]-2-OXO-1,2-DIHYDROPYRIDINE-3-CARBOXAMIDE × 1 CL CHLORIDE ION × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å R-free 0.194
6E69 Ortho-substituted phenyl sulfonyl fluoride and fluorosulfate as potent elastase inhibitory fragments Deposited 2018-07-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	HVP 2-(fluorosulfonyl)benzene-1-sulfonic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；0.3 M ammonium citrate, pH 5.0, 14% w/v PEG3350	Resolution 2.33 Å R-free 0.241
6E69 Ortho-substituted phenyl sulfonyl fluoride and fluorosulfate as potent elastase inhibitory fragments Deposited 2018-07-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	HVP 2-(fluorosulfonyl)benzene-1-sulfonic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；0.3 M ammonium citrate, pH 5.0, 14% w/v PEG3350	Resolution 2.33 Å R-free 0.241
6E69 Ortho-substituted phenyl sulfonyl fluoride and fluorosulfate as potent elastase inhibitory fragments Deposited 2018-07-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain C 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	HVP 2-(fluorosulfonyl)benzene-1-sulfonic acid × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；0.3 M ammonium citrate, pH 5.0, 14% w/v PEG3350	Resolution 2.33 Å R-free 0.241
6E69 Ortho-substituted phenyl sulfonyl fluoride and fluorosulfate as potent elastase inhibitory fragments Deposited 2018-07-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain D 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	HVP 2-(fluorosulfonyl)benzene-1-sulfonic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；0.3 M ammonium citrate, pH 5.0, 14% w/v PEG3350	Resolution 2.33 Å R-free 0.241
6F5M Crystal structure of highly glycosylated human leukocyte elastase in complex with a thiazolidinedione inhibitor Deposited 2017-12-01	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa）	Not recorded	SO4 SULFATE ION × 2 ACT ACETATE ION × 2 CQH 5-[[4-[[(2~{S})-4-methyl-1-oxidanylidene-1-[(2-propylphenyl)amino]pentan-2-yl]carbamoyl]phenyl]methyl]-2-oxidanylidene-1,3-thiazol-1-ium-4-olate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；HLE from human blood was purchased from SERVA as a lyophilisate in the presence of sodium acetate puffer, pH 5.5. The lyophilisate was disolved in water so that the HLE concentration was 5 mg/ml (170 micromolar) and the acetate concentration 250 millimolar. 120 microliter dissolved HNE lysophilisate was mixed with 6 microliter inhibitor solution (10 mM in DMSO). 1 microliter of the resulting HLE/inhibitor mixture was mixed with 0.5 microliter reservoir solution which was composed of 20 % PEG MME 5000, 0.2 M potassium sulphate. Repeated seeding was necessary to get usable crystals. In the final seeding step the reservoir was composed of 20 % PEG MME 5000, 0.2 M sodium sulphate.	Resolution 2.70 Å R-free 0.234
6F5M Crystal structure of highly glycosylated human leukocyte elastase in complex with a thiazolidinedione inhibitor Deposited 2017-12-01	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 30–247（218 aa）	Not recorded	SO4 SULFATE ION × 2 ACT ACETATE ION × 1 CQH 5-[[4-[[(2~{S})-4-methyl-1-oxidanylidene-1-[(2-propylphenyl)amino]pentan-2-yl]carbamoyl]phenyl]methyl]-2-oxidanylidene-1,3-thiazol-1-ium-4-olate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；HLE from human blood was purchased from SERVA as a lyophilisate in the presence of sodium acetate puffer, pH 5.5. The lyophilisate was disolved in water so that the HLE concentration was 5 mg/ml (170 micromolar) and the acetate concentration 250 millimolar. 120 microliter dissolved HNE lysophilisate was mixed with 6 microliter inhibitor solution (10 mM in DMSO). 1 microliter of the resulting HLE/inhibitor mixture was mixed with 0.5 microliter reservoir solution which was composed of 20 % PEG MME 5000, 0.2 M potassium sulphate. Repeated seeding was necessary to get usable crystals. In the final seeding step the reservoir was composed of 20 % PEG MME 5000, 0.2 M sodium sulphate.	Resolution 2.70 Å R-free 0.234
6SMA Crystal structure of Human Neutrophil Elastase (HNE) in complex with the 3-Oxo-beta-Sultam inhibitor LMC249 Deposited 2019-08-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa）	Not recorded	BR BROMIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293.15 K；24% PEG Smear Broad 0.1 M Tris-HCl pH 7.2 0.1 M KSCN 0.1M NaBr	Resolution 2.59 Å R-free 0.258
6SMA Crystal structure of Human Neutrophil Elastase (HNE) in complex with the 3-Oxo-beta-Sultam inhibitor LMC249 Deposited 2019-08-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain B 30–247（218 aa）	Not recorded	BR BROMIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293.15 K；24% PEG Smear Broad 0.1 M Tris-HCl pH 7.2 0.1 M KSCN 0.1M NaBr	Resolution 2.59 Å R-free 0.258
6SMA Crystal structure of Human Neutrophil Elastase (HNE) in complex with the 3-Oxo-beta-Sultam inhibitor LMC249 Deposited 2019-08-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain C 30–247（218 aa）	Not recorded	BR BROMIDE ION × 2 LKK 3-[[1-[(4-bromophenyl)methyl]-1,2,3-triazol-4-yl]methylcarbamoyl]pentane-3-sulfonic acid × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293.15 K；24% PEG Smear Broad 0.1 M Tris-HCl pH 7.2 0.1 M KSCN 0.1M NaBr	Resolution 2.59 Å R-free 0.258
7CBK Structure of Human Neutrophil Elastase Ecotin complex Deposited 2020-06-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–267（267 aa） Chain D 1–267（267 aa）	Not recorded	GOL GLYCEROL × 1 SO4 SULFATE ION × 2 MG MAGNESIUM ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M Ammonium sulfate, 0.1 M BIS-TRIS pH 5.5 and 25% w/v Polyethylene glycol 3,350	Resolution 2.70 Å R-free 0.266
7WHU Human Neutrophil Elastase in-complex with Ecotin Peptide Deposited 2021-12-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–267（267 aa）	Not recorded	GOL GLYCEROL × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；0.2 M Ammonium sulfate, 0.1 M BIS-TRIS pH 5.5 and 25% w/v Polyethylene glycol 3350 (PEG3350)	Resolution 2.89 Å R-free 0.306
7WHU Human Neutrophil Elastase in-complex with Ecotin Peptide Deposited 2021-12-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–267（267 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；0.2 M Ammonium sulfate, 0.1 M BIS-TRIS pH 5.5 and 25% w/v Polyethylene glycol 3350 (PEG3350)	Resolution 2.89 Å R-free 0.306
7WHU Human Neutrophil Elastase in-complex with Ecotin Peptide Deposited 2021-12-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–267（267 aa）	Not recorded	GOL GLYCEROL × 3 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；0.2 M Ammonium sulfate, 0.1 M BIS-TRIS pH 5.5 and 25% w/v Polyethylene glycol 3350 (PEG3350)	Resolution 2.89 Å R-free 0.306
7WHU Human Neutrophil Elastase in-complex with Ecotin Peptide Deposited 2021-12-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–267（267 aa）	Not recorded	GOL GLYCEROL × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；0.2 M Ammonium sulfate, 0.1 M BIS-TRIS pH 5.5 and 25% w/v Polyethylene glycol 3350 (PEG3350)	Resolution 2.89 Å R-free 0.306
8D4Q Crystal Structure of Neutrophil Elastase Inhibited by Eap1 from S. aureus Deposited 2022-06-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M sodium citrate (pH 5.2), 12% (w/v) PEG-6000	Resolution 2.20 Å R-free 0.217
8D4Q Crystal Structure of Neutrophil Elastase Inhibited by Eap1 from S. aureus Deposited 2022-06-02	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.2；293 K；0.1M sodium citrate (pH 5.2), 12% (w/v) PEG-6000	Resolution 2.20 Å R-free 0.217
8D4U Crystal Structure of Neutrophil Elastase Inhibited by Eap2 from S. aureus Deposited 2022-06-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1M HEPES (pH 7.5), 0.2M Lithium Sulfate, 25%(w/v) PEG-3350	Resolution 1.90 Å R-free 0.230
8D4U Crystal Structure of Neutrophil Elastase Inhibited by Eap2 from S. aureus Deposited 2022-06-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；0.1M HEPES (pH 7.5), 0.2M Lithium Sulfate, 25%(w/v) PEG-3350	Resolution 1.90 Å R-free 0.230
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7I Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap1 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.9；293 K；0.1M BisTris, 0.2M sodium/potassium tartrate, 14% PEG-8000	Resolution 3.63 Å R-free 0.217
8D7K Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap2 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.6；293 K；0.1M Citric acid, 0.15M Lithium Sulfate, 12% PEG-6000	Resolution 3.10 Å R-free 0.258
8D7K Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap2 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.6；293 K；0.1M Citric acid, 0.15M Lithium Sulfate, 12% PEG-6000	Resolution 3.10 Å R-free 0.258
8D7K Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap2 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.6；293 K；0.1M Citric acid, 0.15M Lithium Sulfate, 12% PEG-6000	Resolution 3.10 Å R-free 0.258
8D7K Bifunctional Inhibition of Neutrophil Elastase and Cathepsin G by Eap2 from S. aureus Deposited 2022-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 30–247（218 aa） Fragment：UNP residues 30-247	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.6；293 K；0.1M Citric acid, 0.15M Lithium Sulfate, 12% PEG-6000	Resolution 3.10 Å R-free 0.258
8G24 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 5.5 Deposited 2023-02-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1 M Bis-Tris, 0.2 M sodium chloride, 26% w/v PDB3350	Resolution 1.82 Å R-free 0.249
8G25 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 7.5 Deposited 2023-02-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M lithium sulfate, 26% w/v PEG3350	Resolution 1.80 Å R-free 0.283
8G25 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 7.5 Deposited 2023-02-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M lithium sulfate, 26% w/v PEG3350	Resolution 1.80 Å R-free 0.283
8G25 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 7.5 Deposited 2023-02-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain H 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M lithium sulfate, 26% w/v PEG3350	Resolution 1.80 Å R-free 0.283
8QGX Complex between human neutrophil elastase with nanobody NbE201 Deposited 2023-09-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 30–247（218 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；The crystals were grown at 20oC using the sitting drop vapor diffusion method. The drop contained 0.2 uL of hNE in complex with NbE201 at a concentration of 15 mg/mL and 0.2 uL of 0.1M HEPES pH7 buffer with 10 per cent (v/v) polyethylene glycol 5000 monomethyl ether and 5 per cent (v/v) tacsimate. The crystals were transferred to a cryoprotectant solution containing 33 per cent (v/v) polyethylene glycol 6000 and 33 per cent (v/v) glycerol before being frozen in liquid nitrogen.	Resolution 2.30 Å R-free 0.271
8VK5 Human Sputum Leucocyte Elastase (uncomplexed) Deposited 2024-01-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain E 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；296 K；0.2 M Lithium sulfate monohydrate, 0.1 M TRIS hydrochloride pH 8.5, 30% w/v Polyethylene glycol 4,000	Resolution 1.56 Å R-free 0.159
9ASS Crystal Structure of Neutrophil Elastase Inhibited by Eap4 from S. aureus Deposited 2024-02-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 30–247（218 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.01 M zinc sulfate heptahydrate 0.1M MES (pH 6.5) 25% (v/v) peg-550MME	Resolution 1.75 Å R-free 0.212
9ASX BIFUNCTIONAL INHIBITION OF NEUTROPHIL ELASTASE AND CATHEPSIN G by Eap3 of S. aureus Deposited 2024-02-26	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 30–247（218 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium citrate 0.1 M imidazole (pH 6.8) 22% (w/v) peg-2kMME	Resolution 1.96 Å R-free 0.228
9ATK BIFUNCTIONAL INHIBITION OF NEUTROPHIL ELASTASE AND CATHEPSIN G by Eap4 of S. aureus Deposited 2024-02-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 30–247（218 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate (pH 5.5) 12% (w/v) PEG-6K	Resolution 2.11 Å R-free 0.233
9ATK BIFUNCTIONAL INHIBITION OF NEUTROPHIL ELASTASE AND CATHEPSIN G by Eap4 of S. aureus Deposited 2024-02-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 30–247（218 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate (pH 5.5) 12% (w/v) PEG-6K	Resolution 2.11 Å R-free 0.233
9ATK BIFUNCTIONAL INHIBITION OF NEUTROPHIL ELASTASE AND CATHEPSIN G by Eap4 of S. aureus Deposited 2024-02-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 30–247（218 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate (pH 5.5) 12% (w/v) PEG-6K	Resolution 2.11 Å R-free 0.233
9ATK BIFUNCTIONAL INHIBITION OF NEUTROPHIL ELASTASE AND CATHEPSIN G by Eap4 of S. aureus Deposited 2024-02-27	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 30–247（218 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M sodium citrate (pH 5.5) 12% (w/v) PEG-6K	Resolution 2.11 Å R-free 0.233
9ATU Bifunctional Inhibition of Neutrophil Elastase by Eap4 from S. aureus Deposited 2024-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 30–247（218 aa） Chain F 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium acetate 0.1 M Tris-HCl (pH 8.0) 17% (w/v) PEG-10K	Resolution 2.05 Å R-free 0.237
9ATU Bifunctional Inhibition of Neutrophil Elastase by Eap4 from S. aureus Deposited 2024-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 30–247（218 aa） Chain C 30–247（218 aa） Chain D 30–247（218 aa） Chain F 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium acetate 0.1 M Tris-HCl (pH 8.0) 17% (w/v) PEG-10K	Resolution 2.05 Å R-free 0.237
9ATU Bifunctional Inhibition of Neutrophil Elastase by Eap4 from S. aureus Deposited 2024-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 30–247（218 aa） Chain C 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium acetate 0.1 M Tris-HCl (pH 8.0) 17% (w/v) PEG-10K	Resolution 2.05 Å R-free 0.237
9ATU Bifunctional Inhibition of Neutrophil Elastase by Eap4 from S. aureus Deposited 2024-02-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium acetate 0.1 M Tris-HCl (pH 8.0) 17% (w/v) PEG-10K	Resolution 2.05 Å R-free 0.237
9ATU Bifunctional Inhibition of Neutrophil Elastase by Eap4 from S. aureus Deposited 2024-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 30–247（218 aa） Chain F 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium acetate 0.1 M Tris-HCl (pH 8.0) 17% (w/v) PEG-10K	Resolution 2.05 Å R-free 0.237
9ATU Bifunctional Inhibition of Neutrophil Elastase by Eap4 from S. aureus Deposited 2024-02-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 30–247（218 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M ammonium acetate 0.1 M Tris-HCl (pH 8.0) 17% (w/v) PEG-10K	Resolution 2.05 Å R-free 0.237
9SI4 Structure of human neutrophil elastase in complex with a 5,8-dihydro[1,2,4]triazolo[4,3-a]pyrimidin-3(2H)-one inhibitor Deposited 2025-08-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 30–247（218 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 FUC alpha-L-fucopyranose × 1 A1JN2 methyl (5~{R})-5-[4-cyano-2-[2-(trimethyl-$l^{4}-azanyl)ethyl]phenyl]-7-methyl-3-oxidanylidene-8-[3-(trifluoromethyl)phenyl]-2,5-dihydro-[1,2,4]triazolo[4,3-a]pyrimidine-6-carboxylate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；18% PEG-3350, 0.2M ammonium citrate	Resolution 1.14 Å R-free 0.155

37 other PDB entries and 70 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ELNE_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–218； UniProt 30–247

MAP domain-containing protein

Staphylococcus aureus subsp. aureus Mu50

UniProt A0A0H3JUK5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 1 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 31–144	Not recorded	Cathepsin-G × 1 （P08311） Neutrophil elastase × 1 （P08246） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；0.1 M Tris, 0.2 M magnesium chloride, 25% PEG3350	Resolution 1.85 Å R-free 0.238

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 8G26	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8G24 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 5.5 Deposited 2023-02-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 31–144（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293 K；0.1 M Bis-Tris, 0.2 M sodium chloride, 26% w/v PDB3350	Resolution 1.82 Å R-free 0.249
8G25 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 7.5 Deposited 2023-02-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 31–144（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M lithium sulfate, 26% w/v PEG3350	Resolution 1.80 Å R-free 0.283
8G25 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 7.5 Deposited 2023-02-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 31–144（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M lithium sulfate, 26% w/v PEG3350	Resolution 1.80 Å R-free 0.283
8G25 Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 7.5 Deposited 2023-02-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 31–144（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M HEPES, 0.2 M lithium sulfate, 26% w/v PEG3350	Resolution 1.80 Å R-free 0.283

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A0H3JUK5_STAAM
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 4–117； UniProt 31–144

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8g26
Deposition date deposition_date	2023-02-03
Structure title title	Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 8.5
Keywords keywords	Protease Inhibitor, Immune Evasion, Neutrophil, S. aureus, HYDROLASE-INHIBITOR complex; HYDROLASE/INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.39 Å
Radius of gyration Rg (electron density) rg_electron	28.77 Å
Forward intensity I(0) i0	64243800.00
Molecular weight molecular_weight	60914.0 kDa
Excluded volume excluded_volume	75714 Å³
Envelope volume envelope_volume	94005 Å³
Hydration-shell volume shell_volume	28387 Å³
Envelope diameter envelope_diameter	96.2 Å
Shell Rg shell_rg	34.87 Å
Envelope Rg envelope_rg	28.67 Å
Shape Rg shape_rg	28.76 Å
Total Rg total_rg	29.42 Å
Total atoms total_atoms	8591
Residues n_residues	544
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

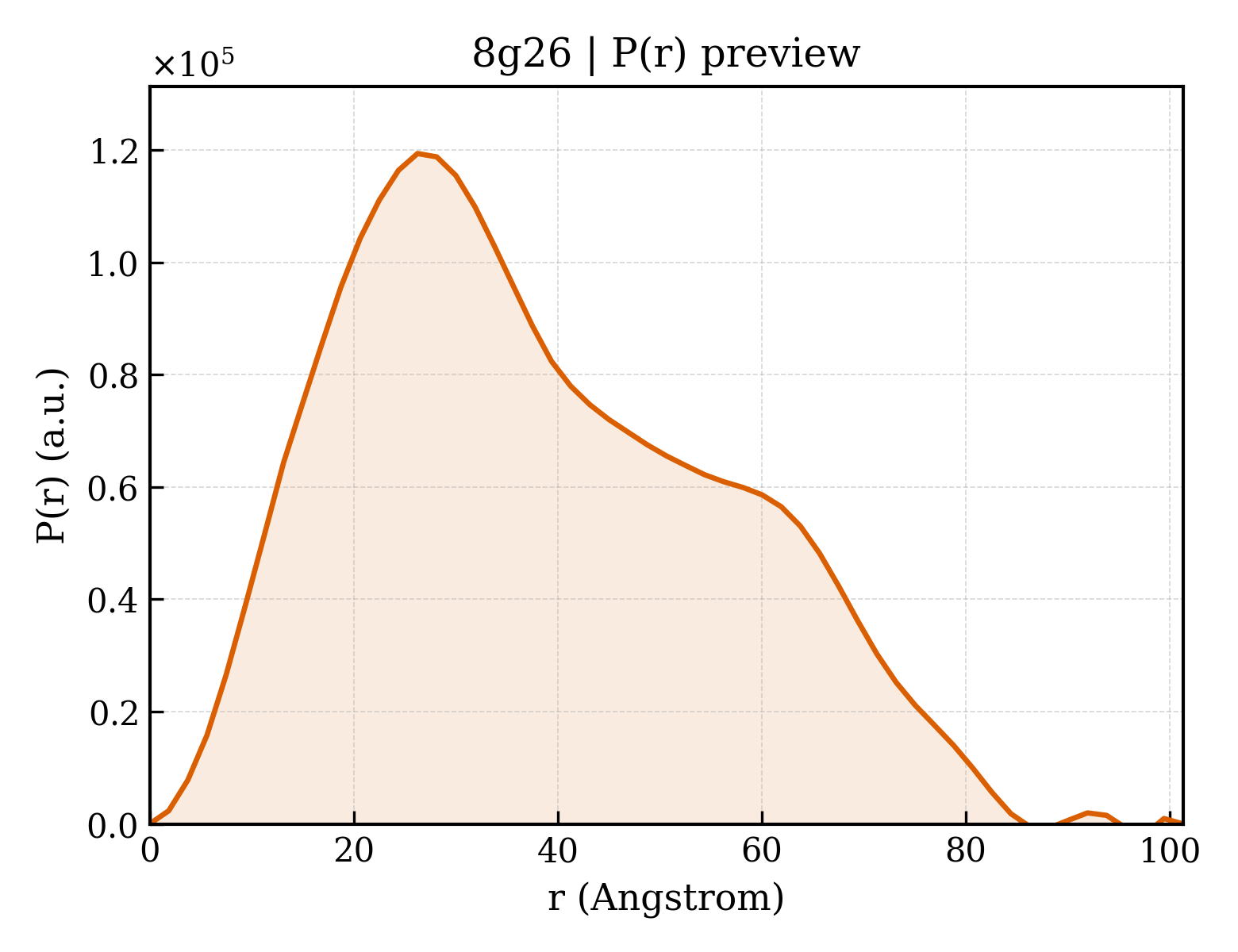

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.3 Å
Rg (real space) rg_real	29.53 Å
Rg uncertainty (real space) rg_real_error	0.91 Å
I(0) (real space) i0_real	6.4240e+07
I(0) uncertainty (real space) i0_real_error	9.6300e+05
Rg (reciprocal space) rg_reciprocal	29.47 Å
I(0) (reciprocal space) i0_reciprocal	64240000.0000
Solution quality estimate total_estimate	0.7335
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	26.3 Å
Skewness Skewness skewness	0.397
Kurtosis Kurtosis kurtosis	-0.707
Angular range angular_range	— – 0.2700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	34770000.0000
Real-space data points n_real_points	55
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.587; Stabil: 0.988; Sysdev: 1.000; Positv: 1.000; Valcen: 0.806; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Cathepsin-G
Molecular weight formula_weight	25397.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8810

IIGGRESRPHSRPYMAYLQIQSPAGQSRCGGFLVREDFVLTAAHCWGSNINVTLGAHNIQRRENTQQHITARRAIRHPQYNQRTIQNDIMLLQLSRRVRRNRNVNPVALPRAQEGLRPGTLCTVAGWGRVSMRRGTDTLREVQLRVQRDRQCLRIFGSYDPRRQICVGDRRERKAAFKGDSGGPLLCNNVAHGIVSYGKSSGVPPEVFTRVSSFLPWIRTTMR

Entity 2 Entity 2 polymer

Description description	Neutrophil elastase
Molecular weight formula_weight	23319.0 kDa
EC 编号 ec_number	3.4.21.37
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

IVGGRRARPHAWPFMVSLQLRGGHFCGATLIAPNFVMSAAHCVANVNVRAVRVVLGAHNLSRREPTRQVFAVQRIFENGYDPVNLLNDIVILQLNGSATINANVQVAQLPAQGRRLGNGVQCLAMGWGLLGRNRGIASVLQELNVTVVTSLCRRSNVCTLVRGRQAGVCFGDSGSPLVCNGLIHGIASFVRGGCASGLYPDAFAPVAQFVNWIDSIIQ

Entity 3 Entity 3 polymer

Description description	MAP domain-containing protein
Molecular weight formula_weight	13123.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GSTAEKDKLPATQKAKEMQNVPYTIAVDGIMAFNQSYLNLPKDSQLSYLDLGNKVKALLYDERGVTPEKIRNAKSAVYTITWKDGSKKEVDLKKDSYTANLFDSNSIKQIDINVKTK

来源 Source

来源生物 organism	Staphylococcus aureus subsp. aureus Mu50
NCBI Class编号 ncbi_taxonomy_id	158878
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	219

▶

8. Citations (1)

▶

Unit-cell length a length_a	49.459 Å
Unit-cell length b length_b	68.923 Å
Unit-cell length c length_c	82.524 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	102.38 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	39.560 Å
R factor r_factor	0.2043
R_work r_work	0.2028
R_free r_free	0.2376

fit	/app/data/saxs_computation/g2/8g26/8g26.fit
pddf	/app/data/pr_computation/g2/8g26/8g26.pr.out
profile	/app/data/saxs_computation/g2/8g26/8g26.dat

Crystal Structure of Cathepsin-G and Neutrophil Elastase Inhibited by S. aureus EapH2 at pH 8.5

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cathepsin-G

State in the Current Structure

Other States of the Same Protein in the Database

Neutrophil elastase

State in the Current Structure

Other States of the Same Protein in the Database

MAP domain-containing protein

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 branched

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
