SAXSdb — 8gkl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mucin-16

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain E； UniProt 12695–12821	Fragment：SEA5 domain, residues 12695-12821	MUC16 antibody AR9.6 Fab light chain × 1 MUC16 antibody AR9.6 Fab heavy chain × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.1M PCTP pH 4.0 25% PEG 1500	Resolution 2.60 Å R-free 0.269

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8GKL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7SA9 Human MUC16 SEA5 Domain Deposited 2021-09-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 12665–12857（193 aa） Fragment：SEA5 Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；ammonium acetate, PEG 10000	Resolution 1.69 Å R-free 0.216
7SA9 Human MUC16 SEA5 Domain Deposited 2021-09-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 12665–12857（193 aa） Fragment：SEA5 Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；ammonium acetate, PEG 10000	Resolution 1.69 Å R-free 0.216
8VM1 Structural Elucidation of the Mesothelin Mucin16 CA125 Interaction Deposited 2024-01-12	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 13475–13600（126 aa） Fragment：residues 296-359 of mesothelin (Uniprot numbering),SEA 10 domain of mucin-16	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Bis-Tris, NH4CL, PEG3350	Resolution 2.65 Å R-free 0.298
8VRS Mucin 16 peptide fused to MBP in complex with 4H11-scFv antibody Deposited 2024-01-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 14421–14446（26 aa） Fragment：residues 14421-14446 of mucin-16	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；291 K；0.1M Sodium Citrate, pH 5.0, 10mM Barium Chloride, 27% PEG MME 5000	Resolution 2.47 Å R-free 0.237
8VRS Mucin 16 peptide fused to MBP in complex with 4H11-scFv antibody Deposited 2024-01-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 14421–14446（26 aa） Fragment：residues 14421-14446 of mucin-16	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；291 K；0.1M Sodium Citrate, pH 5.0, 10mM Barium Chloride, 27% PEG MME 5000	Resolution 2.47 Å R-free 0.237

3 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MUC16_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 1–127； UniProt 12695–12821

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8gkl
Deposition date deposition_date	2023-03-19
Structure title title	Crystal Structure of the Humanized MUC16 Specific Antibody huAR9.6
Keywords keywords	CA125, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.13 Å
Radius of gyration Rg (electron density) rg_electron	28.90 Å
Forward intensity I(0) i0	56514500.00
Molecular weight molecular_weight	58181.0 kDa
Excluded volume excluded_volume	72302 Å³
Envelope volume envelope_volume	91924 Å³
Hydration-shell volume shell_volume	28493 Å³
Envelope diameter envelope_diameter	110.2 Å
Shell Rg shell_rg	33.96 Å
Envelope Rg envelope_rg	28.91 Å
Shape Rg shape_rg	28.89 Å
Total Rg total_rg	29.41 Å
Total atoms total_atoms	4100
Residues n_residues	543
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

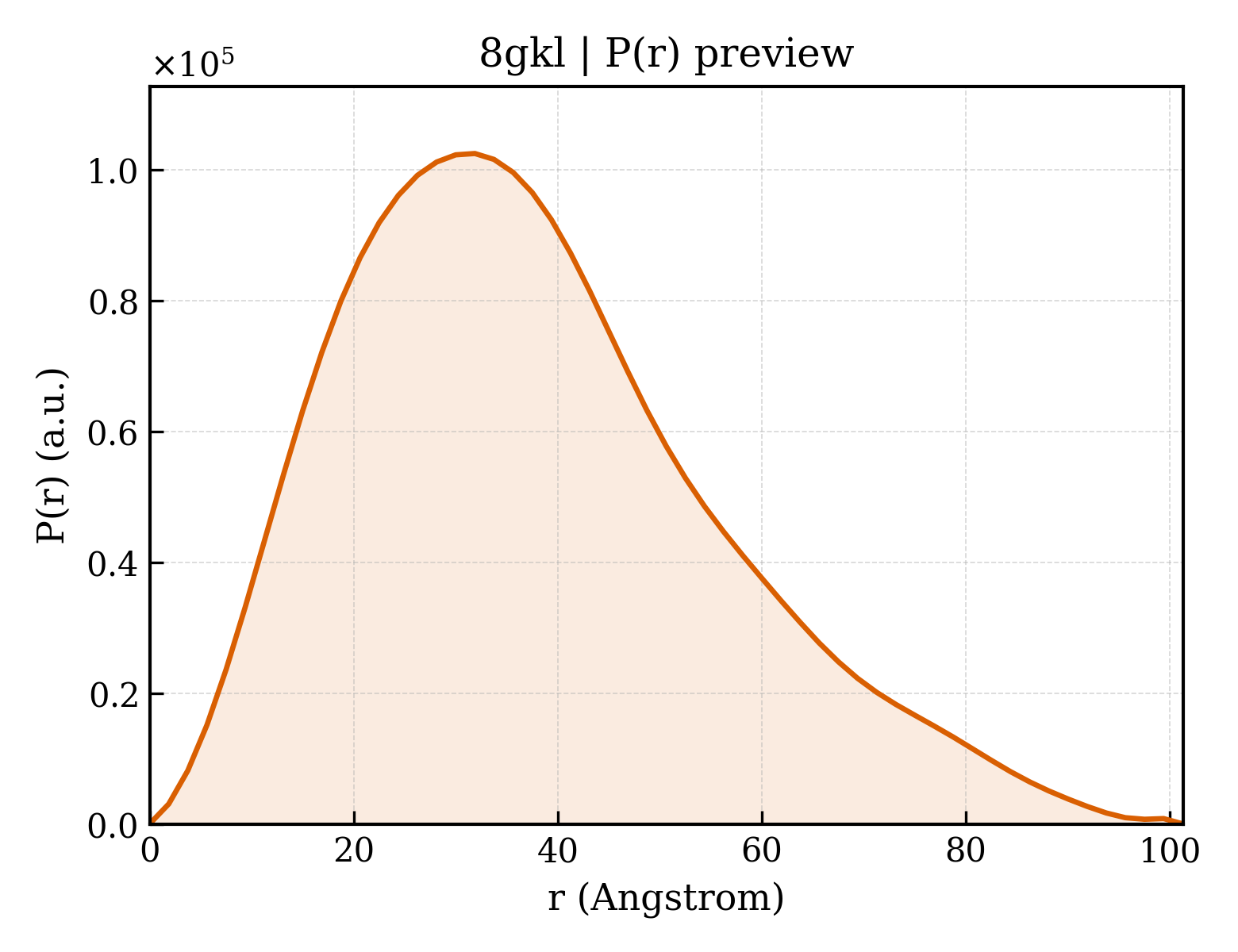

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	101.3 Å
Rg (real space) rg_real	29.35 Å
Rg uncertainty (real space) rg_real_error	0.95 Å
I(0) (real space) i0_real	5.6510e+07
I(0) uncertainty (real space) i0_real_error	8.6980e+05
Rg (reciprocal space) rg_reciprocal	29.26 Å
I(0) (reciprocal space) i0_reciprocal	56510000.0000
Solution quality estimate total_estimate	0.6355
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.9 Å
Skewness Skewness skewness	0.593
Kurtosis Kurtosis kurtosis	-0.046
Angular range angular_range	— – 0.2700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	7867000.0000
Real-space data points n_real_points	55
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.754; Stabil: 1.000; Sysdev: 0.092; Positv: 1.000; Valcen: 0.876; Smooth: 0.844

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Mucin-16
Molecular weight formula_weight	14210.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E
Atom count atom_count	4224

GPLLVPFTLNFTITNLKYEEDMHCPGSRKFNTTERVLQSLLGPMFKNTSVGPLYSGCRLTLLRSEKDGAATGVDAICTHRLDPKSPGVDREQLYWELSQLTNGIKELGPYTLDRNSLYVNGFTHQTS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	MUC16 antibody AR9.6 Fab light chain
Molecular weight formula_weight	23884.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIVLTQSPASLAVSLGQRATISCRASESVDNYGISFMNWFQQKPGHPPKLLIYGASNQGSGVPARFSGSGSGTDFSLNIHPMEEDDAAMYFCQQTKEVPWTFGGGTKVEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Cricetulus griseus

Entity 3 Entity 3 polymer

Description description	MUC16 antibody AR9.6 Fab heavy chain
Molecular weight formula_weight	25216.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLVESGGGLVQPGGSRKLSCAASGFTFSTFGMHWVRQAPEKGLEWVAYISSGSSTIYYGDTLQGRFIISRDNPKNTLFLQMTSLRSEDTAMYYCARSGYDYDPIYYALDYWGQGTSVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKIVPRDCGSHHHHHH

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Cricetulus griseus

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	124

▶

8. Citations (1)

▶

Unit-cell length a length_a	41.470 Å
Unit-cell length b length_b	124.360 Å
Unit-cell length c length_c	235.430 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	orthorhombic

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	42.740 Å
R factor r_factor	0.2181
R_work r_work	0.2154
R_free r_free	0.2692

fit	/app/data/saxs_computation/gk/8gkl/8gkl.fit
pddf	/app/data/pr_computation/gk/8gkl/8gkl.pr.out
profile	/app/data/saxs_computation/gk/8gkl/8gkl.dat
