SAXSdb — 8vm1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mesothelin, cleaved form,Mucin-16

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 其他Polymer 2 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 296–359	Fragment：residues 296-359 of mesothelin (Uniprot numbering),SEA 10 domain of mucin-16	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Bis-Tris, NH4CL, PEG3350	Resolution 2.65 Å R-free 0.298

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8VM1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4F3F Crystal Structure of Msln7-64 MORAb-009 FAB complex Deposited 2012-05-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 302–359（58 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；294 K；0.1 M Trisodium citrate pH 5.6, 17% Polyethylene glycol 3350, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.65 Å R-free 0.222
7U8C Crystal structure of Mesothelin C-terminal peptide-MORAb 15B6 FAB complex Deposited 2022-03-08	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain BA2 590–606（17 aa） Fragment：C-terminal peptide (UNP residues 590-606)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1 M sodium acetate, pH 4.5, 26% PEG550 MME, 6% 2-propanol	Resolution 1.74 Å R-free 0.238
7U9J Crystal structure of Mesothelin-207 fragment Deposited 2022-03-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 296–501（206 aa）	Not recorded	SO4 SULFATE ION × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；0.1 M HEPES, pH 7.5, 100 mM potassium chloride, 12.5% PEG3350, 100 mM lithium sulfate	Resolution 2.09 Å R-free 0.216
7U9J Crystal structure of Mesothelin-207 fragment Deposited 2022-03-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 296–501（206 aa）	Not recorded	SO4 SULFATE ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；0.1 M HEPES, pH 7.5, 100 mM potassium chloride, 12.5% PEG3350, 100 mM lithium sulfate	Resolution 2.09 Å R-free 0.216
7UED Crystal structure of full length mesothelin bound with MORAb-009 Fab Deposited 2022-03-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 295–599（305 aa）	Not recorded	GOL GLYCEROL × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289 K；0.1 M Tris, pH 7, 150 mM sodium citrate, 16.4% PEG3350, 100 mM lithium sulfate	Resolution 3.00 Å R-free 0.237
8CX3 Crystal structure of full-length mesothelin Deposited 2022-05-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 295–599（305 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；289 K；0.9-1.1 M sodium/potassium phosphate, pH 8.2	Resolution 3.61 Å R-free 0.310
8CX3 Crystal structure of full-length mesothelin Deposited 2022-05-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 295–599（305 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PO4 PHOSPHATE ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；289 K；0.9-1.1 M sodium/potassium phosphate, pH 8.2	Resolution 3.61 Å R-free 0.310
8CX3 Crystal structure of full-length mesothelin Deposited 2022-05-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 295–599（305 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；289 K；0.9-1.1 M sodium/potassium phosphate, pH 8.2	Resolution 3.61 Å R-free 0.310
8CX3 Crystal structure of full-length mesothelin Deposited 2022-05-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain D 295–599（305 aa）	Not recorded	PO4 PHOSPHATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；289 K；0.9-1.1 M sodium/potassium phosphate, pH 8.2	Resolution 3.61 Å R-free 0.310
8CX3 Crystal structure of full-length mesothelin Deposited 2022-05-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 295–599（305 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PO4 PHOSPHATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；289 K；0.9-1.1 M sodium/potassium phosphate, pH 8.2	Resolution 3.61 Å R-free 0.310
8CX3 Crystal structure of full-length mesothelin Deposited 2022-05-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain F 295–599（305 aa）	Not recorded	PO4 PHOSPHATE ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；289 K；0.9-1.1 M sodium/potassium phosphate, pH 8.2	Resolution 3.61 Å R-free 0.310
8CXC Novel Anti-Mesothelin Antibodies Enable Crystallography of the Intact Mesothelin Ectodo- main and Engineering of Potent, T cell-engaging Bispecific Therapeutics Deposited 2022-05-20	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: pentameric	Chain M 296–605（310 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；tris 8.0, zinc chloride, ammonium sulfate	Resolution 4.31 Å R-free 0.300
8CYH Novel Anti-Mesothelin Antibodies Enable Crystallography of the Intact Mesothelin Ectodo- main and Engineering of Potent, T cell-engaging Bispecific Therapeutics Deposited 2022-05-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 296–605（310 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；295 K；Tris (8.0), sodium citrate, Peg3350	Resolution 3.38 Å R-free 0.268
8CZ8 Novel Anti-Mesothelin Antibodies Enable Crystallography of the Intact Mesothelin Ectodo- main and Engineering of Potent, T cell-engaging Bispecific Therapeutics Deposited 2022-05-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 434–590（157 aa）	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；295 K；bicine (9.0), glycerol, ammonium sulfate	Resolution 2.60 Å R-free 0.224
8CZ8 Novel Anti-Mesothelin Antibodies Enable Crystallography of the Intact Mesothelin Ectodo- main and Engineering of Potent, T cell-engaging Bispecific Therapeutics Deposited 2022-05-24	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 434–590（157 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；295 K；bicine (9.0), glycerol, ammonium sulfate	Resolution 2.60 Å R-free 0.224
8FSL Human Mesothelin bound to a neutralizing VH domain antibody Deposited 2023-01-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 300–584（285 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；286 K；PEG3350 20% 0.15 M ammonium nitrate	Resolution 2.90 Å R-free 0.254
8FSL Human Mesothelin bound to a neutralizing VH domain antibody Deposited 2023-01-10	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 300–584（285 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；286 K；PEG3350 20% 0.15 M ammonium nitrate	Resolution 2.90 Å R-free 0.254
9P4C Crystal structure of Mesothelin C-terminal peptide-RO4 Fab complex Deposited 2025-06-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 590–606（17 aa） Fragment：C-terminal peptide (UNP residues 590-606)	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；0.1M Bis-Tris, pH 6.5 and 16% PEG 10000	Resolution 1.52 Å R-free 0.180
9Z3B Structure C-terminal human Mesothelin Peptide bound to MSLNB703 Fab Deposited 2025-11-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 590–606（17 aa） Fragment：C-terminal peptide (UNP residues 590-606)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG1500	Resolution 1.96 Å R-free 0.278
9Z3B Structure C-terminal human Mesothelin Peptide bound to MSLNB703 Fab Deposited 2025-11-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 590–606（17 aa） Fragment：C-terminal peptide (UNP residues 590-606)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG1500	Resolution 1.96 Å R-free 0.278
9Z3B Structure C-terminal human Mesothelin Peptide bound to MSLNB703 Fab Deposited 2025-11-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 590–606（17 aa） Fragment：C-terminal peptide (UNP residues 590-606)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG1500	Resolution 1.96 Å R-free 0.278
9Z3B Structure C-terminal human Mesothelin Peptide bound to MSLNB703 Fab Deposited 2025-11-06	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 590–606（17 aa） Fragment：C-terminal peptide (UNP residues 590-606)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；30% PEG1500	Resolution 1.96 Å R-free 0.278

11 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MSLN_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–66； UniProt 296–359

Mesothelin, cleaved form,Mucin-16

Homo sapiens

UniProt Q8WXI7

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 其他Polymer 2 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 13475–13600	Fragment：residues 296-359 of mesothelin (Uniprot numbering),SEA 10 domain of mucin-16	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；Bis-Tris, NH4CL, PEG3350	Resolution 2.65 Å R-free 0.298

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8VM1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7SA9 Human MUC16 SEA5 Domain Deposited 2021-09-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 12665–12857（193 aa） Fragment：SEA5 Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；ammonium acetate, PEG 10000	Resolution 1.69 Å R-free 0.216
7SA9 Human MUC16 SEA5 Domain Deposited 2021-09-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 12665–12857（193 aa） Fragment：SEA5 Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；ammonium acetate, PEG 10000	Resolution 1.69 Å R-free 0.216
8GKL Crystal Structure of the Humanized MUC16 Specific Antibody huAR9.6 Deposited 2023-03-19	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 12695–12821（127 aa） Fragment：SEA5 domain, residues 12695-12821	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1M PCTP pH 4.0 25% PEG 1500	Resolution 2.60 Å R-free 0.269
8VRS Mucin 16 peptide fused to MBP in complex with 4H11-scFv antibody Deposited 2024-01-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 14421–14446（26 aa） Fragment：residues 14421-14446 of mucin-16	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；291 K；0.1M Sodium Citrate, pH 5.0, 10mM Barium Chloride, 27% PEG MME 5000	Resolution 2.47 Å R-free 0.237
8VRS Mucin 16 peptide fused to MBP in complex with 4H11-scFv antibody Deposited 2024-01-22	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 14421–14446（26 aa） Fragment：residues 14421-14446 of mucin-16	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；291 K；0.1M Sodium Citrate, pH 5.0, 10mM Barium Chloride, 27% PEG MME 5000	Resolution 2.47 Å R-free 0.237

3 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MUC16_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 67–192； UniProt 13475–13600

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8vm1
Deposition date deposition_date	2024-01-12
Structure title title	Structural Elucidation of the Mesothelin Mucin16 CA125 Interaction
Keywords keywords	linked complex, CELL ADHESION; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

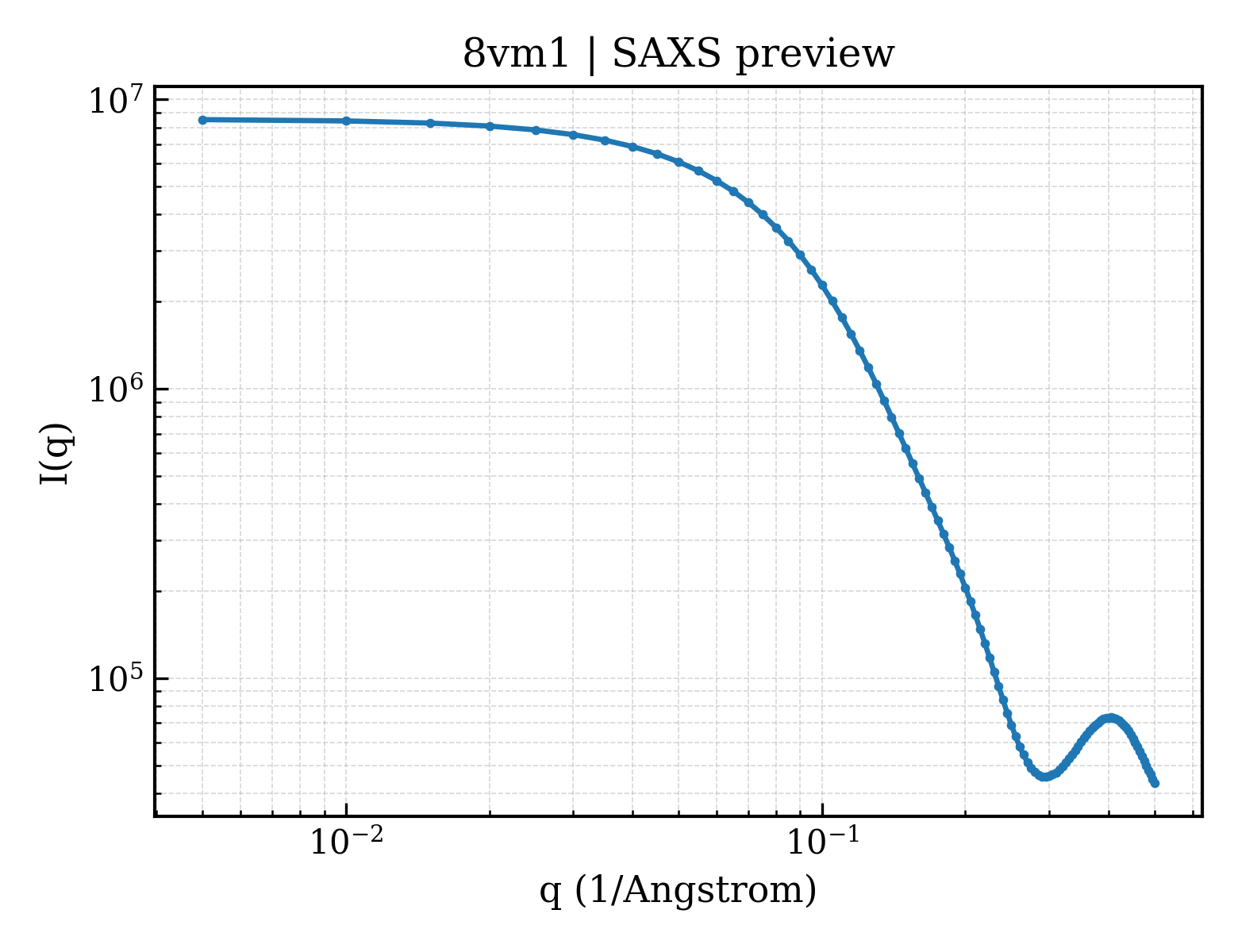

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	20.20 Å
Radius of gyration Rg (electron density) rg_electron	19.29 Å
Forward intensity I(0) i0	8541450.00
Molecular weight molecular_weight	21825.0 kDa
Excluded volume excluded_volume	27482 Å³
Envelope volume envelope_volume	34447 Å³
Hydration-shell volume shell_volume	15802 Å³
Envelope diameter envelope_diameter	72.0 Å
Shell Rg shell_rg	24.41 Å
Envelope Rg envelope_rg	19.31 Å
Shape Rg shape_rg	19.29 Å
Total Rg total_rg	20.12 Å
Total atoms total_atoms	1536
Residues n_residues	185
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

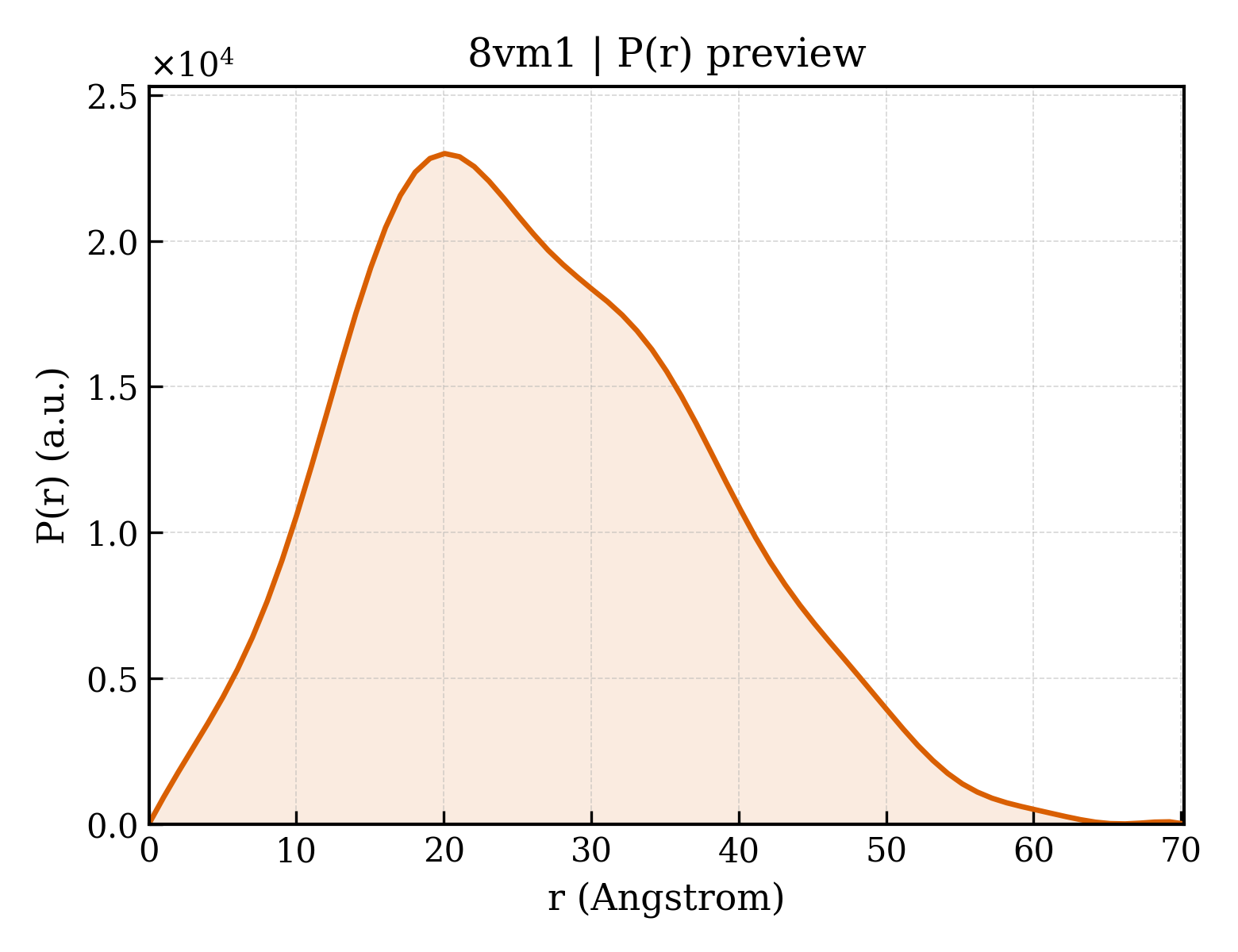

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.2 Å
Rg (real space) rg_real	20.22 Å
Rg uncertainty (real space) rg_real_error	0.56 Å
I(0) (real space) i0_real	8.5410e+06
I(0) uncertainty (real space) i0_real_error	1.0840e+05
Rg (reciprocal space) rg_reciprocal	20.22 Å
I(0) (reciprocal space) i0_reciprocal	8541000.0000
Solution quality estimate total_estimate	0.8598
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.1 Å
Skewness Skewness skewness	0.359
Kurtosis Kurtosis kurtosis	-0.355
Angular range angular_range	— – 0.3950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1891000.0000
Real-space data points n_real_points	71
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.747; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.947; Smooth: 0.984

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Mesothelin, cleaved form,Mucin-16
Molecular weight formula_weight	21898.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1544

GSEVEKTACPSGKKAREIDESLIFYKKWELEACVDAALLATQMDRVNAIPFTYEQLDVLKHKLDELSPLLVLFTINFTITNLRYEENMHHPGSRKFNTTERVLQGLLRPVFKNTSVGPLYSGCRLTLLRPKKDGAATKVDAICTYRPDPKSPGLDREQLYWELSQLTHSITELGPYTLDRDSLYVNGFTQRS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 branched

Description description	alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	8

▶

8. Citations (1)

▶

Unit-cell length a length_a	58.203 Å
Unit-cell length b length_b	73.237 Å
Unit-cell length c length_c	75.054 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.650 Å
Low-resolution limit resolution_low	33.420 Å
R factor r_factor	0.2505
R_work r_work	0.2478
R_free r_free	0.2985

fit	/app/data/saxs_computation/vm/8vm1/8vm1.fit
pddf	/app/data/pr_computation/vm/8vm1/8vm1.pr.out
profile	/app/data/saxs_computation/vm/8vm1/8vm1.dat
