SAXSdb — 8gz7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Gamma-hemolysin component B

Staphylococcus aureus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Gamma-hemolysin component A × 4 （P0A074）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HLGB_STAAU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–271； UniProt 41–325 Author chain C； PDBConstruct 1–271； UniProt 41–325 Author chain E； PDBConstruct 1–271； UniProt 41–325 Author chain G； PDBConstruct 1–271； UniProt 41–325

Gamma-hemolysin component A

Staphylococcus aureus

UniProt P0A074

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Gamma-hemolysin component B × 4 （P0A077）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HLGA_STAAU
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–265； UniProt 32–309 Author chain D； PDBConstruct 1–265； UniProt 32–309 Author chain F； PDBConstruct 1–265； UniProt 32–309 Author chain H； PDBConstruct 1–265； UniProt 32–309

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8gz7
Deposition date deposition_date	2022-09-26
Structure title title	Octahedral supramolecular assembly of the bicomponent gamma-hemolysin octameric pore complexes from Staphylococcus aureus Newman.
Keywords keywords	Super assembly, Pore-forming toxin, cryo-EM, lipid membrane, S. aureus, TOXIN; TOXIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8gz7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8gz7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

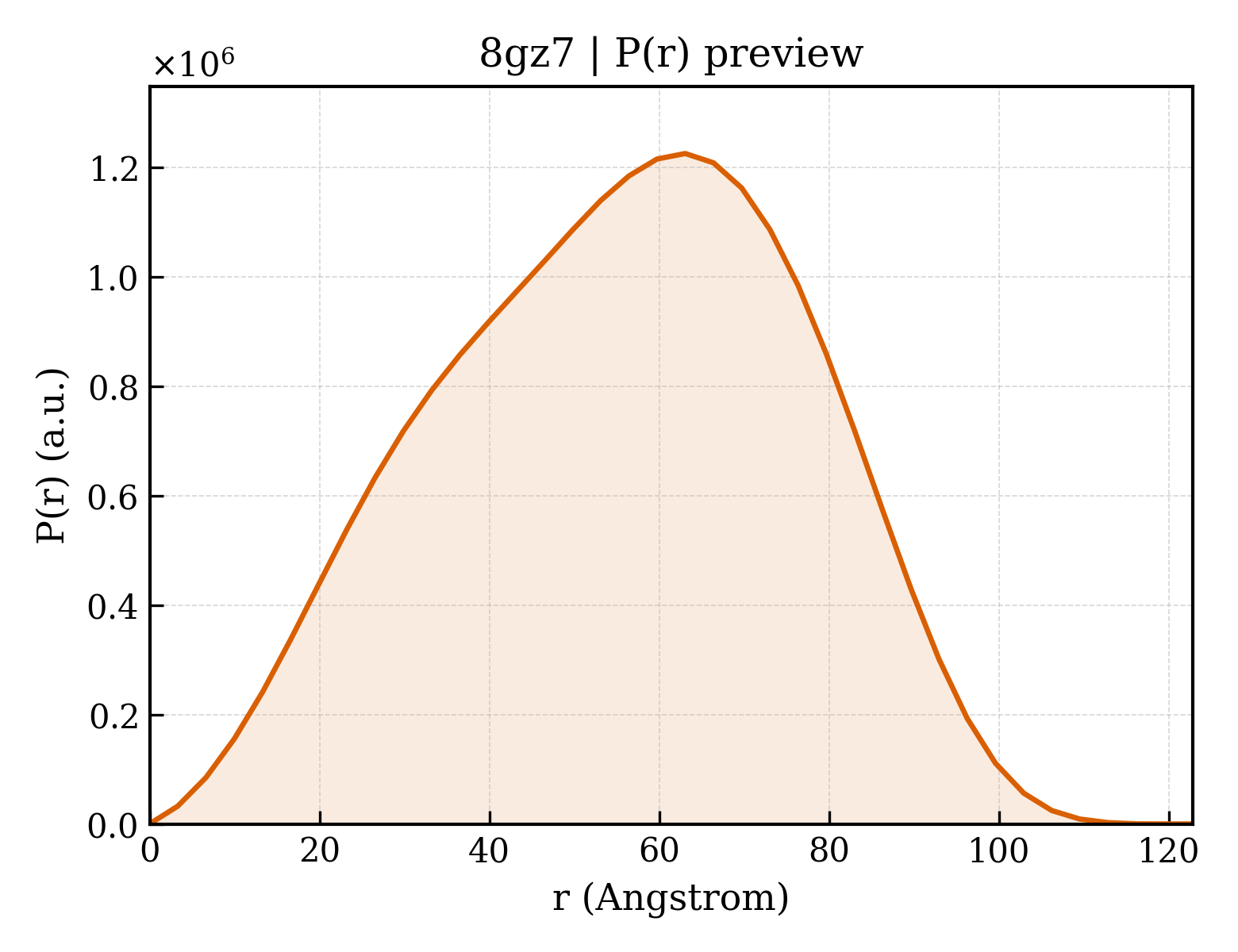

8gz7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.36 Å
Rg (electron density)	41.58 Å
Total Rg	42.04 Å
Atom count	17468
Residues	2136
Excluded volume	309150 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8gz7__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Gamma-hemolysin component B
Molecular weight formula_weight	31305.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	17474

KVTLYKTTATADSDKFKISQILTFNFIKDKSYDKDTLVLKATGNINSGFVKPNPNDYDFSKLYWGAKYNVSISSQSNDSVNVVDYAPKNQNEEFQVQNTLGYTFGGNTAFSETINYKQESYRTTLSRNTNYKNVGWGVEAHKIMNNGWGPYGRDSFHPTYGNELFLAGRQSSAYAGQNFIAQHQMPLLSRSNFNPEFLSVLSHRQDGAKKSKITVTYQREMDLYQIRWNGFYWAGANYKNFKTRTFKSTYEIDWENHKVKLLDTKETENNK

Source Source

Source organism organism	Staphylococcus aureus
NCBI taxonomy ID ncbi_taxonomy_id	1280
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Gamma-hemolysin component A
Molecular weight formula_weight	30563.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

KIEDIGQGAEIIKRTQDITSKRLAITQNIQFDFVKDKKYNKDALVVKMQGFISSRTTYSDLKKYPYIKRMIWPFQYNISLKTKDSNVDLINYLPKNKIDSADVSQKLGYNIGSFNYSKTISYNQKNYVTEVESQNSKGVKWGVKANSFVTPNGQVSAYDQYLFAQDPTGPAARDYFVPDNQLPPLIQSGFNPSFITTLSHERGKGDKSEFEITYGRNMDATYAYVTRHRLAVDRKHDAFKNRNVTVKYEVNWKTHEVKIKSITPK

Source Source

Source organism organism	Staphylococcus aureus
NCBI taxonomy ID ncbi_taxonomy_id	1280
Host organism host_organism	Escherichia coli BL21(DE3)

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	8gz7B01
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	240 — Leukocidin-like
Homologous superfamily homologous superfamily	10 — Leukocidin/porin MspA

Domain ID domain_id	8gz7D01
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	240 — Leukocidin-like
Homologous superfamily homologous superfamily	10 — Leukocidin/porin MspA

Domain ID domain_id	8gz7F01
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	240 — Leukocidin-like
Homologous superfamily homologous superfamily	10 — Leukocidin/porin MspA

Domain ID domain_id	8gz7H01
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	240 — Leukocidin-like
Homologous superfamily homologous superfamily	10 — Leukocidin/porin MspA

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	11634

Octahedral supramolecular assembly of the bicomponent gamma-hemolysin octameric pore complexes from Staphylococcus aureus Newman.
