8hen

Crystal structure of CTSB in complex with 212-148

Method: X-RAY DIFFRACTION D_max: 58.1 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cathepsin B

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 77–333	Not recorded	GOL GLYCEROL × 2 DMS DIMETHYL SULFOXIDE × 1 L4F 2-[4-[[(2~{S})-1-oxidanylidene-3-phenyl-1-[[(3~{S})-1-phenyl-5-(phenylsulfonyl)pentan-3-yl]amino]propan-2-yl]carbamoyl]piperazin-1-yl]ethyl 4-carbamimidamidobenzoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M Magnesium chloride hexahydrate, 0.1 M NaAc pH 5.2, 28% w/v PEG 3350	Resolution 1.95 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8HEN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CSB Crystal structure of cathepsin b inhibited with CA030 at 2.1 angstroms resolution: A basis for the design of specific epoxysuccinyl inhibitors Deposited 1994-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 80–126（47 aa） Chain B 129–333（205 aa）	Not recorded	EP0 N-[(3R)-4-ethoxy-3-hydroxy-4-oxobutanoyl]-L-isoleucyl-L-proline × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1CSB Crystal structure of cathepsin b inhibited with CA030 at 2.1 angstroms resolution: A basis for the design of specific epoxysuccinyl inhibitors Deposited 1994-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain D 80–126（47 aa） Chain E 129–333（205 aa）	Not recorded	EP0 N-[(3R)-4-ethoxy-3-hydroxy-4-oxobutanoyl]-L-isoleucyl-L-proline × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1GMY Cathepsin B complexed with dipeptidyl nitrile inhibitor Deposited 2001-09-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–339（261 aa） Fragment：PROTEASE DOMAIN, RESIDUES 80-333	Not recorded	AEM 2-AMINOETHANIMIDIC ACID × 1 APD 3-METHYLPHENYLALANINE × 1 DFA DIPHENYLACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 1.90 Å R-free 0.199
1GMY Cathepsin B complexed with dipeptidyl nitrile inhibitor Deposited 2001-09-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 79–339（261 aa） Fragment：PROTEASE DOMAIN, RESIDUES 80-333	Not recorded	AEM 2-AMINOETHANIMIDIC ACID × 1 APD 3-METHYLPHENYLALANINE × 1 DFA DIPHENYLACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 1.90 Å R-free 0.199
1GMY Cathepsin B complexed with dipeptidyl nitrile inhibitor Deposited 2001-09-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 79–339（261 aa） Fragment：PROTEASE DOMAIN, RESIDUES 80-333	Not recorded	AEM 2-AMINOETHANIMIDIC ACID × 1 APD 3-METHYLPHENYLALANINE × 1 DFA DIPHENYLACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 1.90 Å R-free 0.199
1HUC THE REFINED 2.15 ANGSTROMS X-RAY CRYSTAL STRUCTURE OF HUMAN LIVER CATHEPSIN B: THE STRUCTURAL BASIS FOR ITS SPECIFICITY Deposited 1993-04-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 80–126（47 aa） Chain B 129–333（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
1HUC THE REFINED 2.15 ANGSTROMS X-RAY CRYSTAL STRUCTURE OF HUMAN LIVER CATHEPSIN B: THE STRUCTURAL BASIS FOR ITS SPECIFICITY Deposited 1993-04-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 80–126（47 aa） Chain D 129–333（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
1PBH CRYSTAL STRUCTURE OF HUMAN RECOMBINANT PROCATHEPSIN B AT 3.2 ANGSTROM RESOLUTION Deposited 1997-02-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 18–333（316 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.3；PROTEIN WAS CRYSTALLIZED FROM 30% PEG 6000, 0.2 M AMMONIUM SULFATE, 0.1 M HEPES, PH 7.3	Resolution 3.20 Å R-free 0.252
2IPP Crystal Structure of the tetragonal form of human liver cathepsin B Deposited 2006-10-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 80–126（47 aa） Fragment：light chain, residues 80-126 Chain B 129–333（205 aa） Fragment：heavy chain, residues 129-333	Not recorded	PYS 2-PYRIDINETHIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；293 K；pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.15 Å
2PBH CRYSTAL STRUCTURE OF HUMAN PROCATHEPSIN B AT 3.3 ANGSTROM RESOLUTION Deposited 1997-02-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 18–333（316 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；PROTEIN WAS CRYSTALLIZED FROM 2 M AMMONIUM SULFATE, 700 MM TRIS, PH 7.2	Resolution 3.30 Å R-free 0.269
3AI8 Cathepsin B in complex with the nitroxoline Deposited 2010-05-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 78–333（256 aa）	Not recorded	HNQ 5-nitroquinolin-8-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3；293 K；0.1M citric acid, 21% PEG6000, pH 3.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.11 Å R-free 0.244
3AI8 Cathepsin B in complex with the nitroxoline Deposited 2010-05-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 78–333（256 aa）	Not recorded	HNQ 5-nitroquinolin-8-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3；293 K；0.1M citric acid, 21% PEG6000, pH 3.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.11 Å R-free 0.244
3CBJ Chagasin-Cathepsin B complex Deposited 2008-02-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 74–339（266 aa）	Mutation：C29A, H110A, S115A	PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；0.2 M ammonium dihydrogen phosphate, 20% PEG 3350, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.80 Å R-free 0.210
3CBJ Chagasin-Cathepsin B complex Deposited 2008-02-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 74–339（266 aa）	Mutation：C29A, H110A, S115A	PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；0.2 M ammonium dihydrogen phosphate, 20% PEG 3350, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.80 Å R-free 0.210
3CBK chagasin-cathepsin B Deposited 2008-02-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 74–339（266 aa）	Mutation：C29A, H110A, S115A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；291 K；0.14M ammonium fluoride, 14% PEG 3350, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.67 Å R-free 0.242
3K9M Cathepsin B in complex with stefin A Deposited 2009-10-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 80–333（254 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2M ammonium suphate, 24% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.61 Å R-free 0.250
3K9M Cathepsin B in complex with stefin A Deposited 2009-10-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 80–333（254 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2M ammonium suphate, 24% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.61 Å R-free 0.250
3PBH REFINED CRYSTAL STRUCTURE OF HUMAN PROCATHEPSIN B AT 2.5 ANGSTROM RESOLUTION Deposited 1997-02-13	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 18–333（316 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.72；PROTEIN WAS CRYSTALLIZED FROM 2 M AMMONIUM SULFATE, PH 5.72	Resolution 2.50 Å R-free 0.234
5MBL Cathepsin B in complex with DARPin 81 Deposited 2016-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 78–333（256 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；292 K；buffer: 50mM Tris/HCl, 300mM NaCl, 0.05% Tween-20 precipitant: 0.1M MES, 1.8M NH4SO4	Resolution 1.81 Å R-free 0.193
5MBM Cathepsin B in complex with DARPin 8h6 Deposited 2016-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 78–333（256 aa） Fragment：UNP residues 78-333	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；293 K；0,1 M Na-citrate 15% PEG6000	Resolution 2.76 Å R-free 0.281
5MBM Cathepsin B in complex with DARPin 8h6 Deposited 2016-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 78–333（256 aa） Fragment：UNP residues 78-333	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；293 K；0,1 M Na-citrate 15% PEG6000	Resolution 2.76 Å R-free 0.281
6AY2 Structure of CathB with covalently linked Compound 28 Deposited 2017-09-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–333（255 aa）	Not recorded	C1G N~1~-[(2S)-1-amino-5-(carbamoylamino)pentan-2-yl]-N'~1~-[(1R)-1-(thiophen-3-yl)ethyl]cyclobutane-1,1-dicarboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；295 K；as published	Resolution 1.60 Å R-free 0.176
6AY2 Structure of CathB with covalently linked Compound 28 Deposited 2017-09-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 79–333（255 aa）	Not recorded	C1G N~1~-[(2S)-1-amino-5-(carbamoylamino)pentan-2-yl]-N'~1~-[(1R)-1-(thiophen-3-yl)ethyl]cyclobutane-1,1-dicarboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；295 K；as published	Resolution 1.60 Å R-free 0.176
8B4T Human cathepsin B in complex with the carbamate inhibitor 7 Deposited 2022-09-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–333（255 aa）	Mutation：S115A	P9F (2S)-2-[[(2S)-2-[(4-chloranylphenoxy)carbonylamino]-3-cyclohexyl-propanoyl]amino]-3-phenyl-propanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1 M Sodium Acetate pH 5.5, 20% PEG 2000 MME	Resolution 1.45 Å R-free 0.208
8B5F Human cathepsin B in complex with the carbamate inhibitor 31 Deposited 2022-09-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–333（255 aa）	Mutation：S115A	P9U (2S)-2-[[(2S)-2-[[3-chloranyl-4-[[3-phenyl-2-(phenylmethyl)propanoyl]amino]phenoxy]carbonylamino]-3-cyclohexyl-propanoyl]amino]-3-phenyl-propanoic acid × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1 M Sodium Acetate pH 5.5, 30% PEG 5000 MME	Resolution 1.70 Å R-free 0.205
8HE9 Crystal structure of CTSB in complex with K777 Deposited 2022-11-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–333（255 aa）	Not recorded	0IW Nalpha-[(4-methylpiperazin-1-yl)carbonyl]-N-[(3S)-1-phenyl-5-(phenylsulfonyl)pentan-3-yl]-L-phenylalaninamide × 1 GOL GLYCEROL × 2 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；17.1 % v/v Polyethylene glycol 600, 50 mM MES pH 5.6, 8.6 % w/v Polyethylene glycol 4,000	Resolution 1.55 Å R-free 0.202
8HEI Crystal structure of CTSB in complex with E64d Deposited 2022-11-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 77–333（257 aa）	Not recorded	E6D ethyl (3S)-3-hydroxy-4-({(2S)-4-methyl-1-[(3-methylbutyl)amino]-1-oxopentan-2-yl}amino)-4-oxobutanoate × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M Ammonium acetate, 0.1 M Sodium acetate trihydrate pH 4.6, 30% w/v Polyethylene glycol 4,000	Resolution 1.55 Å R-free 0.173
9VA8 Crystal Structure of Human Cathepsin B with a L-peptide substrate Deposited 2025-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 80–333（254 aa）	Mutation：S115A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；1.6 M Ammonium sulfate, 0.1 M MES monohydrate pH 6.5, 10% v/v 1,4-Dioxane	Resolution 1.50 Å R-free 0.209
9XHR Crystal Structure of Human Cathepsin B with a D-peptide substrate Deposited 2025-11-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 79–333（255 aa）	Mutation：S115A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M bicine, 20% PEG 10K	Resolution 1.50 Å R-free 0.170

20 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CATB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–257； UniProt 77–333

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

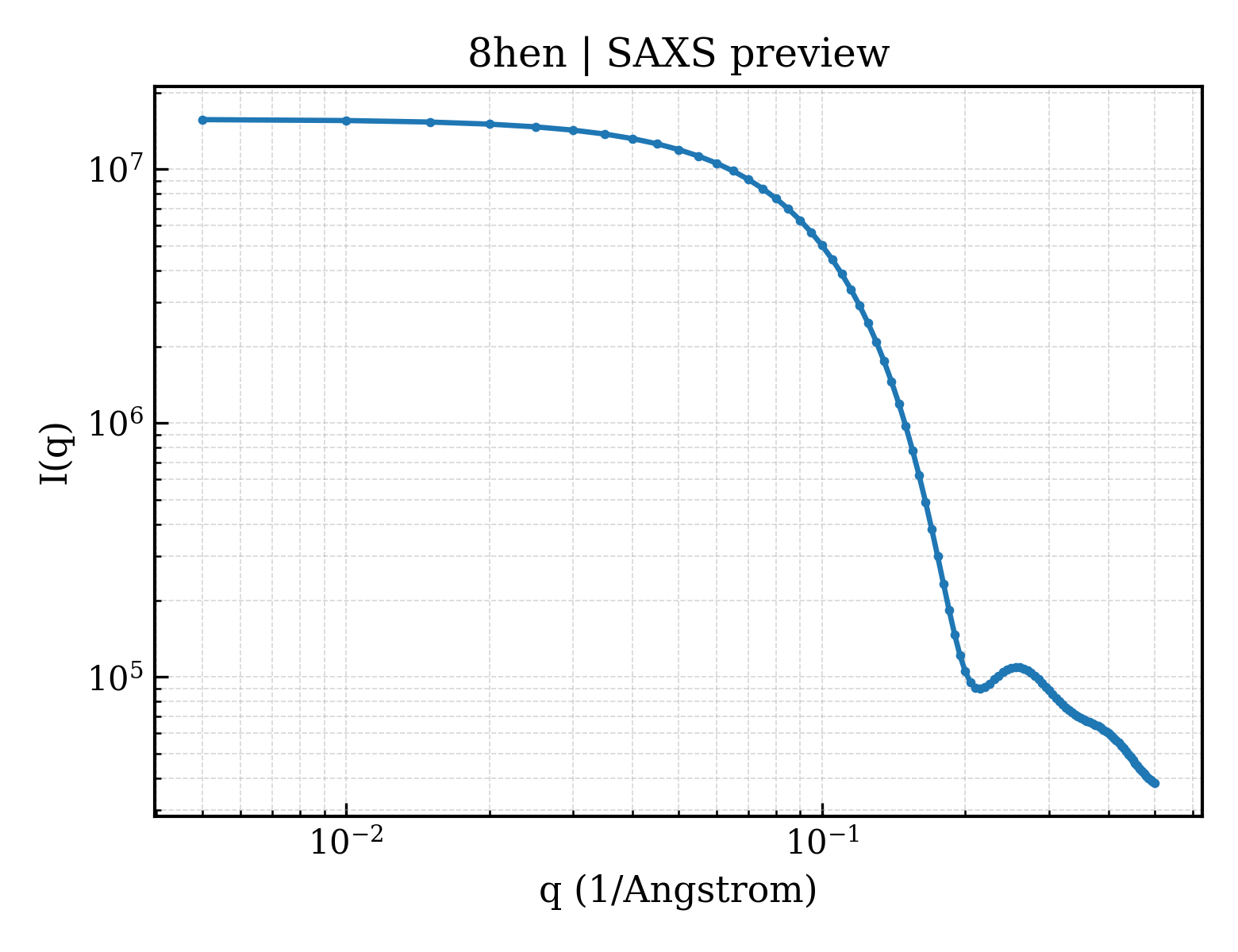

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8hen
Deposition date deposition_date	2022-11-08
Structure title title	Crystal structure of CTSB in complex with 212-148
Keywords keywords	inhibitor, antiviral, protease, ANTIVIRAL PROTEIN, ANTIVIRAL PROTEIN-INHIBITOR complex; ANTIVIRAL PROTEIN/INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.17 Å
Radius of gyration Rg (electron density) rg_electron	17.14 Å
Forward intensity I(0) i0	15701500.00
Molecular weight molecular_weight	28685.0 kDa
Excluded volume excluded_volume	35240 Å³
Envelope volume envelope_volume	38793 Å³
Hydration-shell volume shell_volume	18501 Å³
Envelope diameter envelope_diameter	58.5 Å
Shell Rg shell_rg	23.77 Å
Envelope Rg envelope_rg	17.50 Å
Shape Rg shape_rg	17.12 Å
Total Rg total_rg	18.13 Å
Total atoms total_atoms	2013
Residues n_residues	255
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	58.1 Å
Rg (real space) rg_real	18.03 Å
Rg uncertainty (real space) rg_real_error	0.33 Å
I(0) (real space) i0_real	1.5700e+07
I(0) uncertainty (real space) i0_real_error	1.9480e+05
Rg (reciprocal space) rg_reciprocal	18.04 Å
I(0) (reciprocal space) i0_reciprocal	15700000.0000
Solution quality estimate total_estimate	0.8111
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.8 Å
Skewness Skewness skewness	0.149
Kurtosis Kurtosis kurtosis	-0.384
Angular range angular_range	— – 0.4400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3304000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.852; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Cathepsin B
Molecular weight formula_weight	28200.4 kDa
EC 编号 ec_number	3.4.22.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2157

DLKLPASFDAREQWPQCPTIKEIRDQGSCGSCWAFGAVEAISDRICIHTNAHVSVEVSAEDLLTCCGSMCGDGCNGGYPAEAWNFWTRKGLVSGGLYESHVGCRPYSIPPCEHHVNGSRPPCTGEGDTPKCSKICEPGYSPTYKQDKHYGYNSYSVSNSEKDIMAEIYKNGPVEGAFSVYSDFLLYKSGVYQHVTGEMMGGHAIRILGWGVENGTPYWLVANSWNTDWGDNGFFKILRGQDHCGIESEVVAGIPRTD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	nat
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	;2-[4-[[(2~{S})-1-oxidanylidene-3-phenyl-1-[[(3~{S})-1-phenyl-5-(phenylsulfonyl)pentan-3-yl]amino]propan-2-yl]carbamoyl]piperazin-1-yl]ethyl 4-carbamimidamidobenzoate ;
Molecular weight formula_weight	767.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	139

▶

8. Citations (1)

▶

Unit-cell length a length_a	31.477 Å
Unit-cell length b length_b	81.597 Å
Unit-cell length c length_c	94.687 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	37.470 Å
R factor r_factor	0.1901
R_work r_work	0.1854
R_free r_free	0.2315
