SAXSdb — 8hsh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase subunit alpha

Thermus thermophilus HB8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	DNA-directed RNA polymerase subunit beta × 1 （Q8RQE9） ;DNA-directed RNA polymerase subunit beta' ; × 1 （Q8RQE8） DNA-directed RNA polymerase subunit omega × 1 （Q8RQE7） ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOA_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain G； PDBConstruct 1–315； UniProt 1–315 Author chain H； PDBConstruct 1–315； UniProt 1–315

DNA-directed RNA polymerase subunit beta

Thermus thermophilus HB8

UniProt Q8RQE9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	DNA-directed RNA polymerase subunit alpha × 2 （Q5SHR6） ;DNA-directed RNA polymerase subunit beta' ; × 1 （Q8RQE8） DNA-directed RNA polymerase subunit omega × 1 （Q8RQE7） ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOB_THET8
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain I； PDBConstruct 1–1119； UniProt 1–1119

;DNA-directed RNA polymerase subunit beta' ;

Thermus thermophilus HB8

UniProt Q8RQE8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	DNA-directed RNA polymerase subunit alpha × 2 （Q5SHR6） DNA-directed RNA polymerase subunit beta × 1 （Q8RQE9） DNA-directed RNA polymerase subunit omega × 1 （Q8RQE7） ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOC_THET8
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain J； PDBConstruct 1–1524； UniProt 1–1524

DNA-directed RNA polymerase subunit omega

Thermus thermophilus HB8

UniProt Q8RQE7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	DNA-directed RNA polymerase subunit alpha × 2 （Q5SHR6） DNA-directed RNA polymerase subunit beta × 1 （Q8RQE9） ;DNA-directed RNA polymerase subunit beta' ; × 1 （Q8RQE8） ZINC ION × 2 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RPOZ_THET8
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain K； PDBConstruct 1–99； UniProt 1–99

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8hsh
Deposition date deposition_date	2022-12-19
Structure title title	Thermus thermophilus RNA polymerase coreenzyme
Keywords keywords	RNA polymerase coreenzyme, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8hsh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8hsh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

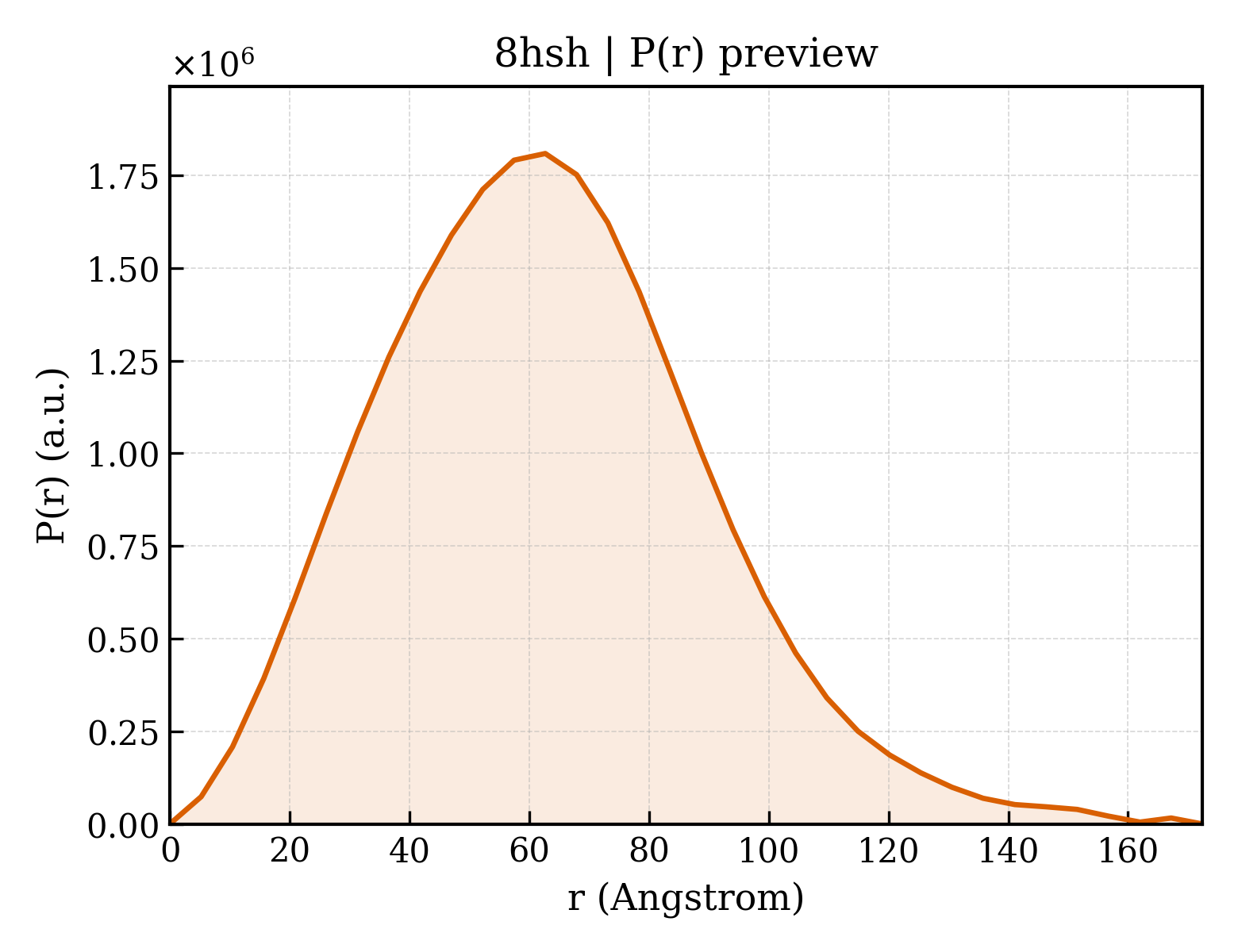

8hsh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.27 Å
Rg (electron density)	48.03 Å
Total Rg	48.24 Å
Atom count	23072
Residues	2923
Excluded volume	412730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8hsh__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	DNA-directed RNA polymerase subunit alpha
Molecular weight formula_weight	35056.2 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H
Atom count atom_count	23072

MLDSKLKAPVFTVRTQGREYGEFVLEPLERGFGVTLGNPLRRILLSSIPGTAVTSVYIEDVLHEFSTIPGVKEDVVEIILNLKELVVRFLNPSLQTVTLLLKAEGPKEVKARDFLPVADVEIMNPDLHIATLEEGGRLNMEVRVDRGVGYVPAEKHGIKDRINAIPVDAVFSPVRRVAFQVEDTRLGQRTDLDKLTLRIWTDGSVTPLEALNQAVEILREHLTYFSNPQAAAVAAPEEAKEPEAPPEQEEELDLPLEELGLSTRVLHSLKEEGIESVRALLALNLKDLKNIPGIGERSLEEIKEALEKKGFTLKE

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	125436.5 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MEIKRFGRIREVIPLPPLTEIQVESYRRALQADVPPEKRENVGIQAAFRETFPIEEEDKGKGGLVLDFLEYRLGEPPFPQDECREKDLTYQAPLYARLQLIHKDTGLIKEDEVFLGHIPLMTEDGSFIINGADRVIVSQIHRSPGVYFTPDPARPGRYIASIIPLPKRGPWIDLEVEPNGVVSMKVNKRKFPLVLLLRVLGYDQETLARELGAYGELVQGLMDESVFAMRPEEALIRLFTLLRPGDPPKRDKAVAYVYGLIADPRRYDLGEAGRYKAEEKLGIRLSGRTLARFEDGEFKDEVFLPTLRYLFALTAGVPGHEVDDIDHLGNRRIRTVGELMTDQFRVGLARLARGVRERMLMGSEDSLTPAKLVNSRPLEAAIREFFSRSQLSQFKDETNPLSSLRHKRRISALGPGGLTRERAGFDVRDVHRTHYGRICPVETPEGANIGLITSLAAYARVDELGFIRTPYRRVVGGVVTDEVVYMTATEEDRYTIAQANTPLEGNRIAAERVVARRKGEPVIVSPEEVEFMDVSPKQVFSVNTNLIPFLEHDDANRALMGSNMQTQAVPLIRAQAPVVMTGLEERVVRDSLAALYAEEDGEVAKVDGNRIVVRYEDGRLVEYPLRRFYRSNQGTALDQRPRVVVGQRVRKGDLLADGPASENGFLALGQNVLVAIMPFDGYNFEDAIVISEELLKRDFYTSIHIERYEIEARDTKLGPERITRDIPHLSEAALRDLDEEGVVRIGAEVKPGDILVGRTSFKGESEPTPEERLLRSIFGEKARDVKDTSLRVPPGEGGIVVRTVRLRRGDPGVELKPGVREVVRVYVAQKRKLQVGDKLANRHGNKGVVAKILPVEDMPHLPDGTPVDVILNPLGVPSRMNLGQILETHLGLAGYFLGQRYISPIFDGAKEPEIKELLAQAFEVYFGKRKGEGFGVDKREVEVLRRAEKLGLVTPGKTPEEQLKELFLQGKVVLYDGRTGEPIEGPIVVGQMFIMKLYHMVEDKMHARSTGPYSLITQQPLGGKAQFGGQRFGEMEVWALEAYGAAHTLQEMLTLKSDDIEGRNAAYEAIIKGEDVPEPSVPESFRVLVKELQALALDVQTLDEKDNPVDIFEGLASKR

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 Entity 3 polymer

Description description	;DNA-directed RNA polymerase subunit beta' ;
Molecular weight formula_weight	171994.4 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

MKKEVRKVRIALASPEKIRSWSYGEVEKPETINYRTLKPERDGLFDERIFGPIKDYECACGKYKRQRFEGKVCERCGVEVTKSIVRRYRMGHIELATPAAHIWFVKDVPSKIGTLLDLSATELEQVLYFSKYIVLDPKGAILNGVPVEKRQLLTDEEYRELRYGKQETYPLPPGVDALVKDGEEVVKGQELAPGVVSRLDGVALYRFPRRVRVEYVKKERAGLRLPLAAWVEKEAYKPGEILAELPEPYLFRAEEEGVVELKELEEGAFLVLRREDEPVATYFLPVGMTPLVVHGEIVEKGQPLAEAKGLLRMPRQVRAAQVEAEEEGETVYLTLFLEWTEPKDYRVQPHMNVVVPEGARVEAGDKIVAAIDPEEEVIAEAEGVVHLHEPASILVVKARVYPFEDDVEVSTGDRVAPGDVLADGGKVKSDVYGRVEVDLVRNVVRVVESYDIDARMGAEAIQQLLKELDLEALEKELLEEMKHPSRARRAKARKRLEVVRAFLDSGNRPEWMILEAVPVLPPDLRPMVQVDGGRFATSDLNDLYRRLINRNNRLKKLLAQGAPEIIIRNEKRMLQEAVDALLDNGRRGAPVTNPGSDRPLRSLTDILSGKQGRFRQNLLGKRVDYSGRSVIVVGPQLKLHQCGLPKRMALELFKPFLLKKMEEKGIAPNVKAARRMLERQRDIKDEVWDALEEVIHGKVVLLNRAPTLHRLGIQAFQPVLVEGQSIQLHPLVCEAFNADFDGDQMAVHVPLSSFAQAEARIQMLSAHNLLSPASGEPLAKPSRDIILGLYYITQVRKEKKGAGLEFATPEEALAAHERGEVALNAPIKVAGRETSVGRLKYVFANPDEALLAVAHGIVDLQDVVTVRYMGKRLETSPGRILFARIVAEAVEDEKVAWELIQLDVPQEKNSLKDLVYQAFLRLGMEKTARLLDALKYYGFTFSTTSGITIGIDDAVIPEEKKQYLEEADRKLLQIEQAYEMGFLTDRERYDQILQLWTETTEKVTQAVFKNFEENYPFNPLYVMAQSGARGNPQQIRQLCGLRGLMQKPSGETFEVPVRSSFREGLTVLEYFISSHGARKGGADTALRTADSGYLTRKLVDVTHEIVVREADCGTTNYISVPLFQPDEVTRSLRLRKRADIEAGLYGRVLAREVEVLGVRLEEGRYLSMDDVHLLIKAAEAGEIQEVPVRSPLTCQTRYGVCQKCYGYDLSMARPVSIGEAVGIVAAQSIGEPGTQLTMRTFHTGGVAGAADITQGLPRVIELFEARRPKAKAVISEIDGVVRIEETEEKLSVFVESEGFSKEYKLPKEARLLVKDGDYVEAGQPLTRGAIDPHQLLEAKGPEAVERYLVEEIQKVYRAQGVKLHDKHIEIVVRQMMKYVEVTDPGDSRLLEGQVLEKWDVEALNERLIAEGKTPVAWKPLLMGVTKSALSTKSWLSAASFQNTTHVLTEAAIAGKKDELIGLKENVILGRLIPAGTGSDFVRFTQVVDQKTLKAIEEARKEAVEAKERPAARRGVKREQPGKQADYKDDDDK

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	DNA-directed RNA polymerase subunit omega
Molecular weight formula_weight	11491.2 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MAEPGIDKLFGMVDSKYRLTVVVAKRAQQLLRHGFKNTVLEPEERPKMQTLEGLFDDPNAVTWAMKELLTGRLVFGENLVPEDRLQKEMERLYPGEREE

Source Source

Source organism organism	Thermus thermophilus HB8
NCBI taxonomy ID ncbi_taxonomy_id	300852
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 5 domains

CATH v4.4 (5 domains)

Domain ID domain_id	8hshG01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	8hshH01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	8hshI01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1110 — Dna-directed Rna Polymerase Ii 140kd Polypeptide; Chain: B; domain 3
Homologous superfamily homologous superfamily	10 — RNA polymerase Rpb2, domain 2

Domain ID domain_id	8hshI02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	150 — RNA polymerase II, Rpb2 subunit, wall domain

Domain ID domain_id	8hshJ01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	274 — Enzyme I; Chain A, domain 2
Homologous superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	392560

Thermus thermophilus RNA polymerase coreenzyme
