8ip9

Wheat 40S ribosome in complex with a tRNAi

Method: ELECTRON MICROSCOPY D_max: 251.9 Å Quality: GOOD

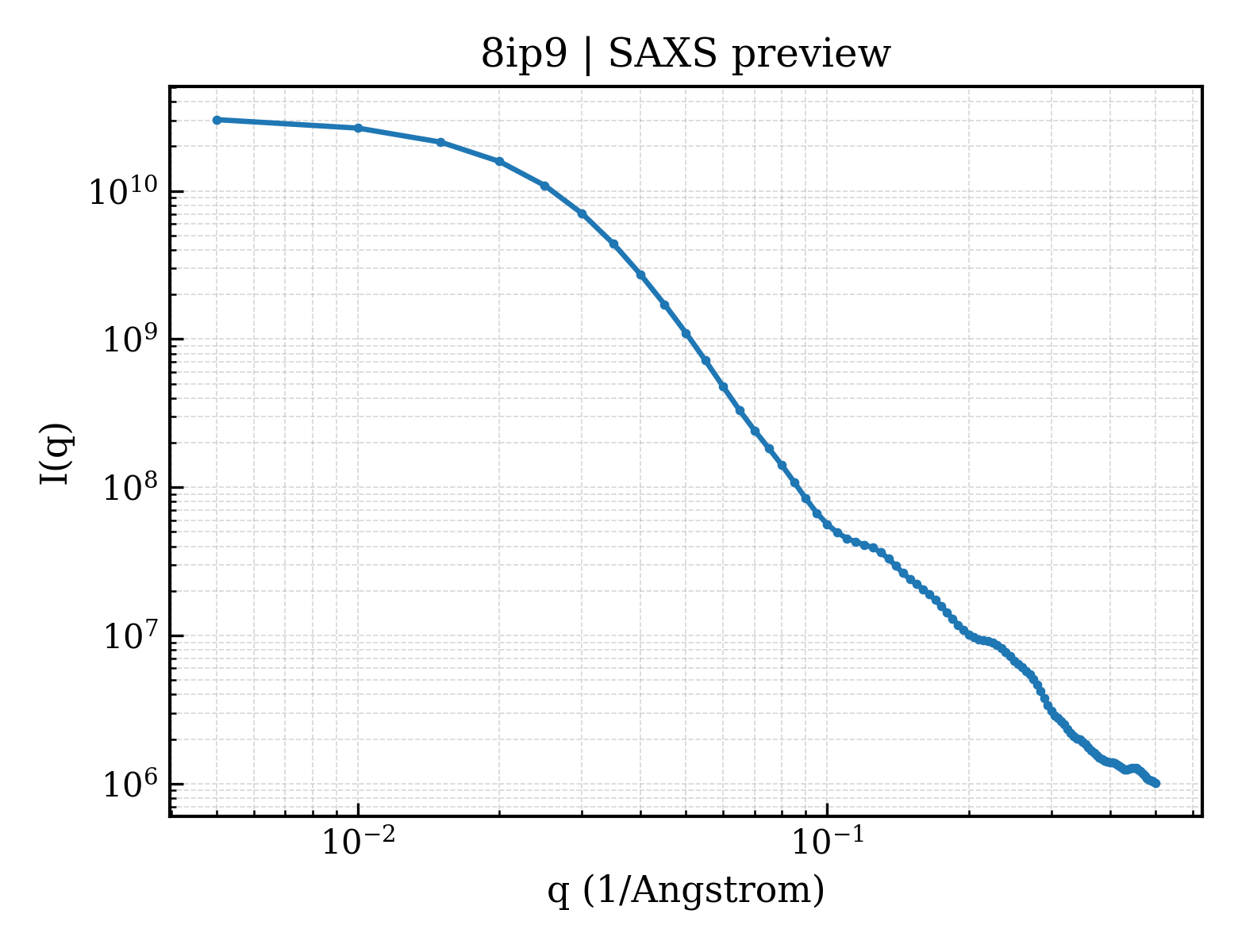

SAXS 散射曲线 SAXS Profile

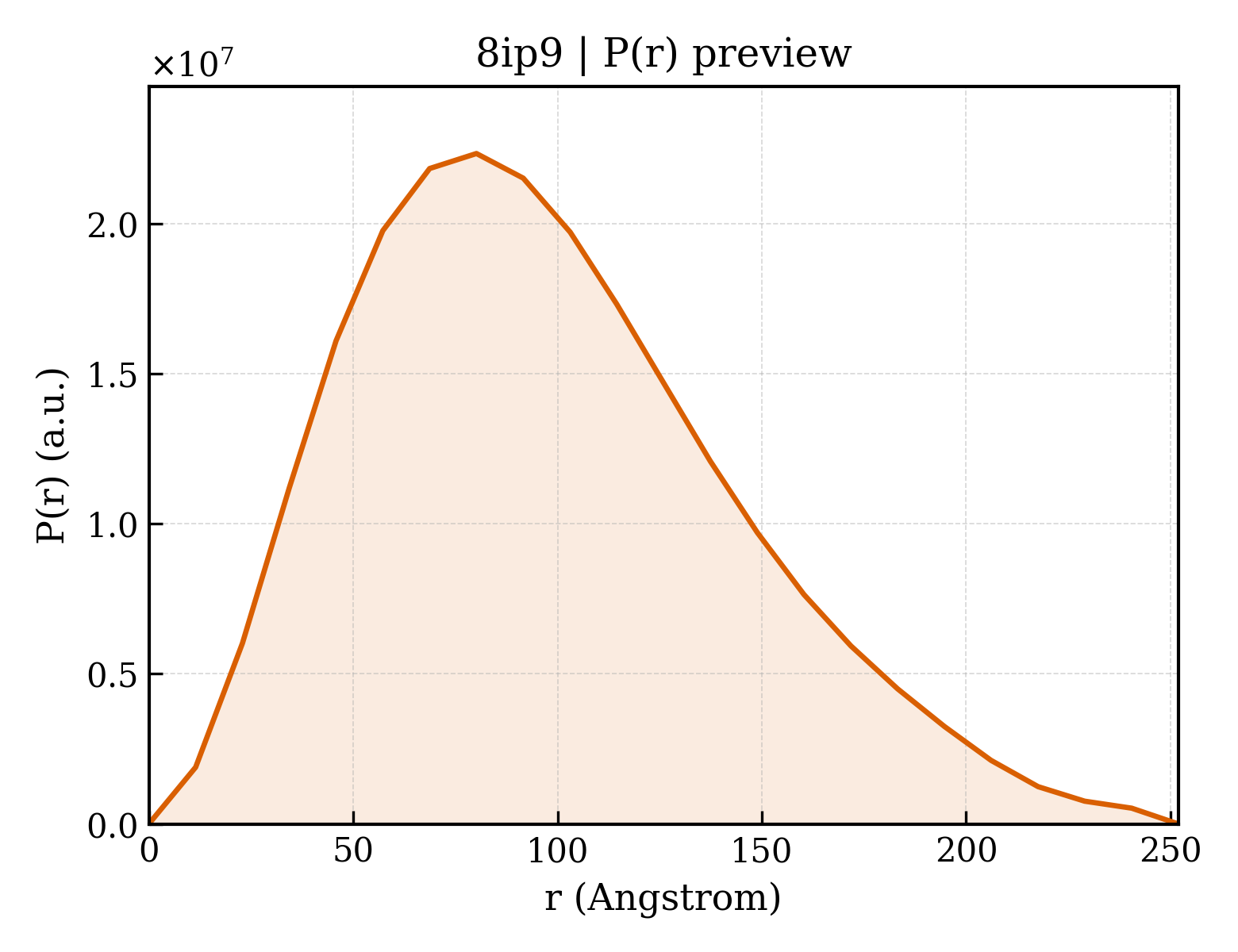

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ip9
沉积日期 deposition_date	2023-03-14
结构标题 title	Wheat 40S ribosome in complex with a tRNAi
关键词 keywords	ribosome, TRANSLATION; TRANSLATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	72.56 Å
回转半径 Rg (电子) rg_electron	73.65 Å
零角强度 I(0) i0	31657800000.00
分子量 molecular_weight	1075500.0 kDa
排除体积 excluded_volume	1165800 Å³
包络体积 envelope_volume	1884300 Å³
水化壳体积 shell_volume	206760 Å³
包络直径 envelope_diameter	267.1 Å
壳层 Rg shell_rg	75.65 Å
包络 Rg envelope_rg	73.21 Å
形状 Rg shape_rg	73.70 Å
总 Rg total_rg	73.57 Å
总原子数 total_atoms	73028
残基数 n_residues	6155
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	251.9 Å
Rg (实空间) rg_real	75.65 Å
Rg 误差 (实空间) rg_real_error	1.43 Å
I(0) (实空间) i0_real	3.1670e+10
I(0) 误差 (实空间) i0_real_error	7.3470e+08
Rg (倒空间) rg_reciprocal	72.09 Å
I(0) (倒空间) i0_reciprocal	31620000000.0000
解质量估计 total_estimate	0.8768
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	80.2 Å
偏度 Skewness skewness	0.532
峰度 Kurtosis kurtosis	-0.139
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	1.2500
最高正则化参数 α highest_alpha	3093000000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.837; Stabil: 0.880; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.288

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (37)

Entity 1 polymer

描述 description	18S ribosomal RNA
分子量 formula_weight	583613.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	aa
原子数 atom_count	73028

UACCUGGUUGAUCCUGCCAGUAGUCAUAUGCUUGUCUCAAAGAUUAAGCCAUGCAUGUGCAAGUAUGAACCAAUUUGAACUGUGAAACUGCGAAUGGCUCAUUAAAUCAGUUAUAGUUUGUUUGAUGGUACGUGCUACUCGGAUAACCGUAGUAAUUCUAGAGCUAAUACGUGCAACAAACCCCGACUUCUGGGAGGGGCGCAUUUAUUAGAUAAAAGGCUGACGCGGGCUCUGCUCGCUGAUCCGAUGAUUCAUGAUAACUCGACGGAUCGCACGGCCUUCGUGCCGGCGACGCAUCAUUCAAAUUUCUGCCCUAUCAACUUUCGAUGGUAGGAUAGGGGCCUACCAUGGUGGUGACGGGUGACGGAGAAUUAGGGUUCGAUUCCGGAGAGGGAGCCUGAGAAACGGCUACCACAUCCAAGGAAGGCAGCAGGCGCGCAAAUUACCCAAUCCUGACACGGGGAGGUAGUGACAAUAAAUAACAAUACCGGGCGCAUUAGUGUCUGGUAAUUGGAAUGAGUACAAUCUAAAUCCCUUAACGAGGAUCCAUUGGAGGGCAAGUCUGGUGCCAGCAGCCGCGGUAAUUCCAGCUCCAAUAGCGUAUAUUUAAGUUGUUGCAGUUAAAAAGCUCGUAGUUGGACCUUGGGCCGGGUCGGCCGGUCCGCCUCACGGCGAGCACCGACCUACUCGACCCUUCGGCCGGCAUCGCGCUCCUAGCCUUAAUUGGCCGGGUCGUGUUUCCGGCAUCGUUACUUUGAAGAAAUUAGAGUGCUCAAAGCAAGCCAUCGCUCUGGAUACAUUAGCAUGGGAUAACAUCAUAGGAUUCCGGUCCUAUUGUGUUGGCCUUCGGGAUCGGAGUAAUGAUUAAUAGGGACAGUCGGGGGCAUUCGUAUUUCAUAGUCAGAGGUGAAAUUCUUGGAUUUAUGAAAGACGAACAACUGCGAAAGCAUUUGCCAAGGAUGUUUUCAUUAAUCAAGAACGAAAGUUGGGGGCUCGAAGACGAUCAGAUACCGUCCUAGUCUCAACCAUAAACGAUGCCGACCAGGGAUCGGCGGAUGUUGCUUAUAGGACUCCGCCGGCACCUUAUGAGAAAUCAAAGUCUUUGGGUUCCGGGGGGAGUAUGGUCGCAAGGCUGAAACUUAAAGGAAUUGACGGAAGGGCACCACCAGGCGUGGAGCCUGCGCUUAAUUUGACUCAACACGGGGAAACUUACCAGGUCCAGACAUAGCAAGGAUUGACAGACUGAGAGCUCUUUCUUGAUUCUAUGGGUGGUGGUGCAUGGCCGUUCUUAGUUGGUGGAGCGAUUUGUCUGGUUAAUUCCGUUAACGAACGAGACCUCAGCCUGCUAACUAGCUAUGCGGAGCCAUCCCUCCGCAGCUAGCUUCUUAGAGGGACUAUGGCCGUUUAGGCCACGGAAGUUUGAGGCAAUAACAGGUCUGUCAUGCCCUUAGAUGUUCUGGGCCGCACGCGCGCUACACUGAUGUAUUCAACGAGUAUAUAGCCUUGGCCGACAGGCCCGGGUAAUCUUGGGAAAUUUCAUCGUGAUGGGGAUAGAUCAUUGCAAUUGUUGGUCUUCAACGAGGAAUGCCUAGUAAGCGCGAGUCAUCAGCUCGCGUUGACUACGUCCCUGCCCUUUGUACACACCGCCCGUCGCUCCUACCGAUUGAAUGGUCCGGUGAAGUGUUCGGAUCGCGGCGACGGGGGCGGUUCGCCGCCCCCGACGUCGCGAGAAGUCCAUUGAACCUUAUCAUUUAGAGGAAGCAGAAGUCGUAACAAGGUUUCCGUAGGUGAACCUGCGGAAGGAUCAUUG

Entity 2 polymer

描述 description	40S ribosomal protein eS24
分子量 formula_weight	15739.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ba

MADAKTAPAVTLRTRKFMTNRLLSRKQFVLEVIHPGRANVSKADLKERLAKIYEVKDSNCIFVFKFRTHFGGGKSTGFGLIYDNLEAAKKFEPKYRLIRNGLATKVEKSRKQIKERKNRTKKIRGVKKTKAGDAKKK

Entity 3 polymer

描述 description	40S ribosomal protein eS8
分子量 formula_weight	25341.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ca

MGISRDSMHKRRATGGKQKAWRKKRKYELGRQPANTKLSSNKTVRRVRVRGGNVKWRALRLDTGNFSWGSEAVTRKTRLLDVVYNSSNNELVRTQTLVKNAIVQVDAAPFKQWYLTHYGVEIGRKKKAAAAAKKEPAEGQEAEVAAAATEEAKKSNNVQRKLEKRQQGRTLDSHIEEQFSGGRLLACISSRPGQCGRADGYILEGKELEFYMRKLQKKKGKGATA

Entity 4 polymer

描述 description	40S ribosomal protein eS10
分子量 formula_weight	20464.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	da

MIISKKNRNEICKYLFQEGVLYAKKDYNLAKHPQIDVPNLQVIKLMQSFKSKEYVRETFSWQHYYWYLTNDGIEFLRNFLNLPSEIVPATLKKSARPPGRPLGSGPPGDRPRGPPRFEGDRPRYGDRDGYRGGPRGAPGDFGGEKGGAPAEFQPSFRSSGGGGFGRGGGGGFGRGGGGGGGFGASPME

Entity 5 polymer

描述 description	40S ribosomal protein S23
分子量 formula_weight	15696.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ga

MGKTRGMGAGRKLKTHRRNQRWADKAYKKSHLGNEWKKPFAGSSHAKGIVLEKIGIEAKQPNSAIRKCARVQLVKNGKKIAAFVPNDGCLNFIEENDEVLIAGFGRKGHAVGDIPGVRFKVVKVSGVSLLALFKEKKEKPRS

Entity 6 polymer

描述 description	RACK1
分子量 formula_weight	36200.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ha

MAGAQESLVYAGVMRGHNDVVTAIATPIDNSPFIVSSSRDKSLLVWDLTNPIQATQDSSSEYGVPFRRLTGHGHFVQDVVLSSDGQFALSGSWDGELRLWDLSTGVTTRRFVGHEKDVLSVAFSIDNRQIVSASRDRTIKLWNTLGECKYTIGGDLGGGEGHTGWVSCVRFSPNNFAPTIVSGSWDRSVKVWNLTNCKLRCTLDGHGGYVSAVAVSPDGSLCASGGKDGVTLLWDLTEGKRLYSLDAGSIINSLCFSPNRYWLCAATQDSIKIWDLESKHIVQDLRPEVPVSTKQMLYCTCLSWSADGSTLYAGYTDGTIRIYKISGFSYSS

Entity 7 polymer

描述 description	40S ribosomal protein uS3
分子量 formula_weight	25413.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ia

MATQISKKKKFVSDGVFYAELNEMLTRELAEDGYSGVEVRVTPMRTEIIIRATRTQNVLGEKGRRIRELTSVVQKRFNFLENGVELYAEKVVNRGLCAIAQAESLRYKLLGGLAVRRACYGVLRFVMESGAKGCEVIVSGKLRAQRAKSMKFKDGYMISSGQPVNEYIDAAVRHVLLRQGVLGIKVKIMLDWDPKGKLGPTTPLPDLVTIHPPKEENELRPPALVEV

Entity 8 polymer

描述 description	40S ribosomal protein eS4
分子量 formula_weight	30008.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ja

MARGLKKHLKRLNAPSHWMLDKLGGAFAPKPSSGPHKARECLPLILILRNRLKYALTYREVQSILMQRHIMVDGKVRTDKTYPAGFMDIISIPKTGENYRLLYDTKGRFRLHSVRDEDAKFKLCKVRSVQFGQKGIPYLNTYDGRTIRYPDPLIKANDTIKLDLETNKIVDFIKFDVGNVVMVTGGRNTGRVGVIKNREKHKGTFETIHVEDAQGHQFATRLGNVFTIGKGTKPWVSLPKGKGIKLTIIEEQRKRDAAAQAAAKA

Entity 9 polymer

描述 description	40S ribosomal protein uS7
分子量 formula_weight	22350.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ka

MAVVEPVPGGDVKLFNRWTFEDVQVSDISLNDYLAVTSMKHYTFLPHSAGRYSAKRFRKAQCPIIERLTNSLMMHGRNNGKKIMAVRIIKHTMEIIHLLTDANPIQIIVDAIINSGPREDATRIGSAGVVRRQAVDISPLRRVNQAIYLLTTGARESAFRNVKTIAECLADELINAAKGSSNSYAIKKKDEIERVAKANR

Entity 10 polymer

描述 description	40S ribosomal protein uS9
分子量 formula_weight	16871.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	la

MAAVLTRPTPGTVQCFGRKKTAVAVAYCKPGRGLIKVNGAPIELIRPEMLRLKAFEPILLAGRSRFKDIDMRIRVRGGGKTSQIYSIRQAIAKSLVAYYQKYVDEAAKKEVKEIFARYDRTLLVADPRRCEPKKFGGRGARARFQKSYR

Entity 11 polymer

描述 description	40S ribosomal protein uS10
分子量 formula_weight	14128.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ma

MATELAYAPPMKSGKLGFEGTQEVQHRIRITLSSKSVKNLEKVCSDLVKGAKEKQLKVKGPVRMPTKVLNITTRKSPCGEGTNTWDRFEMRVHKRVIDLVSSPDVVKQITSITIEPGVEVEVTISDQ

Entity 12 polymer

描述 description	40S ribosomal protein uS11
分子量 formula_weight	16398.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	na

MSSKRKTREPKEENVTLGPAVREGEHVFGVAHIFASFNDTFIHVTDLSGRETLVRITGGMKVKADRDESSPYAAMLASQDVATRCKELGITALHIKLRATGGNKTKTPGPGAQSALRALARSGMKIGRIEDVTPVPTDSTRRKGGRRGRRL

Entity 13 polymer

描述 description	40S ribosomal protein uS13
分子量 formula_weight	17702.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	oa

MSLIAGEEFQHILRVLNTNVDGKQKIMFALTSIKGVGRRFSNIVCKKADIDMNKRAGELSAEEMDRLMAVVHNPRQFKVPDWFLNRKKDYKDGRFSQVVSNAVDMKLRDDLERLKKIRNHRGLRHYWGVRVRGQHTKTTGRRGKTVGVSKKR

Entity 14 polymer

描述 description	40S ribosomal protein uS15
分子量 formula_weight	17102.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	pa

MGRMHSRGKGISSSALPYKRTPPSWVKTAVADVDELITKAAKKGQMPSQIGVLLRDQHGIPLVKSVTGSKILRILKAHGLAPEIPEDLYFLIKKAVAIRKHLERNRKDKDSKFRLILVESRIHRLARYYKRTKKLPPTWKYESATASTLVA

Entity 15 polymer

描述 description	40S ribosomal protein eS17
分子量 formula_weight	16523.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	qa

MGRVRTKTVKKTSRQVIEKYYSRMTLDFHTNKKVLEEVSILQSKRLRNKVAGFTTHLMRRIQRGPVRGISLKLQEEERERRMDFVPEKSALEVDEIRVDKETMDMLAFLGMADLPGVERAPEVTSSAAPYRQPFNGPRGGNRA

Entity 16 polymer

描述 description	40S ribosomal protein eS19
分子量 formula_weight	17097.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ra

MATVPAPAAETAASTARTVKDVNPHEFVKAYSAHLKRSGKMELPEWVDIVKTARFKELPPSDADWYYIRAASMARKIYLRQGIGIGGFQKIYGGRQRNGSRPPHFCKSSGAVSRNILQELQKMGIIDVDPKGGRLITSQGRRDLDQVAGTVPAEF

Entity 17 polymer

描述 description	40S ribosomal protein uS19
分子量 formula_weight	17424.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	sa

MADVDVDTEVAAGAQPKKRTFRKFSYRGVDLDALLDMSTDDLVQMFPARARRRFKRGLKRKPMALVKKLRKAKKDAPAGEKPEPVRTHLRNMIIVPEMIGSLIGVYNGKTFNQVEIKPEMIGHYLAEFSISYKPVKHGRPGIGATHSSRFIPLK

Entity 18 polymer

描述 description	40S ribosomal protein eS25
分子量 formula_weight	12094.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ta

MAPKKEKAPAASSKPAKSGGGKQKKKKWSKGKQKEKVNNAVLFDQATYDKLLTEVPKYKQITPSVLSERLRINGSLARRAIKDLMERGLIRMVSIHSSQQIFTRATNT

Entity 19 polymer

描述 description	40S ribosomal protein eS28
分子量 formula_weight	9815.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ua

RGRLHRCSRSSDPPSPTPQESMDTQVKLAVVVKVMGRTGSRGQVTQVRVKFLDDQNRLIMRNVKGPVREGDILTLLESEREARRLR

Entity 20 polymer

描述 description	40S ribosomal protein uS8
分子量 formula_weight	14924.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	va

MGRRILNDALRTMVNAERRGKATAQLQPISGVMISFLNIMKHRGYIKNFEVFDPHRVGKITVELQGRIKDCKALTYRQDLRATEIEKYRTRMLPTRQWGYVVVTTPNGVLDHEEAIRQNVGGQVLGYFH

Entity 21 polymer

描述 description	40S ribosomal protein uS14
分子量 formula_weight	6391.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	wa

MGHSNVWNSHPKNYGAGSRVCRVCGNSHGLIRKYGLMCCRQCFRSNAKDIGFIKYR

Entity 22 polymer

描述 description	40S ribosomal protein eS27
分子量 formula_weight	9583.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	xa

MVLQNDIDLLNPPAELEKLKHKKKRLVQSPNSFFMDVKCQGCFNITTVFSHSQTVVVCPGCQTVLCQPTGGKARLTEGCSFRRKGD

Entity 23 polymer

描述 description	40S ribosomal protein eS30
分子量 formula_weight	6934.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ya

MGKVHGSLARAGKVRGQTPKVAKQDKKKQPRGRAHKRIQYNRRFVTAVVGFGKKRGPNSSEK

Entity 24 polymer

描述 description	40S ribosomal protein uS2
分子量 formula_weight	33300.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	za

MAAAAGEAPRALSQKEQDIQMMLAADVHLGTKNCDFQMERYAYKRRSDGIYIINLGKTWEKLQLAARVIVAIENPQDIIVQSARPYGQRAVLKFAQHTGANAIAGRHTPGTFTNQMQTSFSEPRLLILTDPRTDHQPIKESALGNIPTIAFCDTDSPMRYVDIGIPANNKGRNSIGCLYWLLARMVLQMRGTILPGHKWDVMVDLFFYRDPEEAKEQEDEAAGAPEYAAITDYGAAAGQWGGDQWTSDAPAPPPVTGGEWPMAEAPVAGGDGWDAAGAPVAVEGAVPAPVVAATGWDAAVQPPAQGWE

Entity 25 polymer

描述 description	40S ribosomal protein eS1
分子量 formula_weight	30044.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	bb

MAVGKNKRISKGRKGSKKKAVDPFTKKQWYDIKAPLLFTSRNVGKTLVSRTQGTKIASEGLKHRVFEVSLADLQNDEDQAYRKIRLRAEDVQGMNVLTNFWGMDFTTDKLRSLVRKWQTLIEAHVDVKTTDNYMLRMFAIGFTKRRPNQVKRTCYAQASQIRQIRRKMVEIMVNQAASCDLKELVNKFIPEVIGKEIEKATSSIFPLQNVYVRKVKILKAPKFDLGKLMEVHGDYKEDVGVKLDRPADGDEVIPGAEEVAAAE

Entity 26 polymer

描述 description	40S ribosomal protein eS21
分子量 formula_weight	9194.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	cb

MQNEVGDMVDLYVPRKCSATNRIITAKDHASVQINIGHVDENGLYDGRFTTFALSGFVRAQGDADGSLDRLWQKRKAEIKQL

Entity 27 polymer

描述 description	40S ribosomal protein eS26
分子量 formula_weight	16576.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	db

MTFKRRNGGRNKHGRGHVKYIRCSNCAKCCPKDKAIKRFLVRNIVEQAAVRDVQEACVHDGYVLPKLYAKVHHCVSCAIHAHIVRVRSRENRRNREPPQRFRRRDDGPRPGQGGPPRAGGPGAPGGAPAGAGAVPGAPGGAPAGAGAVPGAPAPRV

Entity 28 polymer

描述 description	40S ribosomal protein uS4
分子量 formula_weight	22534.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	eb

MVHVNFYRNYGKTFKKPRRPYEKERLDAELKLVGEYGLRCKRELWRVQYALSRIRNAARHLLTLDEKNPRRIFEGAALLRRMNRYGLLAEGQDKLDYVLALTAENFLARRLQTLVFKAGMAKSIHHARVLIRQRHIRVGRQIVNVPSFMVRVESEKHIDFSLTSPFGGGPAGRVKRKNQKKASGGGDAGGDEEEE

Entity 29 polymer

描述 description	40S ribosomal protein uS5
分子量 formula_weight	29996.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	fb

MADRGGERGVDRGGFGRGFGRGGRGDRGGRRGGRRGPRQEEEKWVPVTKLGRLVKEGRFTKMEEIYLHSLPVKEHQIVETLCPGLKDEVMKITPVQKQTRAGQRTRFKAFVVVGDSNGHVGLGVKCAKEVATAIRGAIILAKLSIVPVRRGYWGNKIGLPHTVPCKVTGKCGSVTVRMVPAPRGSGIVAARVPKKVLQFAGIDDVFTSSRGSTKTLGNFVKATFDCLMKTYGFLTPDFWRETTFTKAPYQEFTDILAKPTKALMLDAPAEKVEA

Entity 30 polymer

描述 description	40S ribosomal protein eS6
分子量 formula_weight	28488.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	gb

MKLNIANPTTGCQKKVEIDDDMKLRNLYDKRISQEVVGDLLGEEFEGYIFKIMGGCDKQGFPMKQGVLTPGRVRLLLHRGTSCFRGHGRRVGERRRKSVRGCIVSQDLSVINLVIVKKGKNDLPGLTDTEKPRMRGPKRASKIKKLFNLGKDDDVRQYVNTYRRSFTNKKGKTVSKAPKIQRLVTPLTLQRKRARIADKKKRIAKKKSEAAEYQKLLAQRLKEQRDRRSESMAKRRSKLSAATKAPAASA

Entity 31 polymer

描述 description	40S ribosomal protein eS7
分子量 formula_weight	22297.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	hb

MYTARKKIQKDKGVEPSEFEDTVAQAFFDLENGNQELKSDLKDLYINTAIQMDVVGNRKAVVIHVPYRLRKPFRKIHVRLVRELEKKFSGKDVVFVATRRIVRPPKKGSAVQRPRTRTLTAVHDGILEDVVYPAEIVGKRVRYRLDGAKVIKIYLDPKERNNTEYKLETFSAVYRRLCGKDVVFEYPVTETA

Entity 32 polymer

描述 description	40S ribosomal protein uS17
分子量 formula_weight	17841.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	ib

MAEQTEKSFLKQPKVFLSTKKADKAKRPGKAGNRFWKSVGLGFKTPREAIDGTYIDKKCPFTGTVAIRGRIIAGTCHSAKMNRTIIVRRNYLHFVKKYQRYEKRHSNIPAHISPCFRVKEGDHVIIGQCRPLSKTVRFNVLKVVPAGTTGGGKKAFIAA

Entity 33 polymer

描述 description	60S ribosomal protein eL41
分子量 formula_weight	3445.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	IB

MRAKWKKKRMRRLKRKRRKMRQRSK

Entity 34 polymer

描述 description	mRNA
分子量 formula_weight	2229.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	al

AUGUAAA

Entity 35 polymer

描述 description	tRNAi
分子量 formula_weight	24446.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	cl

AUCAGAGUGGCGCAGCGGAAGCGUGGUGGGCCCAUAACCCACAGGUCCCAGGAUCGAAACCUGGCUCUGAUACCA

Entity 36 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	84

Entity 37 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	41361

fit	/app/data/saxs_computation/ip/8ip9/8ip9.fit
pddf	/app/data/pr_computation/ip/8ip9/8ip9.pr.out
profile	/app/data/saxs_computation/ip/8ip9/8ip9.dat

Wheat 40S ribosome in complex with a tRNAi

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

冷冻电镜 EM 3D

5. 实体与聚合体信息 (37)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer

聚合体 Polymer

Entity 36 non-polymer
