8j9s

leucine zipper complex of AIMP1 and AIMP2

Method: X-RAY DIFFRACTION

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aminoacyl tRNA synthase complex-interacting multifunctional protein 1

Homo sapiens

UniProt Q12904

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 3 Aminoacyl tRNA synthase complex-interacting multifunctional protein 2 × 1 (Q13155) IODIDE ION × 5 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name AIMP1_HUMAN
Isoform
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 1–79; UniProt 1–79 Author chain B; PDBConstruct 1–79; UniProt 1–79

Aminoacyl tRNA synthase complex-interacting multifunctional protein 2

Homo sapiens

UniProt Q13155

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 3 Aminoacyl tRNA synthase complex-interacting multifunctional protein 1 × 2 (Q12904) IODIDE ION × 5 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name AIMP2_HUMAN
Isoform
PDB entities 2
Chains and sequence ranges Author chain C; PDBConstruct 2–41; UniProt 51–90

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

2. Structure Basics 2. Structure Basics

Entry ID entry_id8j9s
Deposition date deposition_date2023-05-04
Structure title titleleucine zipper complex of AIMP1 and AIMP2
Keywords keywordsaminoacyl-tRNA synthetase, TRANSLATION; TRANSLATION
Experimental Method methodX-RAY DIFFRACTION

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8j9s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

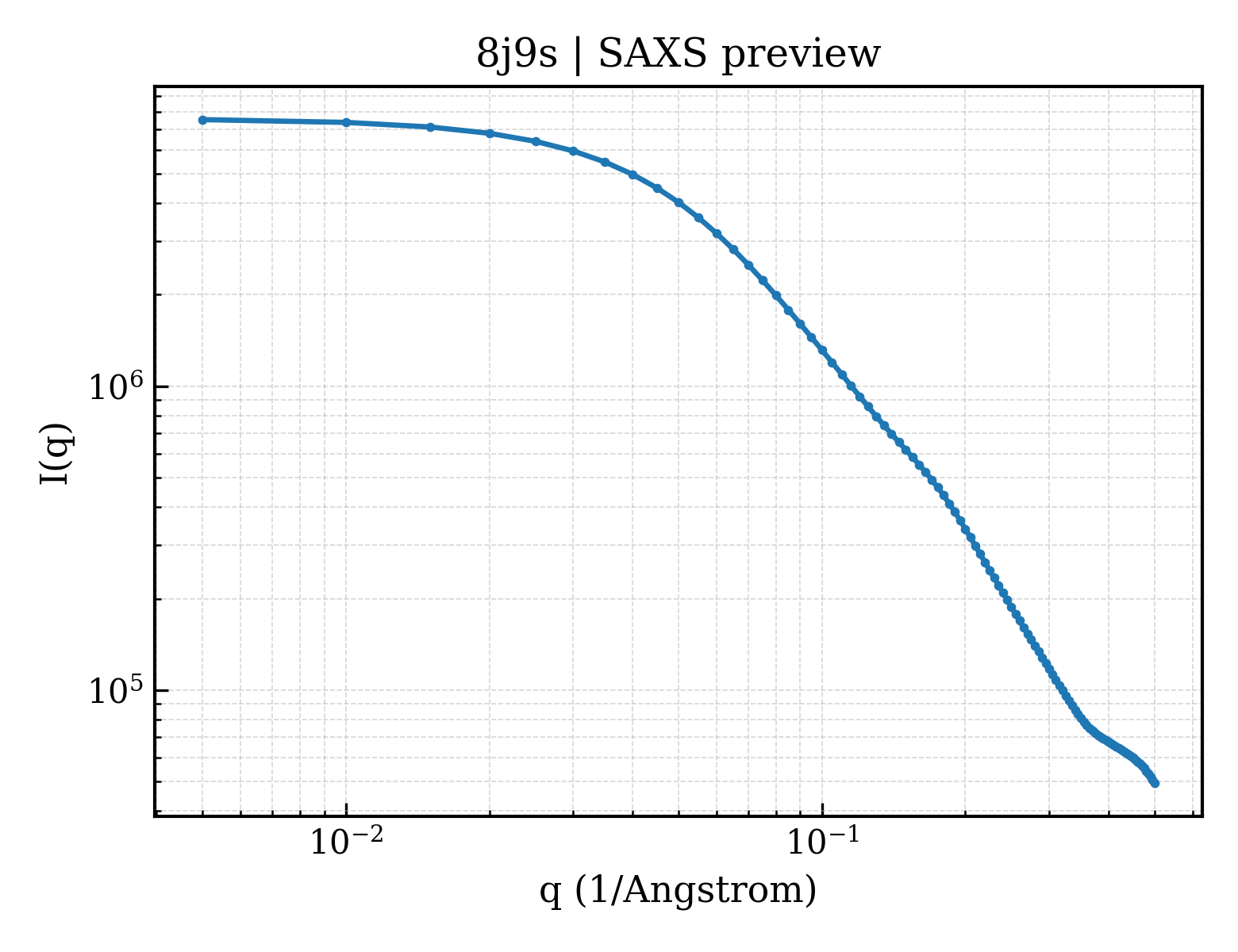

8j9s__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

8j9s__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg(Guinier)28.91 Å
Rg (electron density)30.06 Å
Total Rg28.91 Å
Atom count1380
Residues170
Excluded volume25121 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8j9s__assembly_1__model_1 trimeric (3) Success 4.1.3-1-20251215 (887e7ef) View Download

4. Crystallography and Experiment 4. Crystallography & Experiment

5. Entities and Polymers Entities & Polymers (3)

7. Citations (1)
