SAXSdb — 8jf7

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8jf7
沉积日期 deposition_date	2023-05-17
结构标题 title	Triheteromeric NMDA receptor GluN1-GluN2A-GluN3A in complex with glycine, glutamate, a GluN1-specific Fab,and a GluN2A-specific Fab
关键词 keywords	membrane protein, ion channel; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	66.16 Å
回转半径 Rg (电子) rg_electron	66.35 Å
零角强度 I(0) i0	2819370000.00
分子量 molecular_weight	446310.0 kDa
排除体积 excluded_volume	557820 Å³
包络体积 envelope_volume	885080 Å³
水化壳体积 shell_volume	116710 Å³
包络直径 envelope_diameter	254.8 Å
壳层 Rg shell_rg	64.29 Å
包络 Rg envelope_rg	64.01 Å
形状 Rg shape_rg	66.35 Å
总 Rg total_rg	66.30 Å
总原子数 total_atoms	31416
残基数 n_residues	4009
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	229.6 Å
Rg (实空间) rg_real	66.52 Å
Rg 误差 (实空间) rg_real_error	2.39 Å
I(0) (实空间) i0_real	2.8190e+09
I(0) 误差 (实空间) i0_real_error	5.9070e+07
Rg (倒空间) rg_reciprocal	65.82 Å
I(0) (倒空间) i0_reciprocal	2816000000.0000
解质量估计 total_estimate	0.8510
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	76.5 Å
偏度 Skewness skewness	0.475
峰度 Kurtosis kurtosis	-0.047
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	95600000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.798; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.668

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Glutamate receptor ionotropic, NMDA 1
分子量 formula_weight	95372.2 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	31416

MSTMHLLTFALLFSCSFARAACDPKIVNIGAVLSTRKHEQMFREAVNQANKRHGSWKIQLNATSVTHKPNAIQMALSVCEDLISSQVYAILVSHPPTPNDHFTPTPVSYTAGFYRIPVLGLTTRMSIYSDKSIHLSFLRTVPPYSHQSSVWFEMMRVYNWNHIILLVSDDHEGRAAQKRLETLLEERESKAEKVLQFDPGTKNVTALLMEARELEARVIILSASEDDAATVYRAAAMLNMTGSGYVWLVGEREISGNALRYAPDGIIGLQLINGKNESAHISDAVGVVAQAVHELLEKENITDPPRGCVGNTNIWKTGPLFKRVLMSSKYADGVTGRVEFNEDGDRKFANYSIMNLQNRKLVQVGIYNGTHVIPNDRKIIWPGGETEKPRGYQMSTRLKIVTIHQEPFVYVKPTMSDGTCKEEFTVNGDPVKKVICTGPNDTSPGSPRHTVPQCCYGFCIDLLIKLARTMNFTYEVHLVADGKFGTQERVNNSNKKEWNGMMGELLSGQADMIVAPLTINNERAQYIEFSKPFKYQGLTILVKKEIPRSTLDSFMQPFQSTLWLLVGLSVHVVAVMLYLLDRFSPFGRFKVNSEEEEEDALTLSSAMWFSWGVLLNSGIGEGAPRSFSARILGMVWAGFAMIIVASYTANLAAFLVLDRPEERITGINDPRLRNPSDKFIYATVKQSSVDIYFRRQVELSTMYRHMEKHNYESAAEAIQAVRDNKLHAFIWDSAVLEFEASQKCDLVTTGELFFRSGFGIGMRKDSPWKQNVSLSILKSHENGFMEDLDKTWVRYQECDSRSNAPATLTFENMAGVFMLVAGGIVAGIFLIFIEIAYKRHKDARRKQ

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI 分类编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Glutamate receptor ionotropic, NMDA 2A,Enhanced green fluorescent protein
分子量 formula_weight	125326.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MGRLGYWTLLVLPALLVWRDPAQNAAAEKGPPALNIAVLLGHSHDVTERELRNLWGPEQATGLPLDVNVVALLMNRTDPKSLITHVCDLMSGARIHGLVFGDDTDQEAVAQMLDFISSQTFIPILGIHGGASMIMADKDPTSTFFQFGASIQQQATVMLKIMQDYDWHVFSLVTTIFPGYRDFISFIKTTVDNSFVGWDMQNVITLDTSFEDAKTQVQLKKIHSSVILLYCSKDEAVLILSEARSLGLTGYDFFWIVPSLVSGNTELIPKEFPSGLISVSYDDWDYSLEARVRDGLGILTTAASSMLEKFSYIPEAKASCYGQAEKPETPLHTLHQFMVNVTWDGKDLSFTEEGYQVHPRLVVIVLNKDREWEKVGKWENQTLSLRHAVWPRYKSFSDCEPDDNHLSIVTLEEAPFVIVEDIDPLTETCVRNTVPCRKFVKINNSTNEGMNVKKCCKGFCIDILKKLSRTVKFTYDLYLVTNGKHGKKVNNVWNGMIGEVVYQRAVMAVGSLTINEERSEVVDFSVPFVETGISVMVSRSNGTVSPSAFLEPFSASVWVMMFVMLLIVSAIAVFVFEYFSPVGYNRNLAKGKAPHGPSFTIGKAIWLLWGLVFNNSVPVQNPKGTTSKIMVSVWAFFAVIFLASYTANLAAFMIQEEFVDQVTGLSDKKFQRPHDYSPPFRFGTVPNGSTERNIRNNYPYMHQYMTRFNQRGVEDALVSLKTGKLDAFIYDAAVLNYKAGRDEGCKLVTIGSGYIFASTGYGIALQKGSPWKRQIDLALLQFVGDGEMEELETLWLTGICHNEKNEVMSSQLDIDNMAGVFYMLAAAMALSLITFIWEHLFYKSRAEAKRMKGLEVLFQGPAAAAVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKSGLRSHHHHHHHH

来源 Source

来源生物 organism	Muromegalovirus G4
NCBI 分类编号 ncbi_taxonomy_id	524650
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Glutamate receptor ionotropic, NMDA 3A,Enhanced green fluorescent protein
分子量 formula_weight	137362.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MRRLSLWWLLSRVCLLLPPPCALVLAGVPSSSSHPQPCQILKRIGHAVRVGAVHLQPWTTAPRAASRAQEGGRAGAQRDDPESGTWRPPAPSQGARWLGSALHGRGPPGSRKLGEGAGAETLWPRDALLFAVENLNRVEGLLPYNLSLEVVMAIEAGLGDLPLMPFSSPSSPWSSDPFSFLQSVCHTVVVQGVSALLAFPQSQGEMMELDLVSSVLHIPVLSIVRHEFPRESQNPLHLQLSLENSLSSDADVTVSILTMNNWYNFSLLLCQEDWNITDFLLLTENNSKFHLESVINITANLSSTKDLLSFLQVQMDNIRNSTPTMVMFGCDMDSIRQIFEMSTQFGLSPPELHWVLGDSQNVEELRTEGLPLGLIAHGKTTQSVFEYYVQDAMELVARAVATATMIQPELALLPSTMNCMDVKTTNLTSGQYLSRFLANTTFRGLSGSIKVKGSTIISSENNFFIWNLQHDPMGKPMWTRLGSWQGGRIVMDSGIWPEQAQRHKTHFQHPNKLHLRVVTLIEHPFVFTREVDDEGLCPAGQLCLDPMTNDSSMLDRLFSSLHSSNDTVPIKFKKCCYGYCIDLLEQLAEDMNFDFDLYIVGDGKYGAWKNGHWTGLVGDLLSGTANMAVTSFSINTARSQVIDFTSPFFSTSLGILVRTRDTAAPIGAFMWPLHWTMWLGIFVALHITAIFLTLYEWKSPFGMTPKGRNRNKVFSFSSALNVCYALLFGRTAAIKPPKCWTGRFLMNLWAIFCMFCLSTYTANLAAVMVGEKIYEELSGIHDPKLHHPSQGFRFGTVRESSAEDYVRQSFPEMHEYMRRYNVPATPDGVQYLKNDPEKLDAFIMDKALLDYEVSIDADCKLLTVGKPFAIEGYGIGLPPNSPLTSNISELISQYKSHGFMDVLHDKWYKVVPCGKRSFAVTETLQMEIKHFSGLFVLLCIGFGLSILTTIGEHIVHRLLLPRIKNLEVLFQGPAAAAVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKSGLRSWSHPQFEK

来源 Source

来源生物 organism	Muromegalovirus G4
NCBI 分类编号 ncbi_taxonomy_id	524650
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	GluN1-specific antibody fragment light chain
分子量 formula_weight	25739.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,G

DIQWVLLLWVPGSTGDIVLTQSPASLAVSLGQRATISCKASQSVDYDGNSYMNWYQQKPGQPPKLLIYAASNLESGIPARFSGSGSGTDFTLNIHPVEEEDAATYYCQQGNEDPPTFGGGTKLEIKRADARTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 5 polymer

描述 description	GluN1-specific antibody fragment heavy chain
分子量 formula_weight	23432.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,H

DVQLQESGPGLVKPSQSLSLTCTVTGYSITSDYAWNWIRQFPGNKLEWMGYISYSGSTGYNPSLKSRISITRDTSKNQFFLQLNSVTTEDTATYYCARLYYGFYGMDYWGQGTSVTVSSAKTTTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDK

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 6 polymer

描述 description	GluN2A-specific antibody fragment light chain
分子量 formula_weight	23234.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

DIQMTQSPASLSVSVGETVTITCRASENIYSNLAWYQQKQGKSPQLLVYATTNLADGVPSRFSGSGSGTQYSLKINSLQSEDFGSYYCQHFWGTPWTFGGGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRG

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Mus musculus

Entity 7 polymer

描述 description	GluN2A-specific antibody fragment heavy chain
分子量 formula_weight	24936.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

QVTLKESGPGILQPSQTLSLTCSFSGFSLSSSGVGVGWIRQPSGKGLEWLAHIWWDDIKRYNPALKSRLTISKDTSSSQVFLKIASVATADTATYYCTRMETAWFPYWGQGTLVTVSAKRADARTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNR

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Mus musculus

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	7.73 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	162395

fit	/app/data/saxs_computation/jf/8jf7/8jf7.fit
pddf	/app/data/pr_computation/jf/8jf7/8jf7.pr.out
profile	/app/data/saxs_computation/jf/8jf7/8jf7.dat

Triheteromeric NMDA receptor GluN1-GluN2A-GluN3A in complex with glycine, glutamate, a GluN1-specific Fab,and a GluN2A-specific Fab

SAXS 散射曲线 SAXS Profile

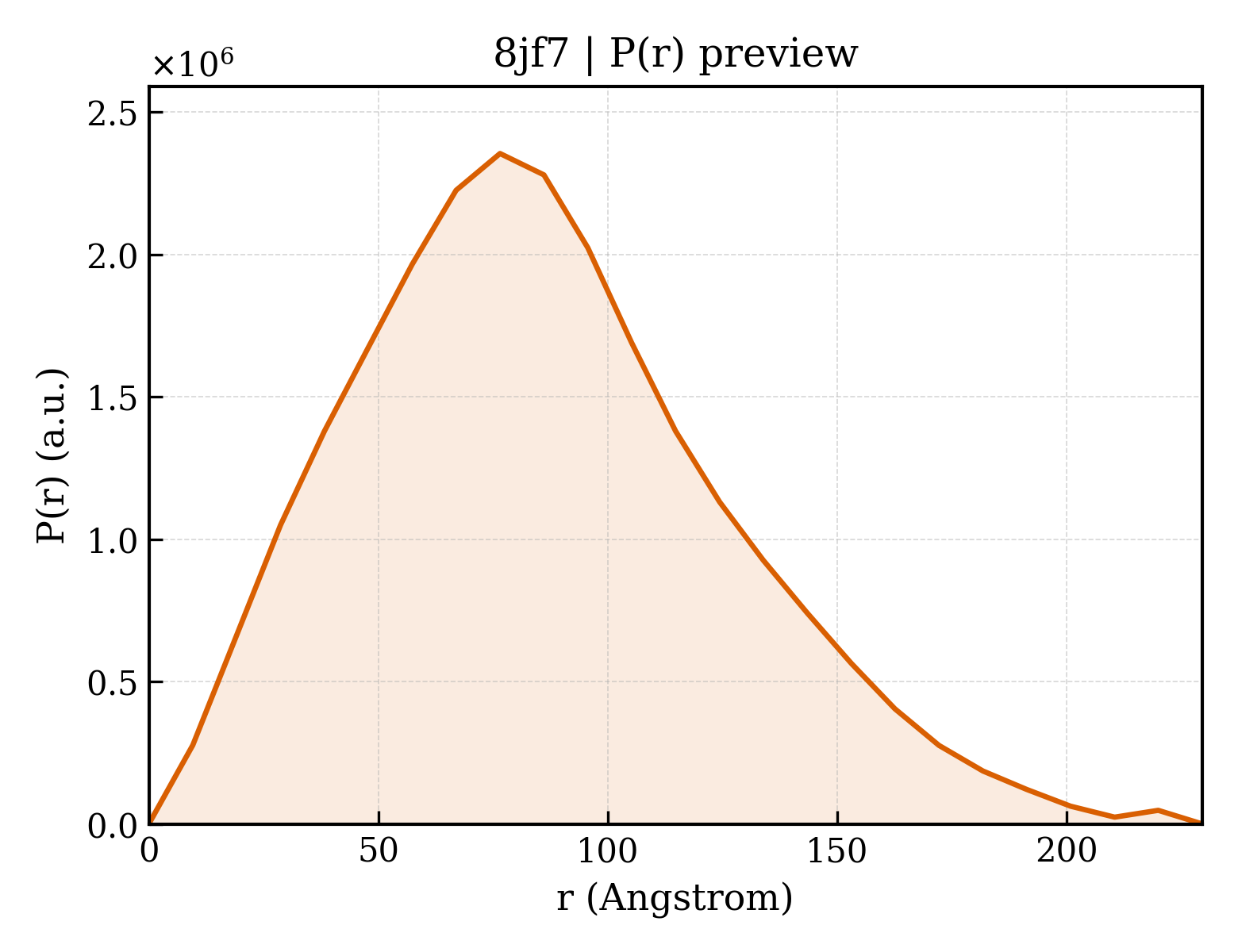

P(r) 距离分布 P(r) Distribution
