Cryo-EM structure of NADPH oxidase 2 in complex with p22phox and EROS

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cytochrome b-245 light chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 2	Cytochrome b-245 heavy chain × 1 （P04839） monoclonal antibody 7G5 heavy chain × 1 Cytochrome b-245 chaperone 1 × 1 （Q9BQA9） monoclonal antibody 7G5 light chain × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1 PROTOPORPHYRIN IX CONTAINING FE × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CY24A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–133； UniProt 3–135

Cytochrome b-245 heavy chain

Homo sapiens

UniProt P04839

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 2	Cytochrome b-245 light chain × 1 （P13498） monoclonal antibody 7G5 heavy chain × 1 Cytochrome b-245 chaperone 1 × 1 （Q9BQA9） monoclonal antibody 7G5 light chain × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1 PROTOPORPHYRIN IX CONTAINING FE × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CY24B_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–565； UniProt 6–570

Cytochrome b-245 chaperone 1

Homo sapiens

UniProt Q9BQA9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 5 其他Polymer 2	Cytochrome b-245 light chain × 1 （P13498） Cytochrome b-245 heavy chain × 1 （P04839） monoclonal antibody 7G5 heavy chain × 1 monoclonal antibody 7G5 light chain × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1 PROTOPORPHYRIN IX CONTAINING FE × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CYBC1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–164； UniProt 1–164

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8kei
Deposition date deposition_date	2023-08-11
Structure title title	Cryo-EM structure of NADPH oxidase 2 in complex with p22phox and EROS
Keywords keywords	NADPH oxidase, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8kei__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

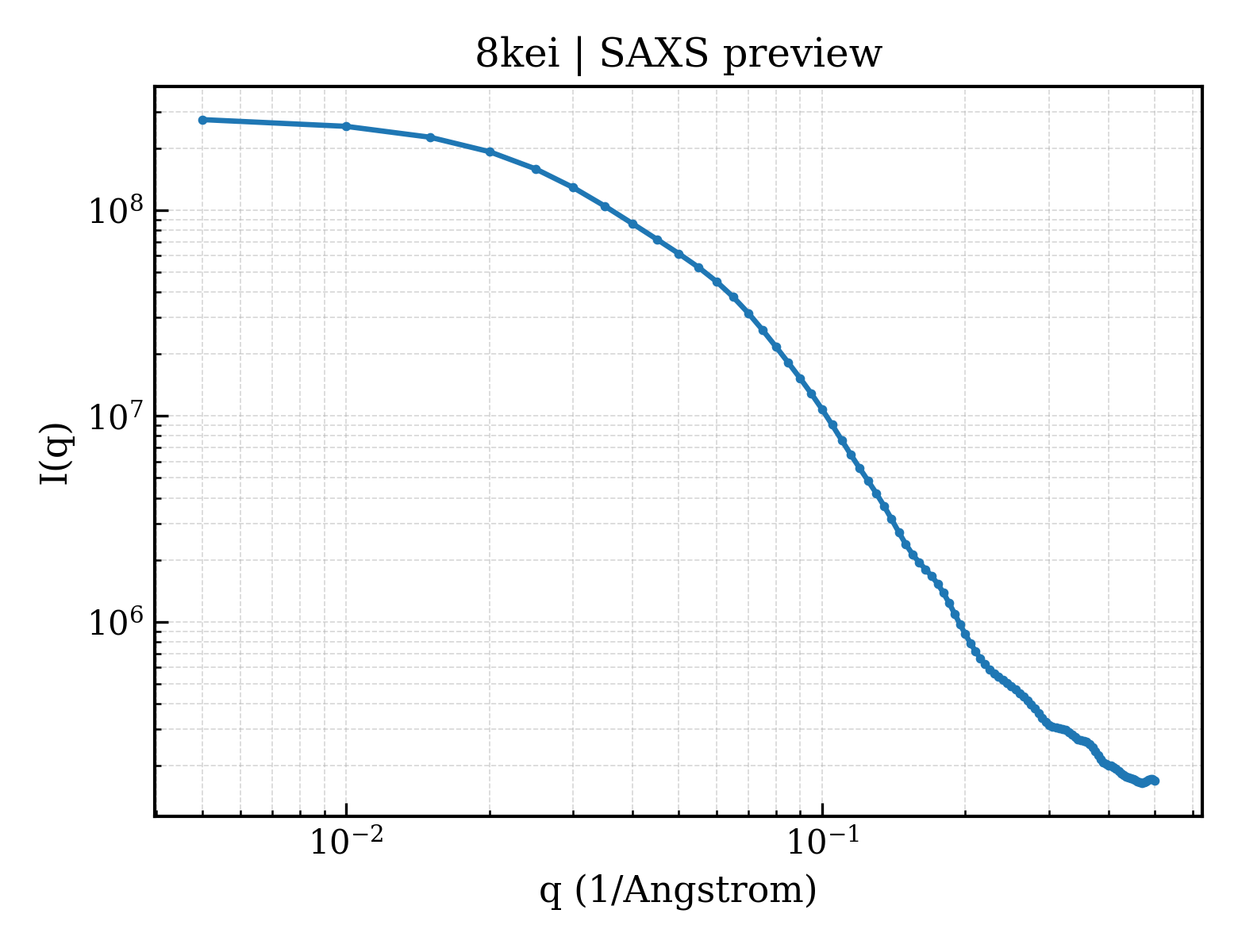

8kei__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

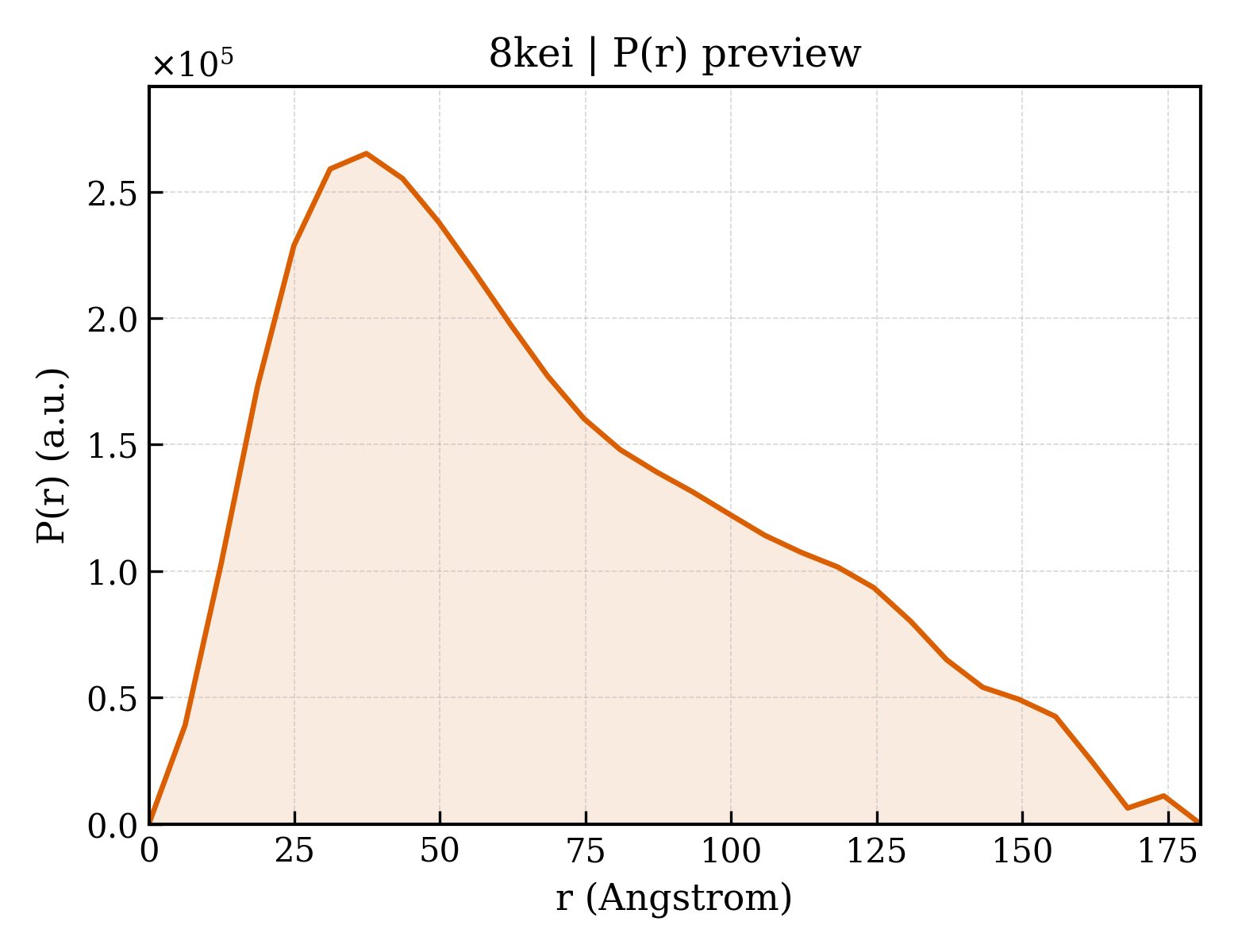

8kei__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	54.36 Å
Rg (electron density)	54.81 Å
Total Rg	54.56 Å
Atom count	10209
Residues	1272
Excluded volume	183740 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8kei__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Cytochrome b-245 light chain
Molecular weight formula_weight	14663.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10209

QIEWAMWANEQALASGLILITGGIVATAGRFTQWYFGAYSIVAGVFVCLLEYPRGKRKKGSTMERWGQKYMTAVVKLFGPFTRNYYVRAVLHLLLSVPAGFLLATILGTACLAIASGIYLLAAVRGEQWTPIE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Cytochrome b-245 heavy chain
Molecular weight formula_weight	64853.1 kDa
EC 编号 ec_number	1.-.-.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

VNEGLSIFVILVWLGLNVFLFVWYYRVYDIPPKFFYTRKLLGSALALARAPAACLNFNCMLILLPVCRNLLSFLRGSSACCSTRVRRQLDRNLTFHKMVAWMIALHSAIHTIAHLFNVEWCVNARVNNSDPYSVALSELGDRQNESYLNFARKRIKNPEGGLYLAVTLLAGITGVVITLCLILIITSSTKTIRRSYFEVFWYTHHLFVIFFIGLAIHGAERIVRGQTAESLAVHNITVCEQKISEWGKIKECPIPQFAGNPPMTWKWIVGPMFLYLCERLVRFWRSQQKVVITKVVTHPFKTIELQMKKKGFKMEVGQYIFVKCPKVSKLEWHPFTLTSAPEEDFFSIHIRIVGDWTEGLFNACGCDKQEFQDAWKLPKIAVDGPFGTASEDVFSYEVVMLVGAGIGVTPFASILKSVWYKYCNNATNLKLKKIYFYWLCRDTHAFEWFADLLQLLESQMQERNNAGFLSYNIYLTGWDESQANHFAVHHDEEKDVITGLKQKTLYGRPNWDNEFKTIASQHPNTRIGVFLCGPEALAETLSKQSISNSESGPRGVHFIFNKENF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	monoclonal antibody 7G5 heavy chain
Molecular weight formula_weight	23484.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

QSLEESGGDLVKPGASLTLTCTASGIDFSGYHYMCWVRQAPGKGLEWIGCTHSGDGTTYYARWAKGRFTISKTSSTTVTLQMTSLTAADTATYFCARRYVFSGGYSGLDSWGPGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

Source Source

Source organism organism	Oryctolagus cuniculus
Common name common_name	Rabbit
NCBI taxonomy ID ncbi_taxonomy_id	9986
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Cytochrome b-245 chaperone 1
Molecular weight formula_weight	18491.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MYLQVETRTSSRLHLKRAPGIRSWSLLVGILSIGLAAAYYSGDSLGWKLFYVTGCLFVAVQNLEDWEEAIFDKSTGKVVLKTFSLYKKLLTLFRAGHDQVVVLLHDVRDVSVEEEKVRYFGKGYMVVLRLATGFSHPLTQSAVMGHRSDVEAIAKLITSFLELH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	monoclonal antibody 7G5 light chain
Molecular weight formula_weight	23521.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

ALVMTQTPSSVSAAVRGTVTIKCQASENIYSNLAWYQQKPGQPPKLLIYGASKLASGVPSRFKGSGSGTDYTLTIRDLEAADAATYYCQQFYDSLNTDNAFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Oryctolagus cuniculus
Common name common_name	Rabbit
NCBI taxonomy ID ncbi_taxonomy_id	9986
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
Molecular weight formula_weight	760.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 non-polymer

Description description	1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine
Molecular weight formula_weight	760.1 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.56 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	131926
