SAXSdb — 8odx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interleukin-12 receptor subunit beta-1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	FAb4 Heavy chain × 1 anti Kappa Light chain VHH × 1 FAb4 Light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I12R1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 30–338； UniProt 232–540

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8odx
Deposition date deposition_date	2023-03-09
Structure title title	Interleukin 12 receptor subunit beta-1 Fn domains in complex with antagonistic FAb4 fragment and VHH.
Keywords keywords	receptor, fibronectin, antagonist, CYTOKINE; CYTOKINE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8odx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8odx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

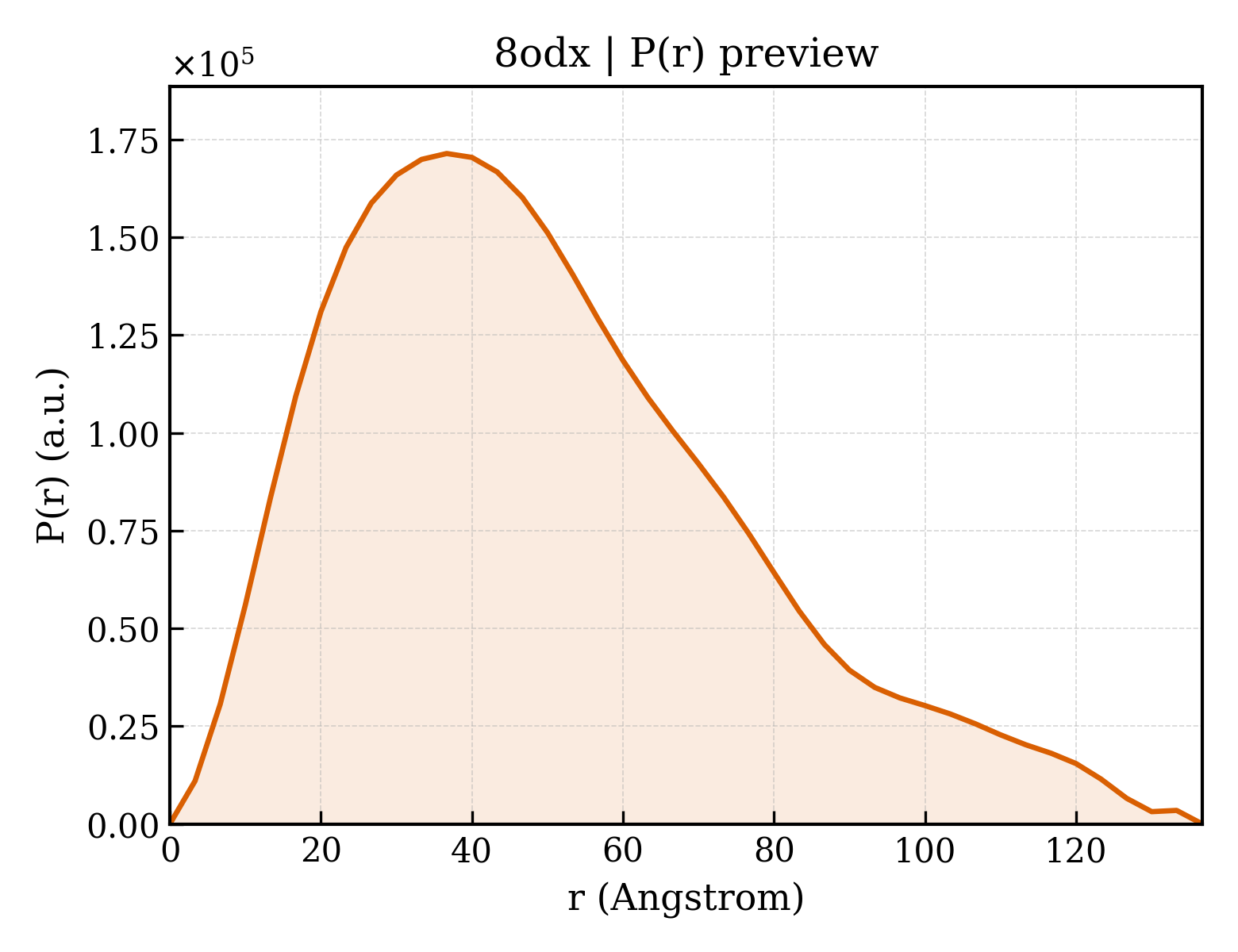

8odx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.84 Å
Rg (electron density)	39.33 Å
Total Rg	39.40 Å
Atom count	6382
Residues	834
Excluded volume	112420 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8odx__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Interleukin-12 receptor subunit beta-1
Molecular weight formula_weight	40884.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6382

MGILPSPGMPALLSLVSLLSVLLMGCVAEPPENPPQPQVRFSVEQLGQDGRRRLTLKEQPTQLELPEGCQGLAPGTEVTYRLQLHMLSCPCKAKATRTLHLGKMPYLSGAAYNVAVISSNQFGPGLNQTWHIPADTHTEPVALNISVGTNGTTMYWPARAQSMTYCIEWQPVGQDGGLATCSLTAPQDPDPAGMATYSWSRESGAMGQEKCYYITIFASAHPEKLTLWSTVLSTYHFGGNASAAGTPHHVSVKNHSLDSVSVDWAPSLLSTCPGVLKEYVVRCRDEDSKQVSEHPVQPTETQVTLSGLRAGVAYTVQVRADTAWLRGVWSQPQRFSIEGTSDEVDGGSGGSGLNDIFEAQKIEWHEGRTKHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	FAb4 Heavy chain
Molecular weight formula_weight	26776.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MGWSCIILFLVATATGVHSQVQLVESGGGVVQPGRSLRLSCAASGFTFTSYGMSWVRQAPGKGLEWVAGISYDASDTEYADSVKGRFTISRDNSKNTLYLQMNSLRAEDTAVYYCARSPDYIIDYGFDYWGRGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCGHHHHHH

Source Source

Source organism organism	Homo sapiens x Mus musculus hybrid cell line
NCBI taxonomy ID ncbi_taxonomy_id	1131344
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	anti Kappa Light chain VHH
Molecular weight formula_weight	18058.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MGKYLLPTAAAGLLLLAAQPAMAHHHHHHSSGLVPRGSHMSDEVDGQVQLQESGGGLVQPGGSLRLSCAASGRTISRYAMSWFRQAPGKEREFVAVARRSGDGAFYADSVQGRFTVSRDDAKNTVYLQMNSLKPEDTAVYYCAIDSDTFYSGSYDYWGQGTQVTVSS

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	FAb4 Light chain
Molecular weight formula_weight	25204.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MGVKVLFALICIAVAEAAIQMTQSPSSLSASVGDRVTITCRASQGISSDLAWYQQKPGKAPKLLIYDASSLQSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQYWWYPFTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens x Mus musculus hybrid cell line
NCBI taxonomy ID ncbi_taxonomy_id	1131344
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	231.402 Å
Unit-cell length b length_b	231.402 Å
Unit-cell length c length_c	231.402 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 41 3 2
Space-group number int_tables_number	213
Crystal system crystal_system	cubic

Resolution resolution	4.400 Å
Low-resolution limit resolution_low	81.810 Å
R factor r_factor	0.2827
R_work r_work	0.2796
R_free r_free	0.3115

Interleukin 12 receptor subunit beta-1 Fn domains in complex with antagonistic FAb4 fragment and VHH.
