SAXSdb — 8oel

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8oel
沉积日期 deposition_date	2023-03-10
结构标题 title	Condensed RPA-DNA nucleoprotein filament
关键词 keywords	DNA replication, single strand DNA-binding protein, RPA, DNA BINDING PROTEIN; DNA BINDING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.86 Å
回转半径 Rg (电子) rg_electron	45.71 Å
零角强度 I(0) i0	297605000.00
分子量 molecular_weight	141440.0 kDa
排除体积 excluded_volume	176970 Å³
包络体积 envelope_volume	270780 Å³
水化壳体积 shell_volume	49437 Å³
包络直径 envelope_diameter	150.4 Å
壳层 Rg shell_rg	50.80 Å
包络 Rg envelope_rg	44.20 Å
形状 Rg shape_rg	45.71 Å
总 Rg total_rg	45.96 Å
总原子数 total_atoms	9918
残基数 n_residues	1182
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	150.1 Å
Rg (实空间) rg_real	45.96 Å
Rg 误差 (实空间) rg_real_error	1.25 Å
I(0) (实空间) i0_real	2.9760e+08
I(0) 误差 (实空间) i0_real_error	5.2200e+06
Rg (倒空间) rg_reciprocal	45.86 Å
I(0) (倒空间) i0_reciprocal	297600000.0000
解质量估计 total_estimate	0.8586
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	66.2 Å
偏度 Skewness skewness	0.234
峰度 Kurtosis kurtosis	-0.675
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	24380000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.898; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.507

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Replication factor A
分子量 formula_weight	41009.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D
原子数 atom_count	9968

MSVLTKDRIIEIIERKTGMSREEIEEEIRKIMEEDPYLSEQGAAALLAERLGIDLIEKEEVSLMRISELYPGMDPREVNVVGRVLKKYPPREYTRKDGSVGRVASLIIYDDSGRARVVLWDAKVSEYYNKIEVGDVIKVLDAQVKESLSGLPELHINFRARIILNPDDPRVEMIPPLEEVRVATYTRKKIKDIEAGDRFVEVRGTIAKVYRVLTYDACPECKKKVDYDEGLGVWICPEHGEVQPIKMTILDFGLDDGTGYIRVTLFGDDAEELLGVSPEEIAEKIKELEESGLTTKEAARKLAEDEFYNIIGREIVVRGNVIEDRFLGLILRASSWEDVDYRREIERIKEELEKLGVM

来源 Source

来源生物 organism	Pyrococcus abyssi
NCBI 分类编号 ncbi_taxonomy_id	29292
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	RPA32 subunit of the hetero-oligomeric complex involved in homologous recombination
分子量 formula_weight	31489.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,H

MSKKRMPATRLYIKDILEGYFVKSEGDFEPNYLITKYARKVYRAKIVGTVVREPLIAEDETYGKFQVDDGTGVIWVLGFRDDTKFAKLVRKGDLVQVIGKIAEWRDDKQILVEGVSKVHPNMWILHRYETLKEKIEHIKKAKIALEIYNQYGITAKSKVIAKNKGIEEELLEVIDELYGIMMEERSIEEPMEELLEEEIPEEKEENELLEKAKEDILNILRQKRTAISRKYILKKLGDKYDEETIDDAITELLAQGEIYEPETGYYKLL

来源 Source

来源生物 organism	Pyrococcus abyssi
NCBI 分类编号 ncbi_taxonomy_id	29292
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

描述 description	RPA14 subunit of the hetero-oligomeric complex involved in homologous recombination
分子量 formula_weight	14008.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,I

GTGDGSEVQVRRRKPAVERKISEIREEDTRVSLIGRVIKVDKMDYMFWLDDGTGVAIIESESDLPKVGQVVRVIGRIIRNEEGIHIYAEVIQDFSDADLEALEEIRELERKLLPRLEGEIVW

来源 Source

来源生物 organism	Pyrococcus abyssi
NCBI 分类编号 ncbi_taxonomy_id	29292
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 polymer

描述 description	poly dT
分子量 formula_weight	30374.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	T

TTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTTT

Entity 5 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

分辨率 resolution	8.240 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

fit	/app/data/saxs_computation/oe/8oel/8oel.fit
pddf	/app/data/pr_computation/oe/8oel/8oel.pr.out
profile	/app/data/saxs_computation/oe/8oel/8oel.dat

Condensed RPA-DNA nucleoprotein filament

SAXS 散射曲线 SAXS Profile

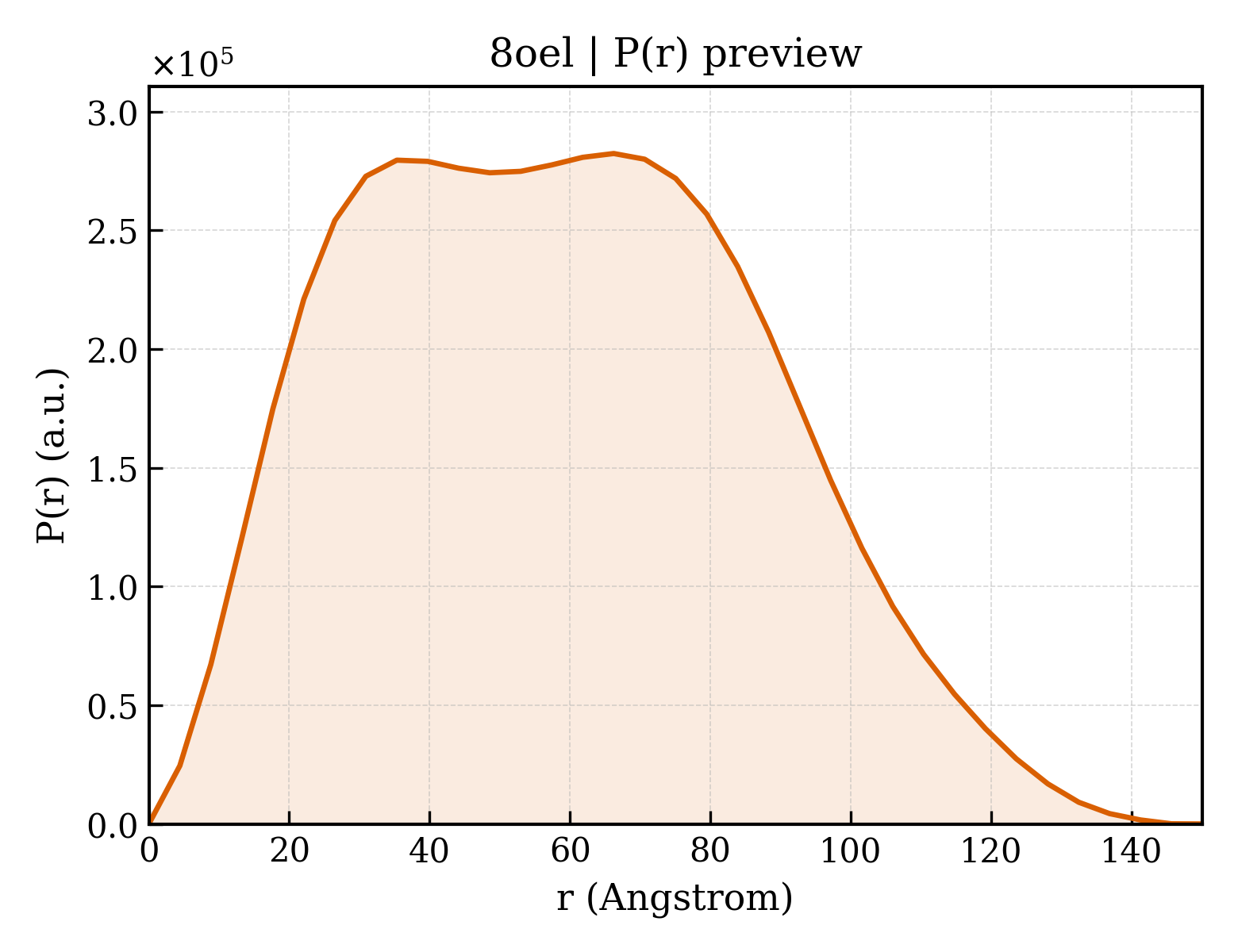

P(r) 距离分布 P(r) Distribution
