1. Protein Identity and Related Structures Protein Identity & Related Structures

Sarcoplasmic/endoplasmic reticulum calcium ATPase 1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ACETYL GROUP × 1 ;[(3S,3aR,4S,6S,6aR,7S,8S,9bS)-6-acetyloxy-3,6,9-trimethyl-8-[(Z)-2-methylbut-2-enoyl]oxy-3,3a-bis(oxidanyl)-2-oxidanylidene-4-[6-[4-[(E)-phenyldiazenyl]phenyl]hexanoyloxy]-4,5,6a,7,8,9b-hexahydroazuleno[4,5-b]furan-7-yl] octanoate ; × 1 SODIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AT2A1_RABIT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–991； UniProt 1–991

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8owl
Deposition date deposition_date	2023-04-28
Last revision last_revision	2023-06-21
Structure title title	SR Ca(2+)-ATPase in the E2 state complexed with the photoswitch-thapsigargin derivative AzTG-6
Keywords keywords	SERCA inhibitors, Photoswitch, Azobenzene, Thapsigargin, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8owl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8owl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

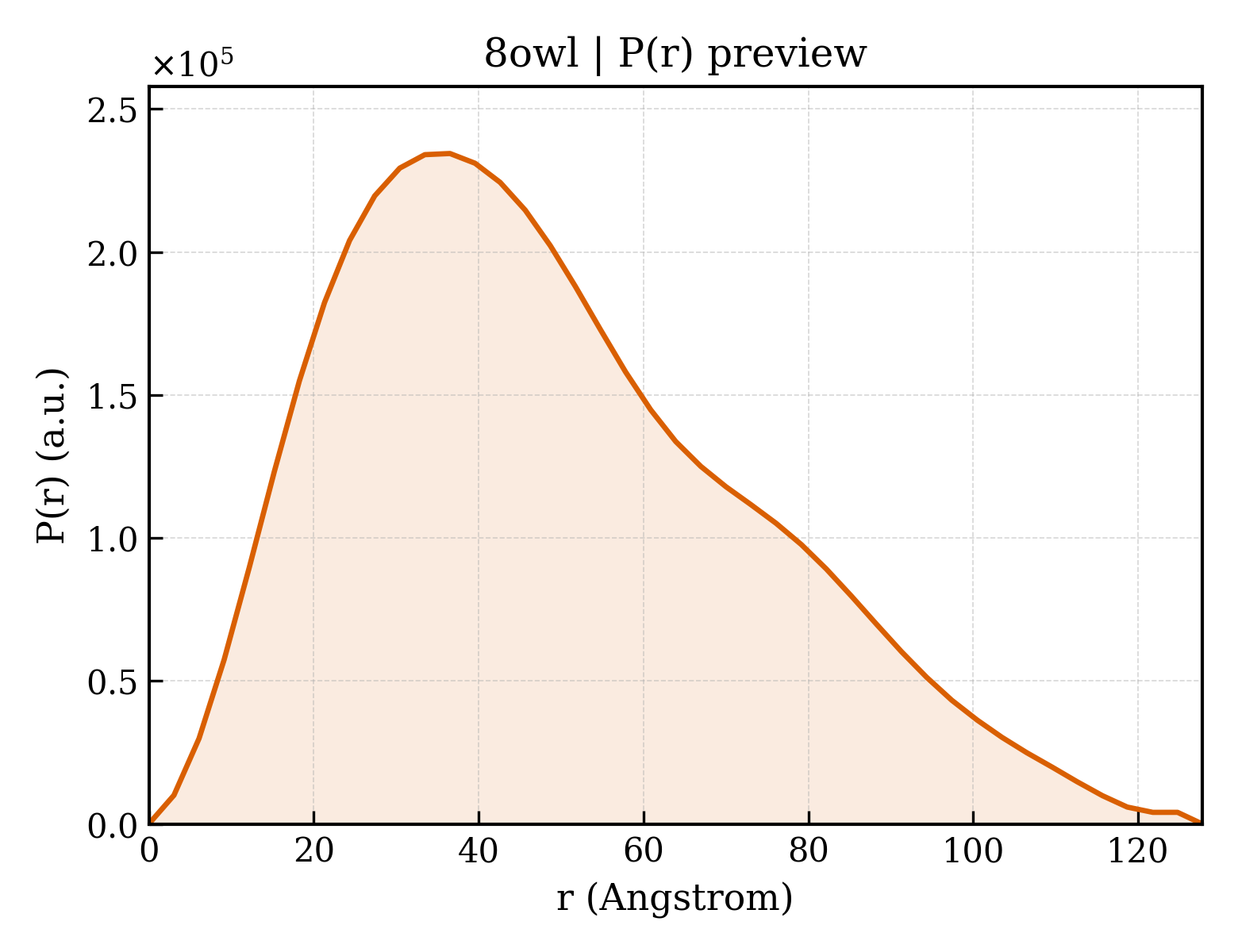

8owl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.94 Å
Rg (electron density)	38.50 Å
Total Rg	38.48 Å
Atom count	7642
Residues	981
Excluded volume	137590 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8owl__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Sarcoplasmic/endoplasmic reticulum calcium ATPase 1
Molecular weight formula_weight	109303.2 kDa
EC 编号 ec_number	7.2.2.10
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7642

MEAAHSKSTEECLAYFGVSETTGLTPDQVKRHLEKYGHNELPAEEGKSLWELVIEQFEDLLVRILLLAACISFVLAWFEEGEETITAFVEPFVILLILIANAIVGVWQERNAENAIEALKEYEPEMGKVYRADRKSVQRIKARDIVPGDIVEVAVGDKVPADIRILSIKSTTLRVDQSILTGESVSVIKHTEPVPDPRAVNQDKKNMLFSGTNIAAGKALGIVATTGVSTEIGKIRDQMAATEQDKTPLQQKLDEFGEQLSKVISLICVAVWLINIGHFNDPVHGGSWIRGAIYYFKIAVALAVAAIPEGLPAVITTCLALGTRRMAKKNAIVRSLPSVETLGCTSVICSDKTGTLTTNQMSVCKMFIIDKVDGDFCSLNEFSITGSTYAPEGEVLKNDKPIRSGQFDGLVELATICALCNDSSLDFNETKGVYEKVGEATETALTTLVEKMNVFNTEVRNLSKVERANACNSVIRQLMKKEFTLEFSRDRKSMSVYCSPAKSSRAAVGNKMFVKGAPEGVIDRCNYVRVGTTRVPMTGPVKEKILSVIKEWGTGRDTLRCLALATRDTPPKREEMVLDDSSRFMEYETDLTFVGVVGMLDPPRKEVMGSIQLCRDAGIRVIMITGDNKGTAIAICRRIGIFGENEEVADRAYTGREFDDLPLAEQREACRRACCFARVEPSHKSKIVEYLQSYDEITAMTGDGVNDAPALKKAEIGIAMGSGTAVAKTASEMVLADDNFSTIVAAVEEGRAIYNNMKQFIRYLISSNVGEVVCIFLTAALGLPEALIPVQLLWVNLVTDGLPATALGFNPPDLDIMDRPPRSPKEPLISGWLFFRYMAIGGYVGAATVGAAAWWFMYAEDGPGVTYHQLTHFMQCTEDHPHFEGLDCEIFEAPEPMTMALSVLVTIEMCNALNSLSENQSLMRMPPWVNIWLLGSICLSMSLHFLILYVDPLPMIFKLKALDLTQWLMVLKISLPVIGLDEILKFIARNY

Entity 2 Entity 2 non-polymer

Description description	ACETYL GROUP
Molecular weight formula_weight	44.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	;[(3S,3aR,4S,6S,6aR,7S,8S,9bS)-6-acetyloxy-3,6,9-trimethyl-8-[(Z)-2-methylbut-2-enoyl]oxy-3,3a-bis(oxidanyl)-2-oxidanylidene-4-[6-[4-[(E)-phenyldiazenyl]phenyl]hexanoyloxy]-4,5,6a,7,8,9b-hexahydroazuleno[4,5-b]furan-7-yl] octanoate ;
Molecular weight formula_weight	859.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	8owlA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	1110 — Calcium-transporting ATPase, cytoplasmic domain N
Homologous superfamily homologous superfamily	10 — Calcium-transporting ATPase, cytoplasmic domain N

▶

Unit-cell length a length_a	71.140 Å
Unit-cell length b length_b	71.140 Å
Unit-cell length c length_c	587.670 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	tetragonal

Resolution resolution	3.020 Å
Low-resolution limit resolution_low	73.460 Å
R factor r_factor	0.2218
R_work r_work	0.2207
R_free r_free	0.2427
