SAXSdb — 8pp3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ferritin heavy chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 24	FE (III) ION × 24 GLYCEROL × 16 water × 24	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 24	FE (III) ION × 24 MAGNESIUM ION × 8 water × 24	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FRIH_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–183； UniProt 1–183 Author chain B； PDBConstruct 1–183； UniProt 1–183 Author chain C； PDBConstruct 1–183； UniProt 1–183 Author chain D； PDBConstruct 1–183； UniProt 1–183 Author chain E； PDBConstruct 1–183； UniProt 1–183 Author chain F； PDBConstruct 1–183； UniProt 1–183 Author chain G； PDBConstruct 1–183； UniProt 1–183 Author chain H； PDBConstruct 1–183； UniProt 1–183 Author chain I； PDBConstruct 1–183； UniProt 1–183 Author chain J； PDBConstruct 1–183； UniProt 1–183 Author chain K； PDBConstruct 1–183； UniProt 1–183 Author chain L； PDBConstruct 1–183； UniProt 1–183

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8pp3
Deposition date deposition_date	2023-07-06
Structure title title	Binary crystal structure of positively supercharged ferritin variant Ftn(pos) and crystal contact tuned negatively supercharged ferritin variant Ftn(neg)-m1 (Mg formate condition)
Keywords keywords	;protein design, protein engineering, protein interfaces, superlattice, nanocage, ferritin, protein container, charged nanocage, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8pp3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8pp3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

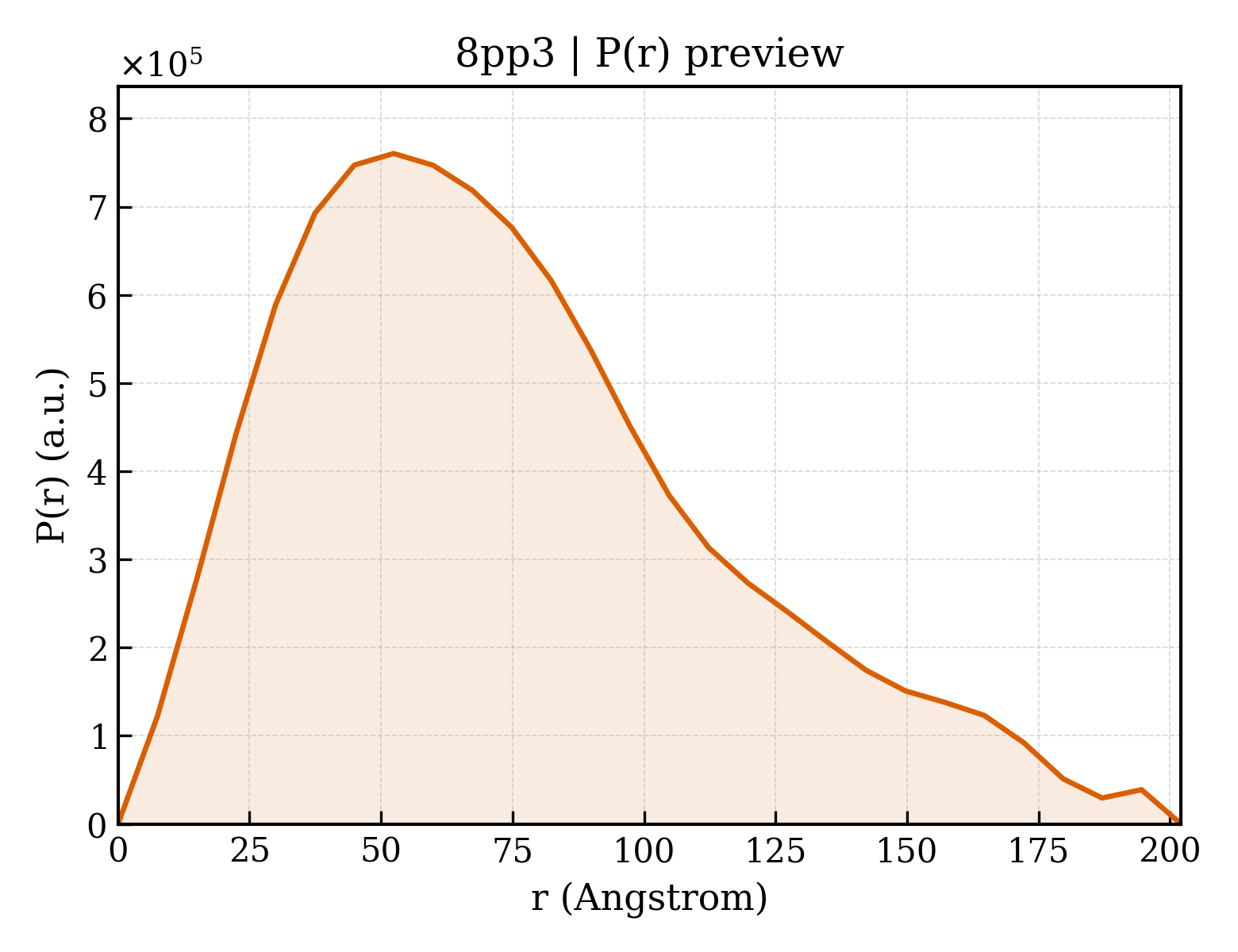

8pp3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	53.93 Å
Rg (electron density)	53.07 Å
Total Rg	53.48 Å
Atom count	68912
Residues	4128
Excluded volume	610990 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8pp3__assembly_1__model_1`	24-meric （24）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8pp3__assembly_2__model_1`	24-meric （24）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Ferritin heavy chain
Molecular weight formula_weight	21499.2 kDa
EC 编号 ec_number	1.16.3.1
Mutation mutation	A18K, C90K, N98R, C102K, H105K N25R, N109K, D123K, E162R
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	35092

MTTASTSQVRQNYHQDSEKAINRQIRLELYASYVYLSMSYYFDRDDVALKNFAKYFLHQSHEEREHAEKLMKLQNQRGGRIFLQDIQKPDKDDWESGLRAMEKALKLEKKVNQSLLELHKLATKKNDPHLCDFIETHYLNEQVKAIKELGDHVTNLRKMGAPRSGLAEYLFDKHTLGDSDNES

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Ferritin heavy chain
Molecular weight formula_weight	21297.5 kDa
EC 编号 ec_number	1.16.3.1
Mutation mutation	C90E, C102E, H105E
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I,J,K,L

MTTASTSQVRQNYHQDSEAAINRQINLELYASYVYLSMSYYFDRDDVALKNFAKYFLHQSHEEREHAEKLMKLQNQRGGRIFLQDIQKPDEDDWESGLNAMEEALELEKNVNQSLLELHKLATDKNDPHLCDFIETHYLNEQVKAIKELGDHVTNLRKMGAPESGLAEYLFDKHTLGDSDNES

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	976

▶

Unit-cell length a length_a	127.007 Å
Unit-cell length b length_b	127.007 Å
Unit-cell length c length_c	175.193 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 4
Space-group number int_tables_number	75
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	59.774 Å
R factor r_factor	—
R_work r_work	0.2185
R_free r_free	0.2413
