SAXSdb — 8q7o

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Frizzled-3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 26–138 Chain D； UniProt 26–138	Not recorded	Nanobody 14478 × 2 DMS DIMETHYL SULFOXIDE × 2 GOL GLYCEROL × 3 CIT CITRIC ACID × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；298 K；100 mM citric acid, pH 3.6; 690 mM ammonium sulphate	Resolution 1.76 Å R-free 0.222

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8Q7O	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8JHC FZD3 in inactive state Deposited 2023-05-23	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 22–399（378 aa） Chain R 410–514（105 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8JHI FZD3-Gs complex Deposited 2023-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 23–542（520 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8QW4 FZD3 in complex with nanobody 9 Deposited 2023-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–517（517 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FZD3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 4–116； UniProt 26–138 Author chain D； PDBConstruct 4–116； UniProt 26–138

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8q7o
Deposition date deposition_date	2023-08-16
Structure title title	Crystal structure of the FZD3 cysteine-rich domain in complex with a nanobody (14478)
Keywords keywords	Frizzled, WNT, GPCR, Nanobody, Complex, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.64 Å
Radius of gyration Rg (electron density) rg_electron	29.93 Å
Forward intensity I(0) i0	54119200.00
Molecular weight molecular_weight	55570.0 kDa
Excluded volume excluded_volume	68529 Å³
Envelope volume envelope_volume	93479 Å³
Hydration-shell volume shell_volume	26212 Å³
Envelope diameter envelope_diameter	93.0 Å
Shell Rg shell_rg	36.80 Å
Envelope Rg envelope_rg	29.35 Å
Shape Rg shape_rg	29.95 Å
Total Rg total_rg	30.52 Å
Total atoms total_atoms	3874
Residues n_residues	486
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

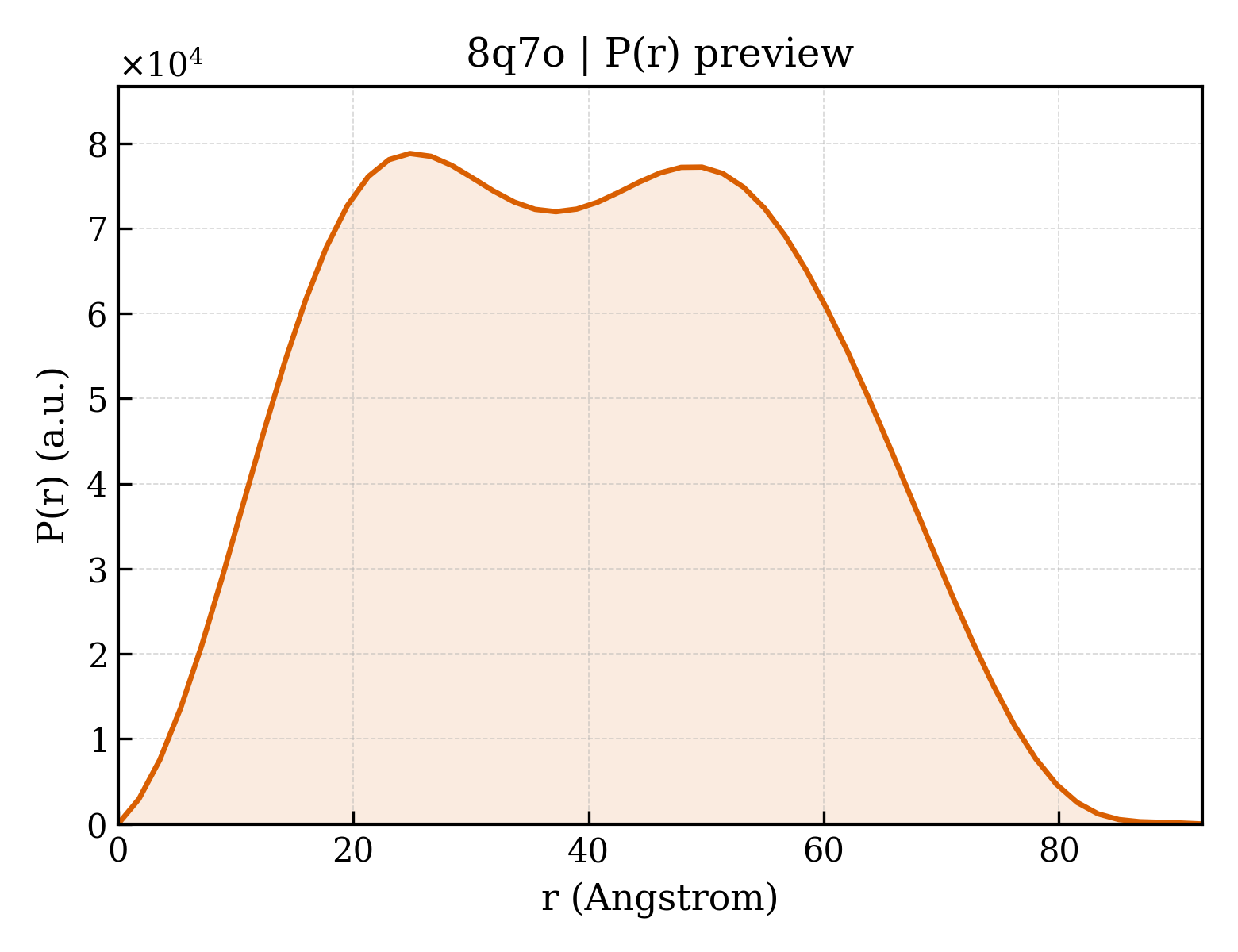

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	92.2 Å
Rg (real space) rg_real	30.59 Å
Rg uncertainty (real space) rg_real_error	0.56 Å
I(0) (real space) i0_real	5.4120e+07
I(0) uncertainty (real space) i0_real_error	8.6450e+05
Rg (reciprocal space) rg_reciprocal	30.62 Å
I(0) (reciprocal space) i0_reciprocal	54120000.0000
Solution quality estimate total_estimate	0.6755
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.8 Å
Skewness Skewness skewness	0.091
Kurtosis Kurtosis kurtosis	-0.904
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8816000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 0.025; Positv: 1.000; Valcen: 0.940; Smooth: 0.928

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Nanobody 14478
Molecular weight formula_weight	13264.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4081

ETGQVQLVESGGGLVQAGGSLRLSCAASGSISSINAMGWYRQAPGKQRELVAAITSGGSTNYADSVKGRFTISRDNAKNTVYLQMNSLKPGDTAVYYCNLLYYIDYVEYDYWGQGTQVTVSSGT

来源 Source

来源生物 organism	Lama glama
NCBI Class编号 ncbi_taxonomy_id	9844
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Frizzled-3
Molecular weight formula_weight	14452.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

ETGFSCEPITLRMCQDLPYNTTFMPNLLNHYDQQTAALAMEPFHPMVNLDCSRDFRPFLCALYAPICMEYGRVTLPCRRLCQRAYSECSKLMEMFGVPWPEDMECSRFPDCDEPYPGTLEVLFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	nat
Copy count entity_count	3

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	207

▶

8. Citations (1)

▶

Unit-cell length a length_a	53.659 Å
Unit-cell length b length_b	147.475 Å
Unit-cell length c length_c	229.727 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.760 Å
Low-resolution limit resolution_low	46.170 Å
R factor r_factor	0.2174
R_work r_work	0.2172
R_free r_free	0.2222

fit	/app/data/saxs_computation/q7/8q7o/8q7o.fit
pddf	/app/data/pr_computation/q7/8q7o/8q7o.pr.out
profile	/app/data/saxs_computation/q7/8q7o/8q7o.dat
