8qtn

Cryo-EM structure of the apo yeast Ceramide Synthase

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ceramide synthase LAG1

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Ceramide synthase LAC1 × 1 （P28496） Ceramide synthase subunit LIP1 × 2 （Q03579） 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 hexacosanoic acid × 2 [(2S)-1-hexadecanoyloxy-3-[hydroxy-[(2S,3R,5S,6R)-2,3,4,5,6-pentahydroxycyclohexyl]oxy-phosphoryl]oxy-propan-2-yl] heptadecanoate × 2 AMMONIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LAG1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–309； UniProt 75–383

Ceramide synthase LAC1

Saccharomyces cerevisiae

UniProt P28496

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Ceramide synthase LAG1 × 1 （P38703） Ceramide synthase subunit LIP1 × 2 （Q03579） 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 hexacosanoic acid × 2 [(2S)-1-hexadecanoyloxy-3-[hydroxy-[(2S,3R,5S,6R)-2,3,4,5,6-pentahydroxycyclohexyl]oxy-phosphoryl]oxy-propan-2-yl] heptadecanoate × 2 AMMONIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LAC1_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–305； UniProt 75–379

Ceramide synthase subunit LIP1

Saccharomyces cerevisiae

UniProt Q03579

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Ceramide synthase LAG1 × 1 （P38703） Ceramide synthase LAC1 × 1 （P28496） 1,2-Distearoyl-sn-glycerophosphoethanolamine × 4 hexacosanoic acid × 2 [(2S)-1-hexadecanoyloxy-3-[hydroxy-[(2S,3R,5S,6R)-2,3,4,5,6-pentahydroxycyclohexyl]oxy-phosphoryl]oxy-propan-2-yl] heptadecanoate × 2 AMMONIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LIP1_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–133； UniProt 18–150 Author chain D； PDBConstruct 1–133； UniProt 18–150

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8qtn
Deposition date deposition_date	2023-10-12
Structure title title	Cryo-EM structure of the apo yeast Ceramide Synthase
Keywords keywords	Ceramide Synthase, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8qtn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

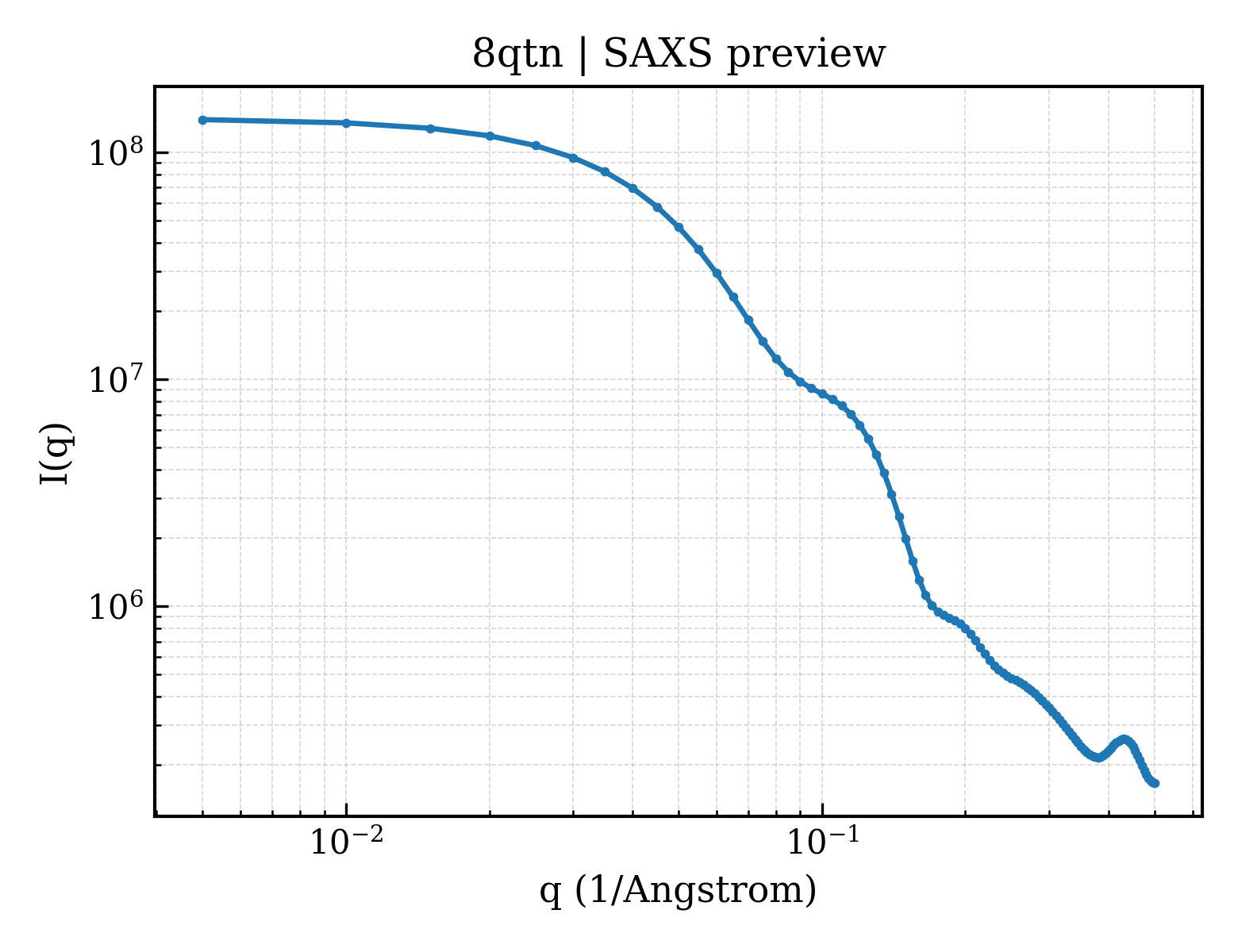

8qtn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8qtn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.26 Å
Rg (electron density)	35.40 Å
Total Rg	35.89 Å
Atom count	7739
Residues	878
Excluded volume	142160 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8qtn__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Ceramide synthase LAG1
Molecular weight formula_weight	37150.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7739

YREMNYRHSWLTPFFILVCVYSAYFLSGNRTESNPLHMFVAISYQVDGTDSYAKGIKDLSFVFFYMIFFTFLREFLMDVVIRPFTVYLNVTSEHRQKRMLEQMYAIFYCGVSGPFGLYIMYHSDLWLFKTKPMYRTYPVITNPFLFKIFYLGQAAFWAQQACVLVLQLEKPRKDYKELVFHHIVTLLLIWSSYVFHFTKMGLAIYITMDVSDFFLSLSKTLNYLNSVFTPFVFGLFVFFWIYLRHVVNIRILWSVLTEFRHEGNYVLNFATQQYKCWISLPIVFVLIAALQLVNLYWLFLILRILYRLI

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	Ceramide synthase LAC1
Molecular weight formula_weight	36235.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

FREISYRHAWIAPLMILIAVYSAYFTSGNTTKTNVLHRFVAVSYQIGDTNAYGKGINDLCFVFYYMIFFTFLREFLMDVVIRPFAIRLHVTSKHRIKRIMEQMYAIFYTGVSGPFGIYCMYHSDLWFFNTKAMYRTYPDFTNPFLFKVFYLGQAAFWAQQACILVLQLEKPRKDHNELTFHHIVTLLLIWSSYVFHFTKMGLPIYITMDVSDFLLSFSKTLNYLDSGLAFFSFAIFVVAWIYLRHYINLKILWSVLTQFRTEGNYVLNFATQQYKCWISLPIVFVLIGALQLVNLYWLFLIFRVL

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 polymer

Description description	Ceramide synthase subunit LIP1
Molecular weight formula_weight	15444.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

PKIFNLFRVCFISLLLIAAVEYFKYGTRINYEWFHCTPIKEPQSGSVIKLWARGGPSCDKRGEYKTIVKRITRDYEPNDEHLSFCIIENDNVPPVHYPIHEDKGEPGYVAYVGYDTDSELVQELCADSTIYHM

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;brewer's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 4 Entity 4 non-polymer

Description description	1,2-Distearoyl-sn-glycerophosphoethanolamine
Molecular weight formula_weight	748.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	hexacosanoic acid
Molecular weight formula_weight	396.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	[(2S)-1-hexadecanoyloxy-3-[hydroxy-[(2S,3R,5S,6R)-2,3,4,5,6-pentahydroxycyclohexyl]oxy-phosphoryl]oxy-propan-2-yl] heptadecanoate
Molecular weight formula_weight	825.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	AMMONIUM ION
Molecular weight formula_weight	18.0 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.00 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	159440
