8qyq

Beta-cardiac myosin S1 fragment in the pre-powerstroke state complexed to Mavacamten

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myosin-7

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Myosin light chain 3 × 1 （P85100） ADENOSINE-5'-DIPHOSPHATE × 1 BERYLLIUM TRIFLUORIDE ION × 1 MAGNESIUM ION × 1 Mavacamten × 1 FORMIC ACID × 3 GLYCEROL × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Myosin light chain 3 × 1 （P85100） ADENOSINE-5'-DIPHOSPHATE × 1 BERYLLIUM TRIFLUORIDE ION × 1 MAGNESIUM ION × 1 Mavacamten × 1 FORMIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MYH7_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–807； UniProt 1–807 Author chain B； PDBConstruct 1–807； UniProt 1–807

Myosin light chain 3

OrganismNot specified

UniProt P85100

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Myosin-7 × 1 （Q9BE39） ADENOSINE-5'-DIPHOSPHATE × 1 BERYLLIUM TRIFLUORIDE ION × 1 MAGNESIUM ION × 1 Mavacamten × 1 FORMIC ACID × 3 GLYCEROL × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Myosin-7 × 1 （Q9BE39） ADENOSINE-5'-DIPHOSPHATE × 1 BERYLLIUM TRIFLUORIDE ION × 1 MAGNESIUM ION × 1 Mavacamten × 1 FORMIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MYL3_BOVIN
Isoform	—
PDB entities	2, 3
Chains and sequence ranges	Author chain C； PDBConstruct 1–199； UniProt 1–199 Author chain D； PDBConstruct 1–199； UniProt 1–199

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8qyq
Deposition date deposition_date	2023-10-26
Structure title title	Beta-cardiac myosin S1 fragment in the pre-powerstroke state complexed to Mavacamten
Keywords keywords	cardiac myosin modulators inherited cardiomyopathies mavcamten, CONTRACTILE PROTEIN; CONTRACTILE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8qyq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8qyq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

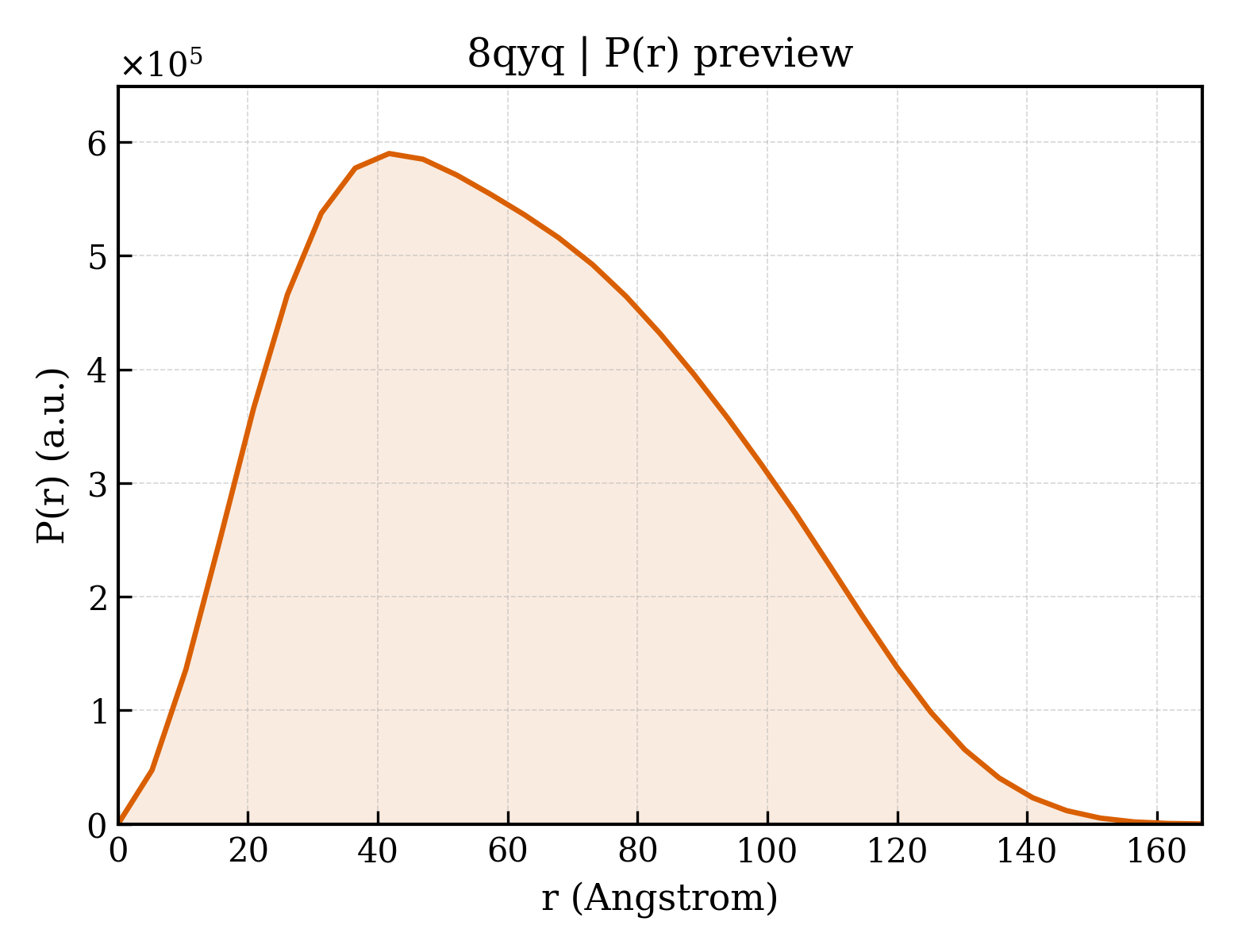

8qyq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.46 Å
Rg (electron density)	35.44 Å
Total Rg	35.90 Å
Atom count	7602
Residues	936
Excluded volume	135710 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8qyq__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8qyq__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Myosin-7
Molecular weight formula_weight	92333.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	14993

MVDAEMAAFGEAAPYLRKSEKERLEAQTRPFDLKKDVFVPDDKEEFVKATILSREGGKVTAETEHGKTVTVKEDQVLQQNPPKFDKIEDMAMLTFLHEPAVLYNLKERYASWMIYTYSGLFCVTINPYKWLPVYNAEVVAAYRGKKRSEAPPHIFSISDNAYQYMLTDRENQSILITGESGAGKTVNTKRVIQYFAVIAAIGDRSKKEQATGKGTLEDQIIQANPALEAFGNAKTVRNDNSSRFGKFIRIHFGATGKLASADIETYLLEKSRVIFQLKAERDYHIFYQILSNKKPELLDMLLITNNPYDYAFISQGETTVASIDDAEELMATDNAFDVLGFTTEEKNSMYKLTGAIMHFGNMKFKLKQREEQAEPDGTEEADKSAYLMGLNSADLLKGLCHPRVKVGNEYVTKGQNVQQVVYAKGALAKAVYERMFNWMVTRINATLETKQPRQYFIGVLDIAGFEIFDFNSFEQLCINFTNEKLQQFFNHHMFVLEQEEYKKEGIEWEFIDFGMDLQACIDLIEKPMGIMSILEEECMFPKATDMTFKAKLFDNHLGKSSNFQKPRNIKGKPEAHFSLIHYAGTVDYNIIGWLQKNKDPLNETVVDLYKKSSLKMLSSLFANYAGFDTPIEKGKGKAKKGSSFQTVSALHRENLNKLMTNLRSTHPHFVRCIIPNETKSPGVIDNPLVMHQLRCNGVLEGIRICRKGFPNRILYGDFRQRYRILNPAAIPEGQFIDSRKGAEKLLGSLDIDHNQYKFGHTKVFFKAGLLGLLEEMRDERLSRIITRIQAQSRGVLSRMEFKKLLER

Entity 2 Entity 2 polymer

Description description	Myosin light chain 3
Molecular weight formula_weight	21968.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MAPKKPDPKKDEAKAGAKAAAAPAPAPAPPPAPEPSKEPEFDPSKIKIEFTPEQIEEFKEAFTLFDRTPKCEMKITYGQCGDVLRALGQNPTQAEVLRVLGKPKQEELNSKMMDFDTFLPMLQHISKNKDTGTYEDFVEGLRVFDKEGNGTVMGAELRHVLATLGEKLTEDEVEKLMAGQEDSNGCINYEAFVKHIMAG

Entity 3 Entity 3 polymer

Description description	Myosin light chain 3
Molecular weight formula_weight	21966.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MAPKKPDPKKDEAKAGAKAAAAPAPAPAPPPAPEPSKEPEFDPSKIKIEFTPEQIEEFKEAFTLFDRTPKCEMKITYGQCGDVLRALGQNPTQAEVLRVLGKPKQEELNSKMMDFDTFLPMLQHISKNKDTGTYEDFVEGLRVFDKEGNGVVMGAELRHVLATLGEKLTEDEVEKLMAGQEDSNGCINYEAFVKHIMAG

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	BERYLLIUM TRIFLUORIDE ION
Molecular weight formula_weight	66.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	Mavacamten
Molecular weight formula_weight	273.3 kDa
Source method src_method	man
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 9 Entity 9 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	485

▶

Unit-cell length a length_a	102.801 Å
Unit-cell length b length_b	147.977 Å
Unit-cell length c length_c	116.751 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.62 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.610 Å
Low-resolution limit resolution_low	91.640 Å
R factor r_factor	0.1800
R_work r_work	0.1780
R_free r_free	0.2170
