8r55

Bacillus subtilis MutS2-collided disome complex (collided 70S)

Method: ELECTRON MICROSCOPY D_max: 295.6 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

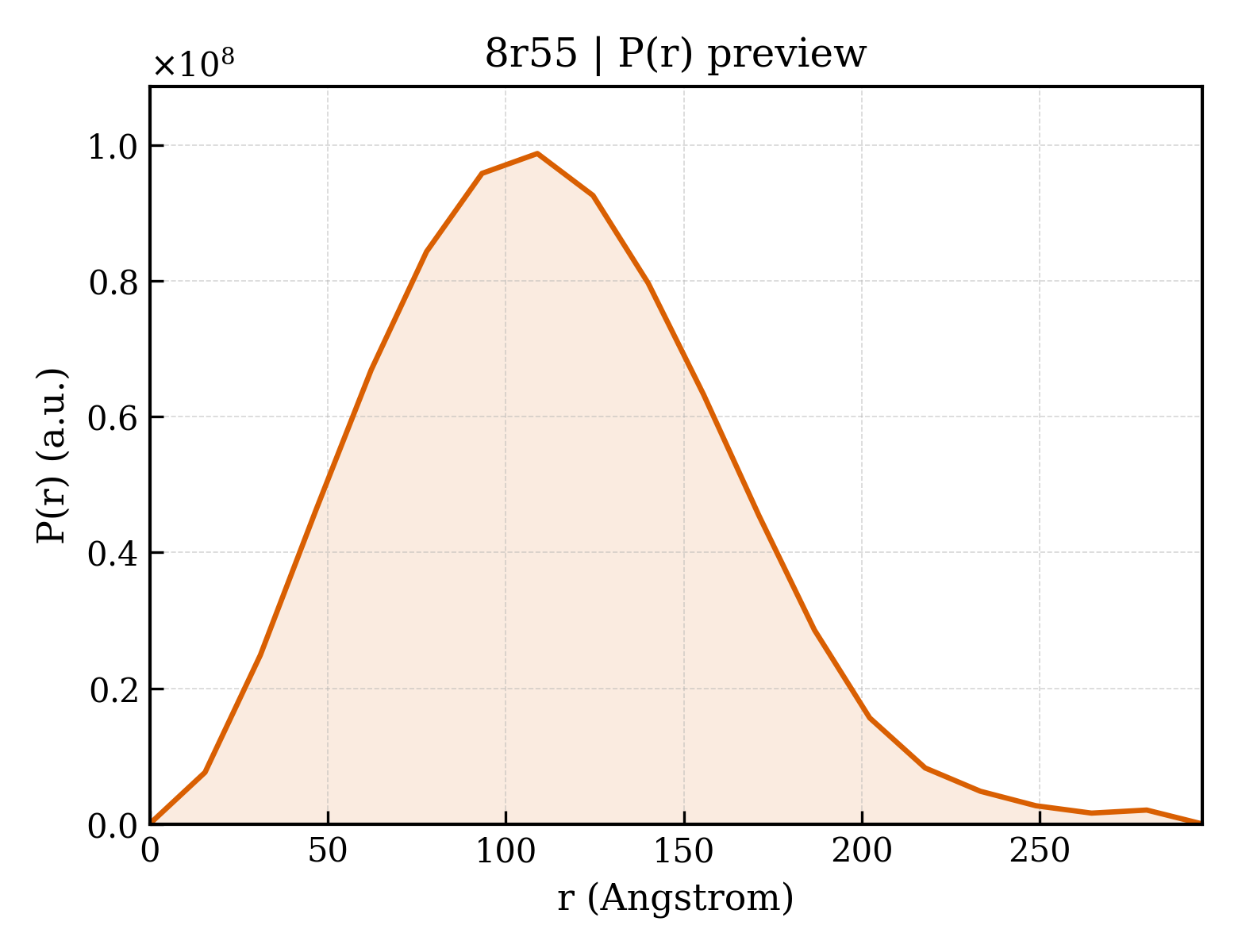

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8r55
沉积日期 deposition_date	2023-11-16
结构标题 title	Bacillus subtilis MutS2-collided disome complex (collided 70S)
关键词 keywords	Muts2, collision, disome, splitting, quality control, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	84.13 Å
回转半径 Rg (电子) rg_electron	85.03 Å
零角强度 I(0) i0	151582000000.00
分子量 molecular_weight	2140700.0 kDa
排除体积 excluded_volume	2190500 Å³
包络体积 envelope_volume	3881600 Å³
水化壳体积 shell_volume	349270 Å³
包络直径 envelope_diameter	321.2 Å
壳层 Rg shell_rg	98.73 Å
包络 Rg envelope_rg	83.65 Å
形状 Rg shape_rg	85.09 Å
总 Rg total_rg	84.98 Å
总原子数 total_atoms	143867
残基数 n_residues	10153
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	295.6 Å
Rg (实空间) rg_real	86.41 Å
Rg 误差 (实空间) rg_real_error	1.83 Å
I(0) (实空间) i0_real	1.5040e+11
I(0) 误差 (实空间) i0_real_error	3.4500e+09
Rg (倒空间) rg_reciprocal	85.43 Å
I(0) (倒空间) i0_reciprocal	152200000000.0000
解质量估计 total_estimate	0.9048
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	108.9 Å
偏度 Skewness skewness	0.392
峰度 Kurtosis kurtosis	0.068
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	1.1810
最高正则化参数 α highest_alpha	9718000000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.769; Stabil: 0.909; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.778

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (53)

Entity 1 polymer

描述 description	50S ribosomal protein L32
分子量 formula_weight	6745.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0
原子数 atom_count	143867

MAVPFRRTSKMKKRLRRTHFKLNVPGMTECPSCGEMKLSHRVCKACGSYNGKDINVKSN

Entity 2 polymer

描述 description	Large ribosomal subunit protein bL33
分子量 formula_weight	5786.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1

MRVNITLACTECGERNYISKKNKRNNPDRVEFKKYCPRDKKSTLHRET

Entity 3 polymer

描述 description	Large ribosomal subunit protein bL34
分子量 formula_weight	5271.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

MKRTFQPNNRKRSKVHGFRSRMSSKNGRLVLARRRRKGRKVLSA

Entity 4 polymer

描述 description	Large ribosomal subunit protein bL35
分子量 formula_weight	7597.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MPKMKTHRGSAKRFKKTGSGKLKRSHAYTSHLFANKSQKQKRKLRKSSVVSAGDFKRIKQMLANIK

Entity 5 polymer

描述 description	50S ribosomal protein L36
分子量 formula_weight	4318.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MKVRPSVKPICEKCKVIRRKGKVMVICENPKHKQKQG

Entity 6 polymer

描述 description	Large ribosomal subunit protein bL31
分子量 formula_weight	7216.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MKAGIHPNFKKATVKCACGNEFETGSVKEEVRVEICSECHPFYTGRQKFASADGRVDRFNKKYG

Entity 7 polymer

描述 description	tRNA (73-MER)
分子量 formula_weight	23546.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	7

GCGCGGAUAGCUCAGUCGGUAGAGCAGGGGAUUGAAAAUCCCCGUGUCCUUGGUUCGAUUCCGAGUCCGCGCA

Entity 8 polymer

描述 description	16S rRNA (1533-MER)
分子量 formula_weight	496854.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A

GGAGAGUUUGAUCCUGGCUCAGGACGAACGCUGGCGGCGUGCCUAAUACAUGCAAGUCGAGCGGACAGAUGGGAGCUUGCUCCCUGAUGUUAGCGGCGGACGGGUGAGUAACACGUGGGUAACCUGCCUGUAAGACUGGGAUAACUCCGGGAAACCGGGGCUAAUACCGGAUGGUUGUUUGAACCGCAUGGUUCAAACAUAAAAGGUGGCUUCGGCUACCACUUACAGAUGGACCCGCGGCGCAUUAGCUAGUUGGUGAGGUAACGGCUCACCAAGGCGACGAUGCGUAGCCGACCUGAGAGGGUGAUCGGCCACACUGGGACUGAGACACGGCCCAGACUCCUACGGGAGGCAGCAGUAGGGAAUCUUCCGCAAUGGACGAAAGUCUGACGGAGCAACGCCGCGUGAGUGAUGAAGGUUUUCGGAUCGUAAAGCUCUGUUGUUAGGGAAGAACAAGUGCCGUUCGAAUAGGGCGGUACCUUGACGGUACCUAACCAGAAAGCCACGGCUAACUACGUGCCAGCAGCCGCGGUAAUACGUAGGUGGCAAGCGUUGUCCGGAAUUAUUGGGCGUAAAGGGCUCGCAGGCGGUUUCUUAAGUCUGAUGUGAAAGCCCCCGGCUCAACCGGGGAGGGUCAUUGGAAACUGGGGAACUUGAGUGCAGAAGAGGAGAGUGGAAUUCCACGUGUAGCGGUGAAAUGCGUAGAGAUGUGGAGGAACACCAGUGGCGAAGGCGACUCUCUGGUCUGUAACUGACGCUGAGGAGCGAAAGCGUGGGGAGCGAACAGGAUUAGAUACCCUGGUAGUCCACGCCGUAAACGAUGAGUGCUAAGUGUUAGGGGGUUUCCGCCCCUUAGUGCUGCAGCUAACGCAUUAAGCACUCCGCCUGGGGAGUACGGUCGCAAGACUGAAACUCAAAGGAAUUGACGGGGGCCCGCACAAGCGGUGGAGCAUGUGGUUUAAUUCGAAGCAACGCGAAGAACCUUACCAGGUCUUGACAUCCUCUGACAAUCCUAGAGAUAGGACGUCCCCUUCGGGGGCAGAGUGACAGGUGGUGCAUGGUUGUCGUCAGCUCGUGUCGUGAGAUGUUGGGUUAAGUCCCGCAACGAGCGCAACCCUUGAUCUUAGUUGCCAGCAUUCAGUUGGGCACUCUAAGGUGACUGCCGGUGACAAACCGGAGGAAGGUGGGGAUGACGUCAAAUCAUCAUGCCCCUUAUGACCUGGGCUACACACGUGCUACAAUGGACAGAACAAAGGGCAGCGAAACCGCGAGGUUAAGCCAAUCCCACAAAUCUGUUCUCAGUUCGGAUCGCAGUCUGCAACUCGACUGCGUGAAGCUGGAAUCGCUAGUAAUCGCGGAUCAGCAUGCCGCGGUGAAUACGUUCCCGGGCCUUGUACACACCGCCCGUCACACCACGAGAGUUUGUAACACCCGAAGUCGGUGAGGUAACCUUUUAGGAGCCAGCCGCCGAAGGUGGGACAGAUGAUUGGGGUGAAGUCGUAACAAGGUAGCCGUAUCGGAAGGUGCGGCUGG

Entity 9 polymer

描述 description	30S ribosomal protein S2
分子量 formula_weight	28009.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSVISMKQLLEAGVHFGHQTRRWNPKMKRYIFTERNGIYIIDLQKTVKKVEEAYNFTKNLAAEGGKILFVGTKKQAQDSVKEEAQRSGMYYVNQRWLGGTLTNFETIQKRIKRLKDIEKMQENGTFDVLPKKEVVQLKKELERLEKFLGGIKDMKDLPDALFIIDPRKERIAVAEARKLNIPIIGIVDTNCDPDEIDVVIPANDDAIRAVKLLTSKMADAILEAKQGEEEAEVAEETAPETETTTA

Entity 10 polymer

描述 description	30S ribosomal protein S3
分子量 formula_weight	24351.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MGQKVNPVGLRIGVIRDWESKWYAGKDYADFLHEDLKIREYISKRLSDASVSKVEIERAANRVNITIHTAKPGMVIGKGGSEVEALRKALNSLTGKRVHINILEIKRADLDAQLVADNIARQLENRVSFRRAQKQQIQRTMRAGAQGVKTMVSGRLGGADIARSEYYSEGTVPLHTLRADIDYATSEADTTYGKLGVKVWIYRGEVLPTKKKTEEGGK

Entity 11 polymer

描述 description	30S ribosomal protein S4
分子量 formula_weight	22874.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MARYTGPSWKLSRRLGISLSGTGKELEKRPYAPGPHGPGQRKKLSEYGLQLQEKQKLRHMYGVNERQFRTLFDKAGKLAGKHGENFMILLDSRLDNVVYKLGLARTRRQARQLVNHGHILVDGSRVDIPSYLVKPGQTIGVREKSRNLSIIKESVEVNNFVPEYLTFDAEKLEGTFTRLPERSELAPEINEALIVEFYSR

Entity 12 polymer

描述 description	30S ribosomal protein S5
分子量 formula_weight	17650.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MRRIDPSKLELEERLVTVNRVAKVVKGGRRFRFAALVVVGDKNGHVGFGTGKAQEVPEAIRKAVEDAKKNLIEVPMVGTTIPHEIIGRFGAGNILLKPASEGTGVIAGGPVRAVLELAGVADILSKSLGSNTPINMIRATLQGLSELKRAEDVAKLRGKSVEELLG

Entity 13 polymer

描述 description	30S ribosomal protein S6
分子量 formula_weight	11140.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MRKYEVMYIIRPNIDEESKKAVIERFNNVLTSNGAEITGTKDWGKRRLAYEINDFRDGFYQIVNVQSDAAAVQEFDRLAKISDDIIRHIVVKEEE

Entity 14 polymer

描述 description	30S ribosomal protein S7
分子量 formula_weight	17915.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MPRKGPVAKRDVLPDPIYNSKLVSRLINKMMIDGKKGKSQTILYKSFDIIKERTGNDAMEVFEQALKNIMPVLEVKARRVGGANYQVPVEVRPERRTTLGLRWLVNYARLRGEKTMEERLANEILDAANNTGAAVKKREDTHKMAEANKAFAHYRW

Entity 15 polymer

描述 description	30S ribosomal protein S8
分子量 formula_weight	14901.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MVMTDPIADMLTRIRNANMVRHEKLEIPASKLKREIAEILKREGFIRDVEFVEDSKQGIIRVFLKYGQNNERVITGLKRISKPGLRVYAKSNEVPRVLNGLGIAIISTSQGVLTDKEARAKQAGGEVLAYVW

Entity 16 polymer

描述 description	30S ribosomal protein S9
分子量 formula_weight	14335.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MAQVQYYGTGRRKSSVARVRLVPGEGRIVVNNREISEHIPSAALIEDIKQPLTLTETAGTYDVLVNVHGGGLSGQAGAIRHGIARALLEADPEYRTTLKRAGLLTRDARMKERKKYGLKGARRAPQFSKR

Entity 17 polymer

描述 description	30S ribosomal protein S10
分子量 formula_weight	11687.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MAKQKIRIRLKAYDHRILDQSAEKIVETAKRSGASVSGPIPLPTEKSVYTILRAVHKYKDSREQFEMRTHKRLIDIVNPTPQTVDALMRLDLPSGVDIEIKL

Entity 18 polymer

描述 description	30S ribosomal protein S11
分子量 formula_weight	13993.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MAAARKQNTRKRRVKKNIESGIAHIRSTFNNTIVTITDTHGNAISWSSAGALGFRGSRKSTPFAAQMAAETAAKGSIEHGLKTLEVTVKGPGSGREAAIRALQAAGLEVTAIRDVTPVPHNGCRPPKRRRV

Entity 19 polymer

描述 description	30S ribosomal protein S12
分子量 formula_weight	15248.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MPTINQLIRKGRVSKVENSKSPALNKGYNSFKKEHTNVSSPQKRGVCTRVGTMTPKKPNSALRKYARVRLTNGIEVTAYIPGIGHNLQEHSVVLIRGGRVKDLPGVRYHIVRGALDTAGVENRAQGRSKYGTKKPKAK

Entity 20 polymer

描述 description	30S ribosomal protein S13
分子量 formula_weight	13818.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MARIAGVDIPRDKRVVISLTYIFGIGRTTAQQVLKEAGVSEDTRVRDLTEEELGKIRDIIDKLKVEGDLRREVSLNIKRLIEIGSYRGIRHRRGLPVRGQNSKNNARTRKGPRRTVANKKK

Entity 21 polymer

描述 description	30S ribosomal protein S14 type Z
分子量 formula_weight	7263.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MAKKSMIAKQQRTPKFKVQEYTRCERCGRPHSVIRKFKLCRICFRELAYKGQIPGVKKASW

Entity 22 polymer

描述 description	30S ribosomal protein S15
分子量 formula_weight	10597.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MAITQERKNQLINEFKTHESDTGSPEVQIAILTDSINNLNEHLRTHKKDHHSRRGLLKMVGKRRNLLTYLRNKDVTRYRELINKLGLRR

Entity 23 polymer

描述 description	30S ribosomal protein S16
分子量 formula_weight	10153.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MAVKIRLKRMGAKKSPFYRIVVADSRSPRDGRFIETVGTYNPVAKPAEVKIDEELALKWLQTGAKPSDTVRNLFSSQGIMEKFHNAKQGK

Entity 24 polymer

描述 description	30S ribosomal protein S17
分子量 formula_weight	10221.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MSERNQRKVYQGRVVSDKMDKTITVVVETYKKHTLYGKRVKYSKKFKAHDENNQAKIGDIVKIMETRPLSATKRFRLVEVVEEAVII

Entity 25 polymer

描述 description	30S ribosomal protein S18
分子量 formula_weight	8990.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MAGGRRGGRAKRRKVCYFTSNGITHIDYKDVDLLKKFVSERGKILPRRVTGTNAKYQRKLTAAIKRARQMALLPYVSGE

Entity 26 polymer

描述 description	30S ribosomal protein S19
分子量 formula_weight	10607.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MARSLKKGPFVDGHLMTKIEKLNETDKKQVVKTWSRRSTIFPQFIGHTIAVYDGRKHVPVFISEDMVGHKLGEFAPTRTYKGHASDDKKTRR

Entity 27 polymer

描述 description	30S ribosomal protein S20
分子量 formula_weight	9622.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MPNIKSAIKRTKTNNERRVHNATIKSAMRTAIKQVEASVANNEADKAKTALTEAAKRIDKAVKTGLVHKNTAARYKSRLAKKVNGLSA

Entity 28 polymer

描述 description	tRNA (77-MER)
分子量 formula_weight	24815.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	U

GGUCCGGUAGUUCAGUUGGUUAGAAUGCCUGCCUGUCACGCAGGAGGUCGCGGGUUCGAGUCCCGUCCGGACCGCCA

Entity 29 polymer

描述 description	mRNA (33-MER)
分子量 formula_weight	10591.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	V

AGACCAAUGCCAUGUACGUCGCACUCGGAAGAC

Entity 30 polymer

描述 description	5S rRNA (112-MER)
分子量 formula_weight	36157.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	Y

UGGUGGCGAUAGCGAAGAGGUCACACCCGUUCCCAUACCGAACACGGAAGUUAAGCUCUUCAGCGCCGAUGGUAGUCGGGGGUUUCCCCCUGUGAGAGUAGGACGCCGCCAA

Entity 31 polymer

描述 description	Large ribosomal subunit protein uL2
分子量 formula_weight	30074.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

AIKKYKPTSNGRRGMTTSDFAEITTDKPEKSLLAPLHKKGGRNNQGKLTVRHQGGGHKRQYRVIDFKRDKDGIPGRVATVEYDPNRSANIALINYADGEKRYILAPKGIQVGTEIMSGPEADIKVGNALPLINIPVGTVVHNIELKPGKGGQLVRSAGTSAQVLGKEGKYVLVRLNSGEVRMILSACRASIGQVGNEQHELINIGKAGRSRWKGIRPTVRGSVMNPNDHPHGGGEGRAPIGRKSPMSPWGKPTLGFKTRKKKNKSDKFIVRRRKN

Entity 32 polymer

描述 description	Large ribosomal subunit protein uL3
分子量 formula_weight	22463.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

TKGILGRKIGMTQVFAENGDLIPVTVIEAAPNVVLQKKTAENDGYEAIQLGFDDKREKLSNKPEKGHVAKAETAPKRFVKELRGVEMDAYEVGQEVKVEIFSAGEIVDVTGVSKGKGFQGAIKRHGQSRGPMSHGSRYHRRPGSMGPVDPNRVFKGKLLPGRMGGEQITVQNLEIVKVDAERNLLLIKGNVPGAKKSLITVKSAVKS

Entity 33 polymer

描述 description	Large ribosomal subunit protein uL4
分子量 formula_weight	22222.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	b

PKVALYNQNGSTAGDIELNASVFGIEPNESVVFDAILMQRASLRQGTHKVKNRSEVRGGGRKPWRQKGTGRARQGSIRSPQWRGGGVVFGPTPRSYSYKLPKKVRRLAIKSVLSSKVIDNNIIVLEDLTLDTAKTKEMAAILKGLSVEKKALIVTADANEAVALSARNIPGVTVVEANGINVLDVVNHEKLLITKAAVEKVEEVL

Entity 34 polymer

描述 description	Large ribosomal subunit protein uL5
分子量 formula_weight	20046.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

NRLKEKYNKEIAPALMTKFNYDSVMQVPKIEKIVINMGVGDAVQNAKAIDSAVEELTFIAGQKPVVTRAKKSIAGFRLREGMPIGAKVTLRGERMYDFLDKLISVSLPRVRDFRGVSKKSFDGRGNYTLGIKEQLIFPEIDYDKVTKVRGMDIVIVTTANTDEEARELLTQVGMPFQK

Entity 35 polymer

描述 description	Large ribosomal subunit protein uL6
分子量 formula_weight	19124.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

SRVGKKLLEIPSDVTVTLNDNNTVAVKGPKGELTRTFHPDMEIKVEDNVLTVARPSDQKEHRALHGTTRSLLGNMVEGVSKGFERGLELVGVGYRASKSGNKLVLNVGYSHPVEIVPEEGIEIEVPSQTKVVVKGTDKERVGAIAANIRAVRSPEPYKGKGIRYEGEVVRRKEGK

Entity 36 polymer

描述 description	Large ribosomal subunit protein uL13
分子量 formula_weight	16017.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

TPMANASTIERKWLVVDAAGKTLGRLSSEVAAILRGKHKPTYTPHVDTGDHVIIINAEKIELTGKKLTDKIYYRHTQHPGGLKSRTALEMRTNYPEKMLELAIKGMLPKGSLGRQMFKKLNVYRGSEHPHEAQKPEVYELRG

Entity 37 polymer

描述 description	50S ribosomal protein L14
分子量 formula_weight	13175.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MIQQETRLKVADNSGAREVLTIKVLGGSGRKTANIGDVIVCTVKQATPGGVVKKGEVVKAVIVRTKSGARRSDGSYISFDENACVIIRDDKSPRGTRIFGPVARELRENNFMKIVSLAPEVI

Entity 38 polymer

描述 description	50S ribosomal protein L15
分子量 formula_weight	15410.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MKLHELKPSEGSRKTRNRVGRGIGSGNGKTAGKGHKGQNARSGGGVRPGFEGGQMPLFQRLPKRGFTNINRKEYAVVNLDKLNGFAEGTEVTPELLLETGVISKLNAGVKILGNGKLEKKLTVKANKFSASAKEAVEAAGGTAEVI

Entity 39 polymer

描述 description	Large ribosomal subunit protein uL16
分子量 formula_weight	15619.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MLLPKRVKYRREHRGKMRGRAKGGTEVHFGEFGIQALEASWITNRQIEAARIAMTRYMKRGGKVWIKIFPSKPYTAKPLEVRMGSGKGAPEGWVAVVKPGKVLFEISGVSEEVAREALRLASHKLPIKTKFVKREEIG

Entity 40 polymer

描述 description	Large ribosomal subunit protein bL17
分子量 formula_weight	13643.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

SYRKLGRTSAQRKAMLRDLTTDLIINERIETTETRAKELRSVVEKMITLGKRGDLHARRQAAAYIRNEVANEENNQDALQKLFSDIATRYEERQGGYTRIMKLGPRRGDGAPMAIIELV

Entity 41 polymer

描述 description	50S ribosomal protein L18
分子量 formula_weight	12993.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MITKTSKNAARLKRHARVRAKLSGTAERPRLNVFRSNKHIYAQIIDDVNGVTLASASTLDKDLNVESTGDTSAATKVGELVAKRAAEKGISDVVFDRGGYLYHGRVKALADAAREAGLKF

Entity 42 polymer

描述 description	50S ribosomal protein L19
分子量 formula_weight	13416.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MQKLIEDITKEQLRTDLPAFRPGDTLRVHVKVVEGNRERIQIFEGVVIKRRGGGISETFTVRKISYGVGVERTFPVHTPKIAKIEVVRYGKVRRAKLYYLRELRGKAARIKEIRR

Entity 43 polymer

描述 description	Large ribosomal subunit protein bL20
分子量 formula_weight	13408.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

PRVKGGTVTRKRRKKVLKLAKGYFGSKHTLYKVANQQVMKSGNYAFRDRRQKKRDFRKLWITRINAAARMNGLSYSRLMHGLKLSGIEVNRKMLADLAVNDLTAFNQLADAAKAQLN

Entity 44 polymer

描述 description	Large ribosomal subunit protein bL21
分子量 formula_weight	11164.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

YAIIKTGGKQIKVEEGQTVYIEKLAAEAGETVTFEDVLFVGGDNVKVGNPTVEGATVTAKVEKQGRAKKITVFRYKPKKNVHKKQGHRQPYTKVTIEKINA

Entity 45 polymer

描述 description	Large ribosomal subunit protein uL22
分子量 formula_weight	12035.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

QAKAVARTVRIAPRKARLVMDLIRGKQVGEAVSILNLTPRAASPIIEKVLKSAIANAEHNYEMDANNLVISQAFVDEGPTLKRFRPRAMGRASQINKRTSHITIVVSEK

Entity 46 polymer

描述 description	Large ribosomal subunit protein uL23
分子量 formula_weight	10778.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MKDPRDVLKRPVITERSADLMTEKKYTFEVDVRANKTEVKDAVESIFGVKVDKVNIMNYKGKSKRVGRYTGMTSRRRKAIVKLTADSKEIEIF

Entity 47 polymer

描述 description	Large ribosomal subunit protein uL24
分子量 formula_weight	10921.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MHVKKGDKVMVISGKDKGKQGTILAAFPKKDRVLVEGVNMVKKHSKPTQANPQGGISNQEAPIHVSNVMPLDPKTGEVTRVGYKVEDGKKVRVAKKSGQVL

Entity 48 polymer

描述 description	Large ribosomal subunit protein bL27
分子量 formula_weight	8956.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	u

SKKGVGSTKNGRDSEAKRLGAKRADGQFVTGGSILYRQRGTKIYPGENVGRGGDDTLFAKIDGTVKFERFGRDRKKVSVYPV

Entity 49 polymer

描述 description	Large ribosomal subunit protein bL28
分子量 formula_weight	6367.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	v

RKCVITGKKTTAGNNRSHAMNASKRTWGANLQKVRILVNGKPKKVYVSARALKSGKVE

Entity 50 polymer

描述 description	Large ribosomal subunit protein uL29
分子量 formula_weight	7598.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	w

MKANEIRDLTTAEIEQKVKSLKEELFNLRFQLATGQLENTARIREVRKAIARMKTVIREREIAAN

Entity 51 polymer

描述 description	Large ribosomal subunit protein uL30
分子量 formula_weight	6519.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	x

AKLEITLKRSVIGRPEDQRVTVRTLGLKKTNQTVVHEDNAAIRGMINKVSHLVSVKEQ

Entity 52 polymer

描述 description	23S RNA (2887-MER)
分子量 formula_weight	949646.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	X

GGUUAAGUUAGAAAGGGCGCACGGUGGAUGCCUUGGCACUAGGAGCCGAUGAAGGACGGGACGAACACCGAUAUGCUUCGGGGAGCUGUAAGCAAGCUUUGAUCCGGAGAUUUCCGAAUGGGGAAACCCACCACUCGUAAUGGAGUGGUAUCCAUAUCUGAAUUCAUAGGAUAUGAGAAGGCAGACCCGGGGAACUGAAACAUCUAAGUACCCGGAGGAAGAGAAAGCAAAUGCGAUUCCCUGAGUAGCGGCGAGCGAAACGGGAUCAGCCCAAACCAAGAGGCUUGCCUCUUGGGGUUGUAGGACACUCUGUACGGAGUUACAAAGGAACGAGGUAGAUGAAGAGGUCUGGAAAGGCCCGCCAUAGGAGGUAACAGCCCUGUAGUCAAAACUUCGUUCUCUCCUGAGUGGAUCCUGAGUACGGCGGAACACGUGAAAUUCCGUCGGAAUCCGGGAGGACCAUCUCCCAAGGCUAAAUACUCCCUAGUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGUGAAAAGCACCCCGGAAGGGGAGUGAAAGAGAUCCUGAAACCGUGUGCCUACAAGUAGUCAGAGCCCGUUAACGGGUGAUGGCGUGCCUUUUGUAGAAUGAACCGGCGAGUUACGAUCUCGUGCAAGGUUAAGCAGAAGAUGCGGAGCCGCAGCGAAAGCGAGUCUGAAUAGGGCGCAUGAGUACGUGGUCGUAGACCCGAAACCAGGUGAUCUACCCAUGUCCAGGGUGAAGUUCAGGUAACACUGAAUGGAGGCCCGAACCCACGCACGUUGAAAAGUGCGGGGAUGAGGUGUGGGUAGGGGUGAAAUGCCAAUCGAACCUGGAGAUAGCUGGUUCUCUCCGAAAUAGCUUUAGGGCUAGCCUCAAGGUAAGAGUCUUGGAGGUAGAGCACUGAUUGGACUAGGGGCCCCUACCGGGUUACCGAAUUCAGUCAAACUCCGAAUGCCAAUGACUUAUCCUUGGGAGUCAGACUGCGAGUGAUAAGAUCCGUAGUCGAAAGGGAAACAGCCCAGACCGCCAGCUAAGGUCCCAAAGUAUACGUUAAGUGGAAAAGGAUGUGGAGUUGCUUAGACAACCAGGAUGUUGGCUUAGAAGCAGCCACCAUUUAAAGAGUGCGUAAUAGCUCACUGGUCGAGUGACUCUGCGCCGAAAAUGUACCGGGGCUAAACGUAUCACCGAAGCUGCGGACUGUUCUUCGAACAGUGGUAGGAGAGCGUUCUAAGGGCUGUGAAGCCAGACCGGAAGGACUGGUGGAGCGCUUAGAAGUGAGAAUGCCGGUAUGAGUAGCGAAAGAGGGGUGAGAAUCCCCUCCACCGAAUGCCUAAGGUUUCCUGAGGAAGGCUCGUCCGCUCAGGGUUAGUCGGGACCUAAGCCGAGGCCGAAAGGCGUAGGCGAUGGACAACAGGUUGAUAUUCCUGUACCACCUCCUCACCAUUUGAGCAAUGGGGGGACGCAGGAGGAUAGGGUAAGCGCGGUAUUGGAUAUCCGCGUCCAAGCAGUUAGGCUGGGAAAUAGGCAAAUCCGUUUCCCAUAAGGCUGAGCUGUGAUGGCGAGCGAAAUAUAGUAGCGAAGUUCCUGAUUCCACACUGCCAAGAAAAGCCUCUAGCGAGGUGAGAGGUGCCCGUACCGCAAACCGACACAGGUAGGCGAGGAGAGAAUCCUAAGGUGAUCGAGAGAACUCUCGUUAAGGAACUCGGCAAAAUGACCCCGUAACUUCGGGAGAAGGGGUGCUCUGUUAGGGUGCAAGCCCGAGAGAGCCGCAGUGAAUAGGCCCAGGCGACUGUUUAGCAAAAACACAGGUCUCUGCGAAGCCGUAAGGCGAAGUAUAGGGGCUGACGCCUGCCCGGUGCUGGAAGGUUAAGAGGAGCGCUUAGCGUAAGCGAAGGUGCGAAUUGAAGCCCCAGUAAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCCGCACGAAAGGCGCAACGAUCUGGGCACUGUCUCAACGAGAGACUCGGUGAAAUUAUAGUACCUGUGAAGAUGCAGGUUACCCGCGACAGGACGGAAAGACCCCGUGGAGCUUUACUGCAGCCUGAUAUUGAAUGUUGGUACAGCUUGUACAGGAUAGGUAGGAGCCUUGGAAACCGGAGCGCCAGCUUCGGUGGAGGCAUCGGUGGGAUACUACCCUGGCUGUAUUGACCUUCUAACCCGCCGCCCUUAUCGGGCGGGGAGACAGUGUCAGGUGGGCAGUUUGACUGGGGCGGUCGCCUCCUAAAAGGUAACGGAGGCGCCCAAAGGUUCCCUCAGAAUGGUUGGAAAUCAUUCGCAGAGUGUAAAGGCACAAGGGAGCUUGACUGCGAGACCUACAAGUCGAGCAGGGACGAAAGUCGGGCUUAGUGAUCCGGUGGUUCCGCAUGGAAGGGCCAUCGCUCAACGGAUAAAAGCUACCCCGGGGAUAACAGGCUUAUCUCCCCCAAGAGUCCACAUCGACGGGGAGGUUUGGCACCUCGAUGUCGGCUCAUCGCAUCCUGGGGCUGUAGUCGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGUACGCGAGCUGGGUUCAGAACGUCGUGAGACAGUUCGGUCCCUAUCCGUCGCGGGCGCAGGAAAUUUGAGAGGAGCUGUCCUUAGUACGAGAGGACCGGGAUGGACGCACCGCUGGUGUACCAGUUGUUCUGCCAAGGGCAUCGCUGGGUAGCUAUGUGCGGACGGGAUAAGUGCUGAAAGCAUCUAAGCAUGAAGCCCCCCUCAAGAUGAGAUUUCCCAUUCCGCAAGGAAGUAAGAUCCCUGAAAGAUGAUCAGGUUGAUAGGUCUGAGGUGGAAGUGUGGCGACACAUGGAGCUGACAGAUACUAAUCGAUCGAGGACUUAACCAU

Entity 53 polymer

描述 description	Endonuclease MutS2
分子量 formula_weight	87530.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	z

MQQKVLSALEFHKVKEQVIGHAASSLGKEMLLELKPSASIDEIKKQLDEVDEASDIIRLRGQAPFGGLVDIRGALRRAEIGSVLSPSEFTEISGLLYAVKQMKHFITQMAEDGVDIPLIHQHAEQLITLSDLERDINSCIDDHGEVLDHASETLRGIRTQLRTLESRVRDRLESMLRSSSASKMLSDTIVTIRNDRFVIPVKQEYRSSYGGIVHDTSSSGATLFIEPQAIVDMNNSLQQAKVKEKQEIERILRVLTEKTAEYTEELFLDLQVLQTLDFIFAKARYAKAVKATKPIMNDTGFIRLKKARHPLLPPDQVVANDIELGRDFSTIVITGPNTGGKTVTLKTLGLLTLMAQSGLHIPADEGSEAAVFEHVFADIGDEQSIEQSLSTFSSHMVNIVGILEQVNENSLVLFDELGAGTDPQEGAALAMSILDDVHRTNARVLATTHYPELKAYGYNREGVMNASVEFDIETLSPTYKLLIGVPGRSNAFEISKRLGLPDHIIGQAKSEMTAEHNEVDTMIASLEQSKKRAEEELSETESIRKEAEKLHKELQQQIIELNSKKDKMLEEAEQQAAEKVKAAMKEAEDIIHELRTIKEEHKSFKDHELINAKKRLEGAMPAFEKSKKPEKPKAQKRDFKPGDEVKVLTFGQKGTLLEKTGGNEWNVQIGILKMKVKEKDLEFIKSAPEQKKEKIITAVKGKDYHVSLELDLRGERYENALSRVEKYLDDAVLAGYPRVSIIHGKGTGALRKGVQDLLKNHRSVKSSRFGEAGEGGSGVTVVELK

来源 Source

来源生物 organism	Bacillus subtilis
NCBI 分类编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.57 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	11794

fit	/app/data/saxs_computation/r5/8r55/8r55.fit
pddf	/app/data/pr_computation/r5/8r55/8r55.pr.out
profile	/app/data/saxs_computation/r5/8r55/8r55.dat

Bacillus subtilis MutS2-collided disome complex (collided 70S)

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (53)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer
