1. Protein Identity and Related Structures Protein Identity & Related Structures

Serine hydroxymethyltransferase, cytosolic

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–483 Chain B； UniProt 1–483 Chain C； UniProt 1–483 Chain D； UniProt 1–483	Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.2 cryo-EM vitrification conditions：Cryogen ETHANE；blotted for 4 seconds before plunging	Resolution 3.29 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8R7H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BJ4 RECOMBINANT SERINE HYDROXYMETHYLTRANSFERASE (HUMAN) Deposited 1998-07-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 11–480（470 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；2 M SODIUM ACETATE, PH 6.5	Resolution 2.65 Å R-free 0.226
6FL5 Structure of human SHMT1-H135N-R137A-E168N mutant at 3.6 Ang. resolution Deposited 2018-01-25	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 11–481（471 aa） Chain D 11–481（471 aa） Chain G 11–481（471 aa） Chain J 11–481（471 aa）	Mutation：H135N, R137A, E168N Mutation：H135N, R137A, E168N Mutation：H135N, R137A, E168N Mutation：H135N, R137A, E168N	PLP PYRIDOXAL-5'-PHOSPHATE × 4 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；2 microL of 80microM protein solution in: 20 mM Hepes pH7.2, 250 mM NaCl 5% glycerol + 2 microL of reservoir:0.1 M Na Cacodilate pH6.5 - 1M Na citrate	Resolution 3.60 Å R-free 0.277
6M5W Co-crystal structure of human serine hydroxymethyltransferase 1 in complex with Pyridoxal 5'-phosphate (PLP) and glycodeoxycholic acid Deposited 2020-03-11	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–483（483 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 4 DXC (3ALPHA,5BETA,12ALPHA)-3,12-DIHYDROXYCHOLAN-24-OIC ACID × 4 GLY GLYCINE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M potassium chloride, 0.05 M HEPES pH 7.5, and 35% (v/v) pentaerythritol propoxylate (5/4 PO/OH)	Resolution 3.10 Å R-free 0.233
7RJL Crystal structure of human Bromodomain containing protein 3 (BRD3) in complex with SHMT Deposited 2021-07-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 270–275（6 aa） Fragment：UNP residues 270-275	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 6 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；35% v/v Tacsimate	Resolution 1.50 Å R-free 0.185
7RJL Crystal structure of human Bromodomain containing protein 3 (BRD3) in complex with SHMT Deposited 2021-07-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 270–275（6 aa） Fragment：UNP residues 270-275	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；35% v/v Tacsimate	Resolution 1.50 Å R-free 0.185
7RJP Crystal structure of human Bromodomain containing protein 4 (BRD4) in complex with SHMT Deposited 2021-07-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 270–275（6 aa） Fragment：UNP residues 270-275	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 1 NA SODIUM ION × 8 CL CHLORIDE ION × 4 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；25% w/v PEG3350, 0.2 M ammonium acetate, 0.1 M Bis-Tris	Resolution 1.25 Å R-free 0.174
8A11 Cryo-EM structure of the Human SHMT1-RNA complex Deposited 2022-05-30	Different mutation/modification Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–483（483 aa） Chain B 1–483（483 aa） Chain C 1–483（483 aa） Chain D 1–483（483 aa）	Mutation：Chain B has not PLP bond to the active site Mutation：Chain B has not PLP bond to the active site Mutation：Chain B has not PLP bond to the active site Mutation：Chain B has not PLP bond to the active site	PLP PYRIDOXAL-5'-PHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.2 cryo-EM vitrification conditions Cryogen ETHANE；blotted for 4 seconds before plunging	Resolution 3.52 Å
8XND Crystal structure of serine hydroxymethyltransferase 1 Deposited 2023-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 11–480（470 aa） Chain D 11–480（470 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Sodium HEPES pH 7.5,30 %(v/v) PEG 300	Resolution 3.45 Å R-free 0.192
8XND Crystal structure of serine hydroxymethyltransferase 1 Deposited 2023-12-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 11–480（470 aa） Chain C 11–480（470 aa）	Not recorded	PLP PYRIDOXAL-5'-PHOSPHATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Sodium HEPES pH 7.5,30 %(v/v) PEG 300	Resolution 3.45 Å R-free 0.192

7 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GLYC_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 4–486； UniProt 1–483 Author chain D； PDBConstruct 4–486； UniProt 1–483 Author chain B； PDBConstruct 4–486； UniProt 1–483 Author chain C； PDBConstruct 4–486； UniProt 1–483

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8r7h
Deposition date deposition_date	2023-11-24
Structure title title	Cryo-EM structure of Human SHMT1
Keywords keywords	Riboregulation, Serine, Glycine Metabolism, 1 carbon metablism, Moonlighting protein, RNA BINDING PROTEIN, TRANSFERASE; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

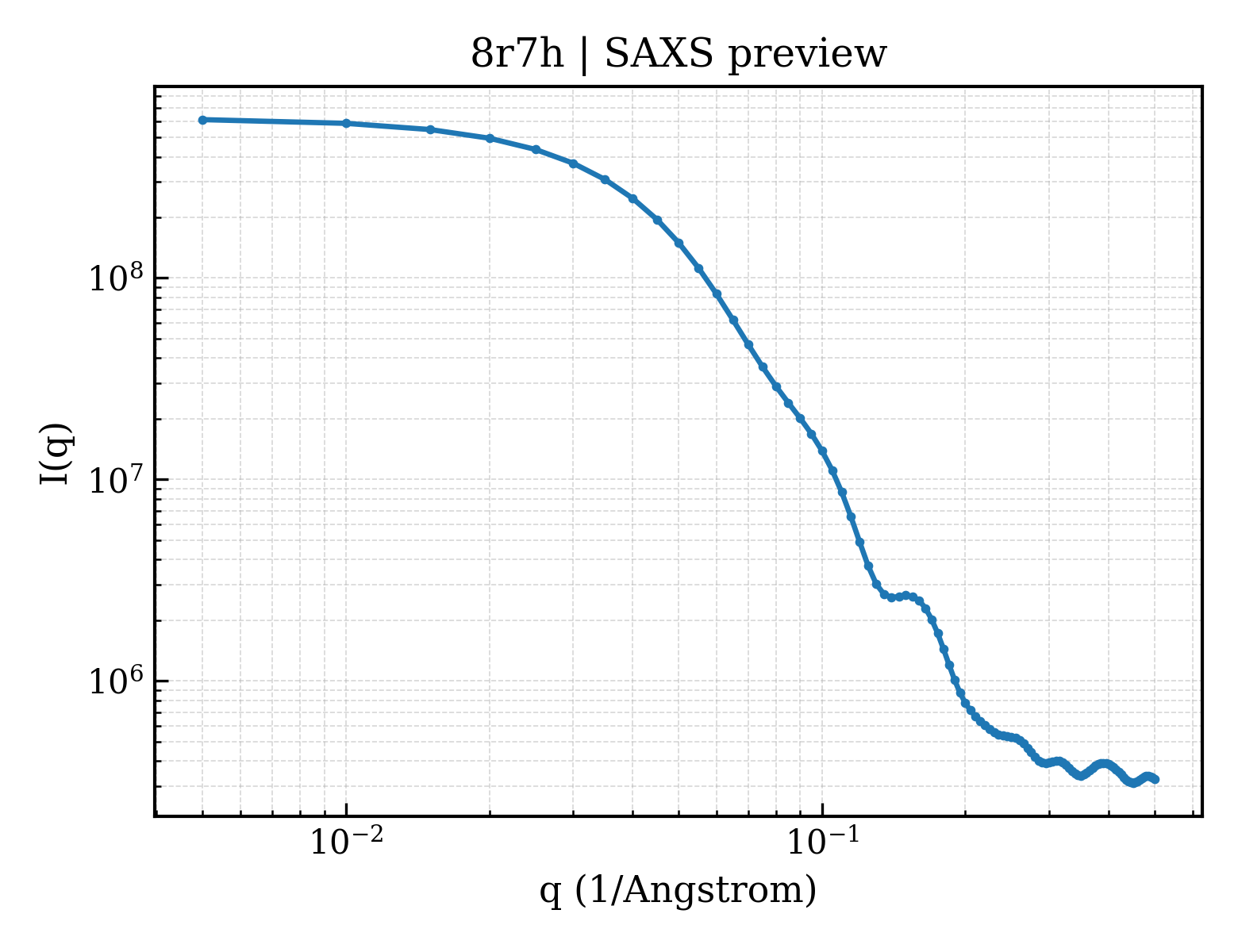

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.21 Å
Radius of gyration Rg (electron density) rg_electron	40.69 Å
Forward intensity I(0) i0	619663000.00
Molecular weight molecular_weight	202790.0 kDa
Excluded volume excluded_volume	253510 Å³
Envelope volume envelope_volume	345420 Å³
Hydration-shell volume shell_volume	69457 Å³
Envelope diameter envelope_diameter	127.0 Å
Shell Rg shell_rg	47.23 Å
Envelope Rg envelope_rg	39.84 Å
Shape Rg shape_rg	40.68 Å
Total Rg total_rg	41.08 Å
Total atoms total_atoms	14258
Residues n_residues	1848
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

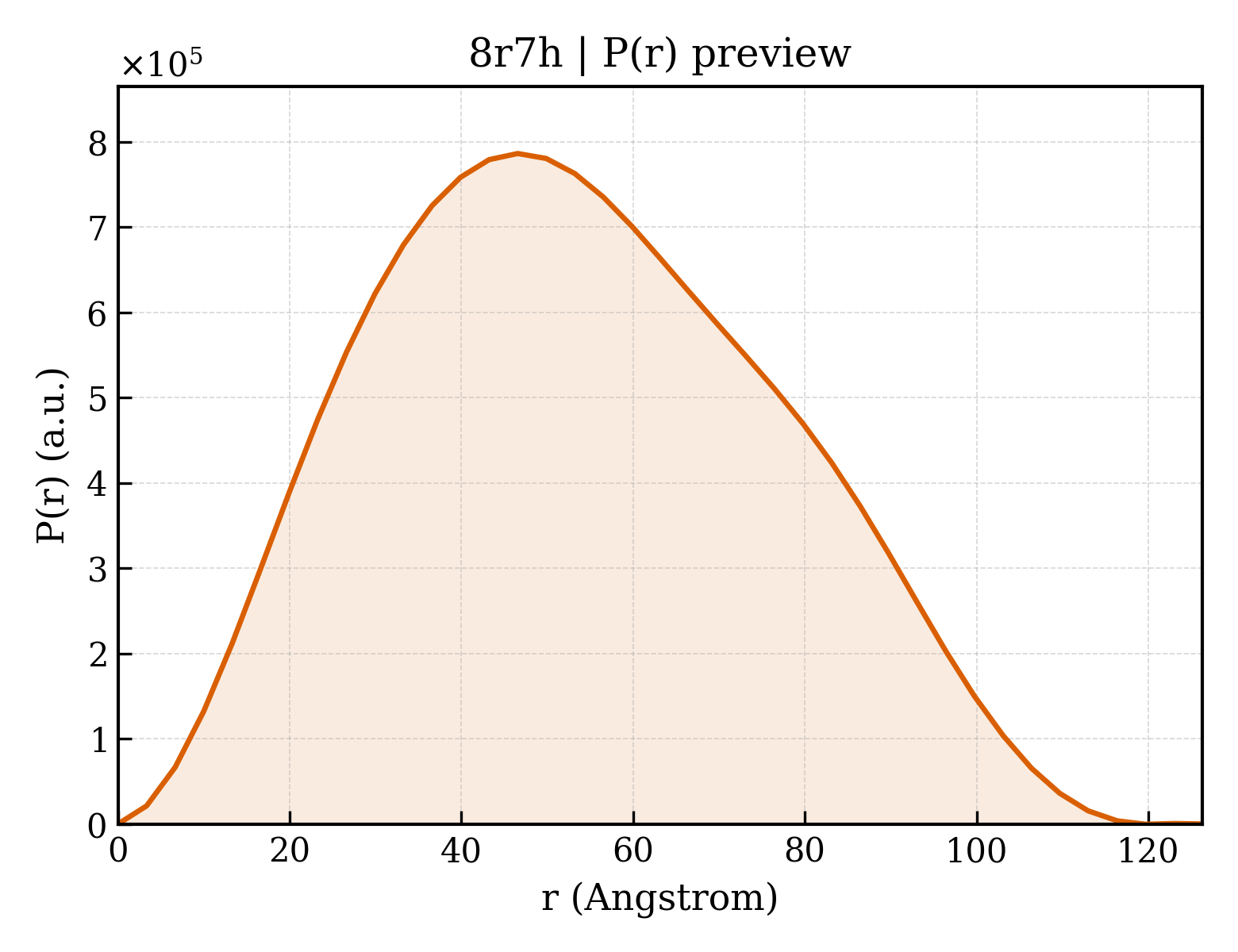

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	126.3 Å
Rg (real space) rg_real	41.11 Å
Rg uncertainty (real space) rg_real_error	0.68 Å
I(0) (real space) i0_real	6.1970e+08
I(0) uncertainty (real space) i0_real_error	9.6910e+06
Rg (reciprocal space) rg_reciprocal	41.21 Å
I(0) (reciprocal space) i0_reciprocal	619700000.0000
Solution quality estimate total_estimate	0.6101
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	46.5 Å
Skewness Skewness skewness	0.197
Kurtosis Kurtosis kurtosis	-0.670
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	116600000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.968; Stabil: 1.000; Sysdev: 0.008; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Serine hydroxymethyltransferase, cytosolic
Molecular weight formula_weight	53662.9 kDa
EC 编号 ec_number	2.1.2.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	14258

GSHMTMPVNGAHKDADLWSSHDKMLAQPLKDSDVEVYNIIKKESNRQRVGLELIASENFASRAVLEALGSCLNNKYSEGYPGQRYYGGTEFIDELETLCQKRALQAYKLDPQCWGVNVQPYSGSPANFAVYTALVEPHGRIMGLDLPDGGHLTHGFMTDKKKISATSIFFESMPYKVNPDTGYINYDQLEENARLFHPKLIIAGTSCYSRNLEYARLRKIADENGAYLMADMAHISGLVAAGVVPSPFEHCHVVTTTTHKTLRGCRAGMIFYRKGVKSVDPKTGKEILYNLESLINSAVFPGLQGGPHNHAIAGVAVALKQAMTLEFKVYQHQVVANCRALSEALTELGYKIVTGGSDNHLILVDLRSKGTDGGRAEKVLEACSIACNKNTCPGDRSALRPSGLRLGTPALTSRGLLEKDFQKVAHFIHRGIELTLQIQSDTGVRATLKEFKERLAGDKYQAAVQALREEVESFASLFPLPGLPDF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Serine hydroxymethyltransferase, cytosolic
Molecular weight formula_weight	53434.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C

GSHMTMPVNGAHKDADLWSSHDKMLAQPLKDSDVEVYNIIKKESNRQRVGLELIASENFASRAVLEALGSCLNNKYSEGYPGQRYYGGTEFIDELETLCQKRALQAYKLDPQCWGVNVQPYSGSPANFAVYTALVEPHGRIMGLDLPDGGHLTHGFMTDKKKISATSIFFESMPYKVNPDTGYINYDQLEENARLFHPKLIIAGTSCYSRNLEYARLRKIADENGAYLMADMAHISGLVAAGVVPSPFEHCHVVTTTTHKTLRGCRAGMIFYRKGVKSVDPKTGKEILYNLESLINSAVFPGLQGGPHNHAIAGVAVALKQAMTLEFKVYQHQVVANCRALSEALTELGYKIVTGGSDNHLILVDLRSKGTDGGRAEKVLEACSIACNKNTCPGDRSALRPSGLRLGTPALTSRGLLEKDFQKVAHFIHRGIELTLQIQSDTGVRATLKEFKERLAGDKYQAAVQALREEVESFASLFPLPGLPDF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.29 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	94430

fit	/app/data/saxs_computation/r7/8r7h/8r7h.fit
pddf	/app/data/pr_computation/r7/8r7h/8r7h.pr.out
profile	/app/data/saxs_computation/r7/8r7h/8r7h.dat
