8r7v

MutSbeta bound to compound CHDI-00898647 in the canonical DNA-mismatch bound form

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA mismatch repair protein Msh2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 2 DNA 2	DNA mismatch repair protein Msh3 × 1 （P20585） DNA_61bp_Complement_Rev × 1 DNA_61bp_CAG2_loop_Fwd × 1 MAGNESIUM ION × 1 ADENOSINE-5'-DIPHOSPHATE × 1 ~{N}-[3-[[2-[[3-fluoranyl-4-(4-methylpiperazin-1-yl)phenyl]amino]-7~{H}-pyrrolo[2,3-d]pyrimidin-4-yl]oxy]phenyl]prop-2-enamide × 1 SULFATE ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MSH2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–934； UniProt 1–934

DNA mismatch repair protein Msh3

Homo sapiens

UniProt P20585

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 2 DNA 2	DNA mismatch repair protein Msh2 × 1 （P43246） DNA_61bp_Complement_Rev × 1 DNA_61bp_CAG2_loop_Fwd × 1 MAGNESIUM ION × 1 ADENOSINE-5'-DIPHOSPHATE × 1 ~{N}-[3-[[2-[[3-fluoranyl-4-(4-methylpiperazin-1-yl)phenyl]amino]-7~{H}-pyrrolo[2,3-d]pyrimidin-4-yl]oxy]phenyl]prop-2-enamide × 1 SULFATE ION × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MSH3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–1137； UniProt 1–1137

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8r7v
Deposition date deposition_date	2023-11-27
Last revision last_revision	2024-10-30
Structure title title	MutSbeta bound to compound CHDI-00898647 in the canonical DNA-mismatch bound form
Keywords keywords	DNA REPAIR, MISMATCH RECOGNITION, ABC FAMILY ATPase, PROTEROS BIOSTRUCTURES GMBH, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8r7v__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8r7v__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

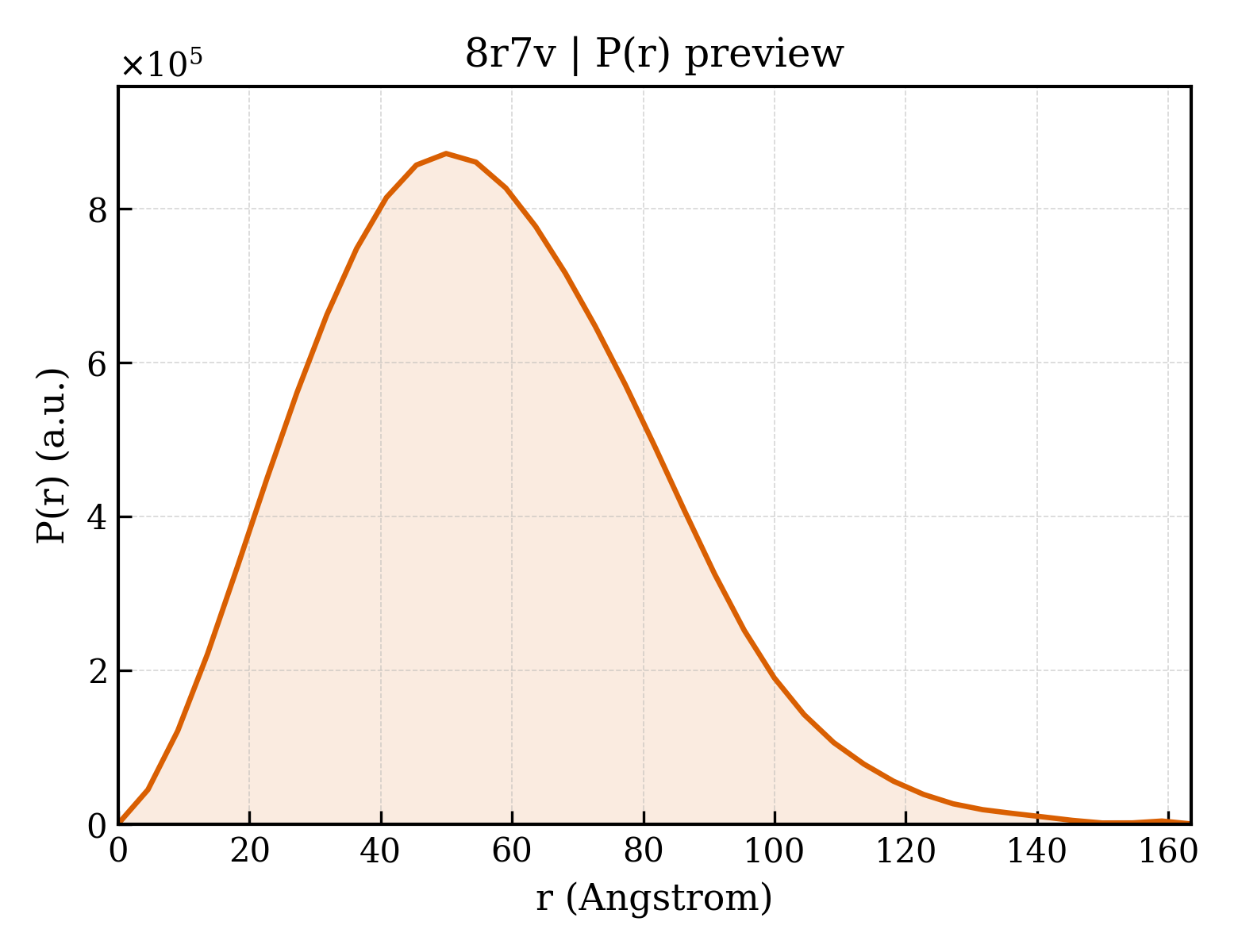

8r7v__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.44 Å
Rg (electron density)	42.57 Å
Total Rg	42.98 Å
Atom count	14627
Residues	1742
Excluded volume	258480 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8r7v__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	DNA mismatch repair protein Msh2
Molecular weight formula_weight	104861.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	14630

MAVQPKETLQLESAAEVGFVRFFQGMPEKPTTTVRLFDRGDFYTAHGEDALLAAREVFKTQGVIKYMGPAGAKNLQSVVLSKMNFESFVKDLLLVRQYRVEVYKNRAGNKASKENDWYLAYKASPGNLSQFEDILFGNNDMSASIGVVGVKMSAVDGQRQVGVGYVDSIQRKLGLCEFPDNDQFSNLEALLIQIGPKECVLPGGETAGDMGKLRQIIQRGGILITERKKADFSTKDIYQDLNRLLKGKKGEQMNSAVLPEMENQVAVSSLSAVIKFLELLSDDSNFGQFELTTFDFSQYMKLDIAAVRALNLFQGSVEDTTGSQSLAALLNKCKTPQGQRLVNQWIKQPLMDKNRIEERLNLVEAFVEDAELRQTLQEDLLRRFPDLNRLAKKFQRQAANLQDCYRLYQGINQLPNVIQALEKHEGKHQKLLLAVFVTPLTDLRSDFSKFQEMIETTLDMDQVENHEFLVKPSFDPNLSELREIMNDLEKKMQSTLISAARDLGLDPGKQIKLDSSAQFGYYFRVTCKEEKVLRNNKNFSTVDIQKNGVKFTNSKLTSLNEEYTKNKTEYEEAQDAIVKEIVNISSGYVEPMQTLNDVLAQLDAVVSFAHVSNGAPVPYVRPAILEKGQGRIILKASRHACVEVQDEIAFIPNDVYFEKDKQMFHIITGPNMGGKSTYIRQTGVIVLMAQIGCFVPCESAEVSIVDCILARVGAGDSQLKGVSTFMAEMLETASILRSATKDSLIIIDELGRGTSTYDGFGLAWAISEYIATKIGAFCMFATHFHELTALANQIPTVNNLHVTALTTEETLTMLYQVKKGVCDQSFGIHVAELANFPKHVIECAKQKALELEEFQYIGESQGYDIMEPAAKKCYLEREQGEKIIQEFLSKVKQMPFTEMSEENITIKLKQLKAEVIAKNNSFVNEIISRIKVTT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	DNA mismatch repair protein Msh3
Molecular weight formula_weight	127634.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSRRKPASGGLAASSSAPARQAVLSRFFQSTGSLKSTSSSTGAADQVDPGAAAAAAAAAAAAPPAPPAPAFPPQLPPHVATEIDRRKKRPLENDGPVKKKVKKVQQKEGGSDLGMSGNSEPKKCLRTRNVSKSLEKLKEFCCDSALPQSRVQTESLQERFAVLPKCTDFDDISLLHAKNAVSSEDSKRQINQKDTTLFDLSQFGSSNTSHENLQKTASKSANKRSKSIYTPLELQYIEMKQQHKDAVLCVECGYKYRFFGEDAEIAARELNIYCHLDHNFMTASIPTHRLFVHVRRLVAKGYKVGVVKQTETAALKAIGDNRSSLFSRKLTALYTKSTLIGEDVNPLIKLDDAVNVDEIMTDTSTSYLLCISENKENVRDKKKGNIFIGIVGVQPATGEVVFDSFQDSASRSELETRMSSLQPVELLLPSALSEQTEALIHRATSVSVQDDRIRVERMDNIYFEYSHAFQAVTEFYAKDTVDIKGSQIISGIVNLEKPVICSLAAIIKYLKEFNLEKMLSKPENFKQLSSKMEFMTINGTTLRNLEILQNQTDMKTKGSLLWVLDHTKTSFGRRKLKKWVTQPLLKLREINARLDAVSEVLHSESSVFGQIENHLRKLPDIERGLCSIYHKKCSTQEFFLIVKTLYHLKSEFQAIIPAVNSHIQSDLLRTVILEIPELLSPVEHYLKILNEQAAKVGDKTELFKDLSDFPLIKKRKDEIQGVIDEIRMHLQEIRKILKNPSAQYVTVSGQEFMIEIKNSAVSCIPTDWVKVGSTKAVSRFHSPFIVENYRHLNQLREQLVLDCSAEWLDFLEKFSEHYHSLCKAVHHLATVDCIFSLAKVAKQGDYCRPTVQEERKIVIKNGRHPVIDVLLGEQDQYVPNNTDLSEDSERVMIITGPNMGGKSSYIKQVALITIMAQIGSYVPAEEATIGIVDGIFTRMGAADNIYKGRSTFMEELTDTAEIIRKATSQSLVILDELGRGTSTHDGIAIAYATLEYFIRDVKSLTLFVTHYPPVCELEKNYSHQVGNYHMGFLVSEDESKLDPGTAEQVPDFVTFLYQITRGIAARSYGLNVAKLADVPGEILKKAAHKSKELEGLINTKRKRLKYFAKLWTMHNAQDLQKWTEEFNMEETQTSLLH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	DNA_61bp_Complement_Rev
Molecular weight formula_weight	18491.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

GAATTGGGTACCGCTGAATTGCACCGAGCTGATCCTCGATGATCCTAAGCTAAGCTTCAG

Entity 4 Entity 4 polymer

Description description	DNA_61bp_CAG2_loop_Fwd
Molecular weight formula_weight	20355.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	D

CTGAAGCTTAGCTTAGGATCATCGAGGATCCAGCAGAGCTCGGTGCAATTCAGCGGTACCCAATTC

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	~{N}-[3-[[2-[[3-fluoranyl-4-(4-methylpiperazin-1-yl)phenyl]amino]-7~{H}-pyrrolo[2,3-d]pyrimidin-4-yl]oxy]phenyl]prop-2-enamide
Molecular weight formula_weight	487.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.120 Å
Low-resolution limit resolution_low	292.540 Å
R factor r_factor	0.3769
R_work r_work	0.3769
R_free r_free	—

Resolution resolution	3.12 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	273352
