1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein cereblon

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	DNA-binding protein Ikaros × 2 （Q13422） ZINC ION × 4 Mezigdomide × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CRBN_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–148； UniProt 41–187 Author chain A； PDBConstruct 152–329； UniProt 249–426 Author chain D； PDBConstruct 2–148； UniProt 41–187 Author chain D； PDBConstruct 152–329； UniProt 249–426

DNA-binding protein Ikaros

Homo sapiens

UniProt Q13422

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Protein cereblon × 2 （Q96SW2） ZINC ION × 4 Mezigdomide × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IKZF1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–36； UniProt 141–174 Author chain E； PDBConstruct 3–36； UniProt 141–174

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8rqc
Deposition date deposition_date	2024-01-17
Structure title title	Crystal structure of CRBN-midi in complex with mezigdomide and IKZF1 ZF2
Keywords keywords	E3 ligase, PROTAC, TPD, molecular glue, targeted protein degradation, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8rqc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8rqc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

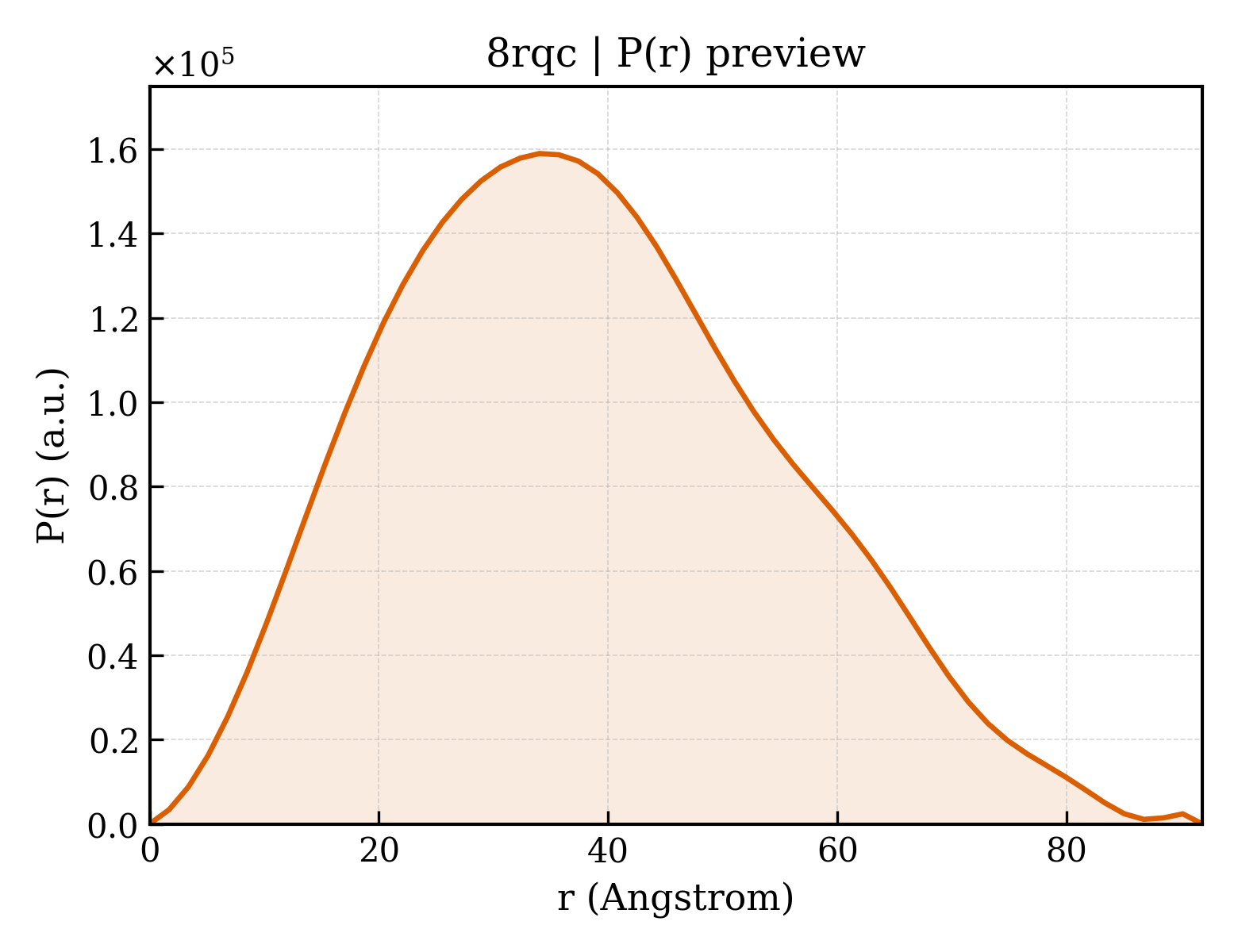

8rqc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.43 Å
Rg (electron density)	28.58 Å
Total Rg	29.14 Å
Atom count	5121
Residues	666
Excluded volume	90724 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8rqc__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Protein cereblon
Molecular weight formula_weight	37478.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	5303

SAKKPNIINFDTSLPTSHTYLGADMEEFHGRTLHDDDSIQVIPVLPQVMMILVPGQTLPLQLFHPQEVSMVRNLIQNDRTFAVLAYSNVQEREAEFGTTAEIYAYREEQDFGIEIVKVKAIGRQRFKVLELRTQSDGIQQAKVQILPEGSGDAETLMDRIKKQLREWDENLKDDSLPSNPIDFSYWVAANLPIDDSLRIQLLKIDSAIQRLRCELDIMNKCTSLCCKQCQETEITTKNEIFSLSREGPMAAYVNPHGYVHEILTVYKACNLNLIGRPSTEHSWFPGYAWTVAQCKICASHIGWKFTATKKDMSPQKFWGLTRSALIPTI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	DNA-binding protein Ikaros
Molecular weight formula_weight	4019.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

GPGERPFQCNQCGASFTQKGNLLRHIKLHSGEKPFK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	Mezigdomide
Molecular weight formula_weight	567.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	179

▶

Unit-cell length a length_a	53.585 Å
Unit-cell length b length_b	142.842 Å
Unit-cell length c length_c	56.693 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	112.34 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	52.440 Å
R factor r_factor	0.2619
R_work r_work	0.2607
R_free r_free	0.2859
