SAXSdb — 8s31

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Serine/threonine-protein kinase PLK1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Mis18-binding protein 1 × 1 （Q6P0N0） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Mis18-binding protein 1 × 1 （Q6P0N0） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PLK1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–242； UniProt 365–603 Author chain B； PDBConstruct 4–242； UniProt 365–603

Mis18-binding protein 1

OrganismNot specified

UniProt Q6P0N0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Serine/threonine-protein kinase PLK1 × 1 （P53350） water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Serine/threonine-protein kinase PLK1 × 1 （P53350） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	M18BP_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–11； UniProt 72–82 Author chain D； PDBConstruct 1–11； UniProt 72–82

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8s31
Deposition date deposition_date	2024-02-19
Structure title title	Crystal structure of human PLK1 Polo-Box Domain in complex with Mis18BP1
Keywords keywords	PLK1, Mis18 complex, Centromere, Chromosome mis segregation, CELL CYCLE; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8s31__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8s31__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

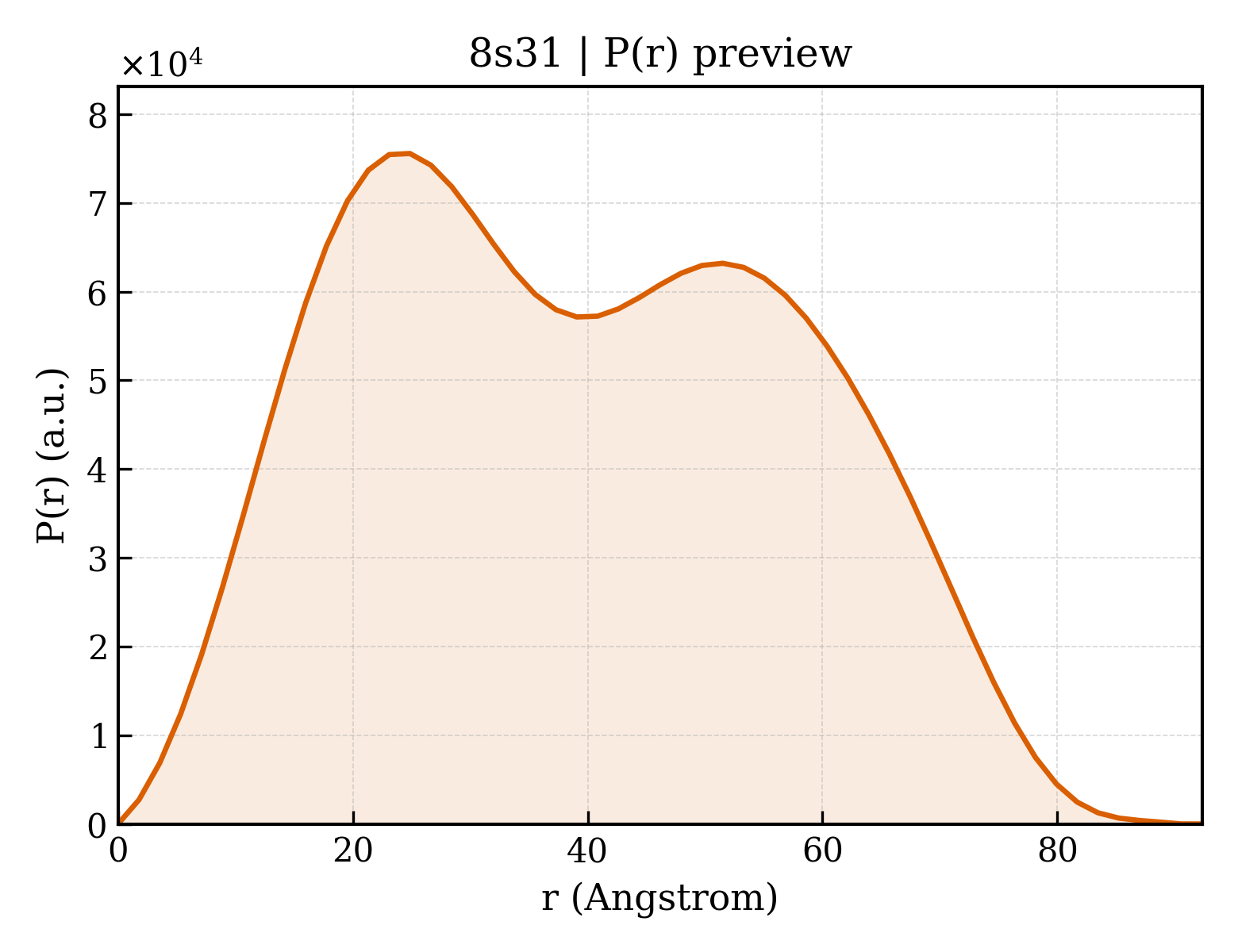

8s31__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.26 Å
Rg (electron density)	18.09 Å
Total Rg	19.07 Å
Atom count	1902
Residues	234
Excluded volume	33845 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8s31__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8s31__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Serine/threonine-protein kinase PLK1
Molecular weight formula_weight	27877.8 kDa
EC 编号 ec_number	2.7.11.21
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4013

RSMETGEVVDCHLSDMLQQLHSVNASKPSERGLVRQEEAEDPACIPIFWVSKWVDYSDKYGLGYQLCDNSVGVLFNDSTRLILYNDGDSLQYIERDGTESYLTVSSHPNSLMKKITLLKYFRNYMSEHLLKAGANITPREGDELARLPYLRTWFRTRSAIILHLSNGSVQINFFQDHTKLILCPLMAAVTYIDEKRDFRTYRLSLLEEYGCCKELASRLRYARTMVDKLLSSRSASNRLKAS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Mis18-binding protein 1
Molecular weight formula_weight	1392.5 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

KNIFQSTMLTE

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	211

▶

Unit-cell length a length_a	67.147 Å
Unit-cell length b length_b	67.147 Å
Unit-cell length c length_c	254.536 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	trigonal

Resolution resolution	2.134 Å
Low-resolution limit resolution_low	29.080 Å
R factor r_factor	0.1967
R_work r_work	0.1950
R_free r_free	0.2244
