SAXSdb — 8sms

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

3-oxoacyl-[acyl-carrier-protein] synthase 1

Escherichia coli K-12

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Acyl carrier protein × 2 （H5V184） N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-{2-[(2R)-2-hydroxy-4-oxododecanamido]ethyl}-beta-alaninamide × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FABB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–406； UniProt 2–405 Author chain B； PDBConstruct 3–406； UniProt 2–405

Acyl carrier protein

Atlantibacter hermannii NBRC 105704

UniProt H5V184

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	3-oxoacyl-[acyl-carrier-protein] synthase 1 × 2 （P0A953） N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-{2-[(2R)-2-hydroxy-4-oxododecanamido]ethyl}-beta-alaninamide × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	H5V184_ATLHE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–77； UniProt 2–78 Author chain D； PDBConstruct 1–77； UniProt 2–78

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8sms
Deposition date deposition_date	2023-04-26
Structure title title	Crosslinked Crystal Structure of Type II Fatty Acid Synthase, FabB, and cerulenin crosslinker-crypto Acyl Carrier Protein, AcpP
Keywords keywords	;Ketosynthase, FabB, AcpP, acyl carrier protein, cerulenin, crosslinker, crosslink, fatty acid biosynthesis, natural product, BIOSYNTHETIC PROTEIN ;; BIOSYNTHETIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8sms__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8sms__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

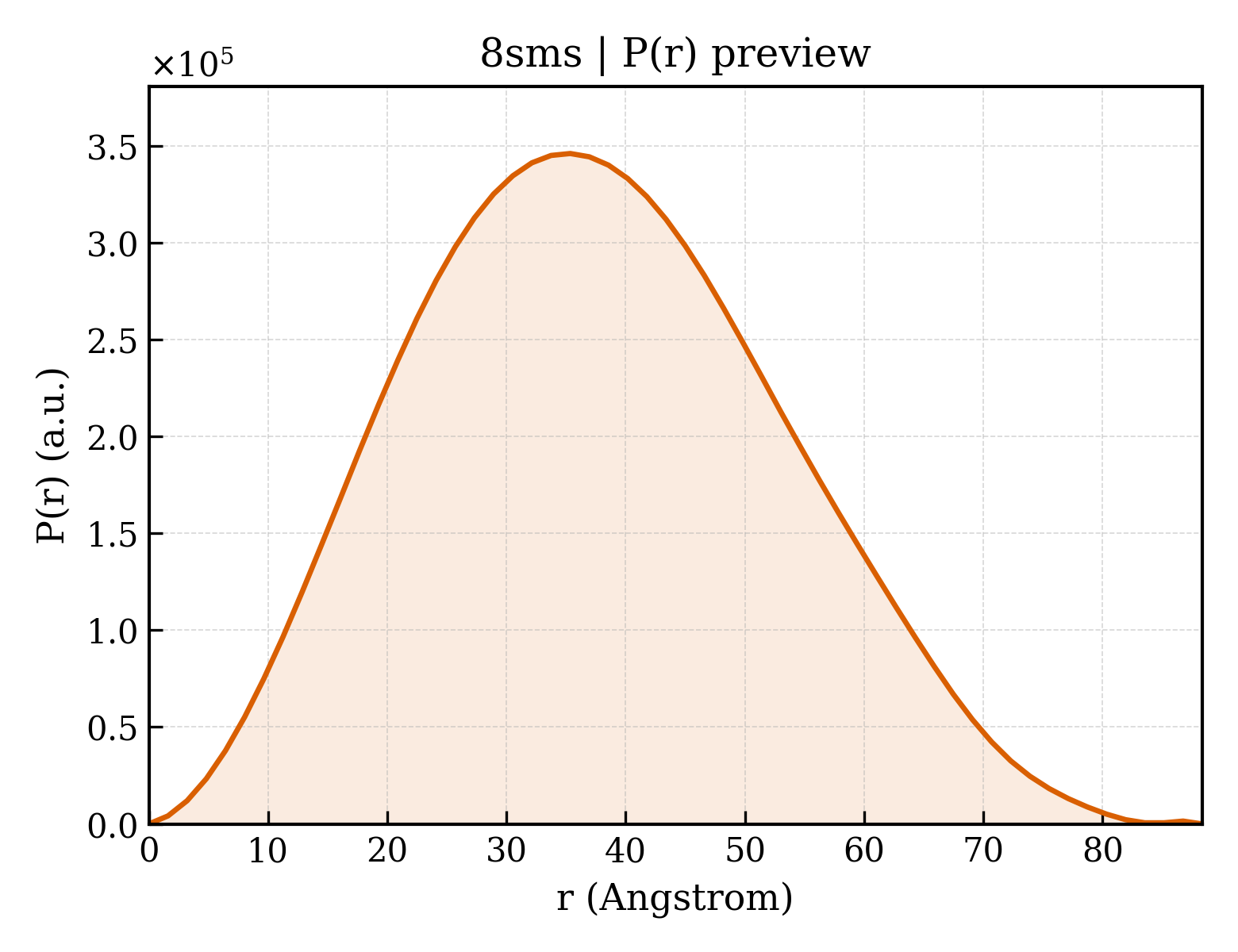

8sms__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.77 Å
Rg (electron density)	27.86 Å
Total Rg	28.51 Å
Atom count	7203
Residues	964
Excluded volume	127470 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8sms__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	3-oxoacyl-[acyl-carrier-protein] synthase 1
Molecular weight formula_weight	42596.1 kDa
EC 编号 ec_number	2.3.1.41
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7603

VSKRAVITGLGIVSSIGNNQQEVLASLREGRSGITFSQELKDSGMRSHVWGNVKLDTTGLIDRKVVRFMSDASIYAFLSMEQAIADAGLSPEAYQNNPRVGLIAGSGGGSPRFQVFGADAMRGPRGLKAVGPYVVTKAMASGVSACLATPFKIHGVNYSISSACATSAHCIGNAVEQIQLGKQDIVFAGGGEELCWEMACEFDAMGALSTKYNDTPEKASRTYDAHRDGFVIAGGGGMVVVEELEHALARGAHIYAEIVGYGATSDGADMVAPSGEGAVRCMKMAMHGVDTPIDYLNSHGTSTPVGDVKELAAIREVFGDKSPAISATKAMTGHSLGAAGVQEAIYSLLMLEHGFIAPSINIEELDEQAAGLNIVTETTDRELTTVMSNSFGFGGTNATLVMRKLK

Source Source

Source organism organism	Escherichia coli K-12
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 polymer

Description description	Acyl carrier protein
Molecular weight formula_weight	8514.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

STIEERVKKIIGEQLGVKQEEVTNNASFVEDLGADSLDTVELVMALEEEFDTEIPDEEAEKITTVQAAIDYINGHQA

Source Source

Source organism organism	Atlantibacter hermannii NBRC 105704
NCBI taxonomy ID ncbi_taxonomy_id	1115512
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 Entity 3 non-polymer

Description description	N~3~-[(2R)-2-hydroxy-3,3-dimethyl-4-(phosphonooxy)butanoyl]-N-{2-[(2R)-2-hydroxy-4-oxododecanamido]ethyl}-beta-alaninamide
Molecular weight formula_weight	553.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	248

▶

Unit-cell length a length_a	59.030 Å
Unit-cell length b length_b	100.230 Å
Unit-cell length c length_c	78.310 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	109.34 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.930 Å
Low-resolution limit resolution_low	37.250 Å
R factor r_factor	0.2042
R_work r_work	0.2016
R_free r_free	0.2551
