SAXSdb — 8tnl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemagglutinin

Influenza A virus (A/Shanghai/02/2013(H7N9))

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 9	H7.HK1 Neutralizing Antibody Heavy Chain × 3 H7.HK1 Neutralizing Antibody Heavy Chain × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A067Y6L0_9INFA
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–520； UniProt 1–515 Author chain I； PDBConstruct 1–520； UniProt 1–515 Author chain K； PDBConstruct 1–520； UniProt 1–515

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8tnl
Deposition date deposition_date	2023-08-02
Structure title title	CryoEM structure of H7 hemagglutinin from A/Shanghai2/2013 H7N9 in complex with a human neutralizing antibody H7.HK1
Keywords keywords	virus, antibody, influenza, VIRAL PROTEIN, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8tnl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8tnl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

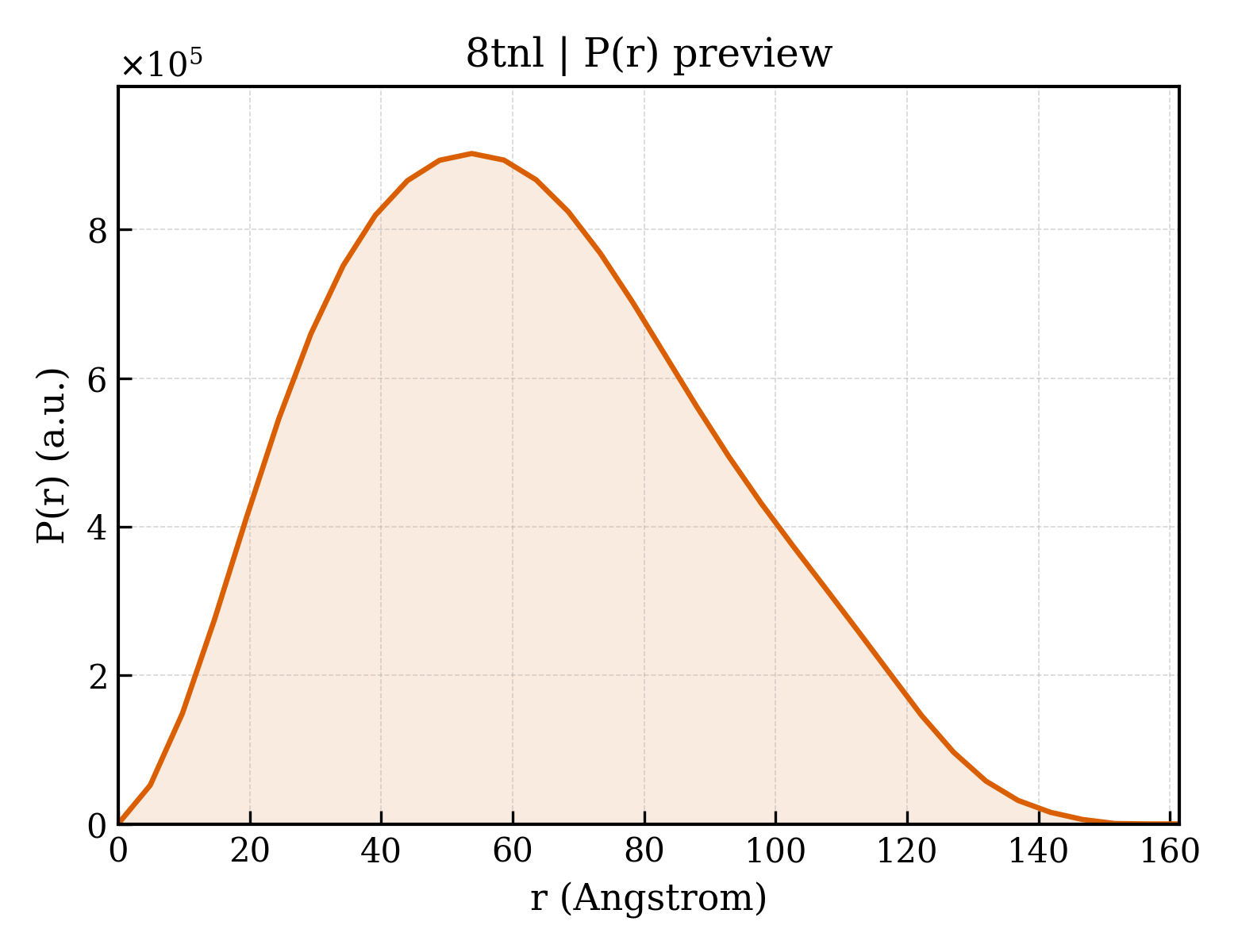

8tnl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.15 Å
Rg (electron density)	47.90 Å
Total Rg	48.03 Å
Atom count	16478
Residues	2112
Excluded volume	289980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8tnl__assembly_1__model_1`	nonameric （9）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	H7.HK1 Neutralizing Antibody Heavy Chain
Molecular weight formula_weight	12856.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,D,A
Atom count atom_count	16478

QVQLQESGPGLVKPSETLSLTCSVSGGSINSYYWTWIRQPPGKGLEWVGYIYHSGSTSYNPSLKSRITISVAPSKNHFSLELTSMTAADTAVYYCARLGGHGDYGSDYWGQGTLVTVSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	H7.HK1 Neutralizing Antibody Heavy Chain
Molecular weight formula_weight	12153.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,E,B

DIVMTQSPVSLPVTPGEPASISCNSSQSLLHSNGYAHLDWYLQKPGQSPKLMIYLGLNRAFGVPDRFSGSGSGTDFTLKISRVEAEDVGVYYCMQALQTPFTFGPGTRVDIK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Hemagglutinin
Molecular weight formula_weight	63075.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,I,K

MNTQILVFALIAIIPTNADKICLGHHAVSNGTKVNTLCERGVEVVNATETVERTNIPRICSKGKRTVDLGQCGLLGTITGPPQCDQFLEFSADLIIERREGSDVCYPGKFVNEEALRQILRESGGIDKEAMGFTYSGIRTNGATSSCRRSGSSFYAEMKWLLSNTDNAAFPQMTKSYKNTRKNPALIVWGIHHSGSTAEQTKLYGSGNKLVTVGSSNYQQSFVPSPGARTQVNGQSGRIDFHWLMLNPNDTVTFSFNGAFIAPDRASFLRGKSMGIQSGVQVDADCEGDCYYSGGTIISNLPFQNIDSRAVGKCPRYVKQRSLLLATGMKNVPEIPKGRRRRRRGLFGAIAGFIENGWEGLIDGWYGFRHQNAQGEGTAADYKSTQSAIDCITGKLNRLIEKTNQQFELIDNEFTEVEKQIGNVINWTRDSITEVWSYNAELLVAMENQHTIDLADSEMDKLYERVKRQLRENAEEDGTGCFEIFHKCDDDCMASIRNNTYDHSKYREEAMQNRIQIDGVSGRLVPRGSPGSGYIPEAPRDGQAYVRKDGEWVLLSTFLGHHHHHH

Source Source

Source organism organism	Influenza A virus (A/Shanghai/02/2013(H7N9))
NCBI taxonomy ID ncbi_taxonomy_id	1332244
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	7

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.62 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	178347
